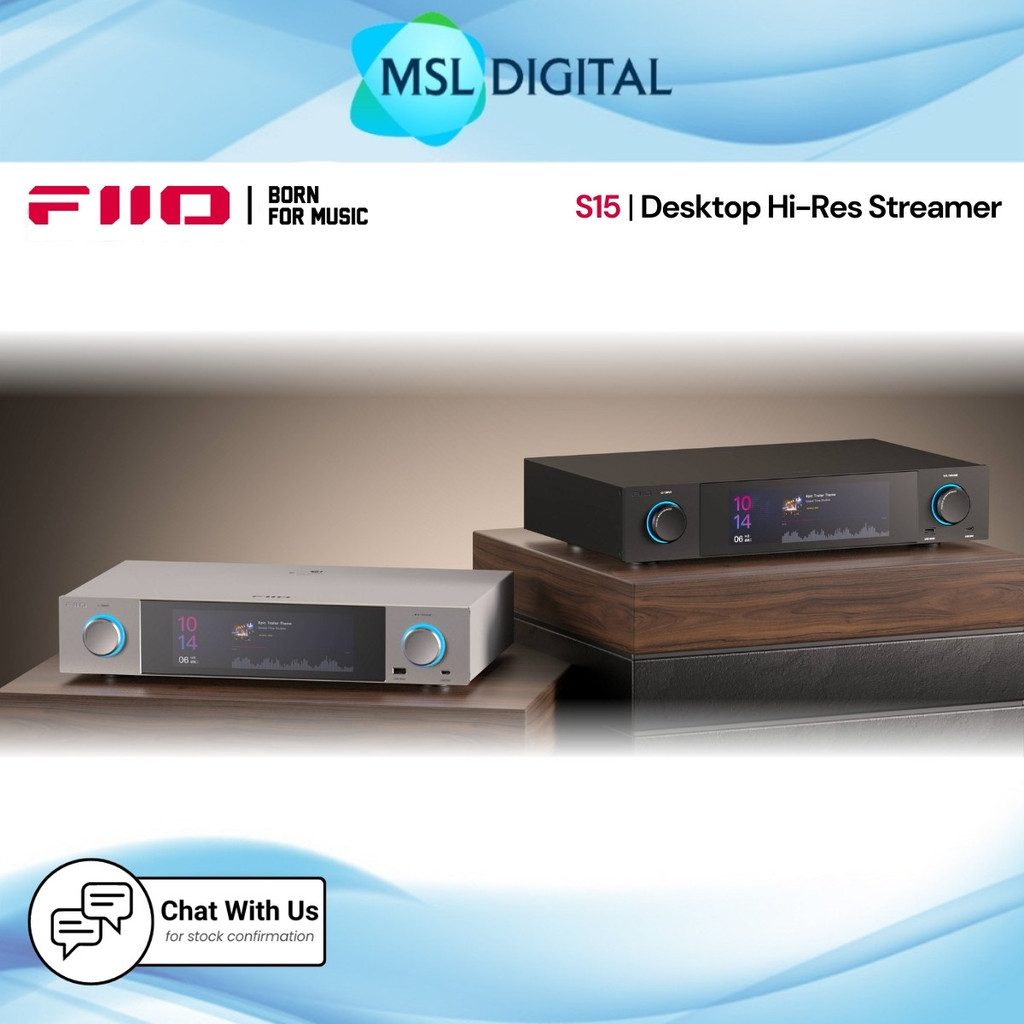

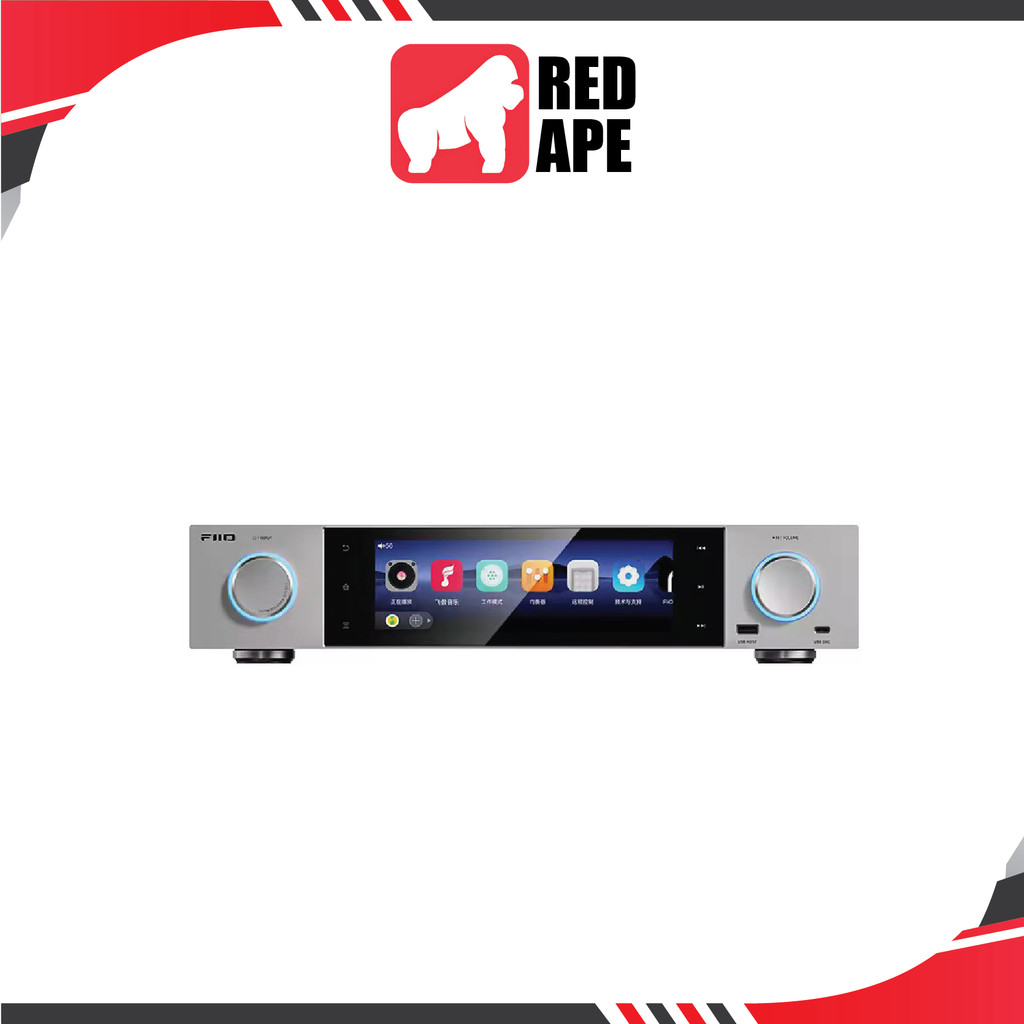

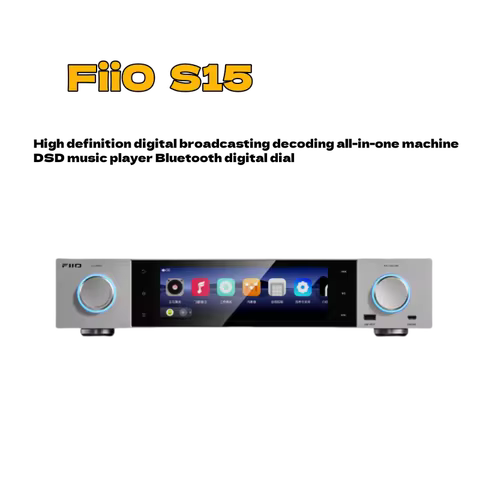

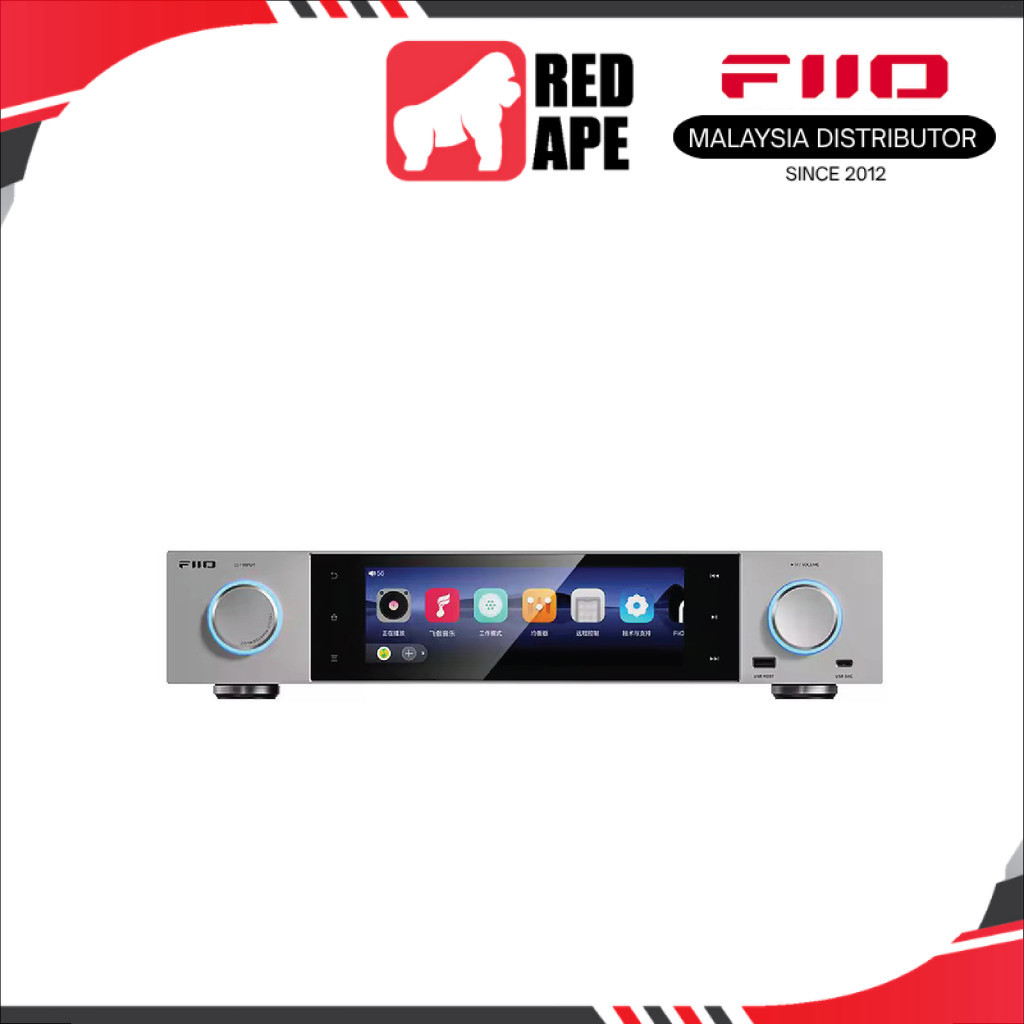

The FiiO S15 is a sophisticated DAC/Streamer/Preamplifier featuring a 7.84-inch frameless touchscreen and Android 12 OS. It boasts exceptional audio performance with the AK4499EX DAC supporting up to 768kHz/32-bit processing. The device offers comprehensive connectivity including XLR/RCA outputs, multiple digital inputs, and wireless capabilities with Wi-Fi 802.11ac and Bluetooth 5.0 supporting multiple hi-res codecs. Notable features include 10-Band EQ, VU meters, and streaming support for Roon, DLNA, and AirPlay.
Specifications
Price
Specifications
Basic info
Brand
FiiO
Model
S15
Colour
Black/Silver
Manufacture year
2024
Type
DAC/Streamer/Preamplifier
Power specifications
Power output
THD
0.0002
Power supply
Power consumption
Operating
35
Voltage
110-120V/220-240V
Frequency
50/60Hz
Digital processing
DAC
Sampling rate
768kHz
Model
AK4191 + AK4499EX
Bit depth
32-bit
Additional features
Display type
7.84-inch frameless touchscreen
Remote control
Yes
Special features
Android 12 OS, 10-Band Parametric EQ, VU meters, FiiO Music app
Included accessories
Remote control, HDD cage, Spare fuse, Power cord, Dust plugs, Warranty card, Quick start guide
Audio performance
Channel separation
-117 dB (XLR), -112 dB (RCA)
Frequency response
20 Hz β 20 kHz (Β±0.2 dB)
Signal to noise ratio
Line
131 dB (XLR), 128 dB (RCA)
Total harmonic distortion
<0.0002% (XLR), <0.00026% (RCA)
Connectivity
Inputs
Digital
Coaxial
1
USB
3
HDMI
2
Optical
1
Analogue
RCA
1
XLR
1
Outputs
Digital
Coaxial
1
HDMI
1
Optical
1
Analogue
RCA
1
XLR
2
Wireless features
Bluetooth
Codecs
SBC, AAC, aptX, aptX HD, LDAC, LHDC
Version
5.0
Streaming services
Roon Ready, DLNA, AirPlay
WiFi
Standards
802.11a/b/g/n/ac
Bands
2.4GHz, 5GHz
Warranty
Coverage
terhad
Duration
1 tahun
Physical specifications
Dimensions
Unit
mm
Depth
89.5
Width
430
Height
274.5
Weight
Unit
kg
Value
5.647
