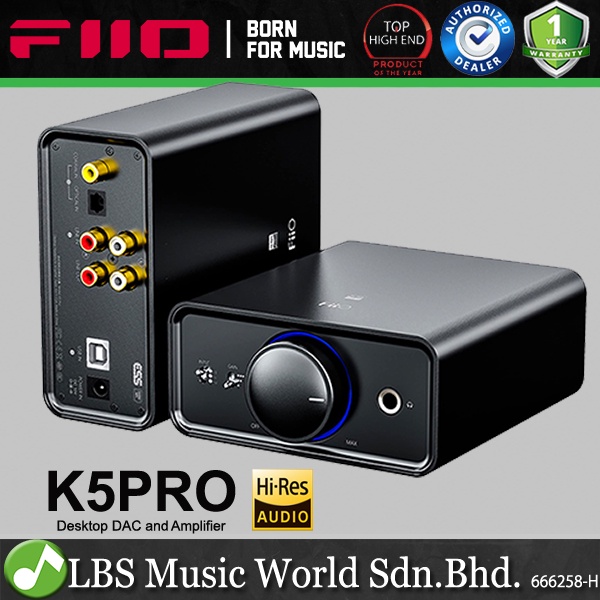

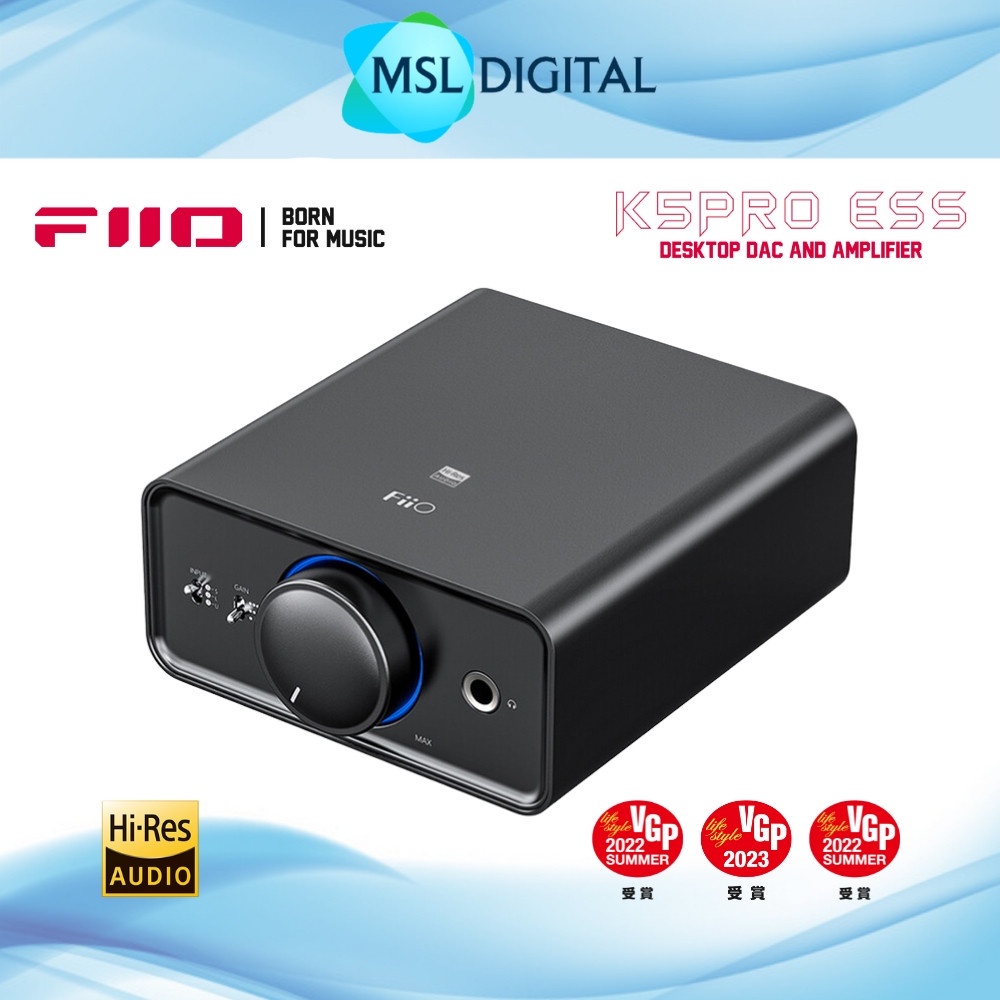

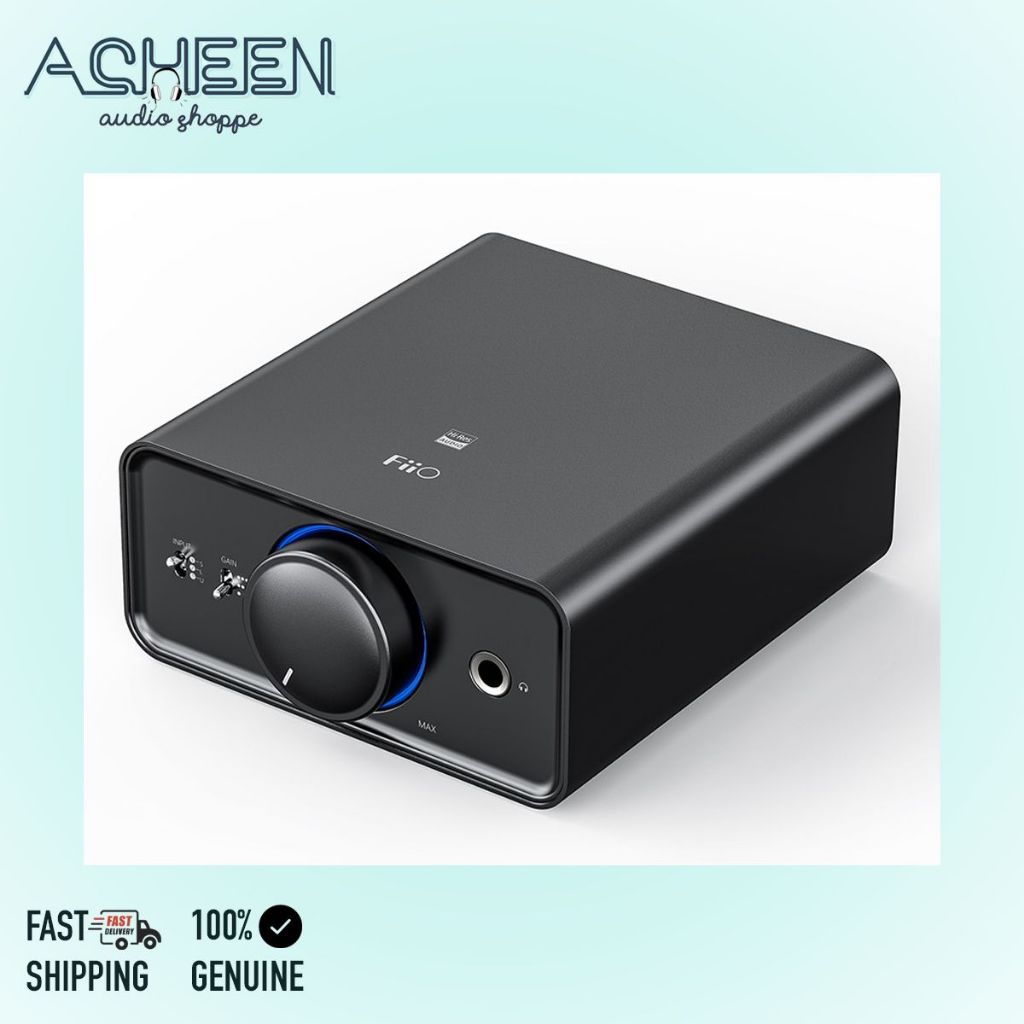

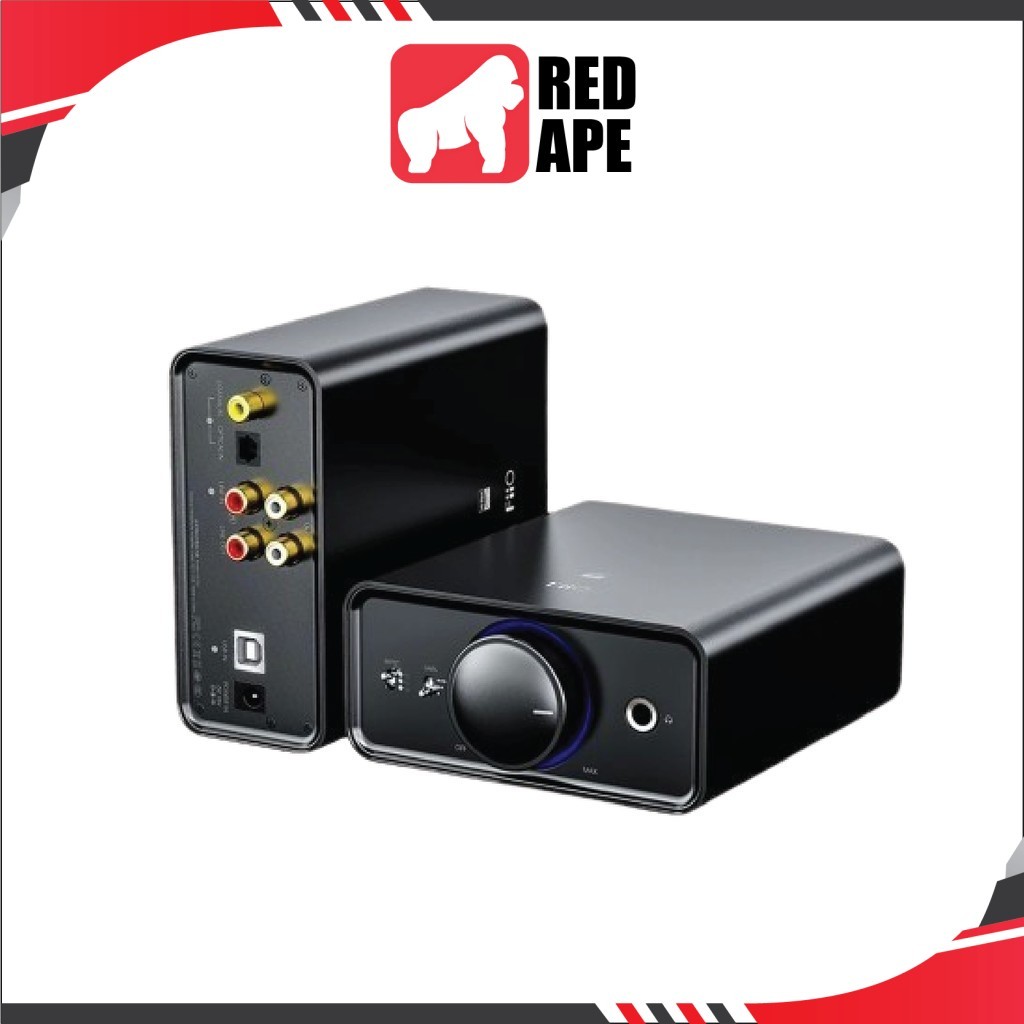

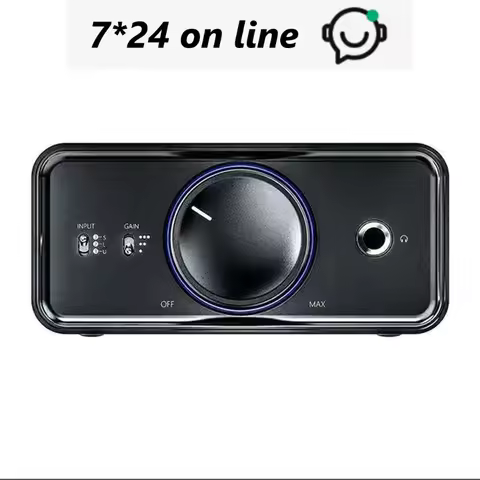

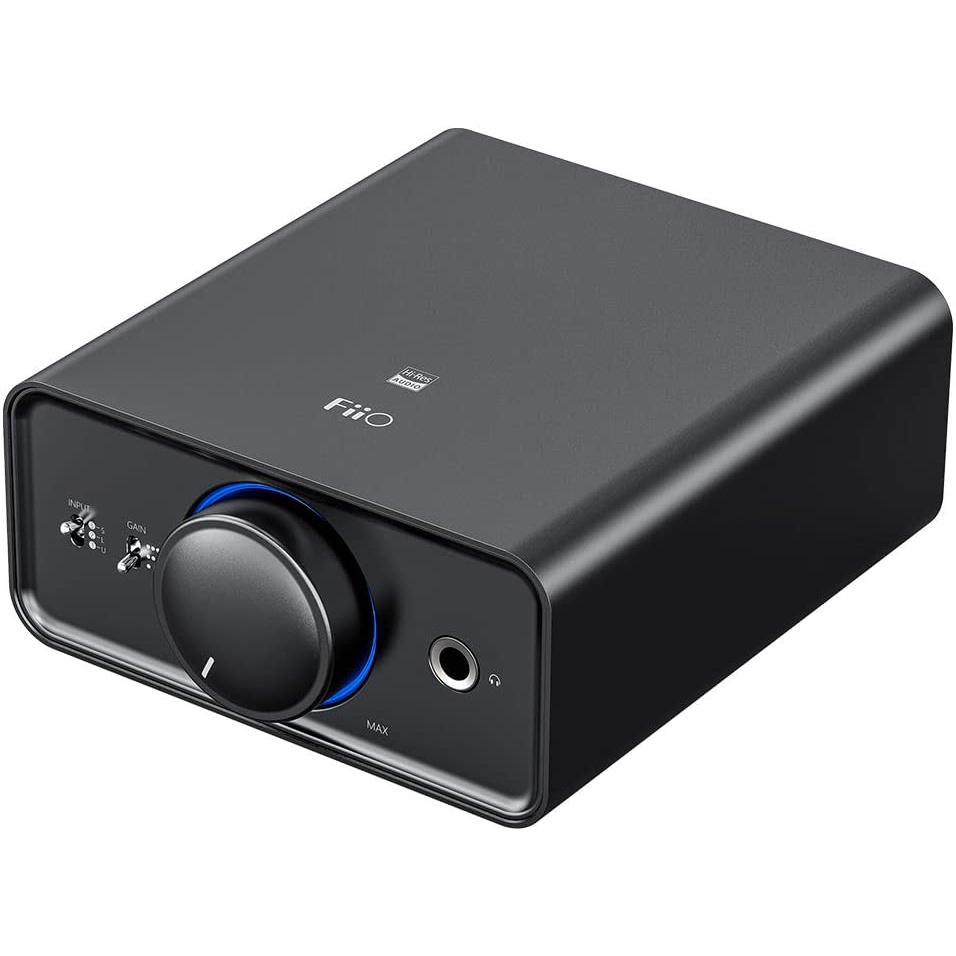

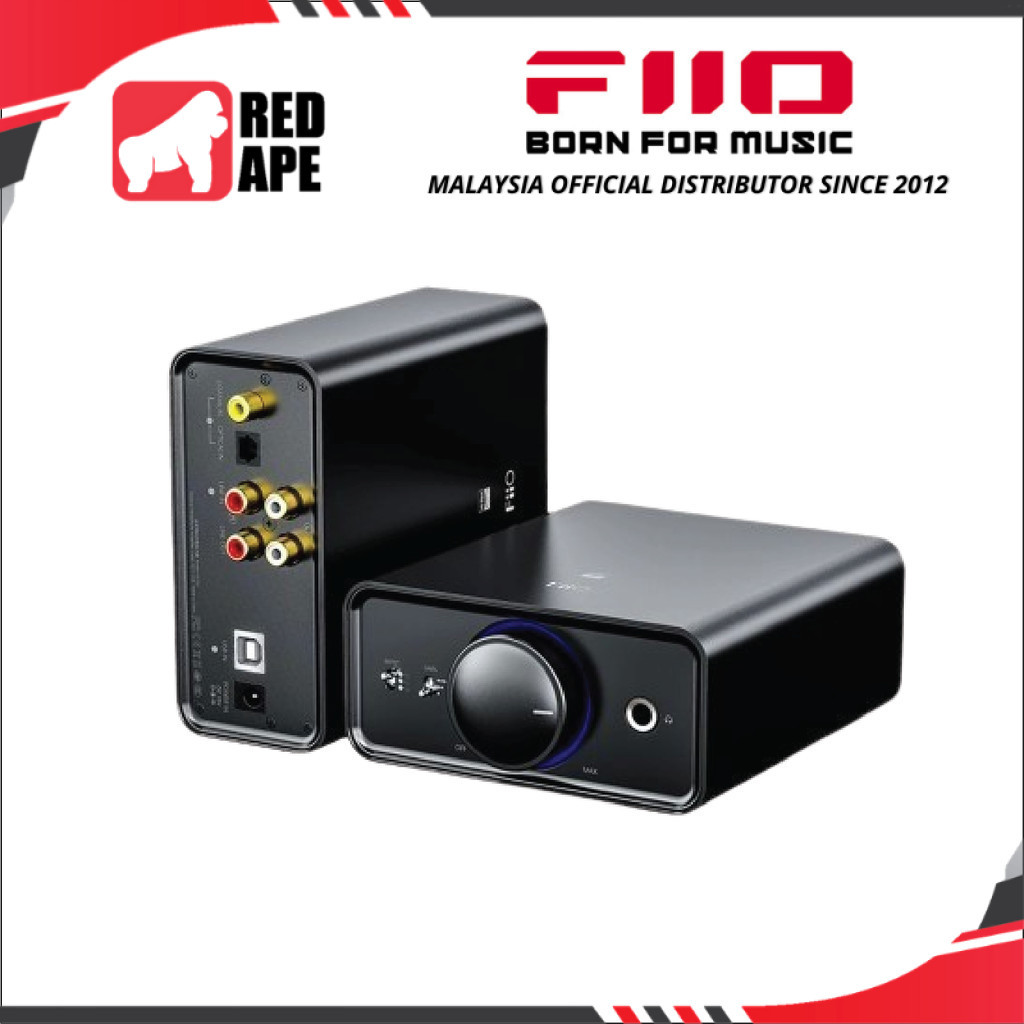

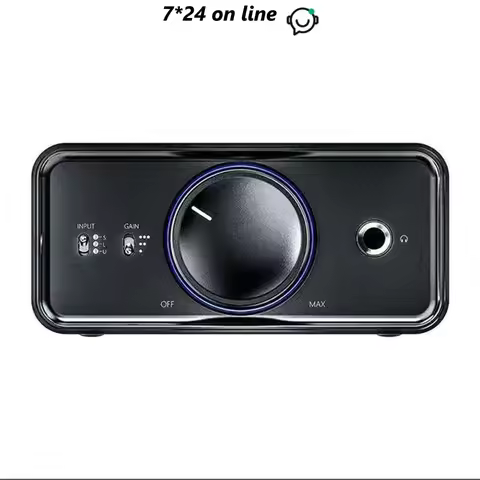

The FiiO K5 Pro is a versatile desktop DAC/Amp featuring solid-state amplification in an aluminum chassis. It delivers impressive audio performance with 1.5W power output at 32Ω, 115dB SNR, and 0.004% THD. Supporting high-res formats including DSD512 and PCM up to 768kHz/32-bit, it offers multiple inputs (USB-B, optical, coaxial, RCA) and adjustable gain settings (6/10dB). Perfect for headphones 16-300Ω, it's compatible with PCs, gaming consoles, and DAPs.
Specifications
Price
Shopee
RM599.00
13 products(9 items sold out)
Lazada
RM708.34
1 product
Specifications
Basic information
Brand
FiiO
Model
K5 Pro
Amplification type
Solid-state
Product type
Desktop DAC/Amp
Colour
Black
Material
Aluminum
Release date
2021-12-31
Warranty support
Standard warranty
1 tahun
Support type
Pembuatan
Input specifications
Analogue inputs
RCA
1
Digital inputs
Coaxial
Yes
USB
Connector type
USB-B
Version
USB-B
Supported
Yes
Optical
Yes
Power specifications
Power supply
Current
1.5
Current unit
A
Type
DC adapter
Voltage unit
V
Voltage
15
Features
Gain settings
spec_grouping_headphone_amplifier_1
6
spec_grouping_headphone_amplifier_2
10
Gain unit
dB
Special functions
Preamp function, LED indicator for sample rate
Volume control
ADC digital volume
Included accessories
Rubber pads, 3.5mm-to-6.3mm adapter, USB cable, Power supply
Audio performance
Frequency response
Range
20Hz-80kHz
Signal to noise ratio
Unit
dB
Value
115
Total harmonic distortion
Unit
%
Value
0.004
Physical specifications
Dimensions
Depth unit
mm
Depth
55
Height unit
mm
Width
120.5
Width unit
mm
Height
130
Weight
Unit
g
Value
436
Audio format support
DSD
Formats
DSD64, DSD128, DSD256, DSD512
PCM
Sampling rates
44.1kHz, 48kHz, 96kHz, 192kHz, 384kHz, 768kHz
Bit depth
16-bit, 24-bit, 32-bit
Output specifications
Headphone outputs
Single ended
Voltage output
19.68 Vp-p
Power output
1.5W @ 32Ω
Connector type
6.35mm
Impedance
1.2
Impedance unit
ohms
Line outputs
Level
2
Level unit
Vrms
Type
RCA
Compatibility
Recommended headphone impedance
Unit
ohms
Minimum
16
Maximum
300
Supported devices
PC, Gaming consoles, DAPs
