The FiiO BTR17 is a cutting-edge portable Bluetooth DAC/amp featuring dual ESS ES9069Q DACs and THX AAA 78+ amplification. It supports high-res formats including PCM, DSD512, and MQA, with sampling rates up to 768kHz. The device offers comprehensive Bluetooth 5.4 connectivity with multiple codecs including aptX Lossless and LDAC. With both 3.5mm and 4.4mm outputs, 0.65W per channel power output, and a 1.3-inch IPS display, it delivers exceptional audio performance with -120dB THD and 130dB SNR.
Specifications
Price
RM929.00
8 products
Specifications
Basic info
Brand
fiio
Model
BTR17
Colour
Black, Blue
Manufacture year
2024
Type
Portable Bluetooth DAC and Headphone Amplifier
Power specifications
Power output
Watts per channel
0.65
THD
-120
Channels
2
Impedance
32
Power supply
Voltage
5V
Digital processing
DAC
Sampling rate
768kHz
Model
Dual ESS ES9069Q
Bit depth
32-bit
Supported formats
PCM, DSD512, MQA
Supported sampling rates
44.1kHz, 48kHz, 96kHz, 192kHz, 384kHz, 768kHz
Additional features
Display type
1.3-inch IPS color screen
Special features
Desktop Mode, 10-band PEQ, THX AAA 78+ Amplification
Included accessories

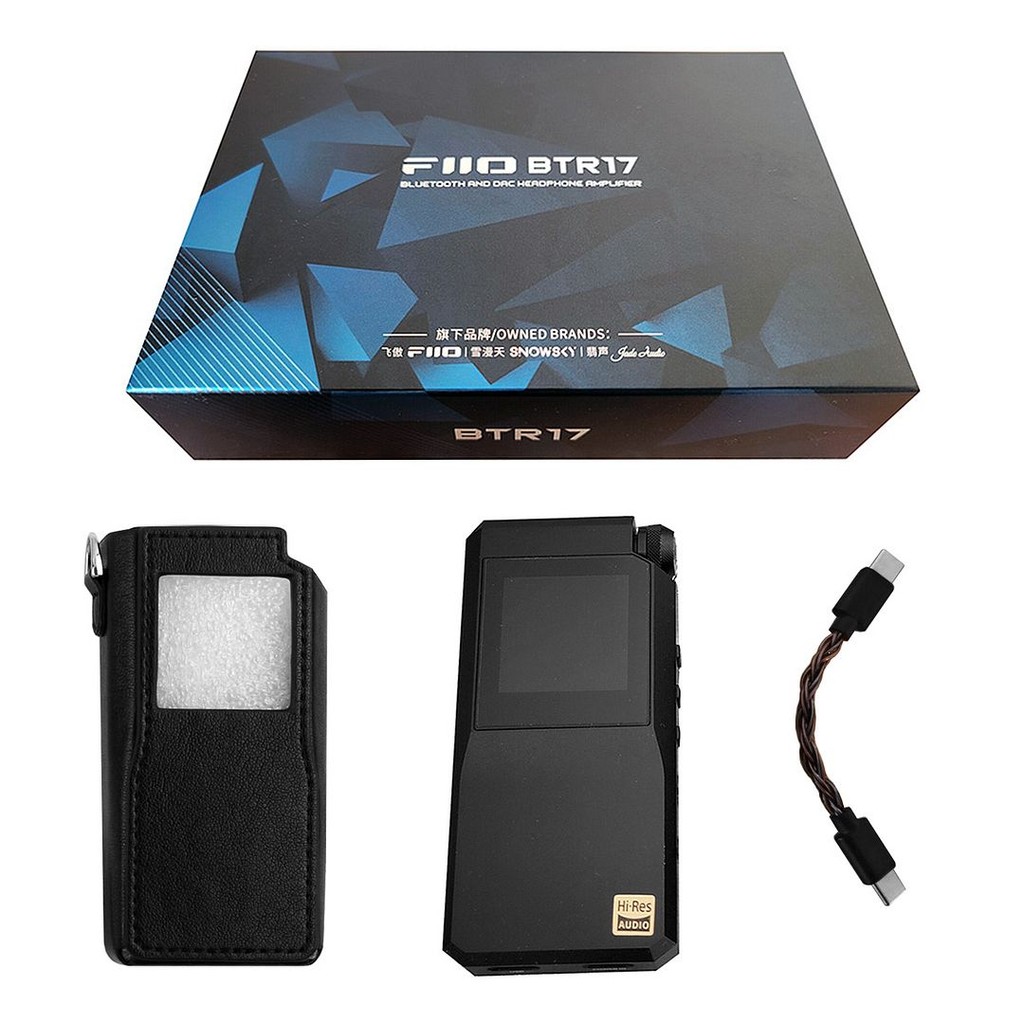

Leatherette case, USB-C cable, Quick start guide, Warranty card
Audio performance
Frequency response
20Hz-40kHz
Signal to noise ratio
Line
130dB
Total harmonic distortion
-120dB
Connectivity
Inputs
Digital
USB
1
Outputs
Headphone
3.5mm, 4.4mm
Wireless features
Bluetooth
Codecs
AAC, SBC, aptX, aptX Adaptive, aptX Lossless, aptX HD, LDAC
Version
5.4
Physical specifications
Dimensions
Unit
mm
Depth
86.6
Width
41.2
Height
16.3
Weight
Unit
g
Value
73.4
