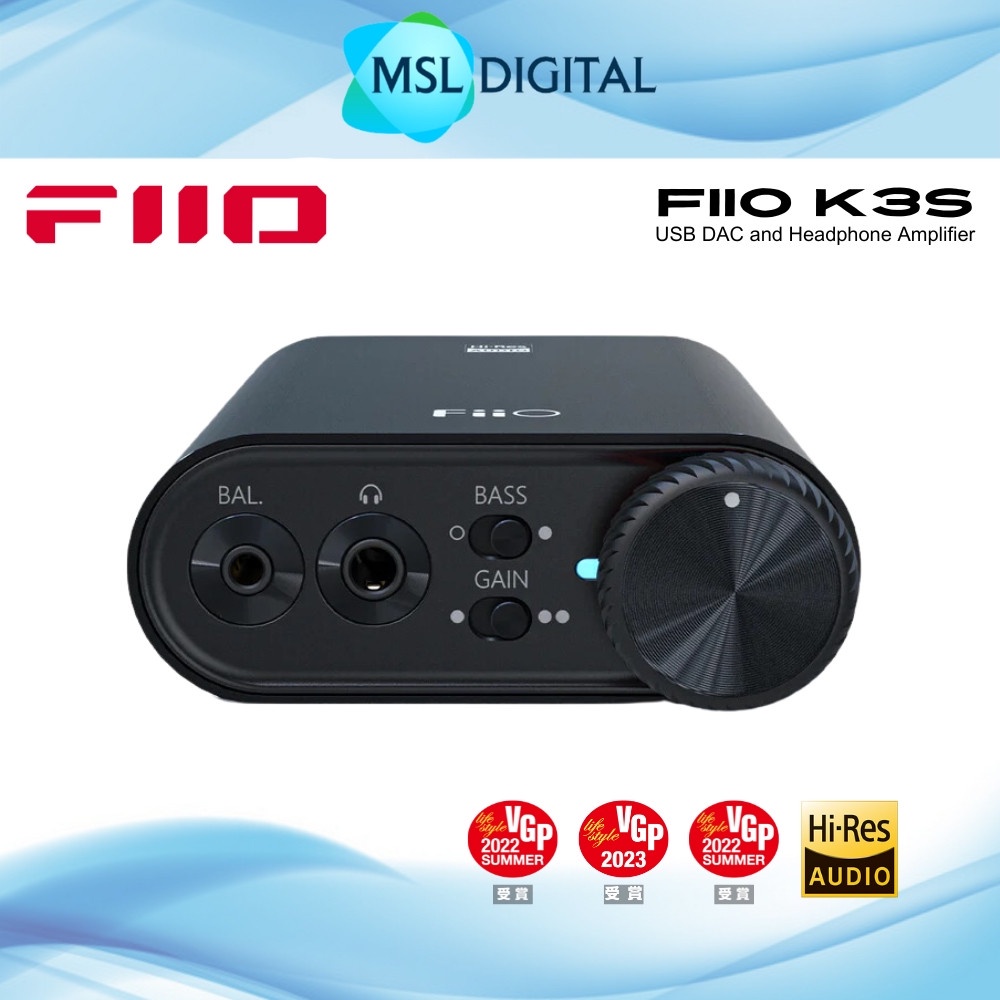

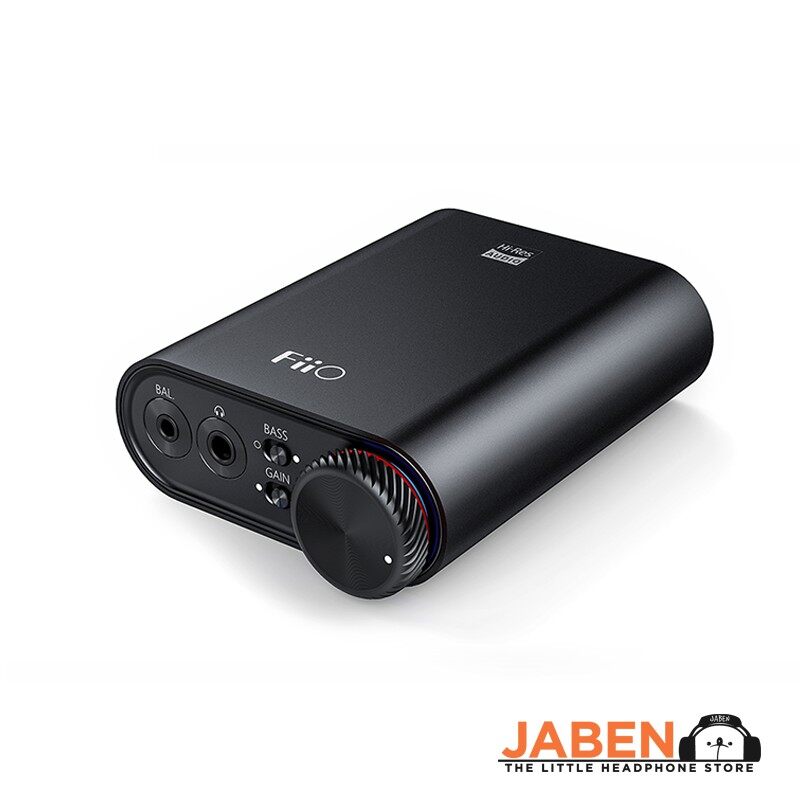

The FiiO K3s is a versatile hybrid DAC/Amp featuring both 3.5mm single-ended and 4.4mm balanced outputs. It delivers impressive power output of 160mW (SE) and 280mW (balanced) at 32 ohms, with dual gain settings of 6dB/12dB. Supporting high-resolution audio up to 384kHz/32-bit PCM and DSD256, it boasts excellent audio performance with 120dB SNR and 0.001% THD. The aluminum-built device includes bass boost and low-pass filter functions, compatible with Windows, macOS, Android, and iOS devices.
Specifications
Price
Shopee
RM459.00
2 products(All items sold out)
Lazada
RM469.00
1 product
Specifications
Basic information
Brand
FiiO
Model
K3s
Amplification type
Hybrid
Product type
DAC/Amp
Colour
Hitam
Material
Aluminium
Release date
2023-01-01
Warranty support
Standard warranty
1 tahun
Support type
Pembaikan tempatan
Input specifications
Digital inputs
USB
Connector type
Type-C
Version
USB 2.0
Supported
Yes
Power specifications
Power consumption
Unit
W
Standby
0.5
Operating
2
Power supply
Current
1
Current unit
A
Type
USB
Voltage unit
V
Voltage
5
Features
Gain settings
spec_grouping_headphone_amplifier_1
6
spec_grouping_headphone_amplifier_2
12
Gain unit
dB
Special functions
Bass Boost, Low-pass Filter
Volume control
Digital
Included accessories
Kabel USB Type-C, Adaptor 4.4mm ke 3.5mm, Manual Pengguna
Audio performance
Dynamic range
Unit
dB
Unbalanced
115
Balanced
120
Frequency response
Range
20Hz-80kHz
Tolerance
±0.5dB
Signal to noise ratio
Unit
dB
Value
120
Total harmonic distortion
Unit
%
Value
0.001
Physical specifications
Dimensions
Depth unit
mm
Depth
110
Height unit
mm
Width
70
Width unit
mm
Height
20
Weight
Unit
g
Value
150
Audio format support
DSD
Formats
DSD64, DSD128, DSD256
PCM
Sampling rates
44.1kHz, 48kHz, 96kHz, 192kHz, 384kHz
Bit depth
16-bit, 24-bit, 32-bit
Output specifications
Headphone outputs
Single ended
Voltage output
3.5Vrms
Power output
160mW
Connector type
3.5mm
Impedance
32
Impedance unit
ohms
Balanced
Voltage output
7Vrms
Power output
280mW
Connector type
4.4mm
Impedance
32
Impedance unit
ohms
Line outputs
Level
2
Level unit
Vrms
Impedance
100
Type
3.5mm
Impedance unit
ohms
Compatibility
Recommended headphone impedance
Unit
ohms
Minimum
16
Maximum
300
Supported devices
Windows, macOS, Android, iOS
