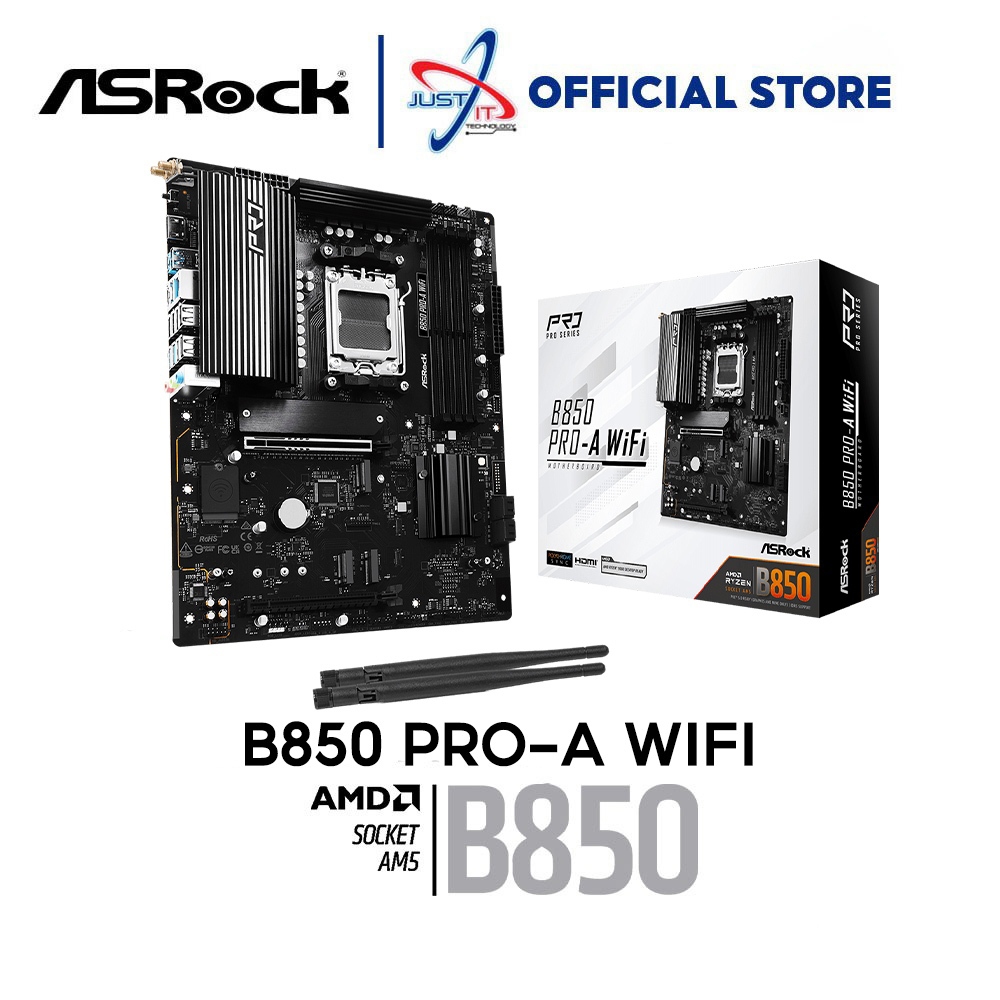

The ASRock B850 PRO-A WIFI is a feature-rich ATX motherboard for AMD AM5 socket, supporting Ryzen 7000-9000 series processors. It offers impressive memory support with 4 DDR5 slots, up to 256GB capacity and 8000MHz speeds. The board features multiple PCIe slots including Gen5 x16, comprehensive storage with 4 SATA ports and 4 M.2 slots. Connectivity includes Wi-Fi 6E, 2.5Gbps LAN, and various USB ports including USB-C 3.2 Gen2x2.
Specifications
Price
Shopee
RM715.00
6 products(2 items sold out)
Lazada
RM837.00
2 products
Specifications
Basic information
Brand
ASRock
Model
B850 Pro-A WiFi
Socket type
AM5
Supported processors
AMD Ryzen™ 9000, AMD Ryzen™ 8000, AMD Ryzen™ 7000
Chipset
AMD B850
Form factor
ATX
Memory
Max memory capacity
256
Max memory capacity unit
GB
Memory channels
Dual-Channel
Memory slots
4
Memory speed
8000
Memory speed unit
MHz
Memory type
DDR5
Xmp support
Intel® XMP & AMD EXPO™
Expansion slots
M2 slots
[{'quantity': 1, 'interface': 'PCIe Gen5x4', 'max_speed': '128 Gb/s'}, {'quantity': 2, 'interface': 'PCIe Gen4x4', 'max_speed': 'PCIe Gen4x4'}, {'quantity': 1, 'interface': 'PCIe Gen3x4', 'max_speed': 'PCIe Gen3x4'}]
Pcie slots
[{'type': 'PCIe 5.0 x16', 'quantity': 1, 'speed': 'PCIe 5.0'}, {'type': 'PCIe 4.0 x16', 'quantity': 1, 'speed': 'PCIe 4.0'}]
Warranty support
Warranty period
36
Warranty period unit
months
Warranty type
Standard
Storage
Sata ports
4
Sata speed
6Gb/s
Features
Bios features
UEFI BIOS
Debug features
TPM Header
Rgb support
Yes
Connectivity
Networking
Ethernet
2.5Gbps
Wifi
Wi-Fi 6E (802.11axe)
Bluetooth
Yes
Usb ports
[{'type': 'USB 2.0', 'quantity': 6, 'speed': 'USB 2.0'}, {'type': 'USB 3.2 Gen1', 'quantity': 5, 'speed': 'USB 3.2 Gen1'}, {'type': 'USB 3.2 Gen2', 'quantity': 1, 'speed': 'USB 3.2 Gen2'}, {'type': 'USB-C 3.2 Gen2x2', 'quantity': 1, 'speed': 'USB 3.2 Gen2x2'}]
Video outputs
Hdmi
1
Displayport
1
Physical specs
Length
30.5
Length unit
cm
Weight
1.8
Weight unit
kg
Width
24.4
Width unit
cm
Cooling
Fan headers
4
Heatsinks
VRM Heatsink
Audio
Channels
7.1
Codec
Realtek ALC897
Features
HD Audio
Power system
Power connectors
[{'type': 'ATX', 'quantity': 1}]
Power phases
14+2+1
Vrm solution
80A Dr.MOS
