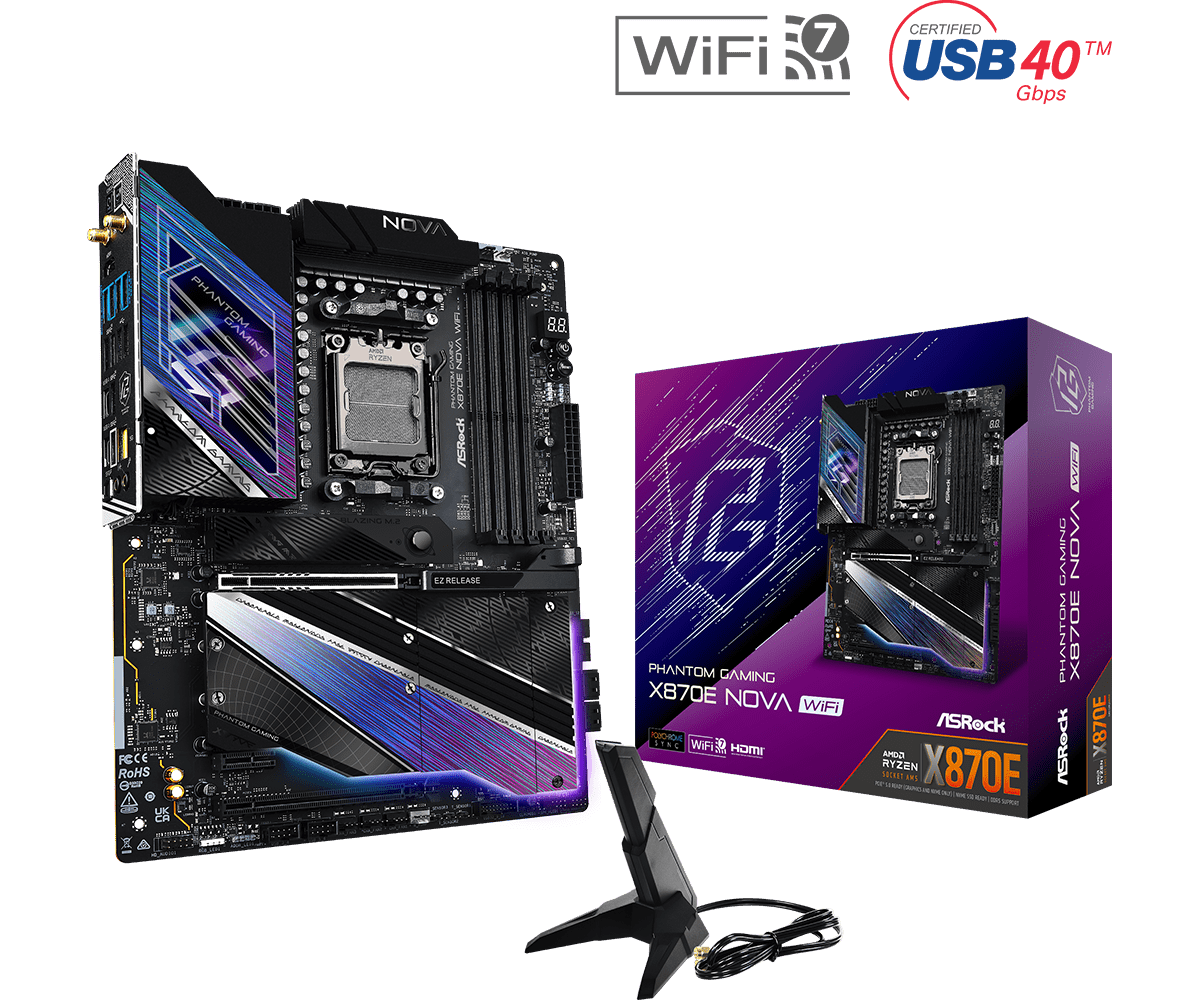

The ASRock X870E NOVA WIFI is a high-end ATX motherboard for AMD AM5 processors, supporting DDR5 memory up to 8200MHz with 256GB capacity. Features PCIe 5.0 support, five M.2 slots (1x Gen5, 3x Gen4, 1x Gen3), and advanced connectivity including WiFi 7, Bluetooth 5.4, and 5Gb/s ethernet. Offers robust 20+2+1 power phases with 110A SPS, comprehensive USB options including USB4, and premium Realtek ALC4082 audio with 7.1 channels.
Specifications
Price
RM1,526.00
4 products
Specifications
Basic information
Brand
ASRock
Model
X870E NOVA WIFI
Socket type
AM5
Supported processors
AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
Chipset
AMD X870E
Form factor
ATX
Memory
Max memory capacity
256
Max memory capacity unit
GB
Memory channels
Dual Channel
Memory slots
4
Memory speed
8200
Memory speed unit
MHz
Memory type
DDR5
Xmp support
Yes
Expansion slots
M2 slots
[{'quantity': 1, 'interface': 'PCIe Gen5x4', 'max_speed': '128Gb/s'}, {'quantity': 3, 'interface': 'PCIe Gen4x4', 'max_speed': '64Gb/s'}, {'quantity': 1, 'interface': 'PCIe Gen3x2', 'max_speed': '32Gb/s'}]
Pcie slots
[{'type': 'PCIe 5.0 x16', 'quantity': 1, 'speed': 'Gen5'}, {'type': 'PCIe 3.0 x16', 'quantity': 1, 'speed': 'Gen3'}, {'type': 'PCIe 3.0 x1', 'quantity': 1, 'speed': 'Gen3'}]
Warranty support
Warranty period
3
Warranty period unit
years
Storage
Sata ports
4
Sata speed
6Gb/s
Features
Bios features
EZ Mode, Advanced Mode, Instant Flash
Debug features
Dr. Debug LED, Power & Reset Buttons
Rgb headers
4
Rgb support
Yes
Connectivity
Networking
Ethernet
5Gb/s (Realtek RTL8126)
Wifi
WiFi 7 (802.11be)
Bluetooth
5.4
Usb ports
[{'type': 'USB4 Type-C', 'quantity': 2, 'speed': '40Gb/s'}, {'type': 'USB 3.2 Gen2 Type-A', 'quantity': 5, 'speed': '10Gb/s'}, {'type': 'USB 3.2 Gen1 Type-A', 'quantity': 3, 'speed': '5Gb/s'}, {'type': 'USB 2.0', 'quantity': 2, 'speed': '480Mb/s'}]
Video outputs
Hdmi
1
Cooling
Fan headers
6
Heatsinks
VRM, M.2
Pump headers
1
Audio
Channels
7.1
Codec
Realtek ALC4082
Features
Nahimic Audio
Power system
Power connectors
[{'type': '24-pin ATX', 'quantity': 1}, {'type': '8-pin 12V', 'quantity': 2}]
Power phases
20+2+1
Vrm solution
110A SPS
