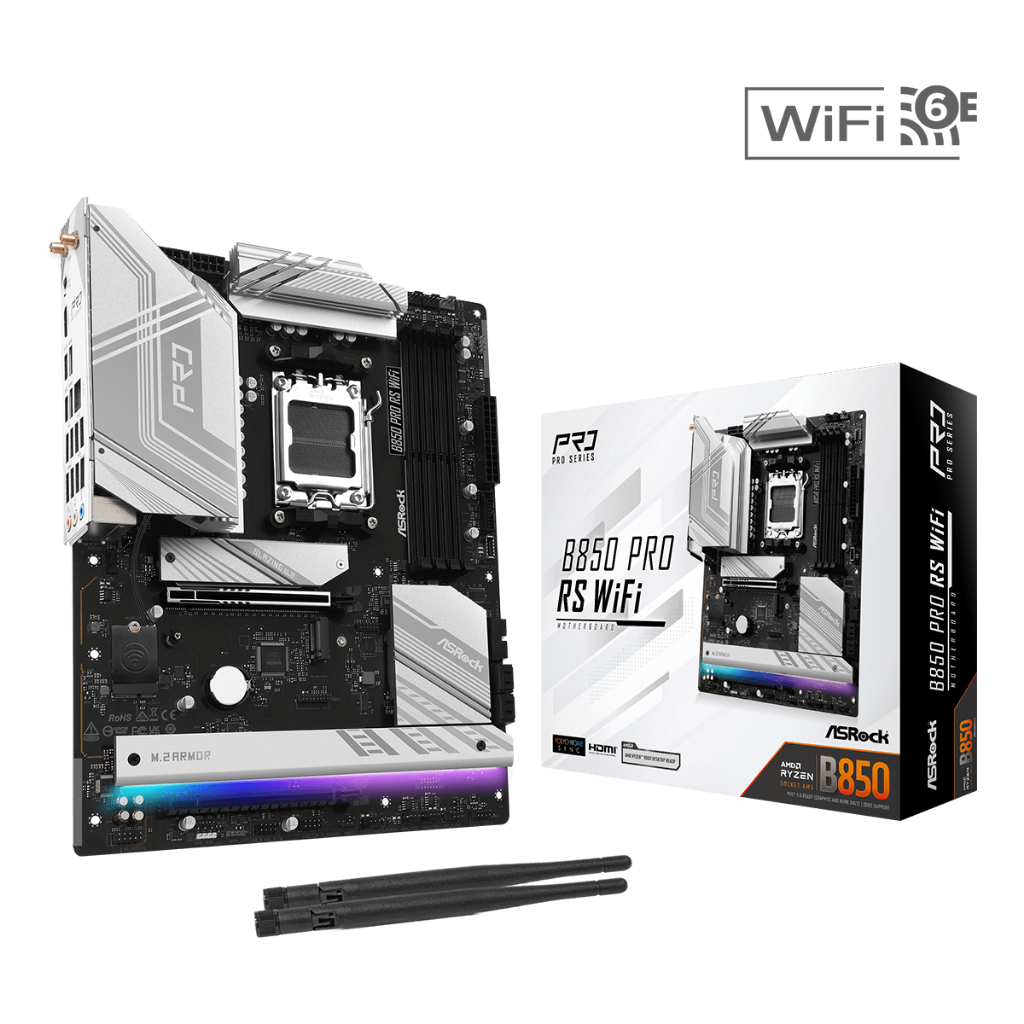

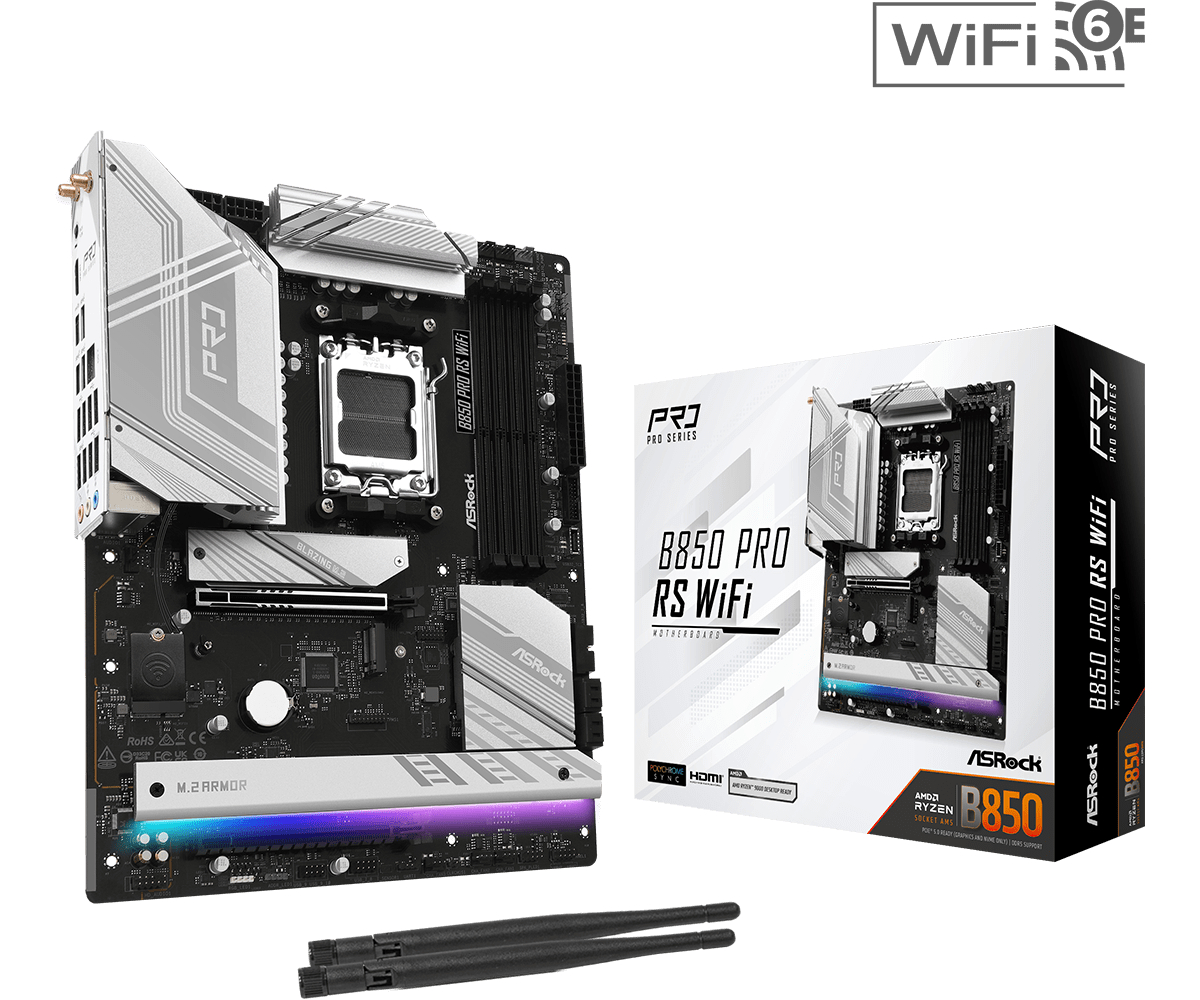

The ASRock B850 Pro RS WiFi is a feature-rich ATX motherboard for AMD AM5 socket processors. Supporting DDR5 memory up to 8000MT/s with 256GB capacity, it offers extensive connectivity including PCIe 5.0, multiple M.2 slots, and Wi-Fi 6E. Features 14+2+1 power phases, USB 3.2 Gen2x2 support, 2.5Gb/s LAN, and comprehensive cooling with 7 fan headers.
Specifications
Price
Shopee
RM715.00
9 products(1 item sold out)
Lazada
RM1,030.00
3 products
Specifications
Basic information
Brand
ASRock
Model
B850 Pro RS WiFi
Socket type
AM5
Supported processors
Ryzen 7000 Series, Ryzen 8000 Series, Ryzen 9000 Series
Chipset
AMD B850
Form factor
ATX
Memory
Max memory capacity
256
Max memory capacity unit
GB
Memory channels
Dual Channel
Memory slots
4
Memory speed
8000
Memory speed unit
MT/s
Memory type
DDR5
Xmp support
Intel XMP & AMD EXPO
Expansion slots
M2 slots
[{'quantity': 1, 'interface': 'PCIe 5.0 x4', 'max_speed': 'PCIe 5.0'}, {'quantity': 2, 'interface': 'PCIe 4.0 x4', 'max_speed': 'PCIe 4.0'}, {'quantity': 1, 'interface': 'PCIe 3.0 x4', 'max_speed': 'PCIe 3.0'}]
Pcie slots
[{'type': 'PCIe 5.0 x16', 'quantity': 1, 'speed': 'PCIe 5.0'}, {'type': 'PCIe 4.0 x16', 'quantity': 1, 'speed': 'PCIe 4.0'}]
Warranty support
Warranty period
36
Warranty period unit
months
Storage
Sata ports
4
Sata speed
6Gb/s
Features
Debug features
BIOS Flashback
Rgb headers
4
Rgb support
Yes
Connectivity
Networking
Ethernet
2.5 Gb/s
Wifi
Wi-Fi 6E
Bluetooth
5.2
Usb ports
[{'type': 'USB-C 3.2 Gen2x2', 'quantity': 1, 'speed': '20Gbps'}, {'type': 'USB-C 3.2 Gen1', 'quantity': 1, 'speed': '5Gbps'}, {'type': 'USB-A 3.2 Gen1', 'quantity': 4, 'speed': '5Gbps'}, {'type': 'USB 2.0', 'quantity': 6, 'speed': '480Mbps'}]
Video outputs
Hdmi
1
Physical specs
Length
30.5
Length unit
cm
Width
24.4
Width unit
cm
Cooling
Fan headers
7
Heatsinks
VRM, M.2
Audio
Channels
7.1
Codec
Realtek ALC897
Features
Nahimic
Power system
Power connectors
[{'type': '24-pin ATX', 'quantity': 1}, {'type': '8-pin EPS', 'quantity': 1}]
Power phases
14+2+1
Vrm solution
Dr.MOS
