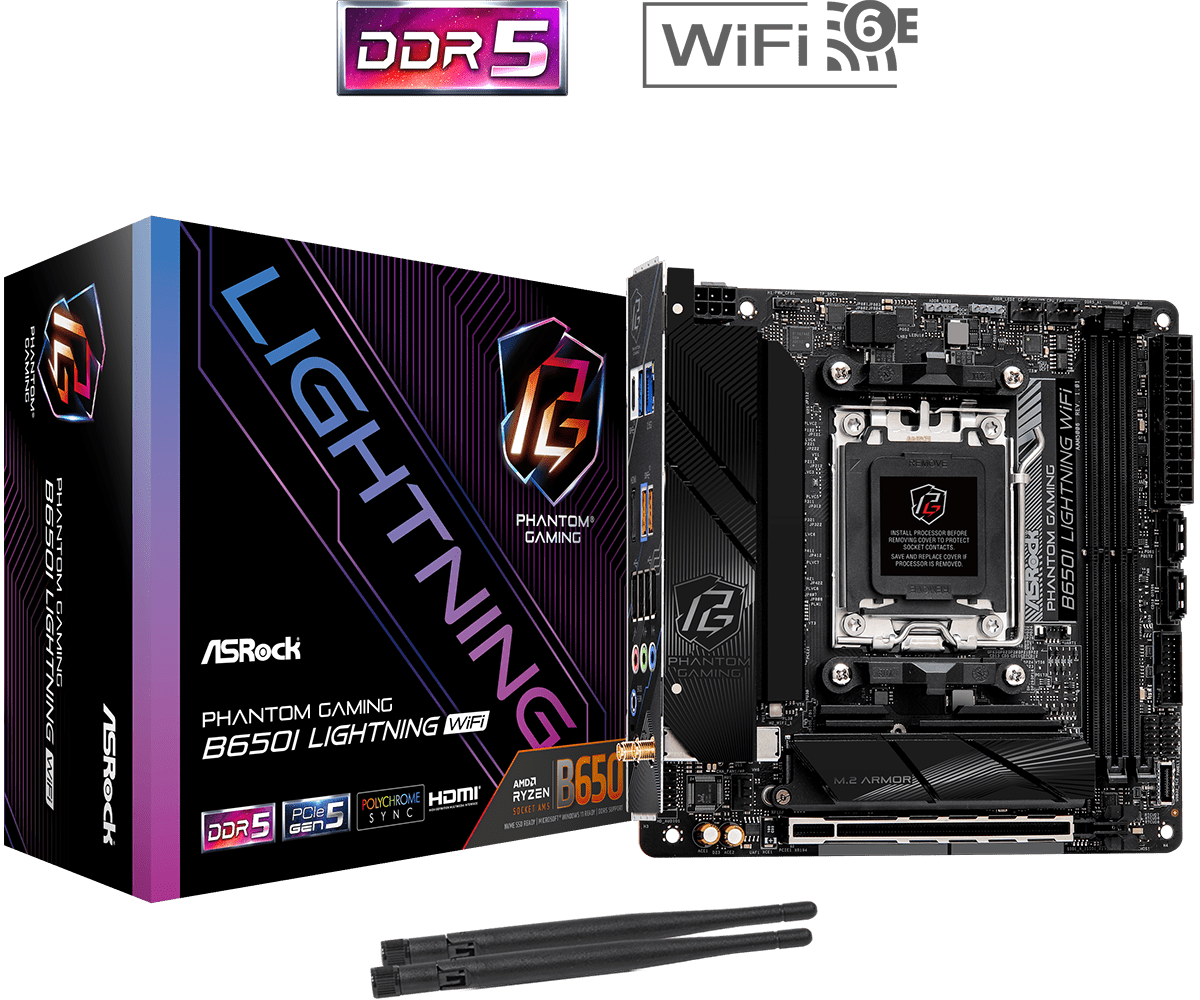

The ASRock B650I LIGHTNING WIFI is a Mini-ITX motherboard supporting AMD Ryzen 7000-9000 series processors. It features DDR5 memory support up to 96GB at 7200MHz, dual M.2 slots (PCIe 5.0 x4 and 4.0 x4), and comprehensive connectivity including Wi-Fi 6E, Bluetooth 5.2, and 2.5GbE LAN. The board offers robust power delivery with 8+2+1 phases and includes multiple USB ports, including USB 3.2 Gen2 Type-C.
Specifications
Price
Shopee
RM858.00
9 products
PG Mall
RM1,099.00
1 product
Specifications
Basic information
Brand
ASRock
Model
B650I LIGHTNING WIFI
Socket type
AM5
Supported processors
AMD Ryzen™ 9000 Series, AMD Ryzen™ 8000 Series, AMD Ryzen™ 7000 Series
Chipset
AMD B650
Form factor
Mini-ITX
Memory
Max memory capacity
96
Max memory capacity unit
GB
Memory channels
Dual Channel
Memory slots
2
Memory speed
7200
Memory speed unit
MHz
Memory type
DDR5
Xmp support
Yes
Expansion slots
M2 slots
[{'quantity': 1, 'interface': 'PCIe 5.0 x4', 'max_speed': '128 Gb/s'}, {'quantity': 1, 'interface': 'PCIe 4.0 x4', 'max_speed': '64 Gb/s'}]
Pcie slots
[{'type': 'PCIe 4.0 x16', 'quantity': 1, 'speed': 'PCIe 4.0'}]
Warranty support
Warranty period
3
Warranty period unit
years
Warranty type
Commercial Warranty
Storage
Sata ports
2
Sata speed
6.0 Gb/s
Features
Bios features
EZ Update, Auto Driver Installer
Debug features
BIOS Flashback Button
Rgb headers
2
Rgb support
Yes
Connectivity
Networking
Ethernet
2.5 Gigabit LAN (RTL8125BG)
Wifi
Wi-Fi 6E (802.11ax)
Bluetooth
Bluetooth 5.2
Usb ports
[{'type': 'USB 3.2 Gen2 Type-C', 'quantity': 1, 'speed': '10 Gbps'}, {'type': 'USB 3.2 Gen2 Type-A', 'quantity': 3, 'speed': '10 Gbps'}, {'type': 'USB 2.0', 'quantity': 4, 'speed': '480 Mbps'}, {'type': 'USB 3.2 Gen1 Type-C', 'quantity': 1, 'speed': '5 Gbps'}, {'type': 'USB 3.2 Gen1 Type-A', 'quantity': 2, 'speed': '5 Gbps'}]
Video outputs
Hdmi
1
Physical specs
Length
17
Length unit
cm
Width
17
Width unit
cm
Cooling
Fan headers
2
Heatsinks
Heatsink Armor
Pump headers
1
Audio
Channels
7.1 CH HD Audio
Codec
Realtek ALC897
Features
Nahimic Audio
Power system
Power connectors
[{'type': '24-pin ATX', 'quantity': 1}, {'type': '8-pin 12V', 'quantity': 1}]
Power phases
8+2+1
Vrm solution
Dr.MOS
