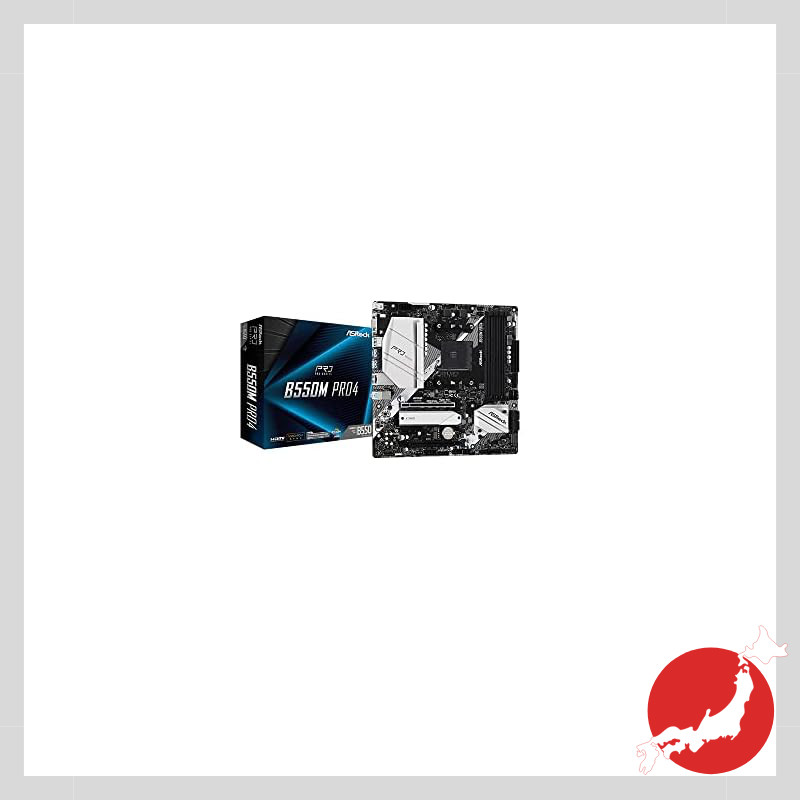

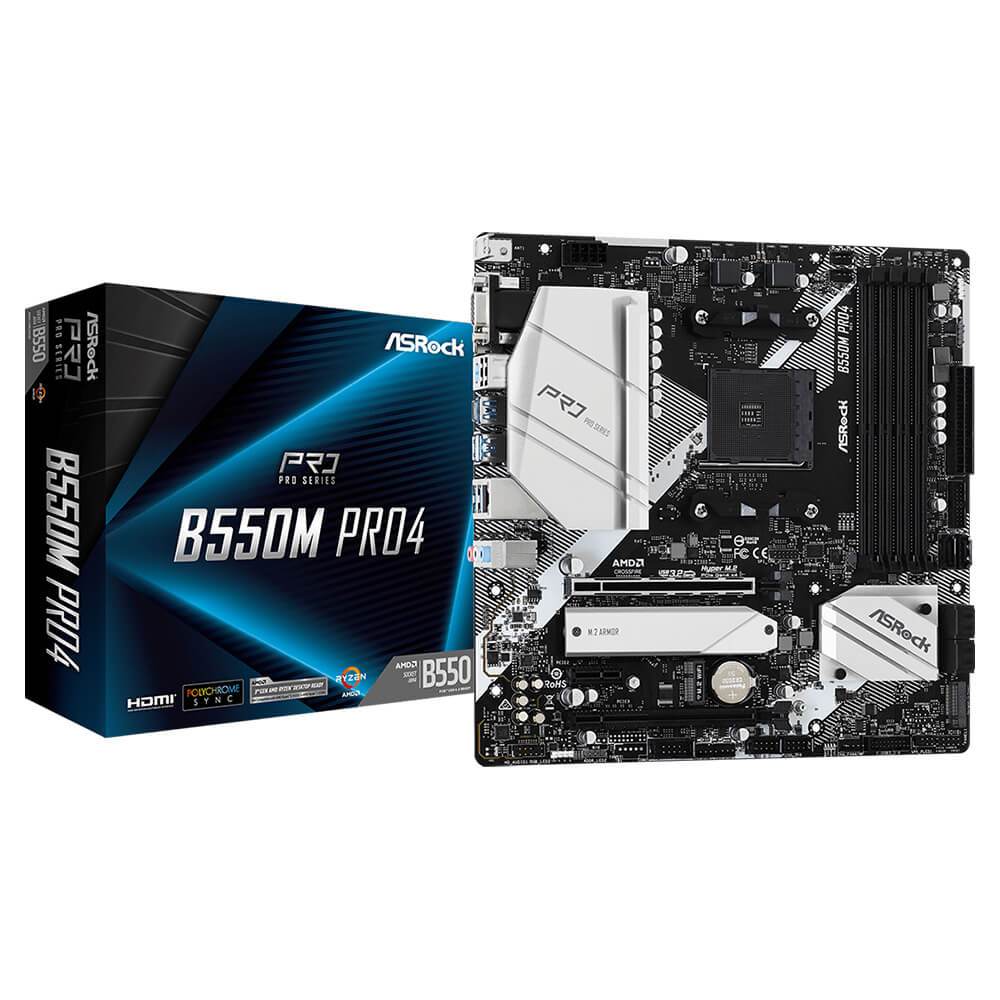

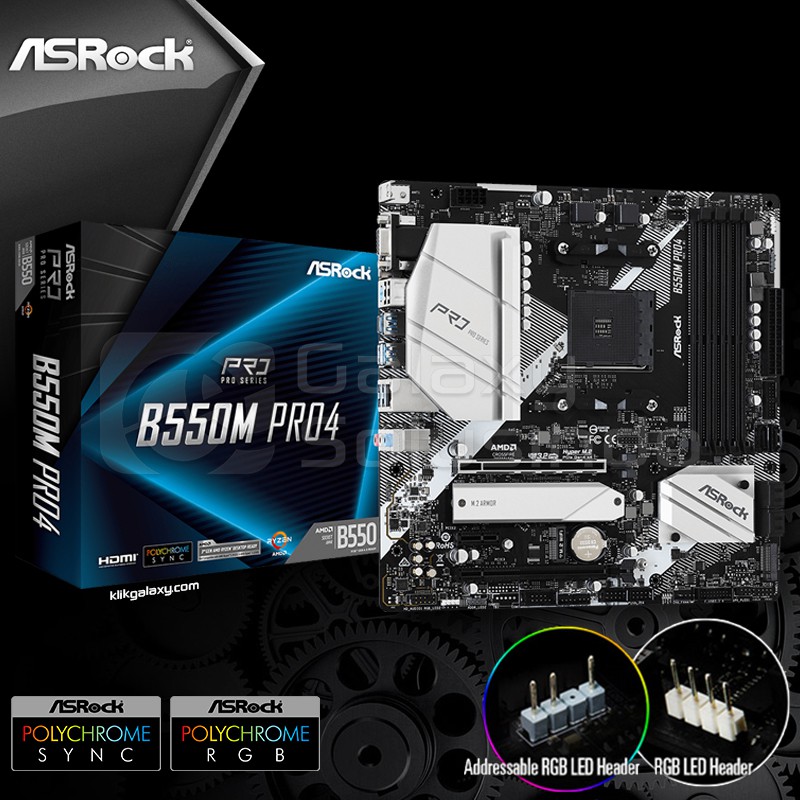

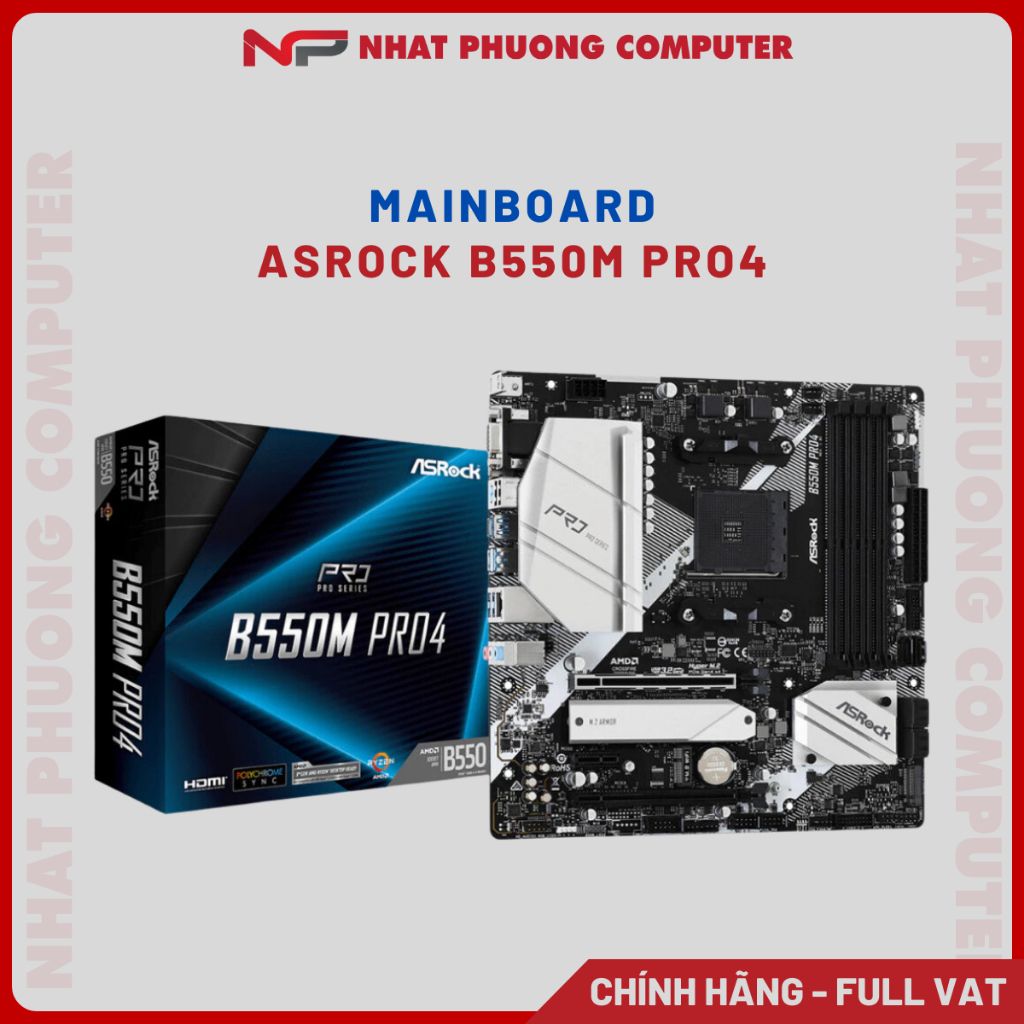

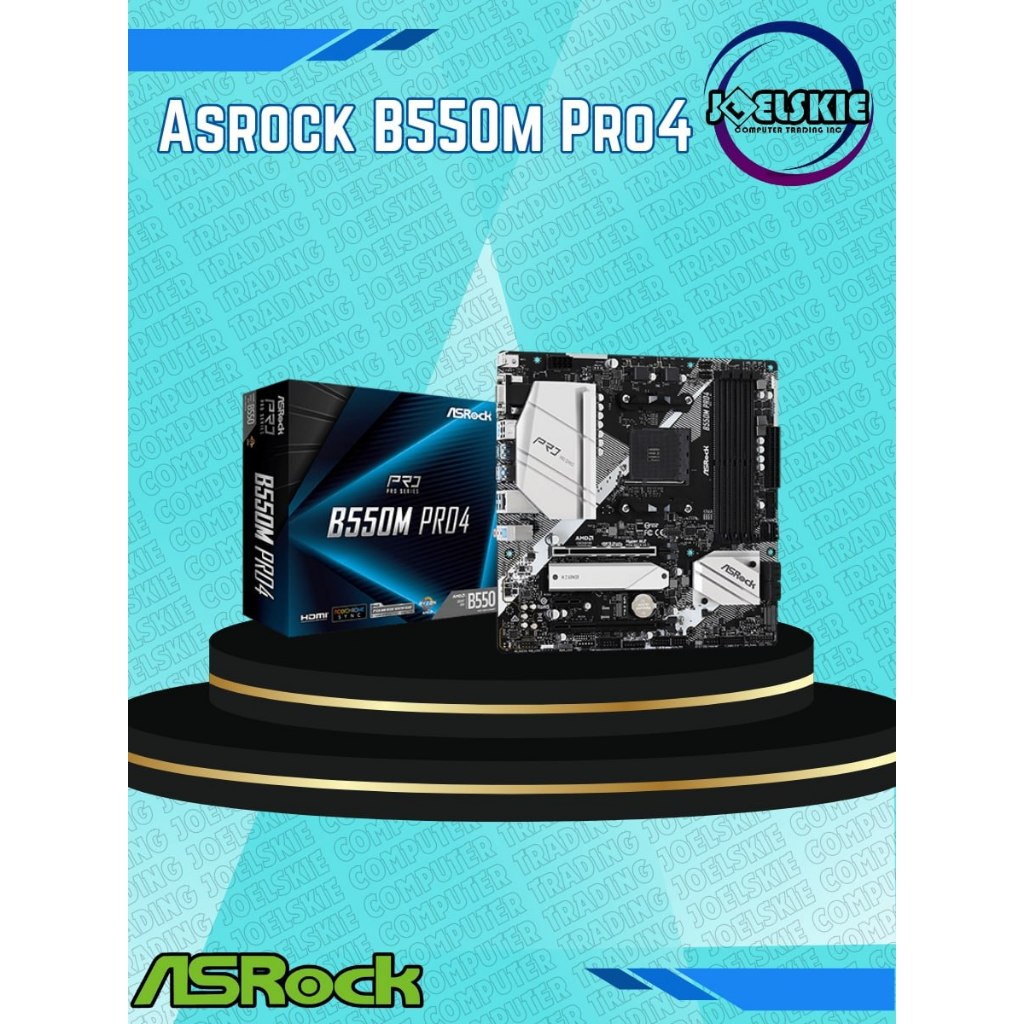

The ASRock B550M PRO4 is a feature-rich Micro-ATX motherboard supporting AMD Ryzen 3000-5000 series processors. It offers robust memory support with 4 DDR4 slots capable of 4733MHz and up to 128GB capacity. The board features PCIe 4.0 connectivity, dual M.2 slots, and 6 SATA ports. Extensive USB options include USB 3.2 Gen2 Type-A/C ports. Notable features include 8-phase power design, 7.1 channel audio, and RGB support with 2 headers.
Specifications
Price
Shopee
RM339.55
35 products(19 items sold out)
Specifications
Basic information
Brand
ASRock
Model
B550M PRO4
Socket type
AM4
Supported processors
AMD Ryzen 3000 series, AMD Ryzen 4000 G-Series, AMD Ryzen 5000 series, AMD Ryzen 5000 G-Series
Chipset
AMD B550
Form factor
Micro-ATX
Memory
Max memory capacity
128
Max memory capacity unit
GB
Memory channels
Dual-channel
Memory slots
4
Memory speed
4733
Memory speed unit
MHz
Memory type
DDR4-SDRAM
Xmp support
Ya
Expansion slots
M2 slots
[{'quantity': 1, 'interface': 'PCIe 4.0 x4', 'max_speed': '64 Gb/s'}, {'quantity': 1, 'interface': 'PCIe 3.0 x2/SATA', 'max_speed': '16 Gb/s'}]
Pcie slots
[{'type': 'PCIe 4.0 x16', 'quantity': 1, 'speed': '16 GT/s'}, {'type': 'PCIe 3.0 x16', 'quantity': 1, 'speed': '8 GT/s'}, {'type': 'PCIe 3.0 x1', 'quantity': 1, 'speed': '8 GT/s'}]
Warranty support
Warranty period
24
Warranty period unit
bulan
Warranty type
Standard
Storage
Sata ports
6
Sata speed
6 Gb/s
Features
Bios features
UEFI AMI, AMD StoreMI, Live Update
Debug features
Post Status Checker
Rgb headers
2
Rgb support
Yes
Connectivity
Networking
Ethernet
1 Gbps (Realtek RTL8111H)
Wifi
Tidak
Bluetooth
Tidak
Usb ports
[{'type': 'USB 2.0', 'quantity': 6, 'speed': '480 Mb/s'}, {'type': 'USB 3.2 Gen1', 'quantity': 8, 'speed': '5 Gb/s'}, {'type': 'USB 3.2 Gen2 Type-A', 'quantity': 1, 'speed': '10 Gb/s'}, {'type': 'USB 3.2 Gen2 Type-C', 'quantity': 1, 'speed': '10 Gb/s'}]
Video outputs
Hdmi
1
Displayport
1
D sub
1
Physical specs
Length
24.4
Length unit
cm
Weight
465
Weight unit
g
Width
24.4
Width unit
cm
Cooling
Fan headers
6
Heatsinks
XXL Aluminum Alloy Heatsink
Pump headers
1
Audio
Channels
7.1
Codec
Realtek ALC1200/ALC1220
Features
Nahimic Audio, Sound Tracker, Noise suppression
Power system
Power connectors
[{'type': '24-pin ATX', 'quantity': 1}, {'type': '8-pin EPS', 'quantity': 1}]
Power phases
8
Vrm solution
Digi Power
