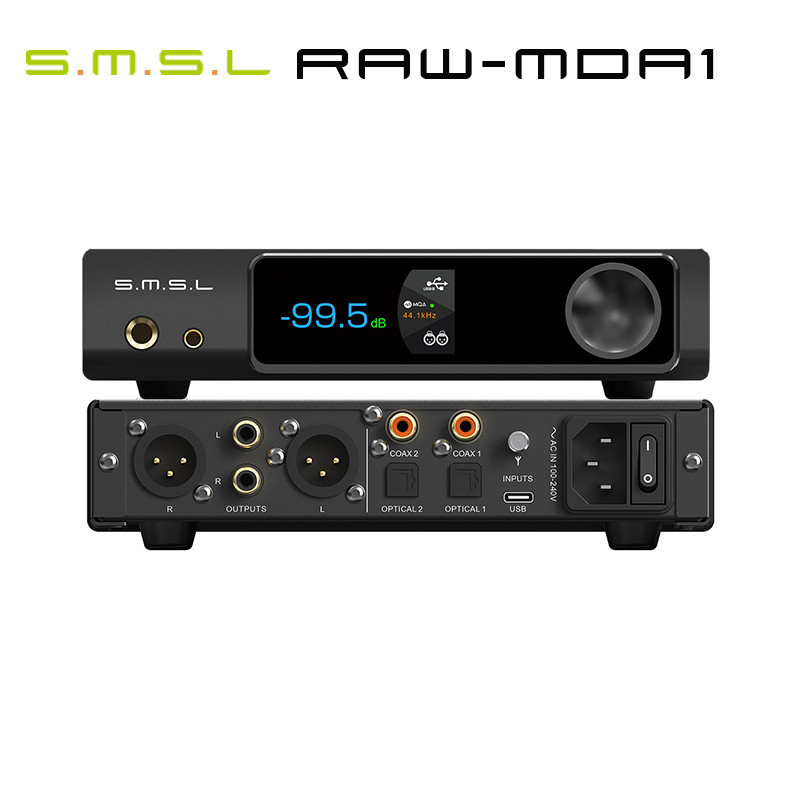

The SMSL RAW-MDA 1 is a versatile DAC/headphone amplifier featuring both balanced (4.4mm) and single-ended (6.35mm) outputs, delivering up to 2.5W and 1.7W per channel respectively. Built with CNC-machined aluminum, it supports high-resolution audio including DSD512 and PCM up to 768kHz/32-bit with full MQA decoding. Notable features include Bluetooth 5.1, digital volume control, and comprehensive connectivity via USB-C, optical, and coaxial inputs. With impressive specs like 132dB SNR and ultra-low THD, it's compatible with multiple platforms from Windows to iOS.
Specifications
Price
RM1,315.00
5 products
Specifications
Basic information
Brand
SMSL
Model
RAW-MDA1
Amplification type
Solid-state
Product type
DAC / Headphone amplifier
Colour
Black
Material
CNC-machined aluminum
Warranty support
Standard warranty
2 tahun
Support type
Pengilang
Input specifications
Digital inputs
Coaxial
Yes
USB
Connector type
USB-C
Version
USB 2.0
Supported
Yes
Optical
Yes
Power specifications
Power consumption
Unit
W
Standby
0.5
Operating
30
Power supply
Type
Switching power supply
Features
Special functions
MQA decoding, Bluetooth 5.1, Remote control
Volume control
Digital (0.5dB steps)
Included accessories
USB cable, Bluetooth antenna, RC-8C remote control, Power cable, User manual, Warranty card
Audio performance
Dynamic range
Unit
dB
Unbalanced
127
Balanced
132
Signal to noise ratio
Unit
dB
Value
132
Total harmonic distortion
Unit
%
Value
0.00005
Physical specifications
Dimensions
Depth unit
mm
Depth
179
Height unit
mm
Width
189
Width unit
mm
Height
45
Weight
Unit
g
Value
1020
Audio format support
DSD
Formats
DSD512, DSD256, DSD128, DSD64
MQA
Decoder type
Full MQA decoder
Supported
Yes
PCM
Sampling rates
768kHz, 384kHz, 192kHz, 96kHz, 48kHz, 44.1kHz
Bit depth
32-bit, 24-bit, 16-bit
Output specifications
Headphone outputs
Single ended
Voltage output
8.2Vrms
Power output
1.7W per channel @ 32Ω
Connector type
6.35mm
Balanced
Voltage output
8.2Vrms
Power output
2.5W per channel @ 16Ω
Connector type
4.4mm Pentaconn
Line outputs
Level
2.5
Level unit
Vrms
Impedance
100
Type
RCA & XLR
Impedance unit
ohms
Compatibility
Recommended headphone impedance
Unit
ohms
Minimum
16
Maximum
300
Supported devices
Windows, macOS, Linux, Android, iOS, Nintendo Switch
