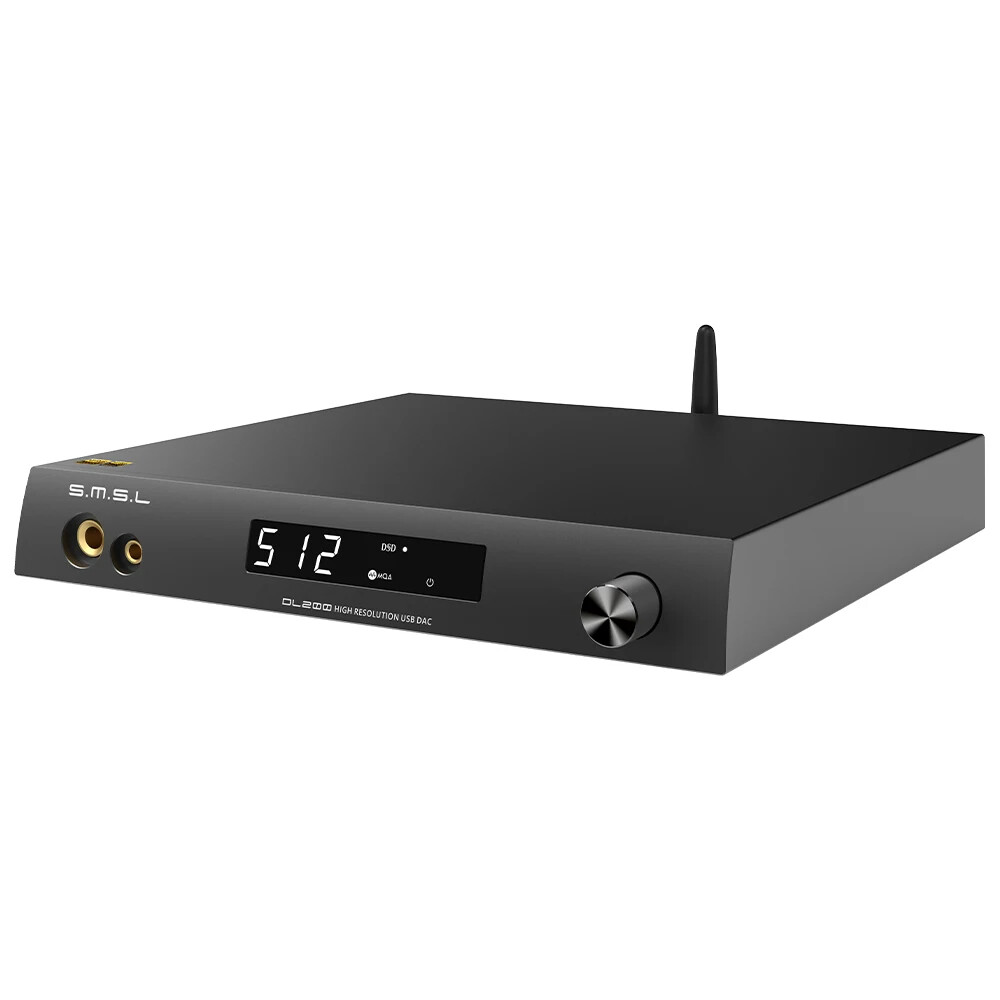

The SMSL DL200 is a versatile DAC/Headphone Amplifier featuring both balanced (4.4mm) and single-ended (6.35mm) outputs, delivering up to 3W@16Ω and 1.5W@32Ω respectively. It supports high-resolution audio with PCM up to 768kHz/32-bit and DSD512, plus MQA-CD decoding. The unit offers multiple connectivity options including USB-C, optical, coaxial, and Bluetooth 5.1 with LDAC. With impressive specs like 130dB SNR and ultra-low 0.00006% THD, it's compatible with 16-300Ω headphones.
Specifications
Specifications
Basic information
Brand
smsl
Model
DL200
Product type
DAC/Headphone Amplifier
Colour
Black
Input specifications
Digital inputs
Coaxial
Yes
USB
Connector type
USB-C
Version
2.0
Supported
Yes
Optical
Yes
Power specifications
Power consumption
Unit
W
Standby
0.5
Operating
30
Power supply
Type
SMPS
Features
Gain settings
1
11
Gain unit
dB
Special functions
Bluetooth 5.1, LDAC support
Volume control
Multifunction knob
Included accessories
Remote control, Power supply
Audio performance
Dynamic range
Unit
dB
Unbalanced
127
Balanced
130
Signal to noise ratio
Unit
dB
Value
130
Total harmonic distortion
Unit
%
Value
0.00006
Physical specifications
Dimensions
Depth unit
mm
Depth
206.7
Height unit
mm
Width
221.9
Width unit
mm
Height
31
Weight
Unit
g
Value
1390
Audio format support
DSD
Formats
DSD512
MQA
Decoder type
MQA-CD
Supported
Yes
PCM
Sampling rates
768kHz
Bit depth
32-bit
Output specifications
Headphone outputs
Single ended
Power output
1.5W @32Ω
Connector type
6.35mm
Balanced
Power output
3W @16Ω
Connector type
4.4mm
Line outputs
Level
2.5
Level unit
Vrms
Impedance
100
Type
RCA/TRS
Impedance unit
ohms
Compatibility
Recommended headphone impedance
Unit
ohms
Minimum
16
Maximum
300
Supported devices
Windows, Mac OSX, Linux, Android
