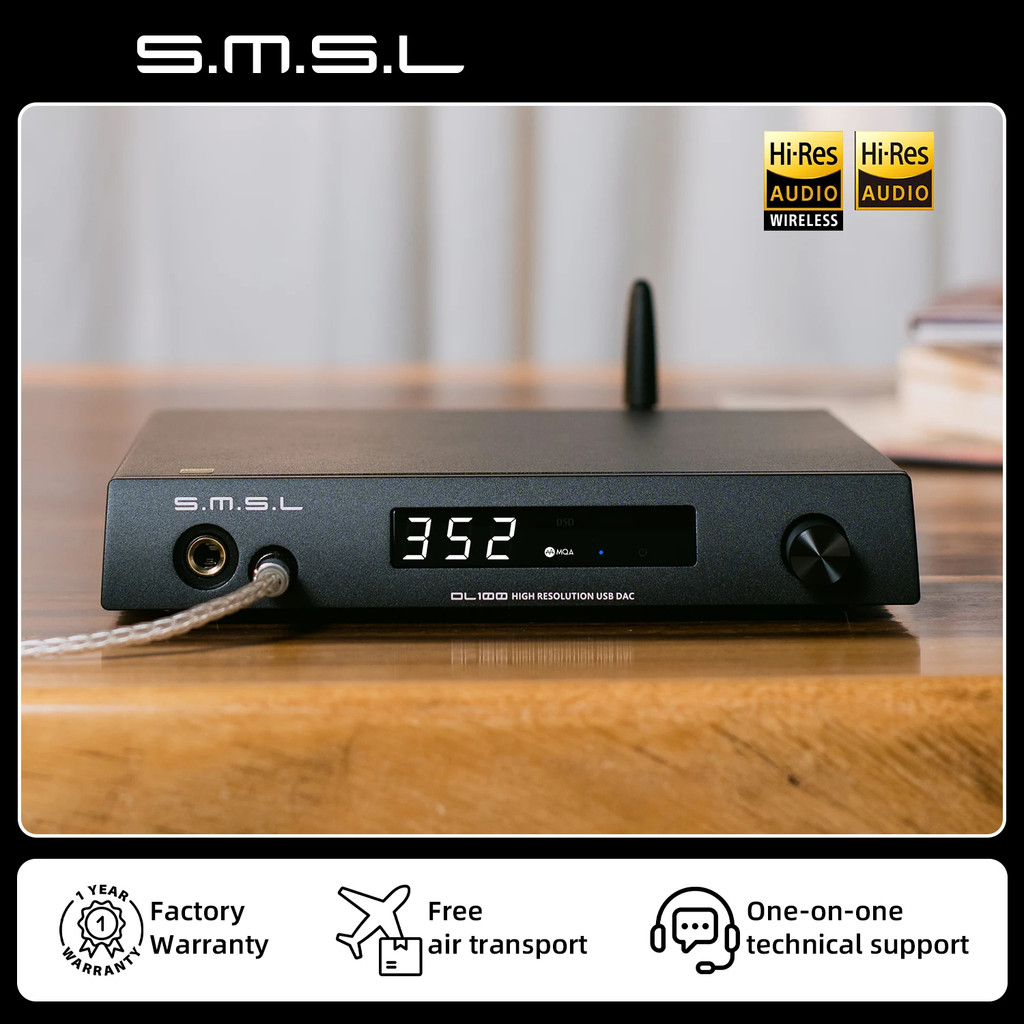

The SMSL DL100 is a fully balanced DAC and headphone amplifier featuring MQA decoding and HDMI ARC connectivity. It supports high-resolution audio including DSD256 and PCM up to 768kHz/32-bit. With both balanced (4.4mm) and single-ended (6.35mm) outputs, it delivers powerful performance - up to 3W@16Ω balanced and 1.5W@32Ω unbalanced. The unit boasts impressive specs with 132dB SNR and ultra-low 0.00009% THD.
Specifications
Price
RM899.00
2 products
Specifications
Basic information
Brand
SMSL
Model
DL100
Amplification type
Berimbang sepenuhnya
Product type
DAC dan Penguat Fon Kepala
Colour
Hitam
Material
Keluli dicop
Warranty support
Standard warranty
2 tahun
Support type
Pengilang
Input specifications
Digital inputs
Coaxial
Yes
USB
Connector type
USB-C
Version
2.0 & 1.1
Supported
Yes
Optical
Yes
Power specifications
Power consumption
Unit
W
Standby
0.5
Operating
30
Power supply
Type
AC
Features
Special functions
Penyahkod MQA, Sambungan HDMI ARC
Volume control
Inframerah
Included accessories
Unit DL100, Kabel kuasa, Alat kawalan jauh
Audio performance
Dynamic range
Unit
dB
Unbalanced
126
Balanced
132
Signal to noise ratio
Unit
dB
Value
132
Total harmonic distortion
Unit
%
Value
0.00009
Physical specifications
Dimensions
Depth unit
mm
Depth
206
Height unit
mm
Width
196
Width unit
mm
Height
31
Weight
Unit
g
Value
1050
Audio format support
DSD
Formats
DSD64, DSD128, DSD256
MQA
Decoder type
MQA-CD
Supported
Yes
PCM
Sampling rates
44.1kHz–768kHz
Bit depth
16-bit, 24-bit, 32-bit
Output specifications
Headphone outputs
Single ended
Voltage output
7.5Vrms
Power output
2x 1.5W @32Ω
Connector type
6.35mm
Balanced
Voltage output
7.5Vrms
Power output
2x 3W @16Ω
Connector type
4.4mm
Line outputs
Level
2.5
Level unit
Vrms
Impedance
100
Type
RCA dan XLR
Impedance unit
ohms
Compatibility
Recommended headphone impedance
Unit
ohms
Minimum
16
Maximum
300
Supported devices
Windows, macOS, Linux, Android
