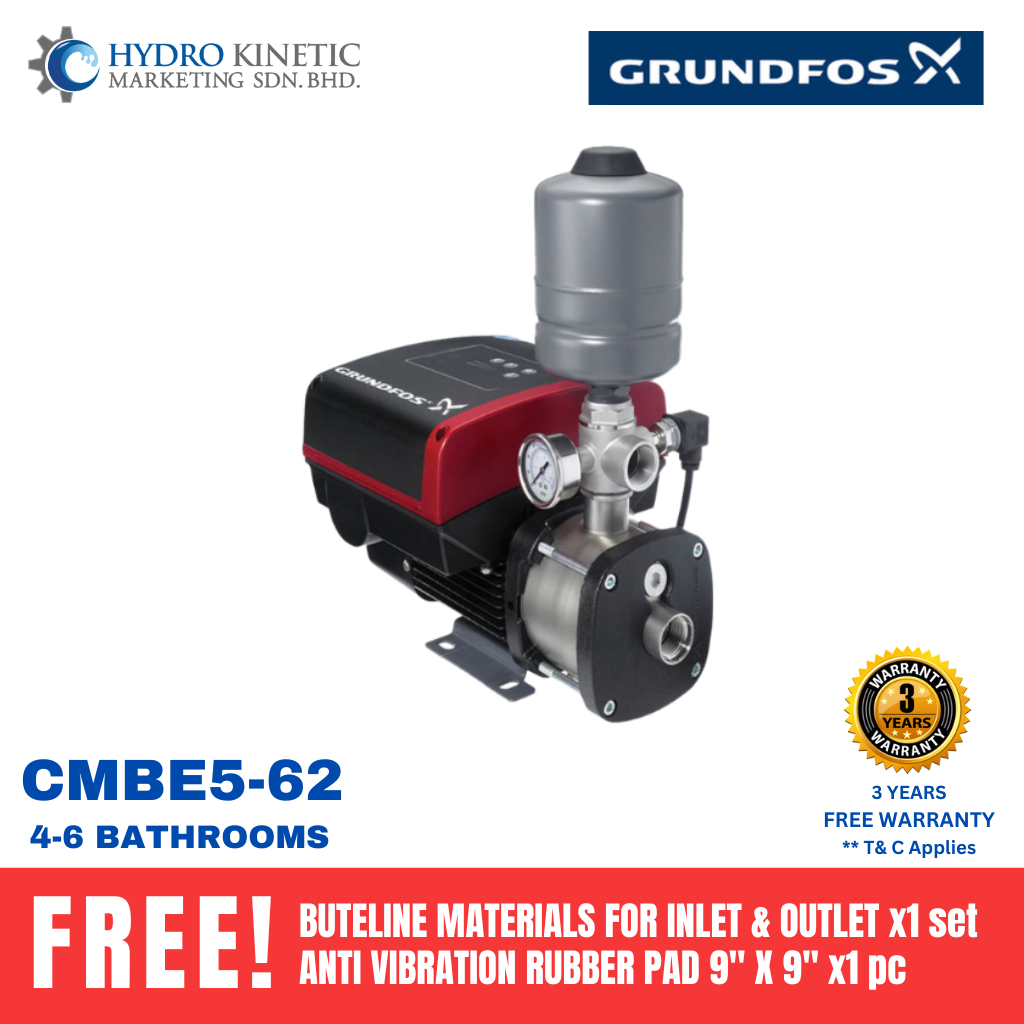

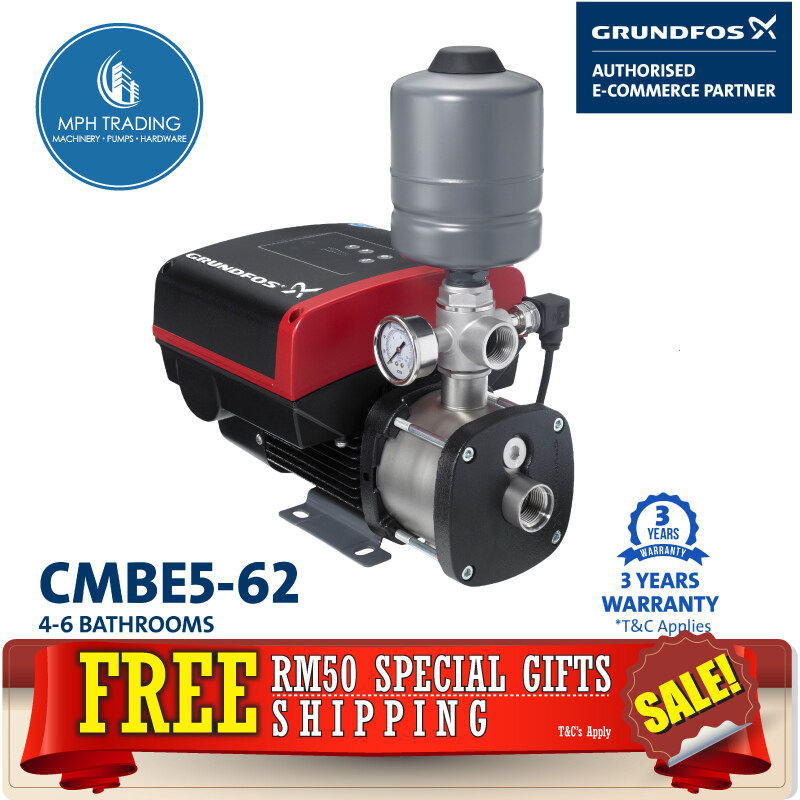

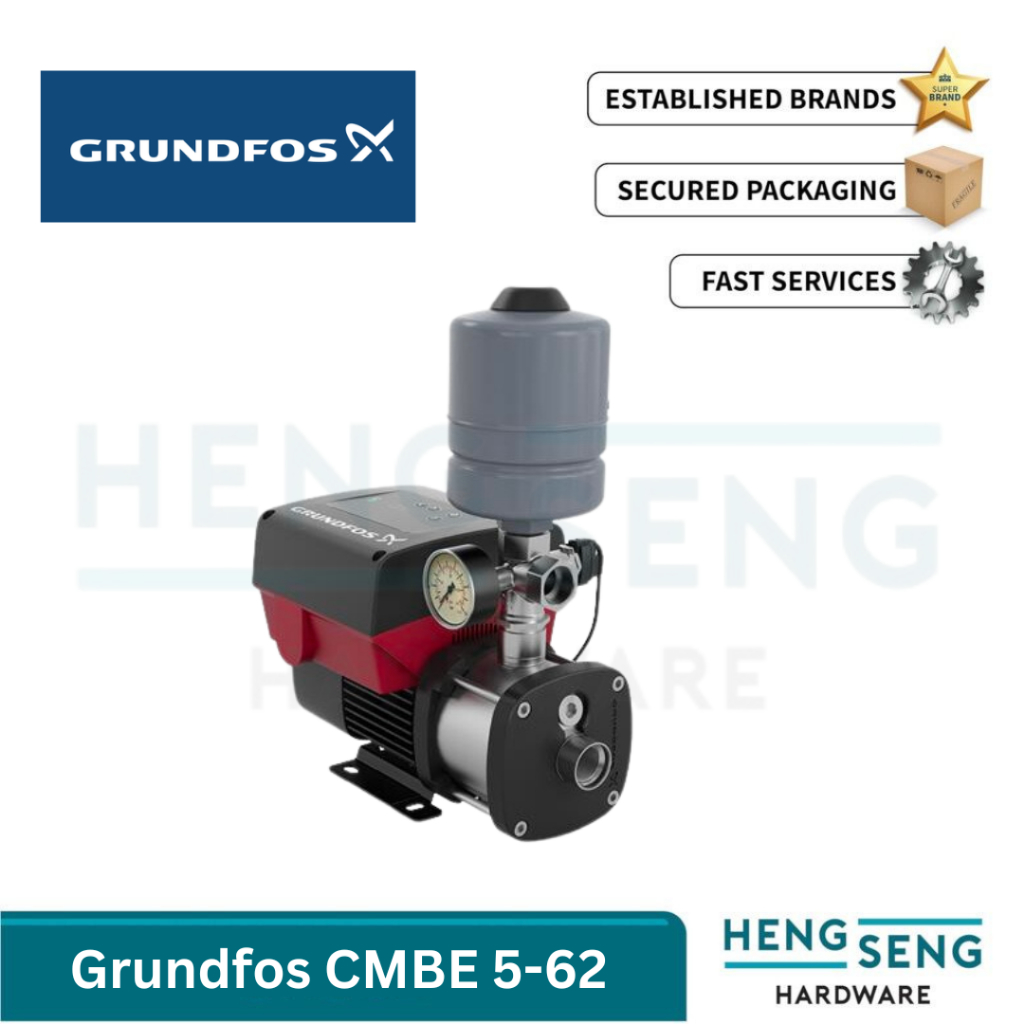

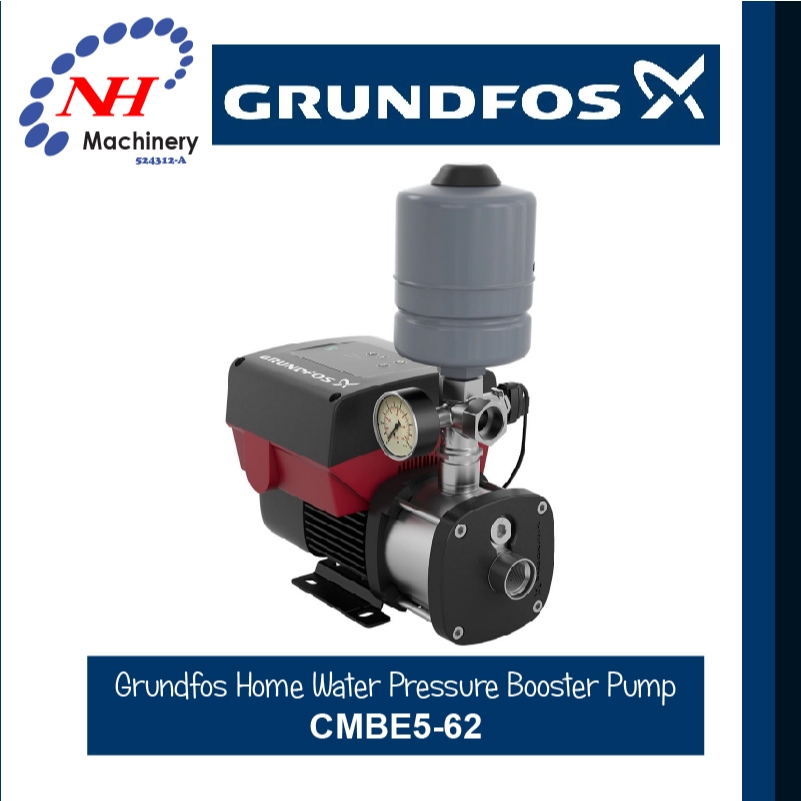

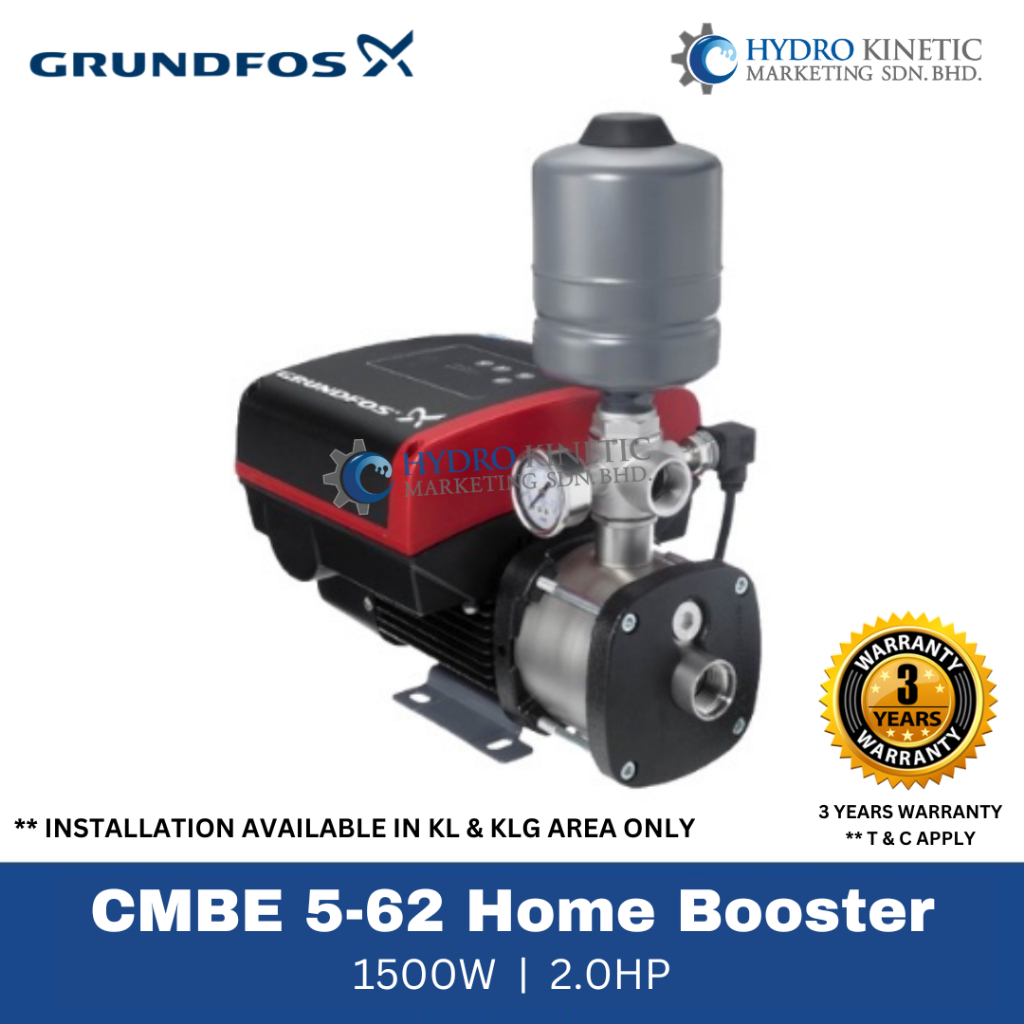

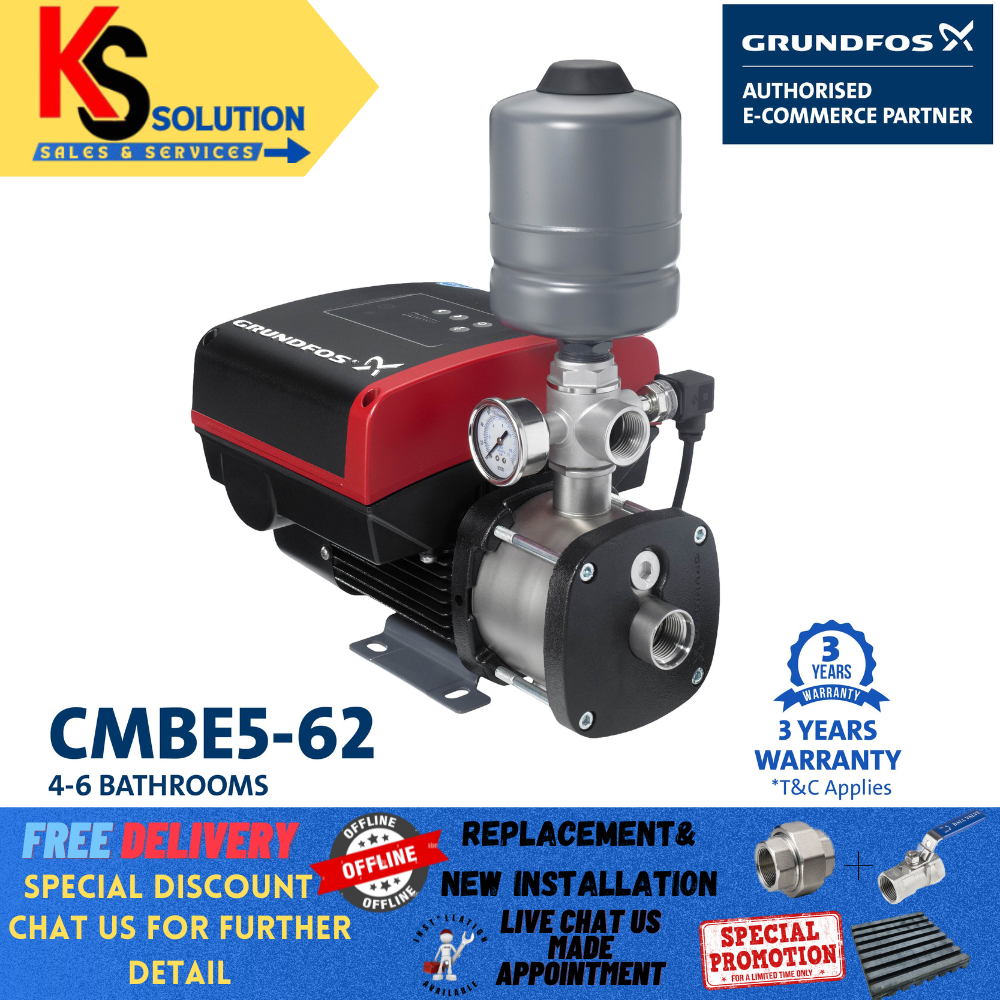

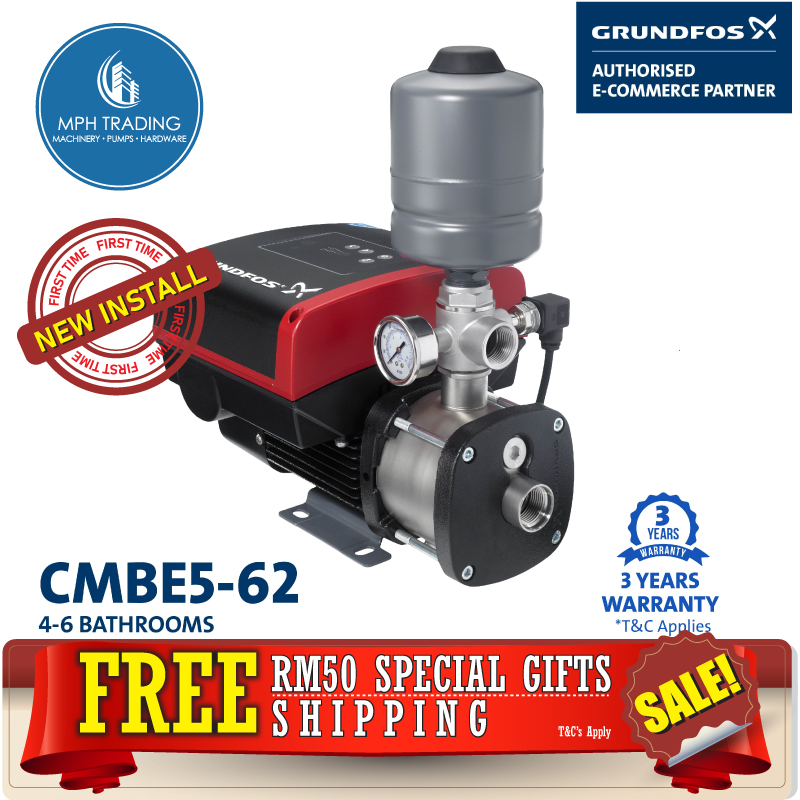

The Grundfos CMBE5-62 is a high-performance multistage centrifugal pressure boosting pump featuring a 1.5 kW variable-speed electric motor. Built with durable Stainless Steel EN 1.4301 construction, it delivers impressive performance with a maximum head of 47.8m and flow rate of 6 m³/h. The pump operates efficiently at temperatures up to 60°C and includes vital safety features like overload and temperature protection. Its 1 1/4" inlet and 1" outlet make it ideal for domestic water supply and irrigation applications.
Specifications
Price
Shopee
RM4,468.00
18 products
Lazada
RM4,468.00
3 products
Specifications
Basic information
Brand
Grundfos
Model
CMBE5-62
Product name
CMBE 5-62 I-U-C-G-D-B
Pump type
Multistage centrifugal pressure boosting pump
Engine type
Electric
Motor type
Variable-speed
Fuel system
Fuel type
Electric
Safety features
Overload protection
Yes
Pressure switch control
Yes
Temperature protection
Yes
Warranty support
Certifications
CE, EAC, CN ROHS EXE, WRAS, ACS
Warranty period
3 Tahun
Warranty type
Pengilang
Power specifications
Frequency
60
Frequency unit
Hz
Horsepower
2
Motor power
1.5 kW
Output power
1.5
Output power unit
kW
Voltage
200, 240
Operating conditions
Ambient temperature limit
55
Ambient temperature unit
°C
Maximum water temperature
60
Temperature unit
°C
Features
Noise level
Rendah
Oil free
Yes
Portability
Tetap
Performance
Maximum flow rate
6
Maximum flow rate unit
m³/h
Maximum head
47.8
Maximum head unit
m
Rated flow
6
Rated flow unit
m³/h
Construction
Impeller material
Stainless Steel EN 1.4301 (AISI 304)
Inlet outlet diameter
1 1/4" (inlet), 1" (outlet)
Material
Stainless Steel EN 1.4301 (AISI 304)
Dimensions
Weight
19.4
Weight unit
kg
Applications
Bekalan air domestik, Peningkatan tekanan air, Pengairan, Penyahairan
