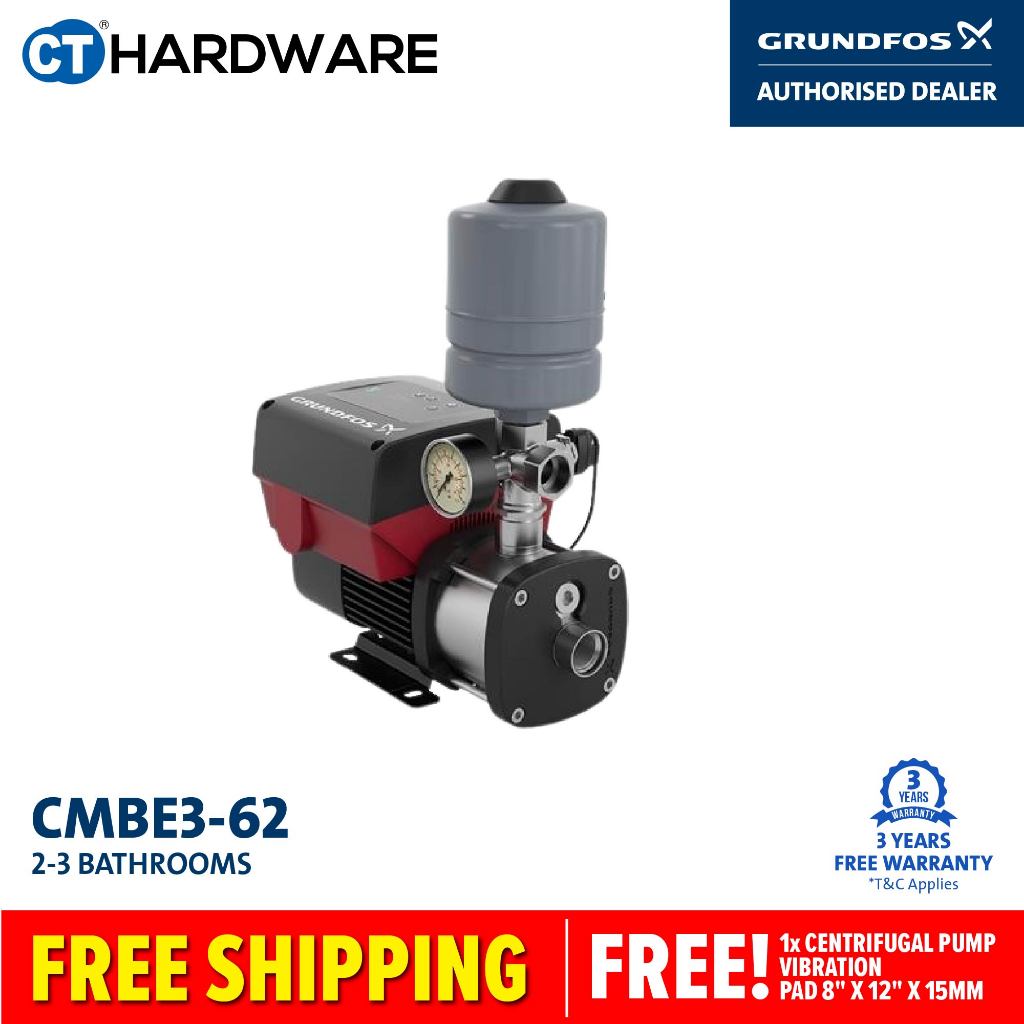

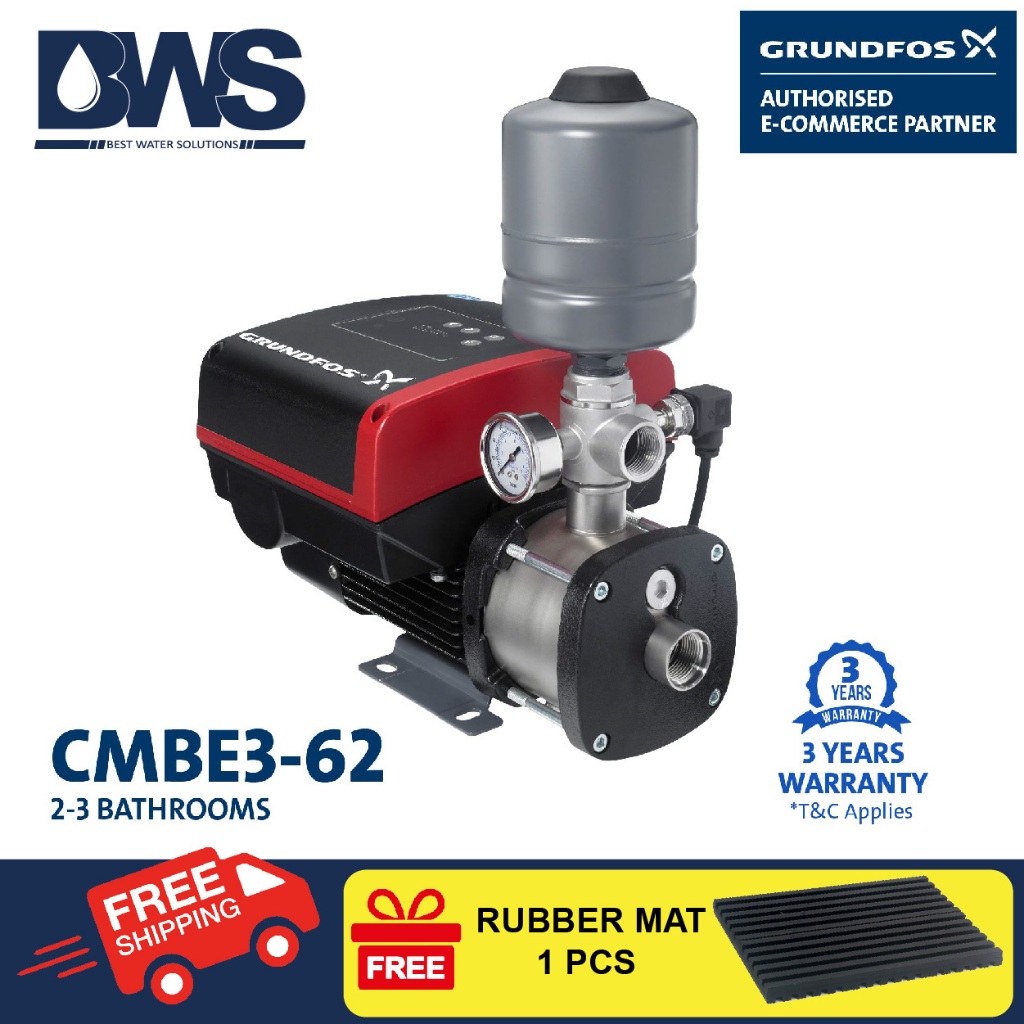

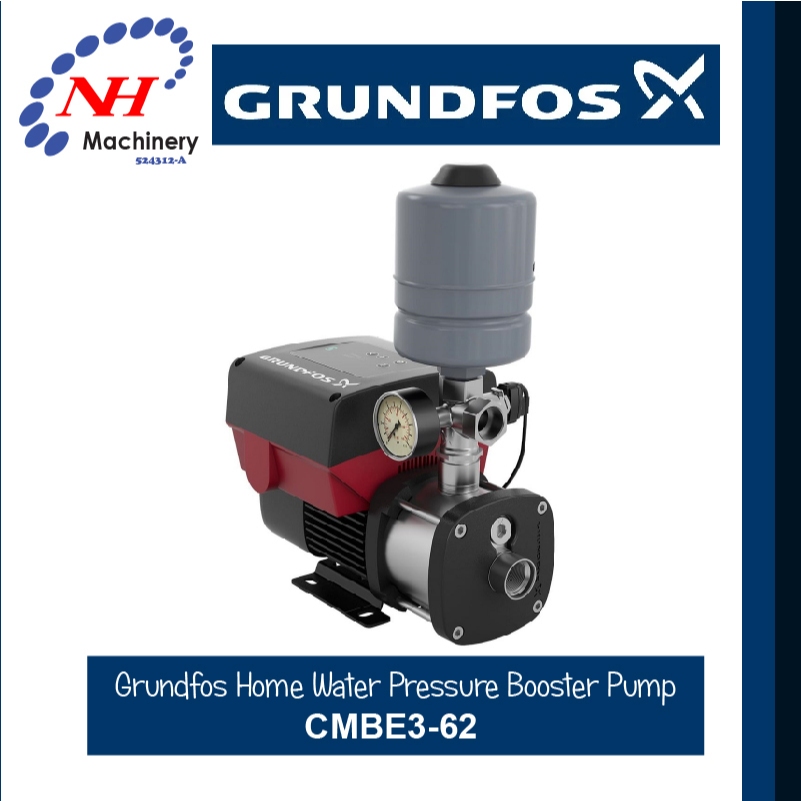

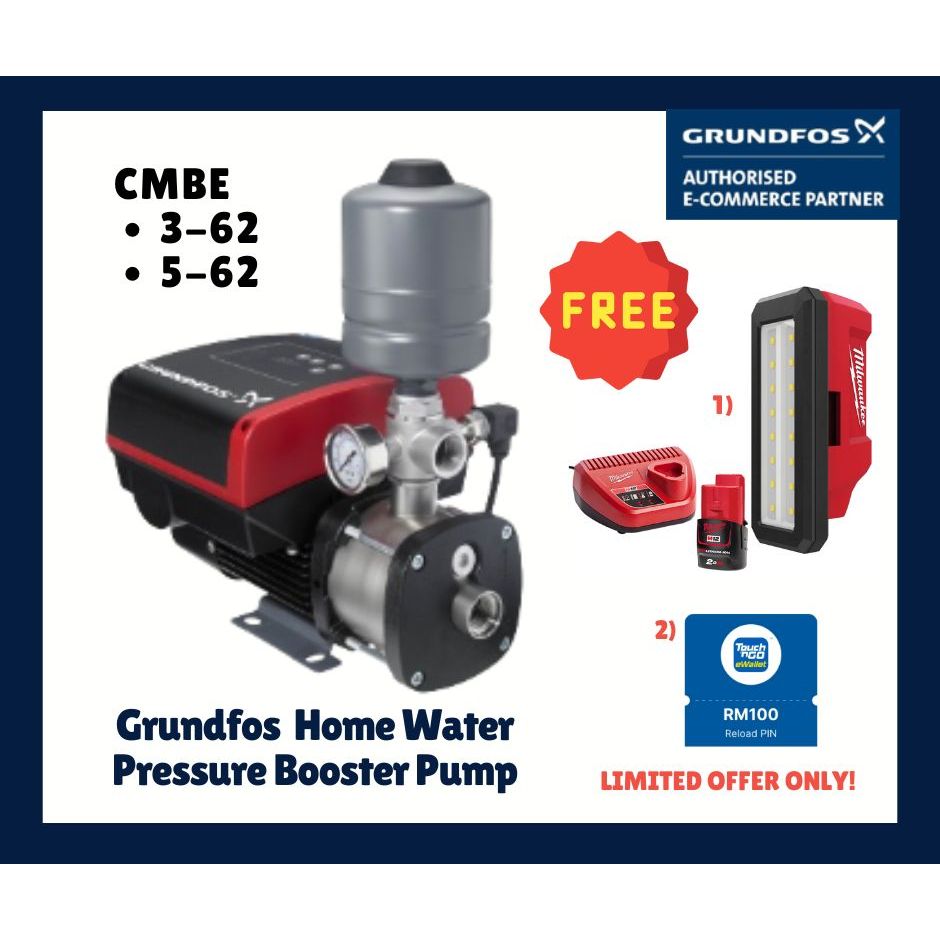

The Grundfos CMBE 3-62 is a compact booster system featuring a 1.1 kW variable-speed motor. This stainless steel pump delivers impressive performance with a maximum head of 45.2 meters and flow rate up to 20 m³/h. Operating quietly and oil-free, it's ideal for domestic/commercial water supply and irrigation. With 1" inlet/outlet diameter and temperature tolerance up to 60°C, it offers reliable pressure boosting in a 17.2 kg package.
Specifications
Price
RM4,462.00
4 products
Shopee
RM4,468.00
19 products(1 item sold out)
Specifications
Basic information
Brand
Grundfos
Model
CMBE 3-62
Product name
CMBE 3-62 I-U-C-G-D-A
Pump type
Compact booster system
Motor type
Variable-speed motor
Safety features
Overload protection
Yes
Pressure switch control
Yes
Temperature protection
Yes
Warranty support
Certifications
CE, EAC, CN ROHS EXE, WRAS, ACS
Warranty period
3 Tahun
Power specifications
Frequency
60
Frequency unit
Hz
Motor power
1.1 kW
Output power
1.1
Output power unit
kW
Voltage
200, 240
Operating conditions
Ambient temperature limit
55
Ambient temperature unit
°C
Maximum water temperature
60
Temperature unit
°C
Features
Noise level
Noiseless operation
Oil free
Yes
Performance
Maximum flow rate
20
Maximum flow rate unit
m³/h
Maximum head
45.2
Maximum head unit
meters
Rated flow
4.2
Rated flow unit
m³/h
Construction
Impeller material
Stainless Steel EN 1.4301 (AISI 304)
Inlet outlet diameter
1"
Material
Stainless Steel EN 1.4301 (AISI 304)
Dimensions
Weight
17.2
Weight unit
kg
Applications
Domestic water supply, Commercial water supply, Pressure boosting, Irrigation
