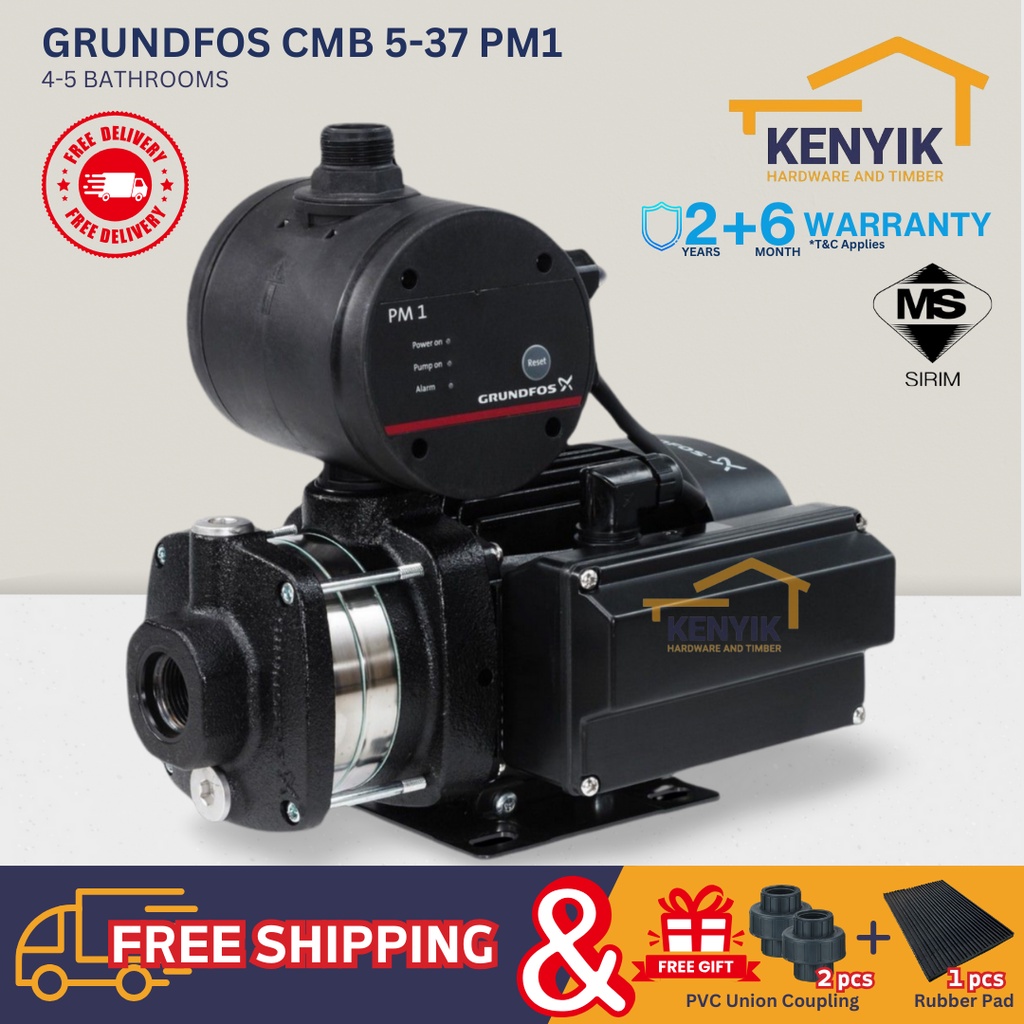

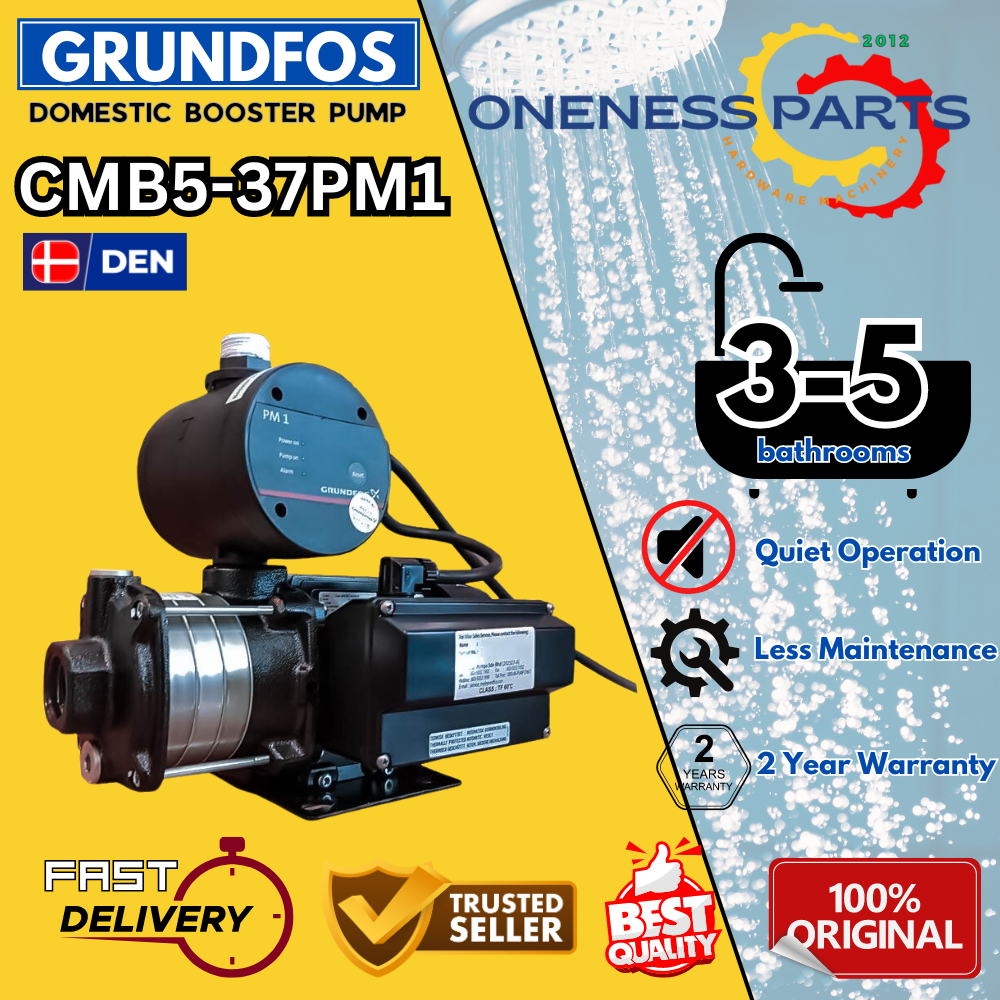

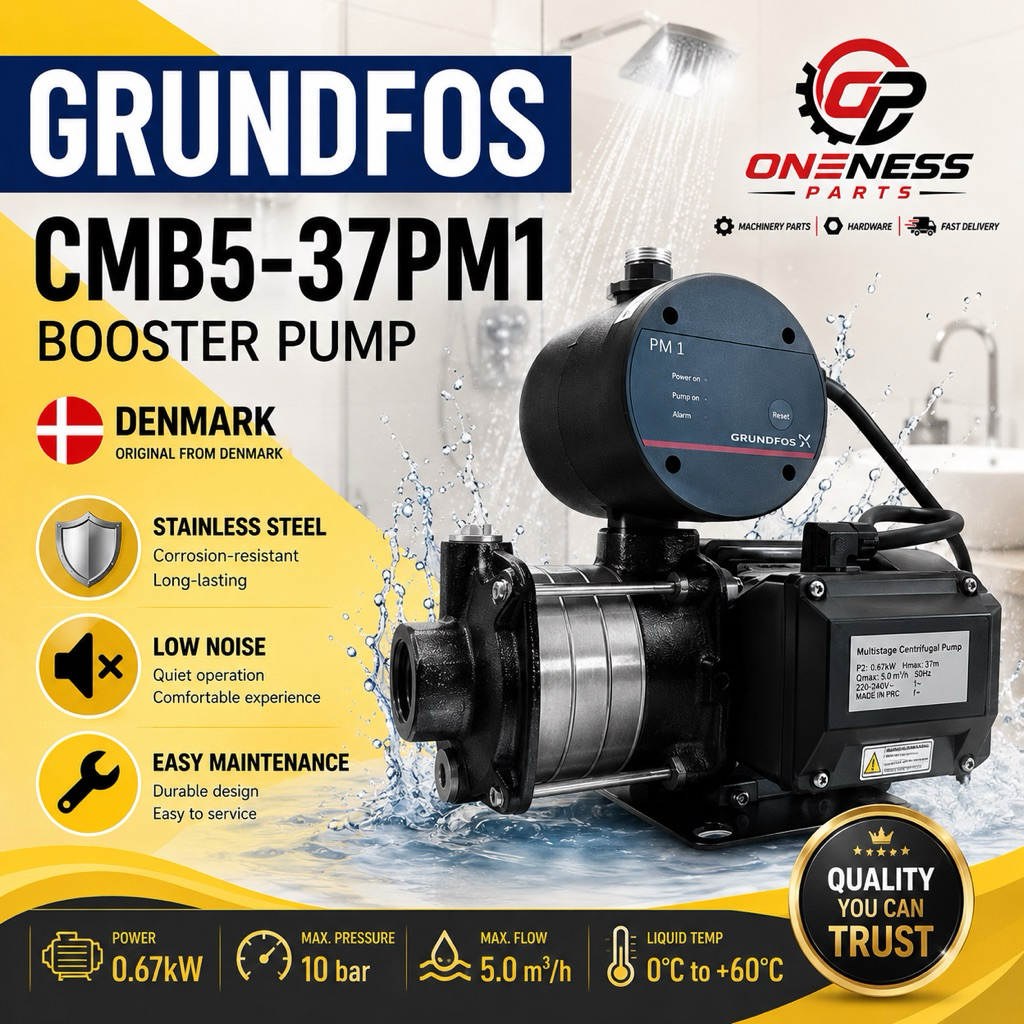

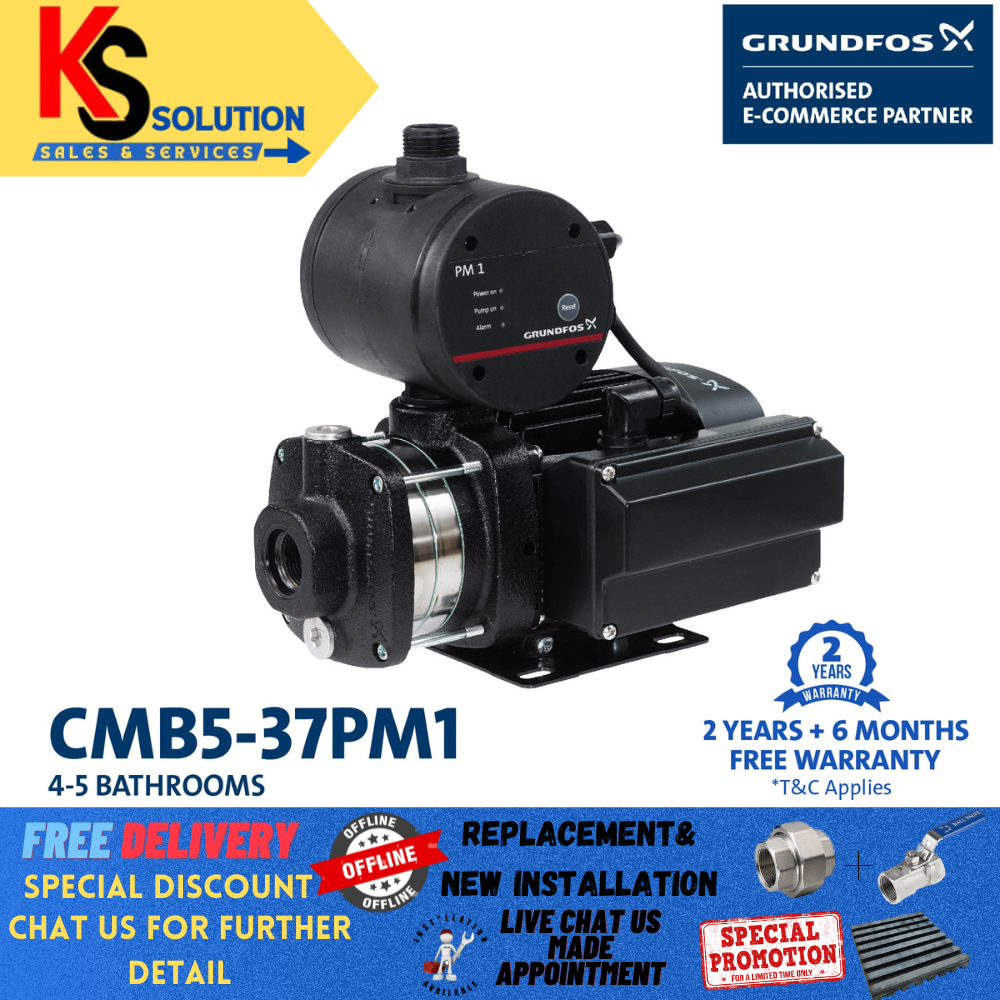

The Grundfos CMB5-37PM1 is a horizontal multi-stage pump powered by a 670W single-phase electric motor. This automatic water pump delivers impressive performance with a maximum flow rate of 108 L/min and a maximum head of 37m. Built with cast iron and stainless steel components, including AISI 304 stainless steel impeller, it operates efficiently at temperatures up to 60°C. The pump features temperature and overload protection, with noise levels below 55 dB(A). Ideal for domestic and commercial pressure boosting applications.
Specifications
Price
Lazada
RM2,061.00
3 products
Shopee
RM2,159.00
33 products(3 items sold out)
Specifications
Basic information
Brand
Grundfos
Model
CMB5-37PM1
Product name
Pam Pengecas Air Automatik
Pump type
Pam pelbagai peringkat mendatar
Engine type
Motor elektrik
Motor type
Fasa tunggal
Safety features
Overload protection
Yes
Pressure switch control
Yes
Temperature protection
Yes
Warranty support
Certifications
IP55, RCM Model A
Warranty period
2 tahun
Warranty type
Had
Power specifications
Frequency
50
Frequency unit
Hz
Horsepower
0.9
Motor power
670 W
Output power
0.67
Output power unit
kW
Voltage
220
Operating conditions
Ambient temperature limit
50
Ambient temperature unit
°C
Maximum water temperature
60
Temperature unit
°C
Features
Noise level
<55 dB(A)
Oil free
Yes
Portability
Tetap
Performance
Maximum flow rate
108
Maximum flow rate unit
L/min
Maximum head
37
Maximum head unit
m
Rated flow
86
Rated flow unit
L/min
Suction depth
4
Suction depth unit
m
Suction head
6
Suction head unit
m
Construction
Impeller material
Stainless steel (AISI 304)
Inlet outlet diameter
1¼ inci x 1 inci
Material
Besi tuang, Stainless steel
Dimensions
Height
15.8
Height unit
cm
Length
36.4
Length unit
cm
Weight
18
Weight unit
kg
Width
30.5
Width unit
cm
Applications
Domestik, Komersial, Peningkatan tekanan air
