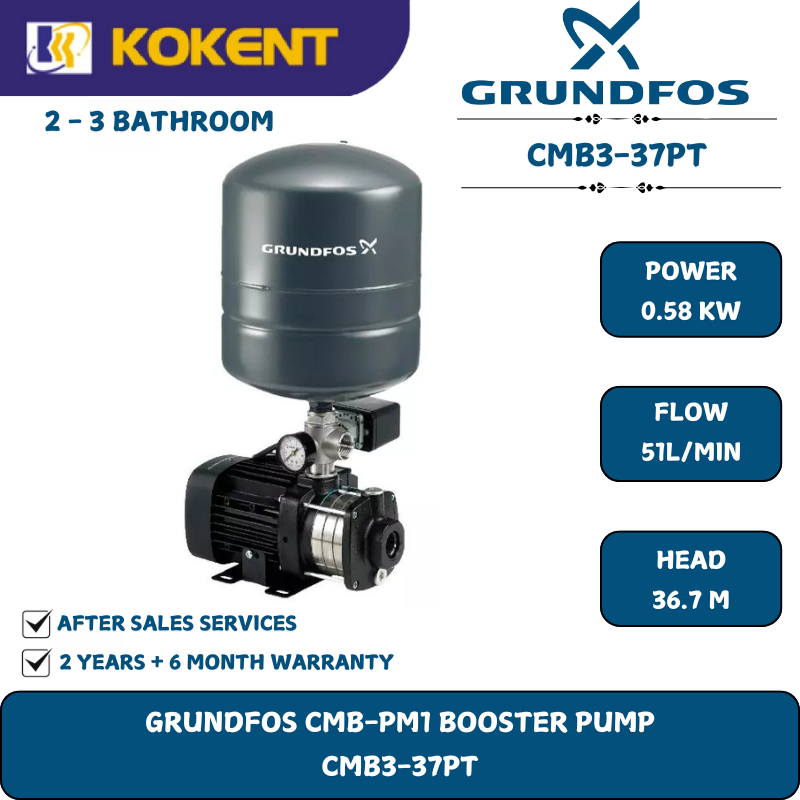

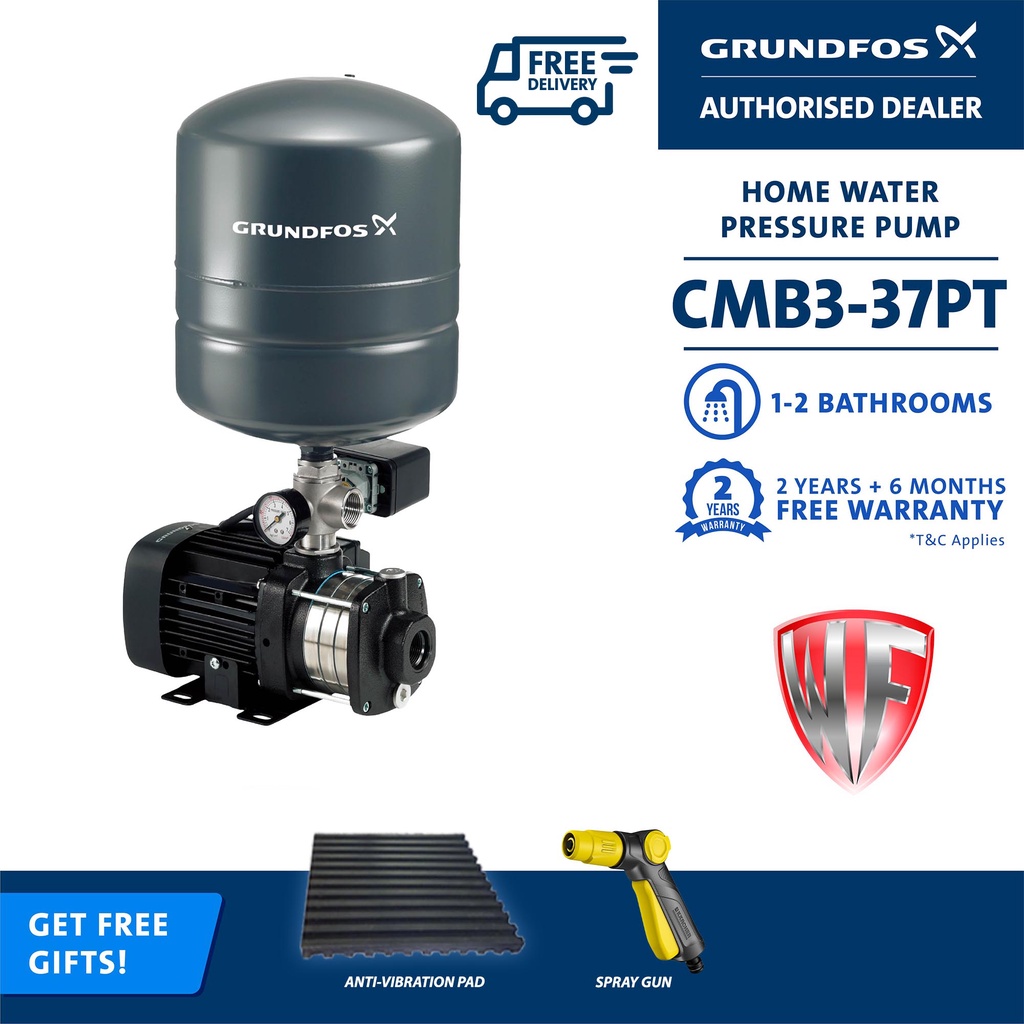

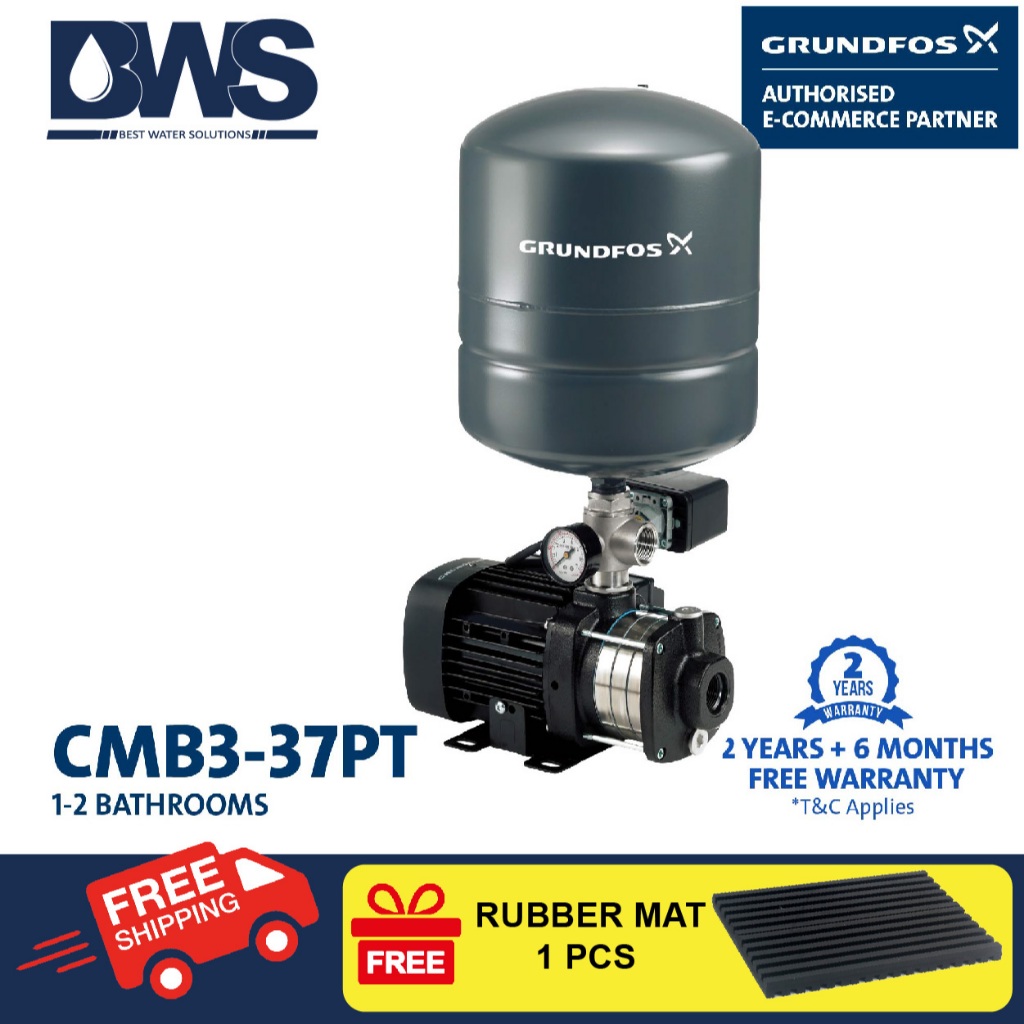

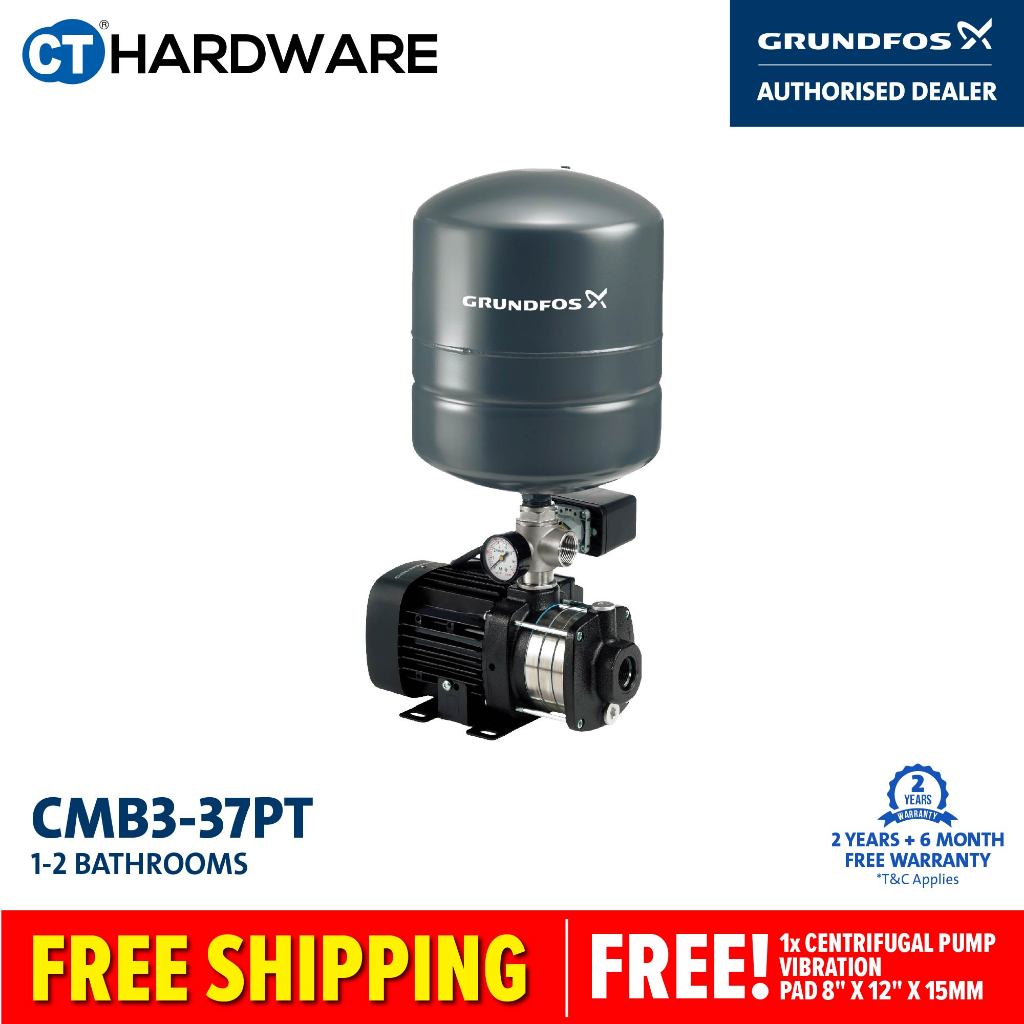

The Grundfos CMB3-37PT is a powerful multistage booster pump featuring a 500W single-phase motor. This robust pump delivers impressive performance with a maximum flow rate of 70 L/min and head height of 36.7m. Built with cast iron and stainless steel construction, it operates quietly at <56 dB. Perfect for 1-3 story residences, small offices, and minor agricultural uses. The pump offers temperature and overload protection, with a maximum operating temperature of 55°C.
Specifications
Price
Shopee
RM2,379.00
23 products
Lazada
RM3,347.00
1 product
Specifications
Basic information
Brand
Grundfos
Model
CMB3-37PT
Product name
Pam Pengecut Air Automatik
Pump type
Multistage Booster Pump
Motor type
Single-phase
Safety features
Overload protection
Yes
Pressure switch control
Yes
Temperature protection
Yes
Warranty support
Certifications
CE, CN, ROHS, WEEE
Warranty period
2 tahun
Warranty type
Pembaikan atau penggantian
Power specifications
Frequency
50
Frequency unit
Hz
Horsepower
0.5
Motor power
500 W
Output power
500
Output power unit
W
Voltage
220, 230, 240
Operating conditions
Ambient temperature limit
55
Ambient temperature unit
°C
Maximum water temperature
55
Temperature unit
°C
Features
Noise level
<56 dB
Oil free
Yes
Portability
Tetap
Performance
Maximum flow rate
70
Maximum flow rate unit
L/min
Maximum head
36.7
Maximum head unit
m
Rated flow
55
Rated flow unit
L/min
Suction depth
1
Suction depth unit
m
Suction head
4
Suction head unit
m
Construction
Impeller material
Stainless steel (EN 1.4301 / AISI 304)
Inlet outlet diameter
1" x 1"
Material
Cast iron, Stainless steel
Dimensions
Height
62
Height unit
cm
Length
15.8
Length unit
cm
Weight
17.9
Weight unit
kg
Width
32.4
Width unit
cm
Applications
Kediaman (1-3 tingkat), Pejabat kecil, Kegunaan pertanian kecil
