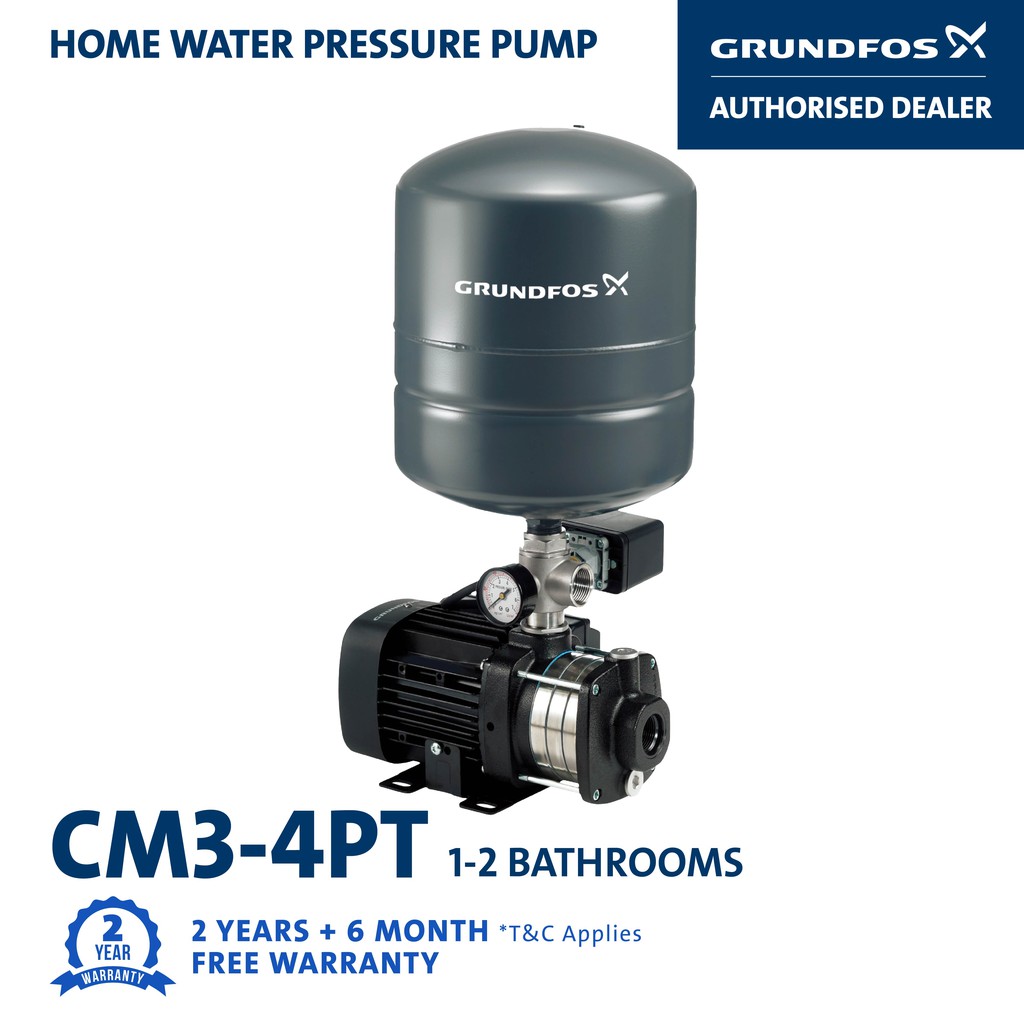

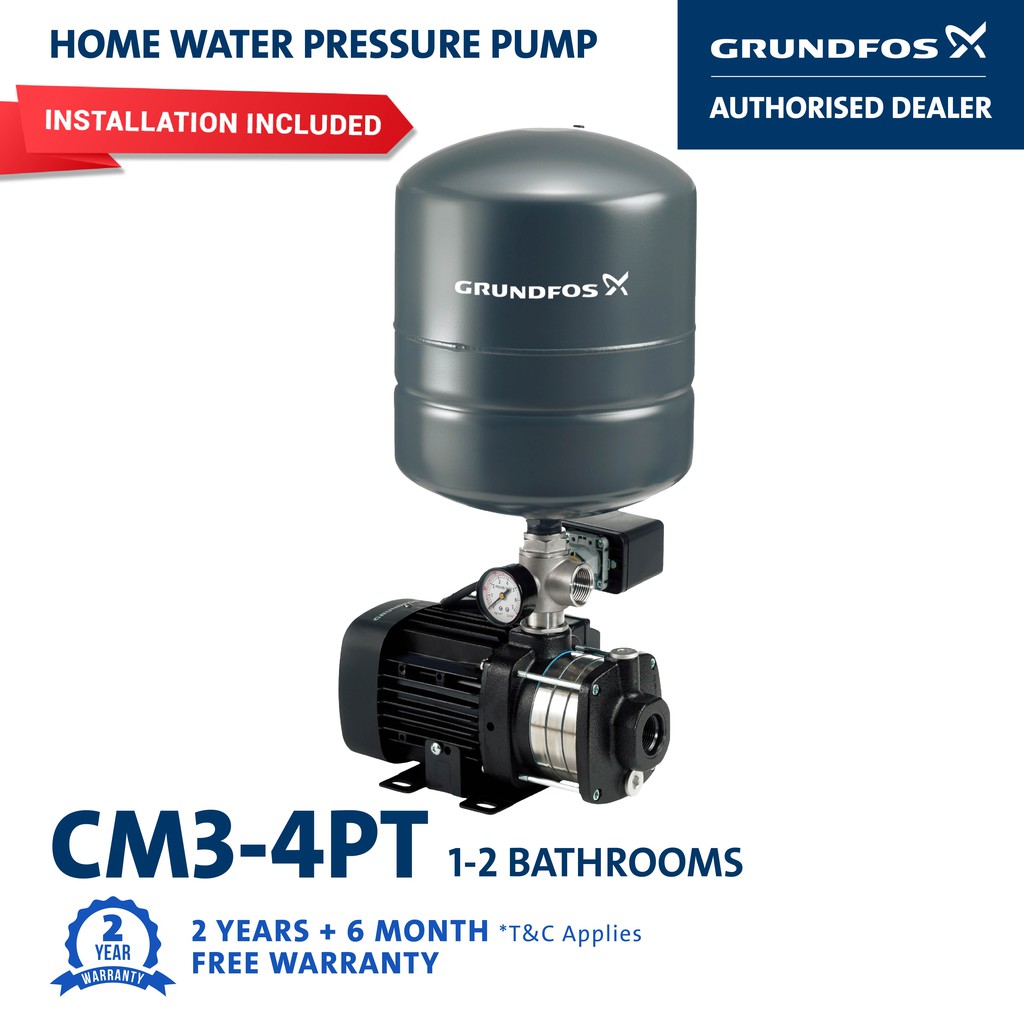

The Grundfos CM3-4PT is a horizontal, non-self priming centrifugal pump designed for residential and light industrial applications. Operating at 420W (P2), it delivers impressive performance with a maximum flow rate of 50L/min and head height of 32m. Constructed with AISI 304 stainless steel components, including the impeller, this pump features 1-inch inlet/outlet connections and can handle water temperatures up to 60°C. Its compact dimensions (350x290x650mm) and pressure switch control make it ideal for hotels, restaurants, and household use.
Specifications
Price
Shopee
RM3,672.00
4 products
Specifications
Basic information
Brand
Grundfos
Model
CM3-4PT
Product name
Pompa Booster Multistage Grundfos CM 3-4 PT
Pump type
Centrifugal, horizontal, non-self priming
Safety features
Pressure switch control
Yes
Warranty support
Certifications
SIRIM
Warranty period
2 tahun
Warranty type
Pengilang
Power specifications
Frequency
50
Frequency unit
Hz
Motor power
420 Watt (P2), 570 Watt (P1)
Voltage
220, 240
Operating conditions
Maximum water temperature
60
Temperature unit
°C
Features
Noise level
Rendah
Oil free
Yes
Portability
Tetap
Performance
Maximum flow rate
50
Maximum flow rate unit
liter/menit
Maximum head
32
Maximum head unit
meter
Rated flow
3
Rated flow unit
m³/jam
Suction head
4
Suction head unit
meter
Construction
Impeller material
Stainless steel AISI 304
Inlet outlet diameter
1 inch
Material
Stainless steel AISI 304
Dimensions
Height
650
Height unit
mm
Length
350
Length unit
mm
Weight
24
Weight unit
kg
Width
290
Width unit
mm
Applications
Rumah tangga, Industri ringan, Restoran, Hotel
