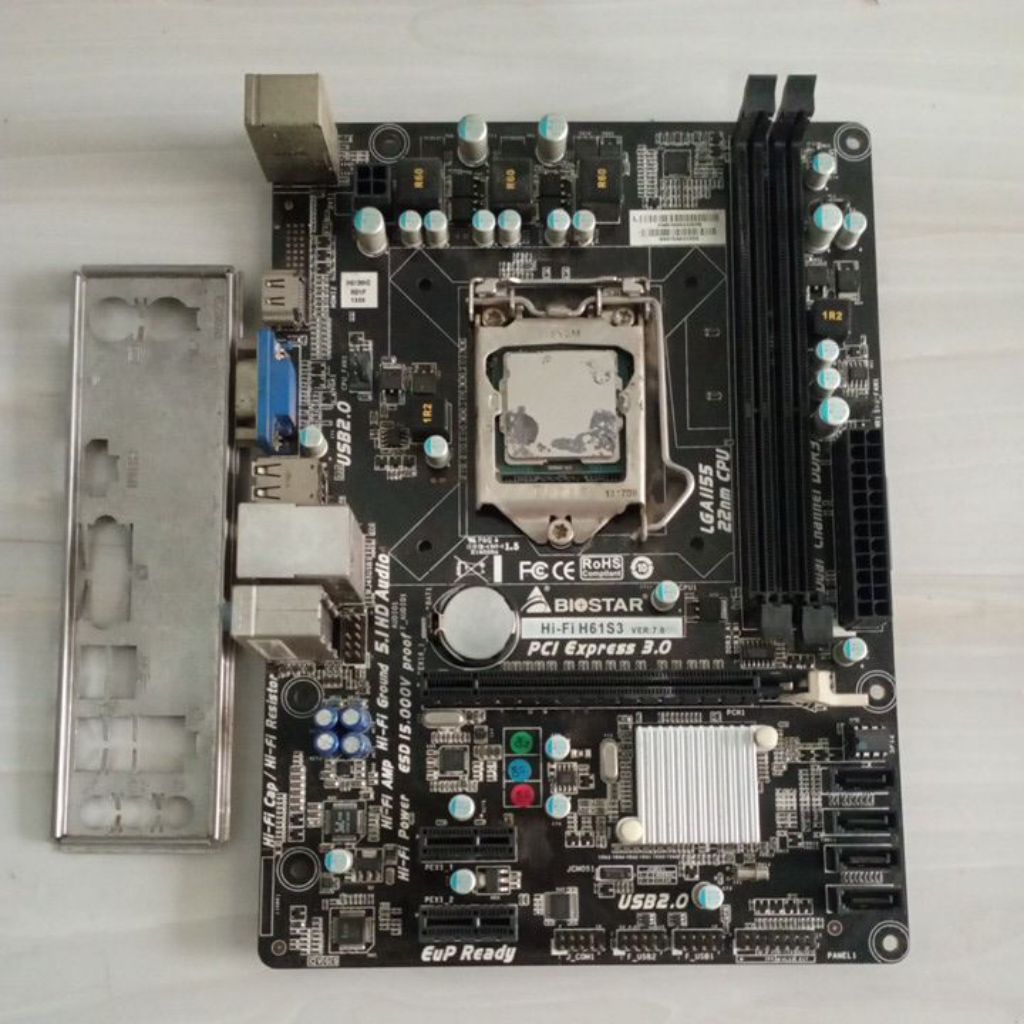

The Biostar H61S3 is a Micro ATX motherboard featuring Intel's H61 chipset and LGA 1155 socket, supporting Intel Core i7/i5/i3, Pentium, and Celeron processors. It offers dual-channel DDR3 memory support up to 16GB at 1600MHz across 2 slots. The board includes 1 PCIe Gen3 x16 slot, 2 PCIe Gen2 x1 slots, and 4 SATA 3.0Gb/s ports. Connectivity includes USB 2.0, Gigabit Ethernet, HDMI, and D-Sub outputs, plus 5.1 channel HD audio.
Specifications
Price
Specifications
Basic information
Brand
Biostar
Model
H61S3
Socket type
LGA 1155
Supported processors
Intel Core i7, Intel Core i5, Intel Core i3, Intel Pentium, Intel Celeron
Chipset
Intel H61
Form factor
Micro ATX
Memory
Max memory capacity
16
Max memory capacity unit
GB
Memory channels
Dual
Memory slots
2
Memory speed
1600
Memory speed unit
MHz
Memory type
DDR3
Expansion slots
Pcie slots
PCIe Gen3 x16 1 32GB/s / PCIe Gen2 x1 2 1GB/s
Storage
Sata ports
4
Sata speed
3.0 Gb/s
Features
Bios features
UEFI BIOS, Smart Fan Control
Connectivity
Networking
Ethernet
Gigabit Ethernet (RTL8111F)
Usb ports
USB 2.0 4 480 Mbps
Video outputs
Hdmi
1
D sub
1
Physical specs
Length
235
Length unit
mm
Width
170
Width unit
mm
Cooling
Fan headers
2
Audio
Channels
5.1
Codec
Realtek ALC662
Features
HD Audio
Power system
Power connectors
24-pin ATX 1 / 4-pin CPU 1
