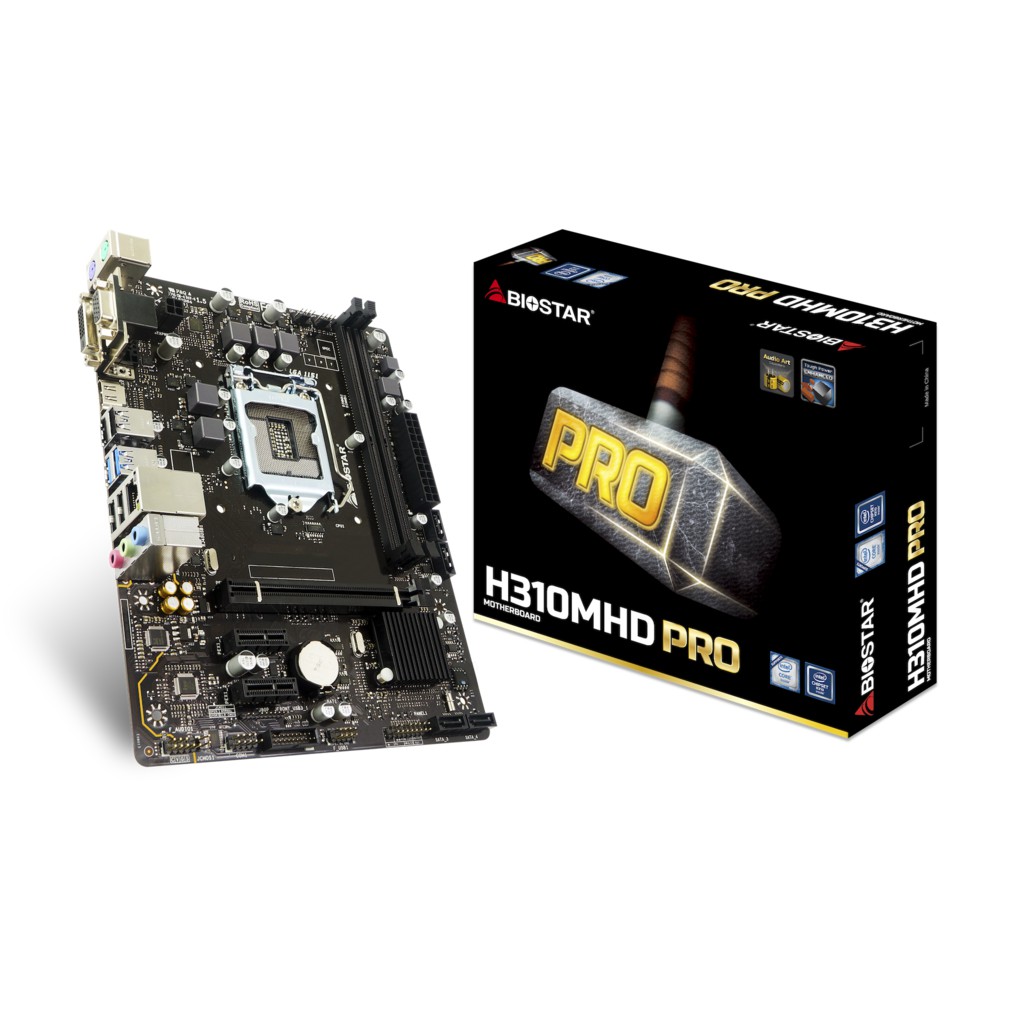

The Biostar H310MHD PRO is a Micro-ATX motherboard featuring Intel's H310 chipset and LGA 1151 socket, supporting both 8th and 9th Gen Intel processors. It offers dual-channel DDR4 memory support up to 32GB at 2666MHz across 2 slots. The board includes 1 PCIe 3.0 x16 slot, 2 PCIe 2.0 x1 slots, and an M.2 slot supporting both PCIe and SATA. Connectivity includes 4 SATA ports, USB 3.1 Gen1, and 8-channel HD audio.
Specifications
Price
YouBeli
RM262.00
1 product
Specifications
Basic information
Brand
Biostar
Model
H310MHD PRO
Socket type
LGA 1151
Supported processors
8th Gen Intel Core i7/i5/i3, Pentium, Celeron, 9th Gen Intel Core i7/i5/i3
Chipset
Intel H310
Form factor
Micro-ATX
Memory
Max memory capacity
32
Max memory capacity unit
GB
Memory channels
Dual Channel
Memory slots
2
Memory speed
2666
Memory speed unit
MHz
Memory type
DDR4
Expansion slots
M2 slots
[{'quantity': 1, 'interface': 'PCIe 2.0 x4 & SATA', 'max_speed': '10Gb/s'}]
Pcie slots
[{'type': 'PCIe 3.0 x16', 'quantity': 1, 'speed': 'null'}, {'type': 'PCIe 2.0 x1', 'quantity': 2, 'speed': 'null'}]
Storage
Sata ports
4
Sata speed
6Gbps
Features
Bios features
UEFI BIOS
Connectivity
Networking
Ethernet
Gigabit LAN
Usb ports
[{'type': 'USB 3.1 Gen1', 'quantity': 2, 'speed': '5Gbps'}, {'type': 'USB 2.0', 'quantity': 4, 'speed': '480Mbps'}]
Video outputs
Hdmi
1
D sub
1
Physical specs
Length
22.8
Length unit
cm
Width
17.7
Width unit
cm
Cooling
Fan headers
2
Audio
Channels
8-channel
Codec
Realtek ALC887
Features
HD Audio
Power system
Power connectors
[{'type': '24-pin ATX', 'quantity': 1}, {'type': '8-pin ATX', 'quantity': 1}]
