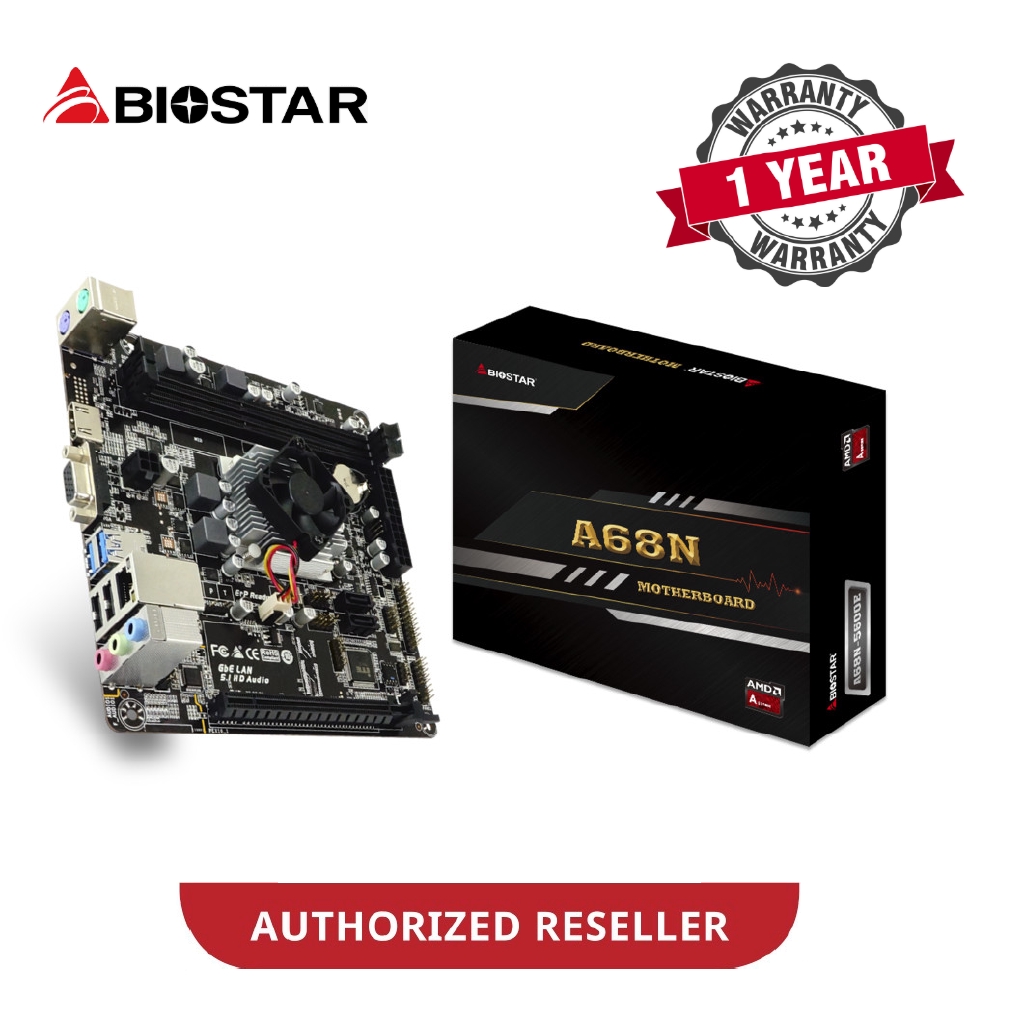

The Biostar A68N is a compact Mini-ITX motherboard featuring AMD's A68H chipset and FM2+ socket compatibility for A-series/Athlon processors. Supporting up to 32GB of DDR3 memory at 2133MHz across dual channels, it offers essential connectivity with 4 SATA 6Gbps ports, PCIe 2.0 x16 slot, and mixed USB ports (4x USB 2.0, 2x USB 3.0). The board includes HDMI and D-Sub outputs, Gigabit Ethernet, and 5.1 channel audio via Realtek ALC662.
Specifications
Price
YouBeli
RM299.00
2 products
Specifications
Basic information
Brand
Biostar
Model
A68N
Release date
2014-06-01
Socket type
FM2+
Supported processors
AMD A-series/Athlon processors
Chipset
AMD A68H
Form factor
Mini-ITX
Memory
Max memory capacity
32
Max memory capacity unit
GB
Memory channels
Dual
Memory slots
2
Memory speed
2133
Memory speed unit
MHz
Memory type
DDR3
Xmp support
No
Environmental
Operating humidity
Unit
%
Min
20
Max
90
Operating temperature
Unit
°C
Max
60
Expansion slots
Pcie slots
PCIe 2.0 x16 1 5 GT/s
Warranty support
Warranty period
3
Warranty period unit
years
Warranty type
Limited
Storage
Sata ports
4
Sata speed
6 Gbps
Features
Bios features
UEFI BIOS
Connectivity
Networking
Ethernet
10/100/1000 Mbps
Wifi
No
Bluetooth
No
Usb ports
USB 2.0 4 480 Mbps / USB 3.0 2 5 Gbps
Video outputs
Hdmi
1
D sub
1
Physical specs
Length
17
Length unit
cm
Weight
0.5
Weight unit
kg
Width
17
Width unit
cm
Cooling
Fan headers
1
Heatsinks
Chipset
Thermal sensors
1
Audio
Channels
5.1
Codec
Realtek ALC662
Features
High Definition Audio
Power system
Power connectors
24-pin ATX 1 / 4-pin ATX 1
Power phases
4+1
Vrm solution
Standard
