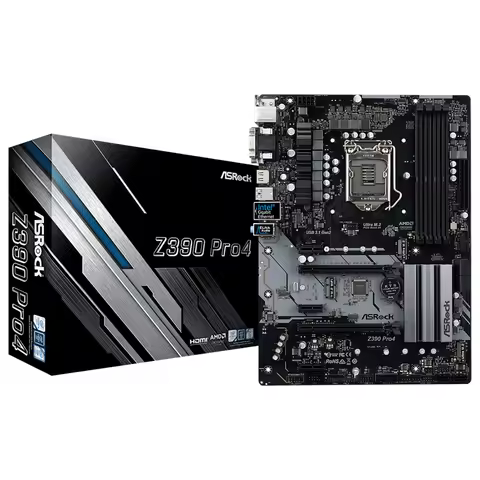

The ASRock Z390 Pro4 is a full-size ATX motherboard featuring Intel's Z390 chipset for LGA1151 processors. Supporting up to 64GB DDR4 memory at speeds up to 4300MHz across 4 slots, it offers robust expansion with 2 PCIe 3.0 x16 slots and 2 M.2 slots. The board includes comprehensive connectivity with USB 3.2 Gen2 Type-A/C ports, 6 SATA ports, and Intel Gigabit Ethernet. Features 10-phase power delivery with 50A power chokes and 7.1 channel audio via Realtek ALC892.
Specifications
Price
Shopee
RM497.39
2 products
Specifications
Basic information
Brand
ASRock
Model
Z390 Pro4
Release date
2018-10
Socket type
LGA1151
Supported processors
Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium
Chipset
Intel Z390
Form factor
ATX
Memory
Max memory capacity
64
Max memory capacity unit
GB
Memory channels
Dual-channel
Memory slots
4
Memory speed
4300
Memory speed unit
MHz
Memory type
DDR4-SDRAM
Xmp support
Yes
Expansion slots
M2 slots
2 PCIe Gen3 x4 & SATA3 32Gb/s
Pcie slots
PCIe 3.0 x16 2 Gen3 / PCIe 3.0 x1 3 Gen3
Storage
Sata ports
6
Sata speed
6Gbps
Features
Bios features
UEFI AMI
Debug features
Post Status Checker
Connectivity
Networking
Ethernet
Intel I219-V Gigabit Ethernet
Wifi
No
Bluetooth
No
Usb ports
USB 3.2 Gen2 Type-A 1 10Gbps / USB 3.2 Gen2 Type-C 1 10Gbps / USB 3.2 Gen1 2 5Gbps / USB 2.0 2 480Mbps
Video outputs
Hdmi
1
D sub
1
Physical specs
Length
305
Length unit
mm
Width
224
Width unit
mm
Cooling
Fan headers
4
Heatsinks
VRM Heatsink
Audio
Channels
7.1
Codec
Realtek ALC892
Features
ELNA Audio Caps
Power system
Power connectors
ATX 24-pin 1 / EPS 8-pin 1
Power phases
10
Vrm solution
50A Power Chokes
