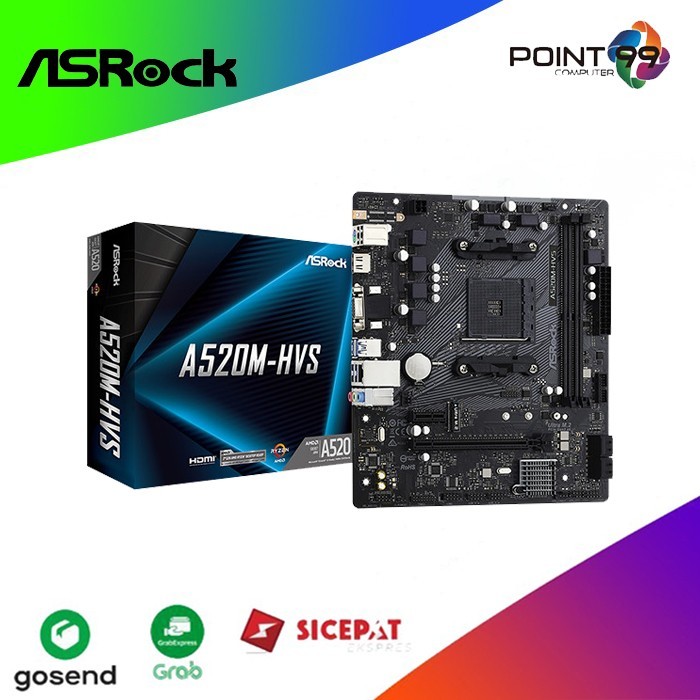

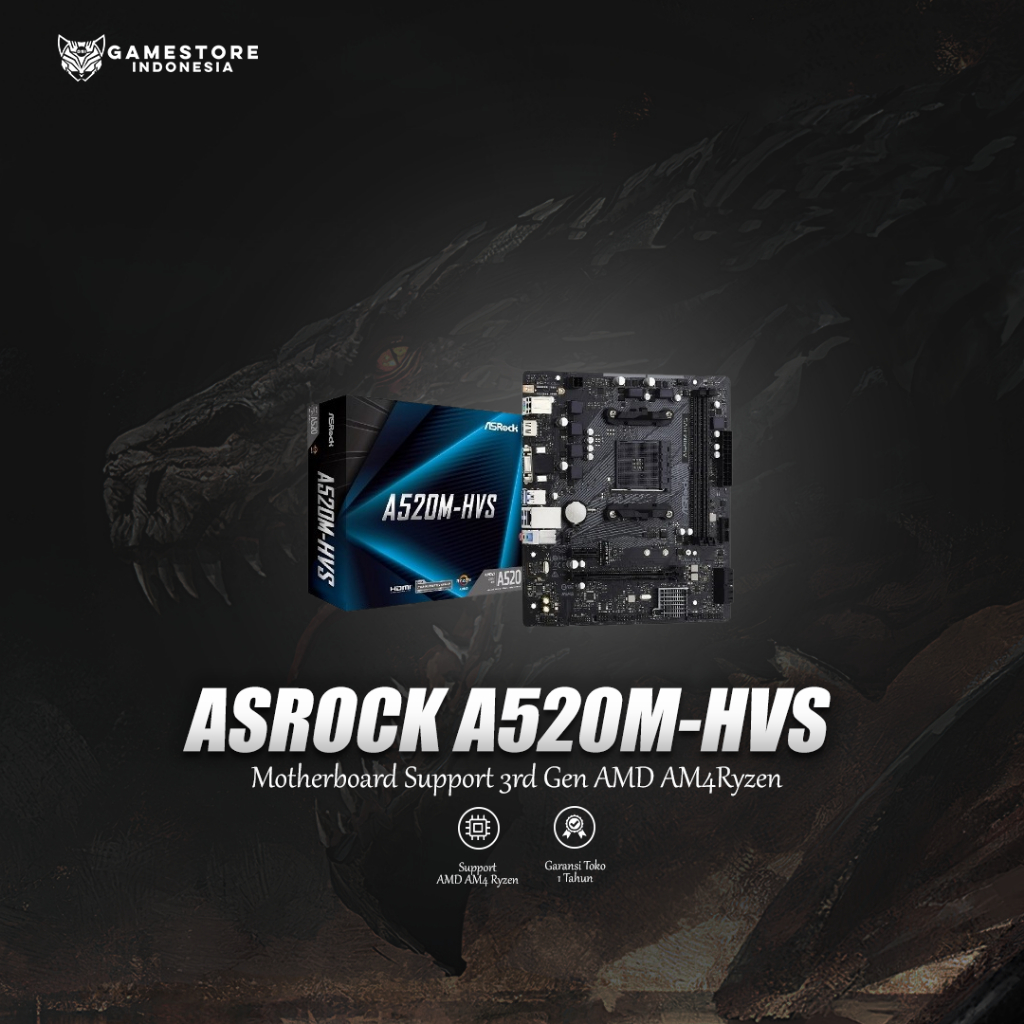

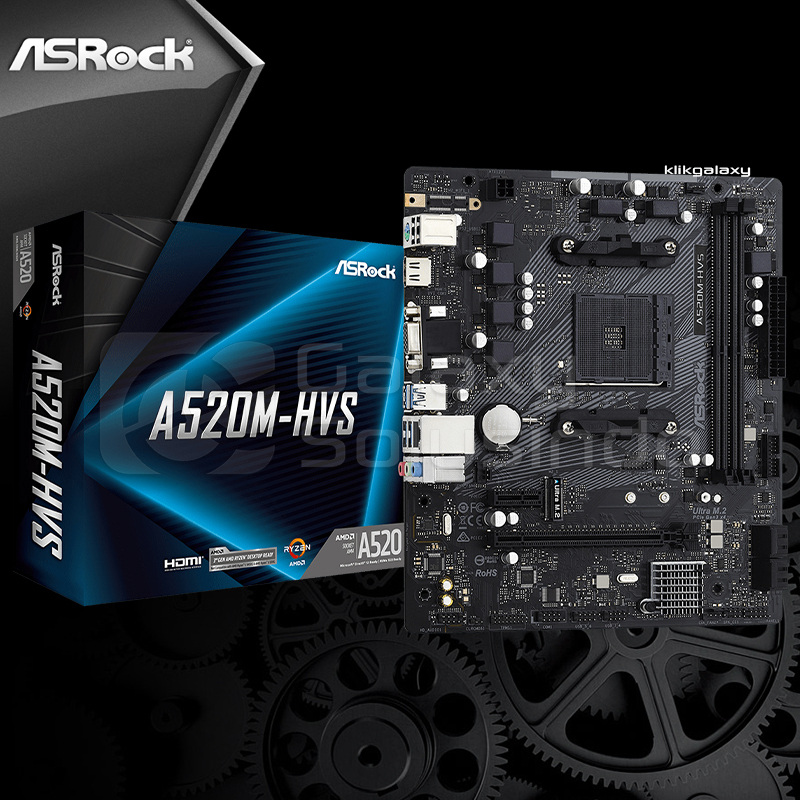

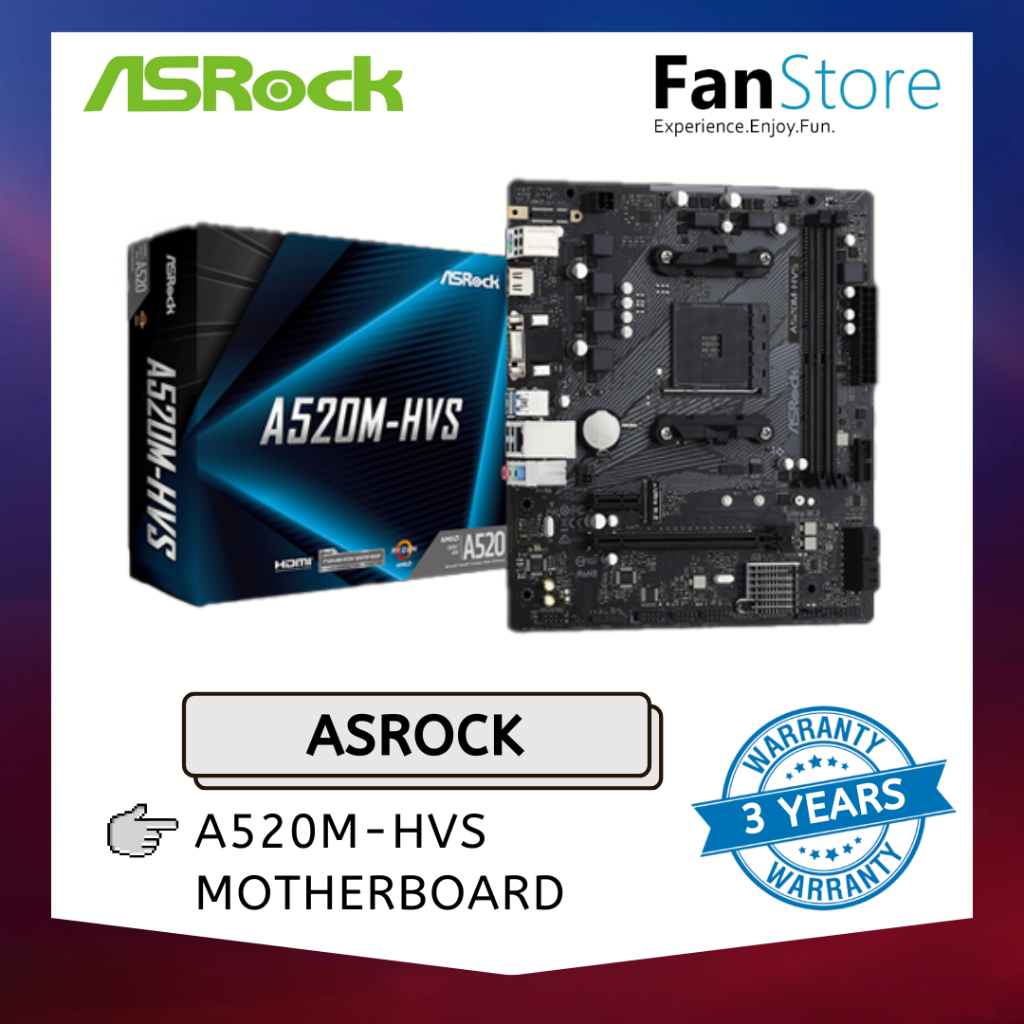

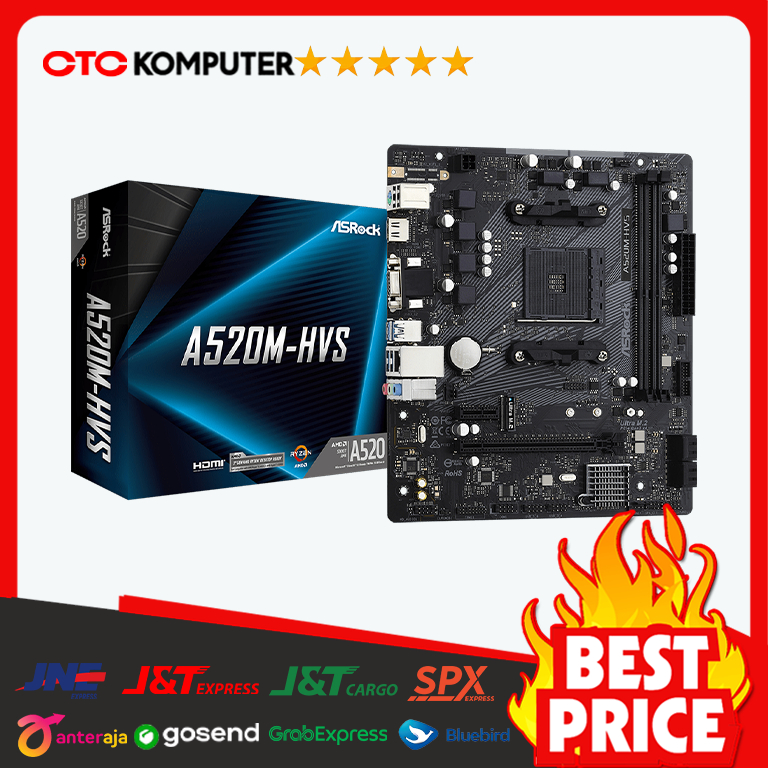

The ASRock A520M-HVS is a Micro-ATX motherboard featuring AMD's A520 chipset and AM4 socket, supporting 3rd Gen AMD Ryzen processors. It offers dual-channel DDR4 memory support up to 64GB at 4733MHz across 2 slots. Storage options include 4 SATA 6Gb/s ports and an M.2 slot supporting both NVMe and SATA. Connectivity includes HDMI and D-Sub outputs, Gigabit LAN, 6 USB ports, and 7.1 channel HD audio.
Specifications
Price
RM229.00
15 products
Specifications
Basic information
Brand
ASRock
Model
A520M-HVS
Release date
2020-01-01
Socket type
AM4
Supported processors
AMD Ryzen 3/5/7/9 (Generasi ke-3)
Chipset
AMD A520
Form factor
Micro-ATX
Memory
Max memory capacity
64
Max memory capacity unit
GB
Memory channels
Dual Channel
Memory slots
2
Memory speed
4733
Memory speed unit
MHz
Memory type
DDR4-SDRAM
Xmp support
Ya
Expansion slots
M2 slots
[{'quantity': 1, 'interface': 'PCIe 3.0 x4', 'max_speed': 'NVMe/SATA'}]
Pcie slots
[{'type': 'PCIe 3.0 x16', 'quantity': 1, 'speed': 'PCIe 3.0'}, {'type': 'PCIe 3.0 x1', 'quantity': 1, 'speed': 'PCIe 3.0'}]
Storage
Sata ports
4
Sata speed
6 Gb/s
Features
Bios features
UEFI AMI
Connectivity
Networking
Ethernet
1 x Realtek RTL8111H (10/100/1000 Mbps)
Wifi
Tidak
Bluetooth
Tidak
Usb ports
[{'type': 'USB 2.0', 'quantity': 2, 'speed': 'USB 2.0'}, {'type': 'USB 3.2 Gen 1 (USB-A)', 'quantity': 4, 'speed': 'USB 3.2 Gen 1'}]
Video outputs
Hdmi
1
D sub
1
Physical specs
Length
230
Length unit
mm
Width
201
Width unit
mm
Cooling
Fan headers
3
Audio
Channels
7.1 Channel
Codec
Realtek ALC887
Features
HD Audio
Power system
Power connectors
[{'type': '24-pin ATX', 'quantity': 1}, {'type': '8-pin EPS', 'quantity': 1}]
