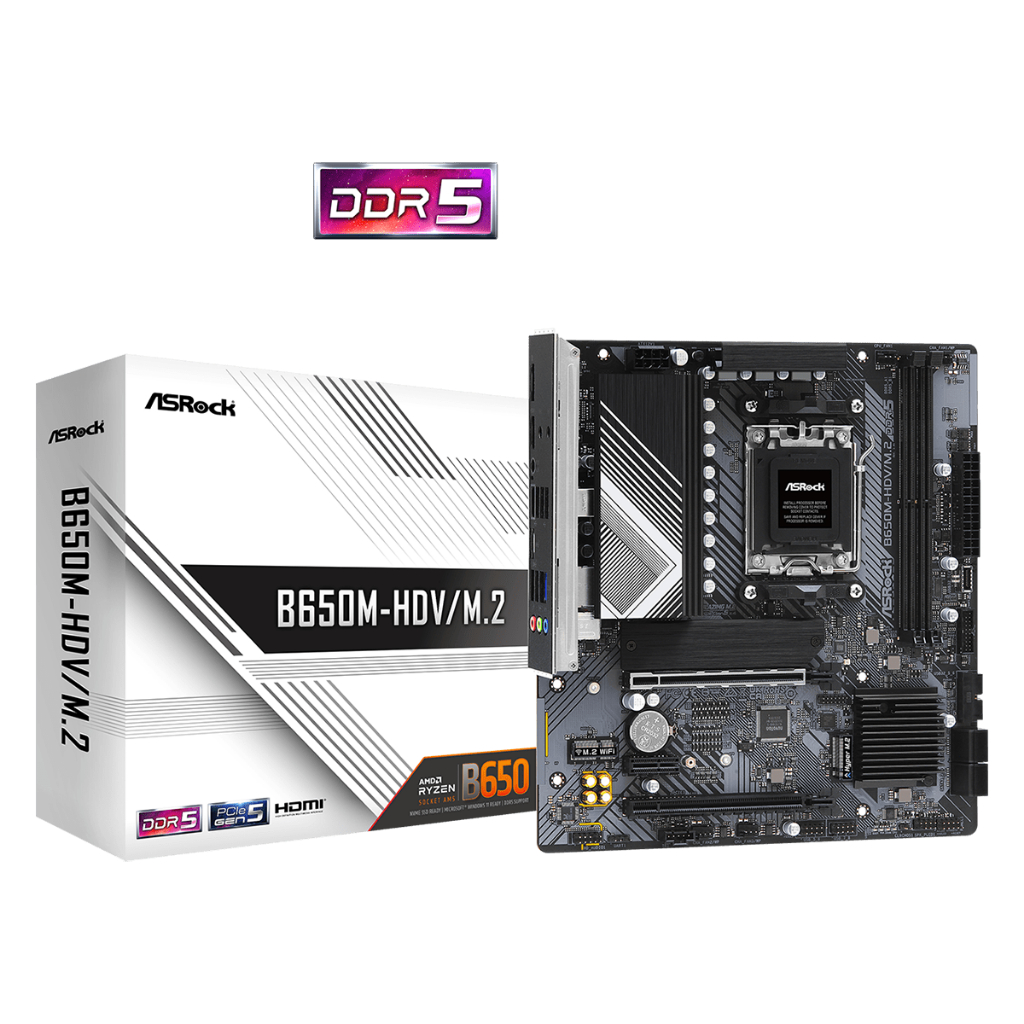

The ASRock B650M-HDV/M.2 is a Micro-ATX motherboard supporting AMD Ryzen 7000-9000 series processors. Features dual-channel DDR5 memory up to 7200MHz with 128GB capacity. Offers excellent connectivity with PCIe Gen5 and Gen4 M.2 slots, 2.5GbE LAN, and multiple USB ports including Type-C. Includes 8+2+1 power phases with 50A Dr.MOS for stable power delivery. Supports 7.1 HD audio and comes with VRM heatsink for enhanced cooling.
Specifications
Price
Shopee
RM617.74
13 products(2 items sold out)
Specifications
Basic information
Brand
ASRock
Model
B650M-HDV/M.2
Socket type
AM5
Supported processors
AMD Ryzen™ 7000 Series, AMD Ryzen™ 8000 Series, AMD Ryzen™ 9000 Series
Chipset
AMD B650
Form factor
Micro-ATX
Memory
Max memory capacity
128
Max memory capacity unit
GB
Memory channels
Dual-channel
Memory slots
2
Memory speed
7200
Memory speed unit
MHz
Memory type
DDR5-SDRAM
Xmp support
Supported
Expansion slots
M2 slots
[{'quantity': 1, 'interface': 'PCIe Gen5x4', 'max_speed': '32 GT/s'}, {'quantity': 1, 'interface': 'PCIe Gen4x4', 'max_speed': '16 GT/s'}]
Pcie slots
[{'type': 'PCIe 4.0 x16', 'quantity': 1, 'speed': '16 GT/s'}, {'type': 'PCIe 4.0 x16 (x4 mode)', 'quantity': 1, 'speed': '4 GT/s'}, {'type': 'PCIe 4.0 x1', 'quantity': 1, 'speed': '1 GT/s'}]
Storage
Sata ports
4
Sata speed
6Gb/s
Features
Bios features
EFI AMI, ASRock Auto Driver Installer
Debug features
ASRock Post Status Checker
Connectivity
Networking
Ethernet
2.5 Gigabit Ethernet (Realtek RTL8125-BG)
Wifi
No
Bluetooth
No
Usb ports
[{'type': 'USB 3.2 Gen1 Type-C', 'quantity': 1, 'speed': '5Gbps'}, {'type': 'USB 3.2 Gen1 Type-A', 'quantity': 6, 'speed': '5Gbps'}, {'type': 'USB 2.0', 'quantity': 4, 'speed': '480Mbps'}]
Video outputs
Hdmi
1
Displayport
1
Physical specs
Length
244
Length unit
mm
Width
226
Width unit
mm
Cooling
Fan headers
4
Heatsinks
VRM heatsink
Pump headers
1
Audio
Channels
7.1
Codec
Realtek ALC897
Features
HD Audio
Power system
Power connectors
[{'type': '24-pin ATX', 'quantity': 1}, {'type': '8-pin 12V', 'quantity': 1}]
Power phases
8+2+1
Vrm solution
50A Dr.MOS
