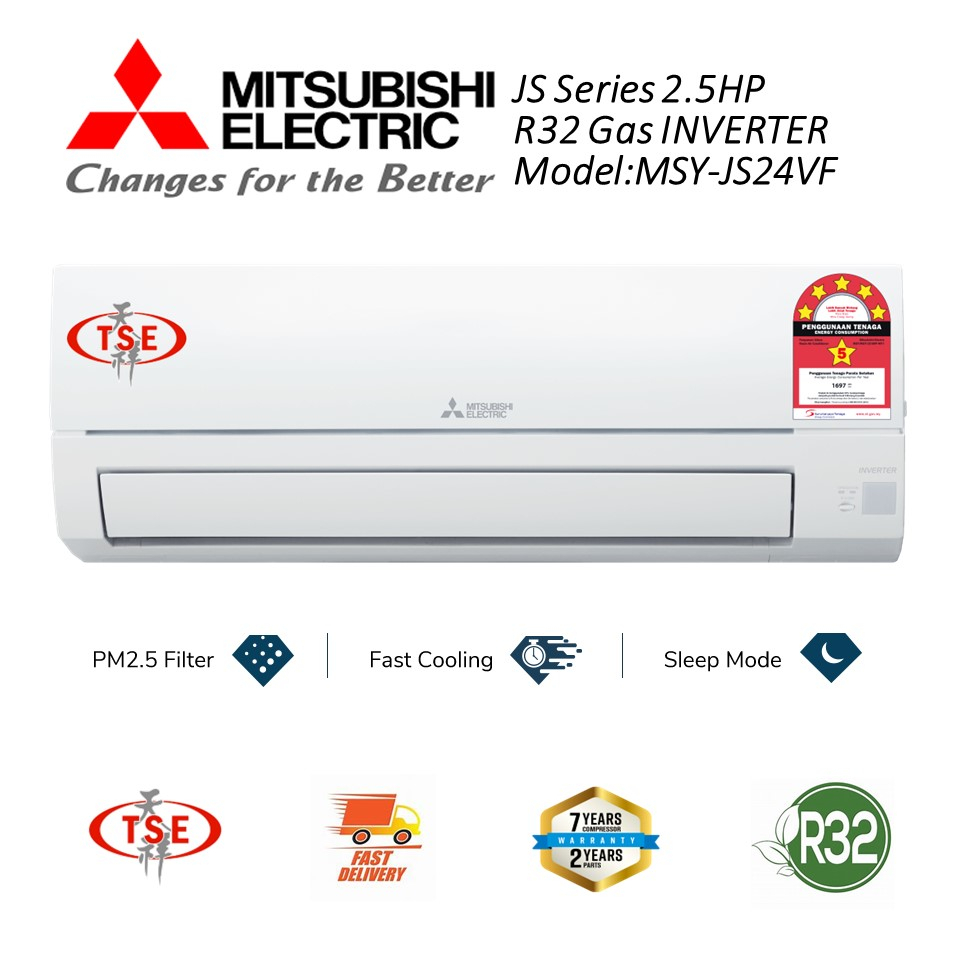

The Mitsubishi MSY-JS24VF is a wall-mounted split air conditioner from the JS Series, delivering powerful cooling performance with a rated capacity of 6.6kW. This energy-efficient unit boasts a 5-star rating and CSPF of 6.03. Features include PM2.5 and microparticle filtration, dual-directional air swing, and smart functions like self-diagnostics. Operating at just 29-51 dB(A), it offers quiet operation with multiple modes including cooling and sleep mode. The R32 refrigerant system can handle pipe lengths up to 30m with a 15m height difference.
Specifications
Price
RM1,750.00
5 products
Specifications
Basic information
Brand
Mitsubishi Electric
Application
Residential
Series
JS Series
Type
Split Air Conditioner
Features
Air flow control
Horizontal swing
Yes
Vertical swing
Yes
Filtration system
PM2.5 Air Filter, Microparticle Catching Filter
Operation modes
Penyejukan, Auto Fan, Sleep Mode
Protection features
Anti-Rust Treatment, Emergency Circuit Protection
Smart features
Self Diagnostic (IDU Blinking), Self Diagnostic (Error code on RC)
Special functions
Fast Cooling, Auto Restart, Self Diagnostic
Technical parameters
Airflow
Maximum air flow rate
18.7
Noise level
High
51
Unit
dB(A)
Low
29
Air flow rate unit
m3/min
Electrical
Power supply
230-240V, 50Hz (Single Phase)
Piping
Maximum height difference
15
Liquid pipe diameter
6.35
Gas pipe diameter
12.7
Pipe diameter unit
mm
Maximum pipe length
30
Length unit
m
Refrigerant
Type
R32
Installation
Mounting type
Wall Mounted
Warranty
Coverage type
Limited
Duration
7
Duration unit
years
Certifications
Safety certification
ISO 9001
Performance specifications
Cooling
Unit
kW
Capacity range
Minimum
1.6
Maximum
6.7
Power consumption
2.01
Rated capacity
6.6
Energy efficiency
Energy efficiency rating
5
Cooling seasonal performance factor
6.03
