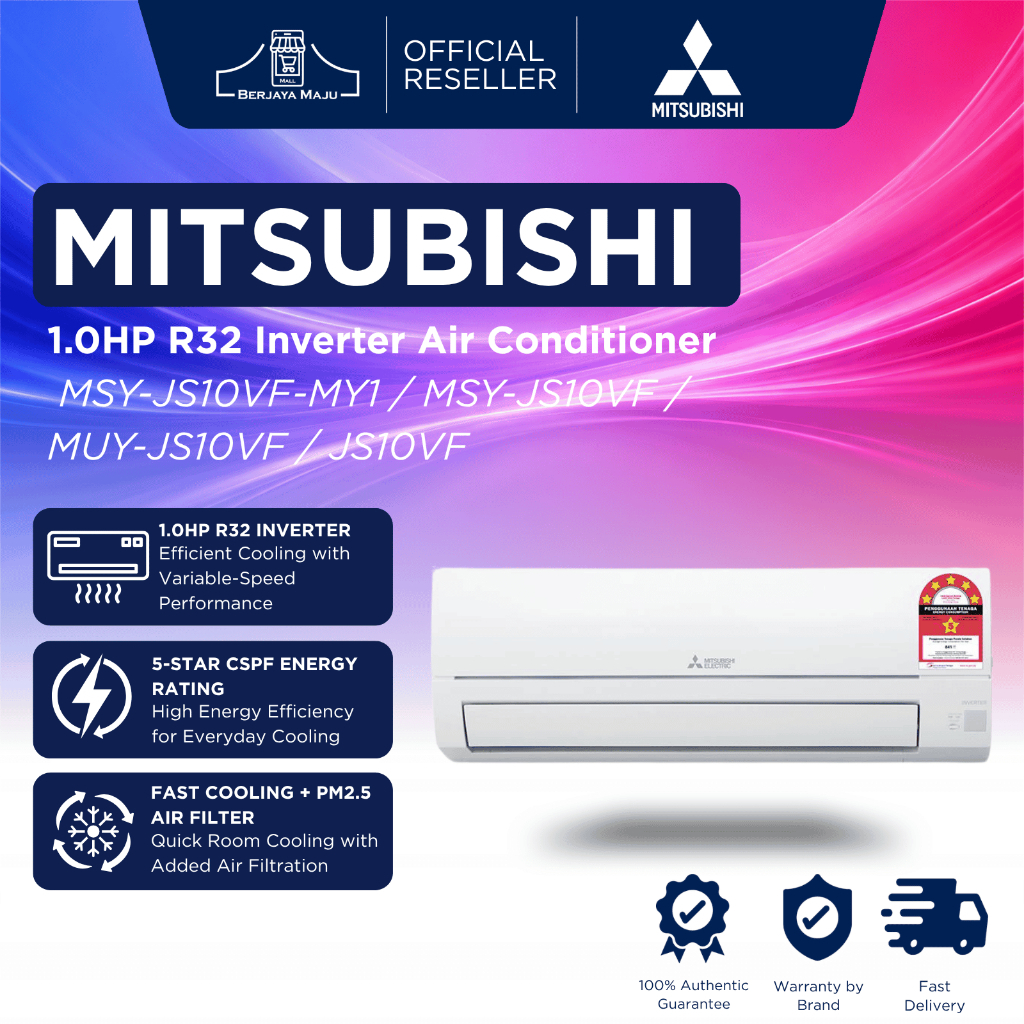

The Mitsubishi MUY-JS10VF is a residential split system air conditioner offering versatile operation with cooling, heating, and auto modes. It delivers 2.5kW cooling and 3.2kW heating capacity, ideal for 10-15 ping spaces. Features include WiFi control, scheduling, and advanced filtration with anti-bacterial and fine dust filters. Operating at a whisper-quiet 19dB on low setting, it boasts eco, turbo, and sleep modes. The R32 refrigerant unit achieves impressive 5-star energy efficiency with 4.5 CSPF rating.
Specifications
Price
Shopee
RM2,054.00
1 product
Specifications
Basic information
Brand
Mitsubishi
Application
Residential
Type
Split System Air Conditioner
Features
Air flow control
Horizontal swing
Yes
Vertical swing
Yes
Filtration system
Penapis anti-bakteria, Penapis debu halus
Operation modes
Penyejukan, Pemanasan, Penghawa dingin, Auto, Kipas
Protection features
Anti-pembekuan, Lindungi voltan tinggi, Lindungi voltan rendah
Smart features
Kawalan WiFi, Penjadualan
Special functions
Eco Mode, Turbo Mode, Sleep Mode
Technical parameters
Airflow
Maximum air flow rate
10.5
Noise level
High
45
Unit
dB
Low
19
Air flow rate unit
m³/min
Electrical
Power supply
220-240V, 50Hz
Connection wire
3-core, 1.5mm²
Operating range
Temperature
Unit
°C
Minimum
-15
Maximum
46
Piping
Maximum height difference
15
Liquid pipe diameter
6.35
Gas pipe diameter
12.7
Pipe diameter unit
mm
Additional refrigerant charge
0.02
Maximum pipe length
30
Length unit
m
Refrigerant
Charge
0.75
Charge unit
kg
Type
R32
Installation
Installation area unit
m²
Minimum installation area
0.5
Mounting type
Dinding
Warranty
Coverage type
Pembaikan dan penggantian
Duration
5
Duration unit
tahun
Certifications
Environmental certification
Green Label
Safety certification
SIRIM
Performance specifications
Cooling
Unit
kW
Capacity range
Minimum
0.8
Maximum
3.2
Power consumption
0.65
Rated capacity
2.5
Coverage area
Unit
ping
Minimum
10
Maximum
15
Dehumidification
Unit
l/h
Capacity
1.2
Energy efficiency
Annual power consumption
850
Energy efficiency rating
5
Power consumption unit
kWh/year
Cooling seasonal performance factor
4.5
Heating
Unit
kW
Capacity range
Minimum
0.8
Maximum
3.6
Power consumption
0.73
Rated capacity
3.2
