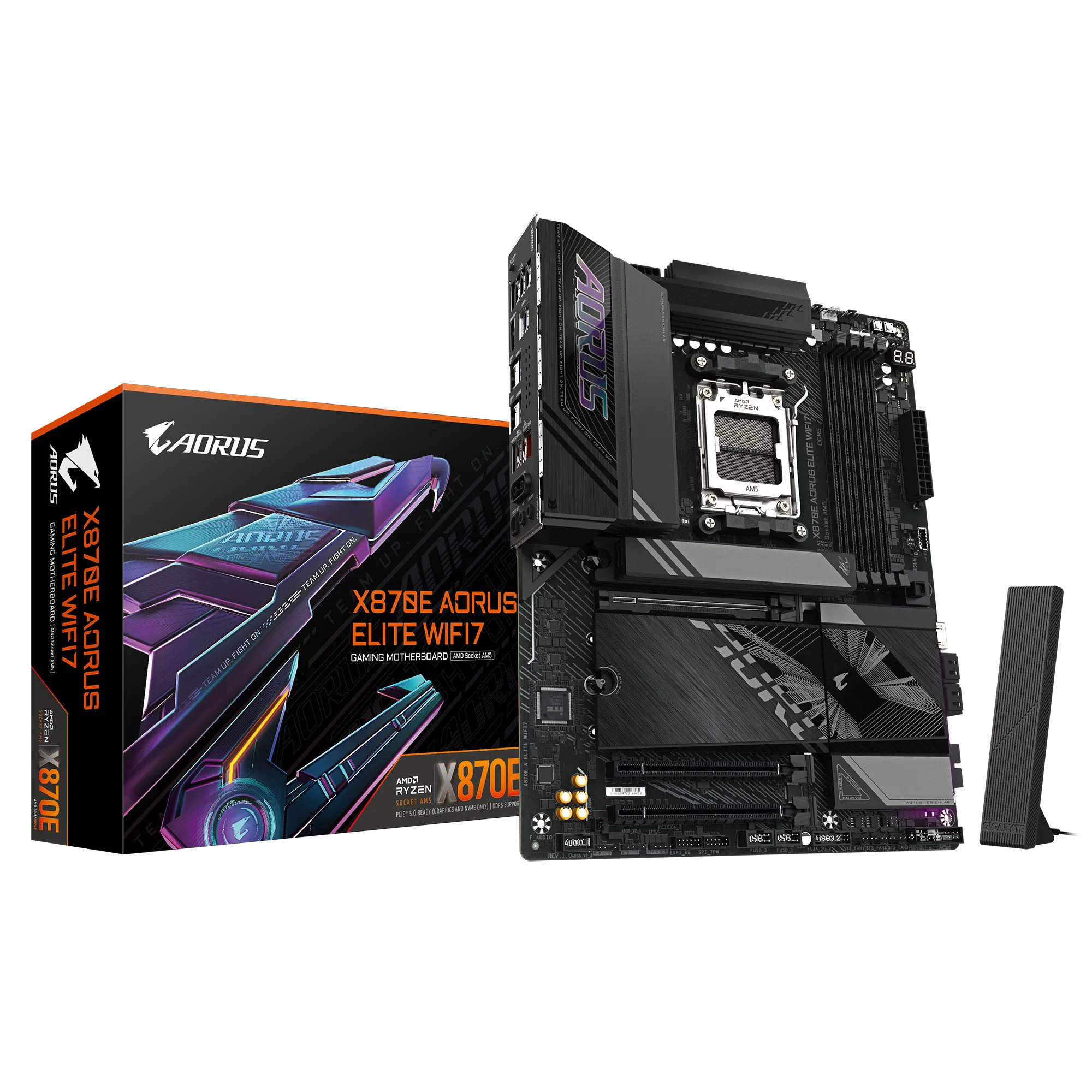

The Gigabyte X870E AORUS ELITE WIFI7 is a high-performance AM5 motherboard supporting AMD Ryzen 7000-9000 series processors. Features include DDR5 memory support up to 8000MHz with 256GB capacity, 4 PCIe 5.0 M.2 slots, and comprehensive connectivity with WiFi 7, Bluetooth 5.4, and 2.5GbE LAN. Advanced power delivery via 16+2+2 phases, extensive USB options including USB4, and robust cooling with multiple heatsinks make it ideal for enthusiast builds.
Specifications
Price
Specifications
Basic information
Brand
GIGABYTE
Model
X870E AORUS ELITE WIFI7
Socket type
AM5
Supported processors
AMD Ryzen™ 9000 Series Processors, AMD Ryzen™ 8000 Series Processors, AMD Ryzen™ 7000 Series Processors
Chipset
X870E
Form factor
ATX
Memory
Max memory capacity
256
Max memory capacity unit
GB
Memory channels
Dual-channel
Memory slots
4
Memory speed
8000
Memory speed unit
MHz
Memory type
DDR5
Expansion slots
M2 slots
[{'quantity': 4, 'interface': 'PCIe 5.0 x4', 'max_speed': '5.0'}]
Pcie slots
[{'type': 'PCIe 5.0 x16', 'quantity': 1, 'speed': '5.0'}, {'type': 'PCIe 4.0 x16', 'quantity': 1, 'speed': '4.0'}, {'type': 'PCIe 3.0 x16', 'quantity': 1, 'speed': '3.0'}]
Storage
Sata ports
4
Sata speed
6Gbps
Features
Bios features
EZ-Latch Plus, AORUS AI Snatch
Debug features
Q-Flash Plus
Rgb headers
4
Rgb support
Yes
Connectivity
Networking
Ethernet
2.5GbE
Wifi
Wi-Fi 7
Bluetooth
5.4
Usb ports
[{'type': 'USB 2.0', 'quantity': 4, 'speed': '480Mbps'}, {'type': 'USB 3.2 Gen 1', 'quantity': 4, 'speed': '5Gbps'}, {'type': 'USB 3.2 Gen 2', 'quantity': 2, 'speed': '10Gbps'}, {'type': 'USB4', 'quantity': 2, 'speed': '40Gbps'}]
Video outputs
Hdmi
1
Physical specs
Length
30.5
Length unit
cm
Width
24.4
Width unit
cm
Cooling
Fan headers
6
Heatsinks
VRM Heatsink, M.2 Heatsink
Pump headers
2
Audio
Channels
7.1
Codec
Realtek ALC1220
Features
S/PDIF Out
Power system
Power connectors
[{'type': '24-Pin', 'quantity': 1}, {'type': '8-Pin', 'quantity': 2}]
Power phases
16+2+2
Vrm solution
Digital Twin
