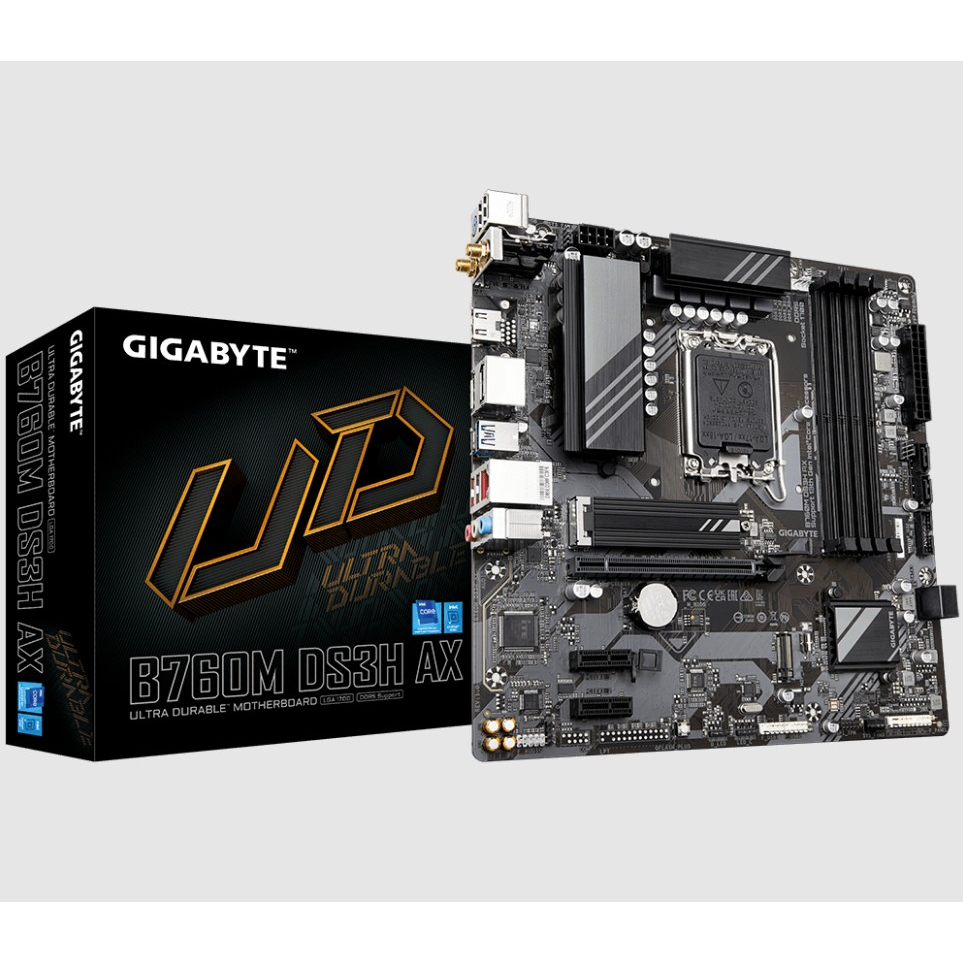

The Gigabyte B760M DS3H is a feature-rich Micro-ATX motherboard with Intel B760 chipset and LGA 1700 socket, supporting latest Intel processors. It boasts DDR5 memory support up to 7600MHz with 192GB max capacity across 4 slots. The board features PCIe 4.0 connectivity, dual M.2 slots, and 2.5 Gigabit Ethernet. Notable features include USB 3.2 Gen 2 Type-C, multiple display outputs, 7.1-channel audio, and RGB support.
Specifications
Price
RM431.09
40 products
Lazada
RM543.63
4 products
Specifications
Basic information
Brand
GIGABYTE
Model
B760M DS3H
Socket type
LGA 1700
Supported processors
Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium Gold
Chipset
Intel B760
Form factor
Micro-ATX
Memory
Max memory capacity
192
Max memory capacity unit
GB
Memory channels
Dual-channel

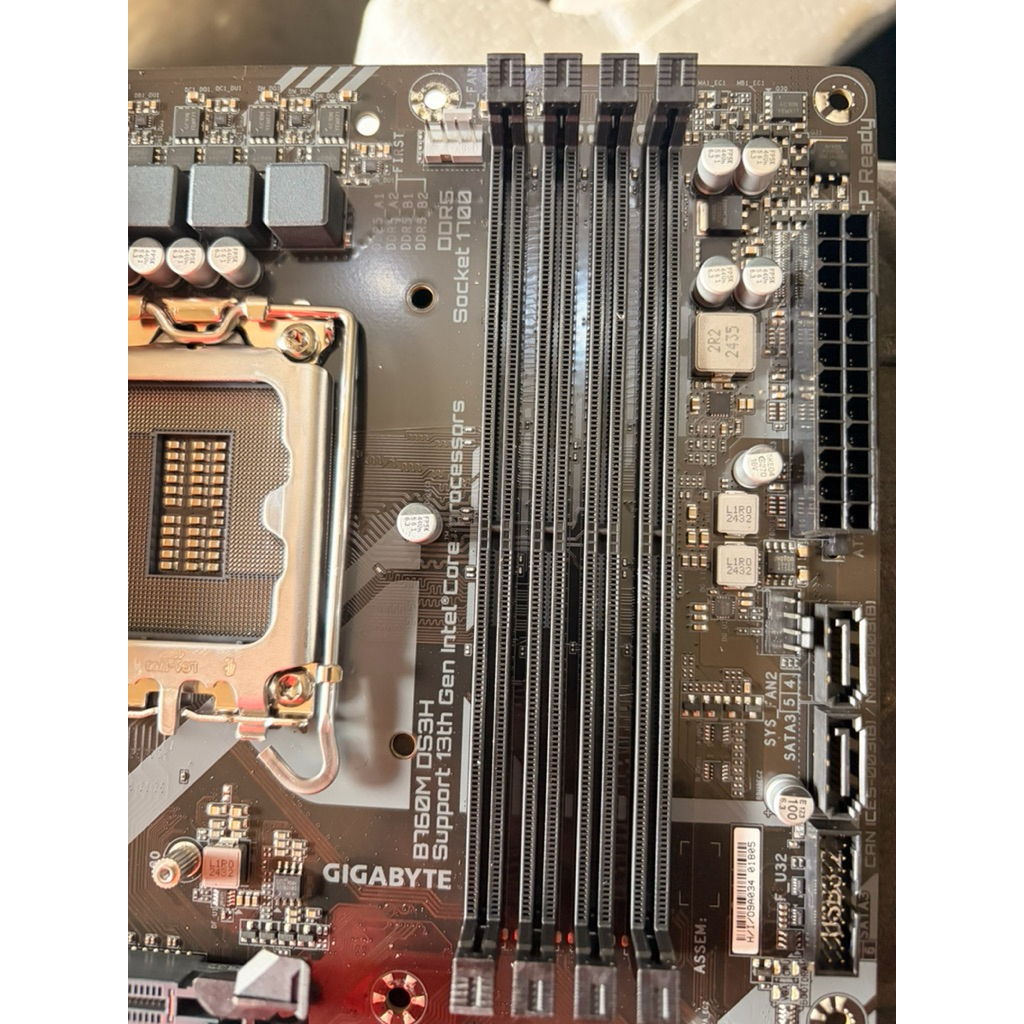

Memory slots
4
Memory speed
7600
Memory speed unit
MHz
Memory type
DDR5-SDRAM
Xmp support
Yes
Expansion slots
M2 slots
2 PCIe 4.0 x4 64 Gb/s
Pcie slots
PCIe 4.0 x16 1 16 GT/s / PCIe 3.0 x1 2 8 GT/s
Warranty support
Warranty period
3
Warranty period unit
years
Storage
Sata ports
4
Sata speed
6 Gb/s
Features
Bios features
UEFI AMI, Dual BIOS
Debug features
Q-Flash Plus
Rgb support
Yes
Connectivity
Networking
Ethernet
2.5 Gigabit Ethernet
Wifi
No
Bluetooth
No
Usb ports
USB 2.0 2 480 Mb/s / USB 3.2 Gen 1 (Type-A) 3 5 Gb/s / USB 3.2 Gen 2 (Type-C) 1 10 Gb/s
Video outputs
Hdmi
1
Displayport
2
D sub
1
Physical specs
Length
244
Length unit
mm
Width
244
Width unit
mm
Cooling
Fan headers
4
Heatsinks
M.2 Thermal Guard
Audio
Channels
7.1-channel
Codec
Realtek HD Audio
Features
S/PDIF Out
Power system
Power connectors
24-pin ATX 1 / 8-pin EPS 1
Power phases
6+2+1
Vrm solution
Hybrid Digital
