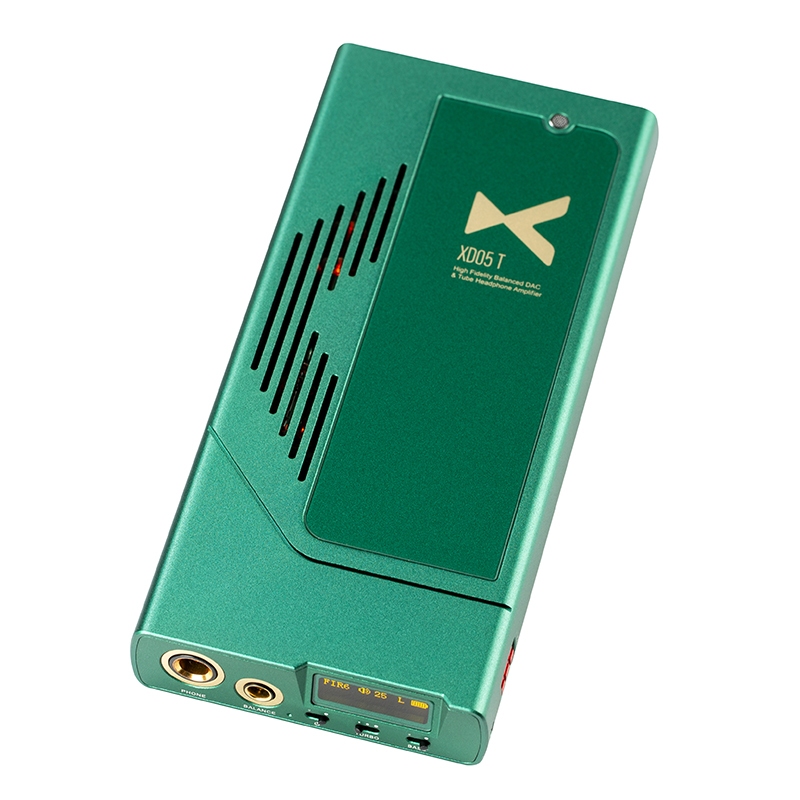

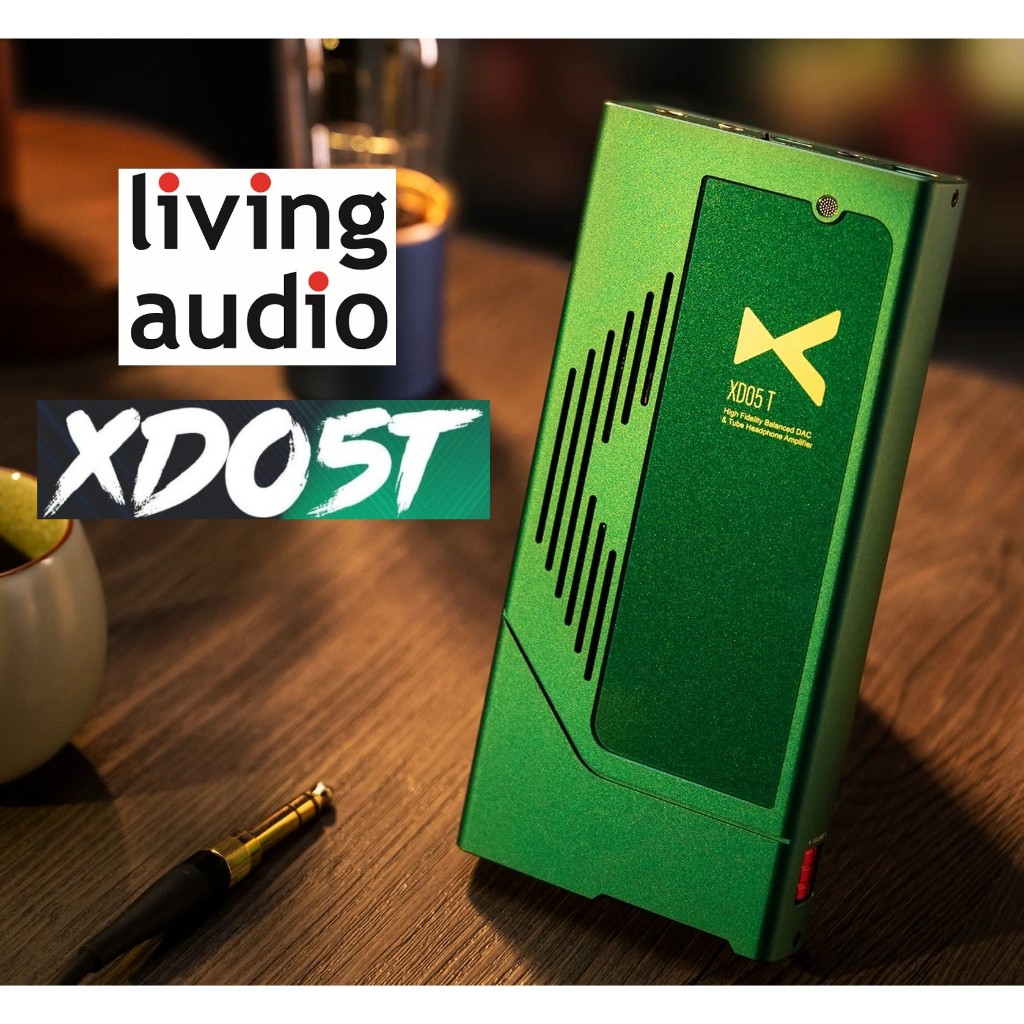

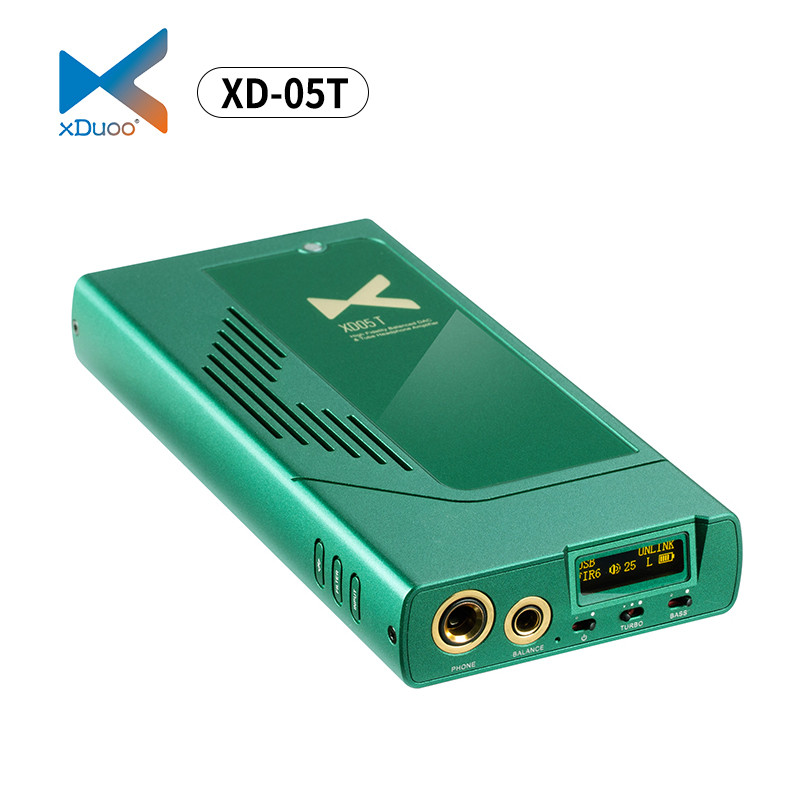

The xDuoo XD05 T is a versatile hybrid tube/solid-state portable DAC & headphone amplifier featuring both 6.35mm and 4.4mm balanced outputs. It delivers impressive power - up to 750mW single-ended and 1500mW balanced at 300Ω. With USB-C, optical, and coaxial inputs, it supports high-res formats including DSD512 and MQA 8X unfolding. The 6000mAh battery provides 4.5 hours of playback. Notable features include digital volume control, 3-level gain, and bass boost.
Specifications
Price
Shopee
RM2,100.00
4 products(1 item sold out)
Lazada
RM2,119.00
1 product
Specifications
Basic information
Brand
xDuoo
Model
XD05T
Amplification type
Hybrid (Tube + Solid-State)
Product type
Portable DAC & Tube Headphone Amplifier
Colour
Hijau
Material
Aluminium
Input specifications
Analogue inputs
Mini jack
1
Digital inputs
Coaxial
Yes
USB
Connector type
USB-C
Version
USB-C
Supported
Yes
Optical
Yes
Power specifications
Battery
Charging time unit
hours
Charging time
3.5
Operating time
4.5
Capacity unit
mAh
Operating time unit
hours
Capacity
6000
Power supply
Type
Lithium
Voltage unit
V
Voltage
3.7
Features
Gain settings
1, 2, 3
Gain unit
dB
Special functions
Bass Boost, Turbo Mode
Volume control
Digital
Included accessories
2 × USB-C cables, 1 × 40-inch braided USB-C cable, 10 × adhesive rubber feet, USB-C to USB-A adapter, 6.35mm to 3.5mm adapter, Foldable user manual
Audio performance
Dynamic range
Unit
dB
Unbalanced
114
Balanced
116
Frequency response
Range
20Hz-20kHz
Tolerance
±0.5dB
Signal to noise ratio
Unit
dB
Value
116
Total harmonic distortion
Unit
%
Value
0.5
Physical specifications
Dimensions
Depth unit
mm
Depth
23
Height unit
mm
Width
168
Width unit
mm
Height
78
Weight
Unit
g
Value
400
Audio format support
DSD
Formats
DSD64-512
MQA
Decoder type
8X unfolding
Supported
Yes
PCM
Sampling rates
44.1kHz-768kHz
Bit depth
16-32Bit
Output specifications
Headphone outputs
Single ended
Voltage output
15Vp-p
Power output
750mW
Connector type
6.35mm
Impedance
300
Impedance unit
ohms
Balanced
Voltage output
26Vp-p
Power output
1500mW
Connector type
4.4mm
Impedance
300
Impedance unit
ohms
Line outputs
Level
2
Level unit
Vrms
Type
3.5mm
Compatibility
Recommended headphone impedance
Unit
ohms
Minimum
32
Maximum
300
Supported devices
Smartphone, PC, Laptop, Tablet
