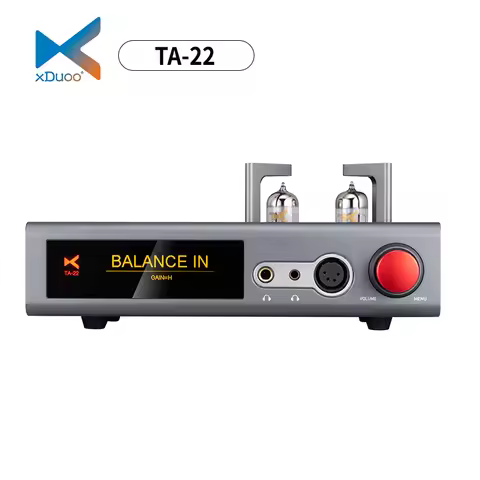

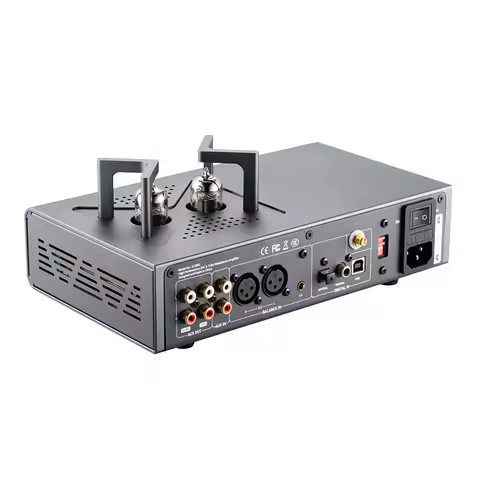

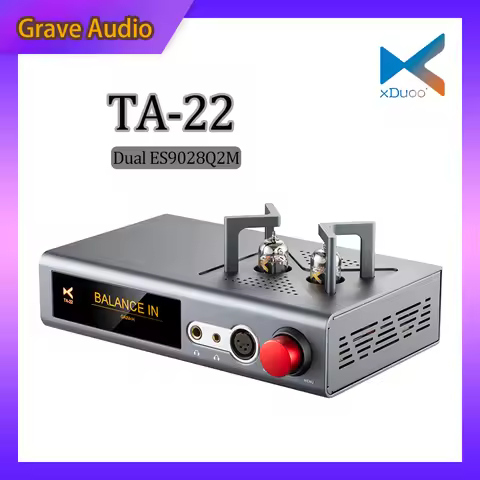

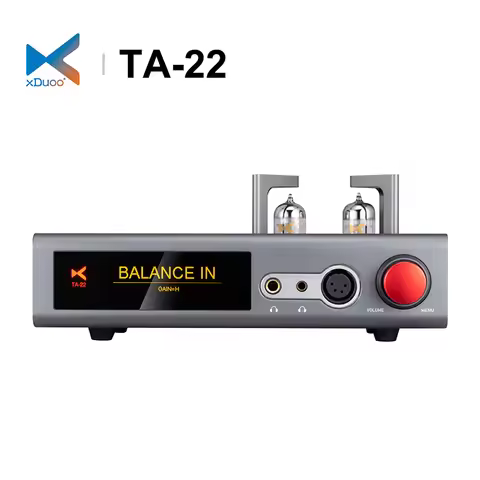

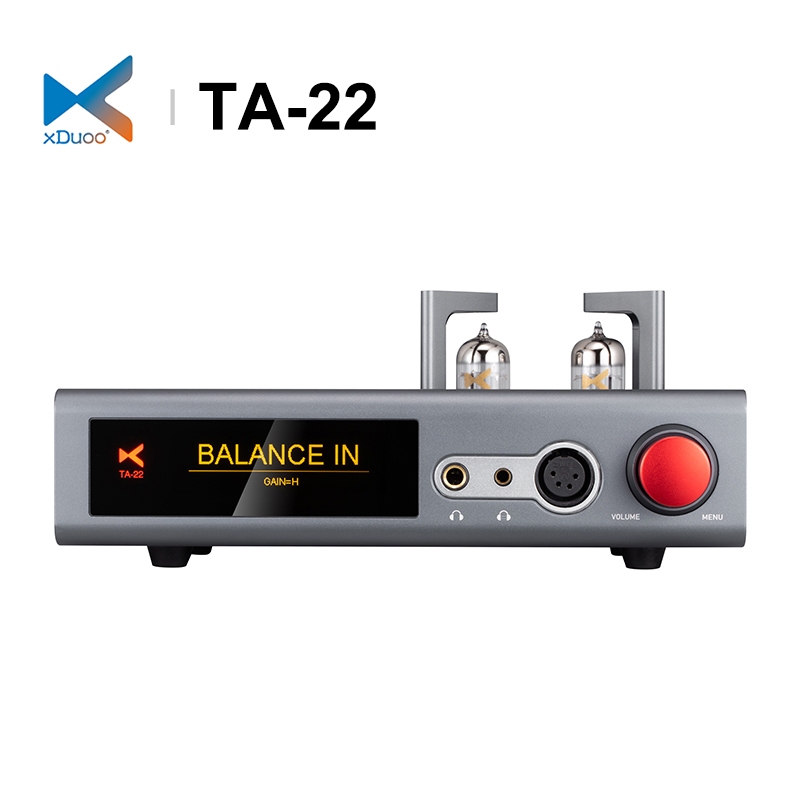

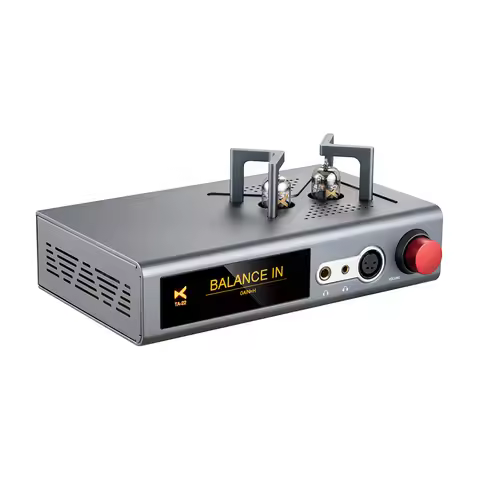

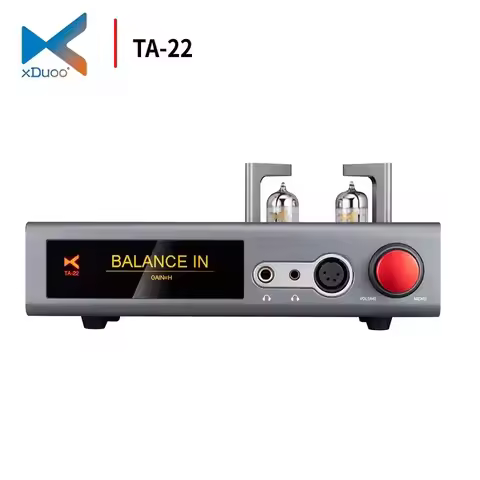

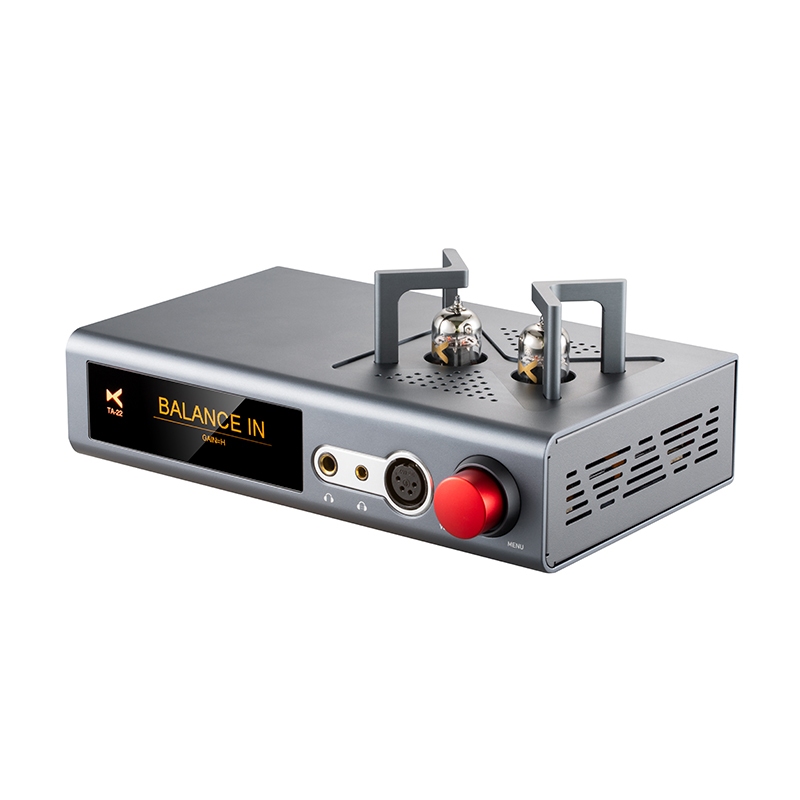

The xDuoo TA-22 is a high-performance hybrid tube amplifier released in 2022. This versatile unit features both balanced XLR and RCA inputs, supporting high-resolution audio up to 384kHz/32-bit PCM and DSD256. With powerful output capabilities of 1000mW through 6.35mm single-ended and 1500mW via 4.4mm balanced connections, it's ideal for headphones ranging from 16-600 ohms. The amplifier offers dual gain settings (6/12dB) and impressive audio specs including 120dB dynamic range for balanced output and 0.1% THD.
Specifications
Price
Shopee
RM2,249.00
1 product(All items sold out)
Specifications
Basic information
Brand
xDuoo
Model
TA-22
Amplification type
Tiub Hibrid
Product type
Penguat Tiub Hibrid
Colour
Hitam
Material
Aluminium
Release date
2022-01-01
Warranty support
Extended warranty
2 Tahun
Standard warranty
1 Tahun
Support type
Pembaikan Tempatan
Input specifications
Analogue inputs
RCA
1
Balanced XLR
1
Digital inputs
Coaxial
Yes
USB
Connector type
Type-B
Version
USB 2.0
Supported
Yes
Optical
Yes
Power specifications
Power consumption
Unit
W
Standby
5
Operating
30
Power supply
Current
0.5
Current unit
A
Type
AC
Voltage unit
V
Voltage
220
Features
Gain settings
spec_grouping_headphone_amplifier_1
6
spec_grouping_headphone_amplifier_2
12
Gain unit
dB
Special functions
Penapis Bunyi, Litar Perlindungan
Volume control
Analog
Included accessories
Kabel Kuasa, Kabel USB, Manual Pengguna
Audio performance
Dynamic range
Unit
dB
Unbalanced
115
Balanced
120
Frequency response
Range
20Hz-40kHz
Tolerance
±1dB
Signal to noise ratio
Unit
dB
Value
110
Total harmonic distortion
Unit
%
Value
0.1
Physical specifications
Dimensions
Depth unit
mm
Depth
220
Height unit
mm
Width
280
Width unit
mm
Height
60
Weight
Unit
g
Value
2500
Audio format support
DSD
Formats
DSD64, DSD128, DSD256
PCM
Sampling rates
44.1kHz, 48kHz, 96kHz, 192kHz, 384kHz
Bit depth
16-bit, 24-bit, 32-bit
Output specifications
Headphone outputs
Single ended
Voltage output
10V
Power output
1000mW
Connector type
6.35mm
Impedance
32
Impedance unit
ohms
Balanced
Voltage output
15V
Power output
1500mW
Connector type
4.4mm Pentaconn
Impedance
32
Impedance unit
ohms
Line outputs
Level
2
Level unit
Vrms
Impedance
100
Type
RCA
Impedance unit
ohms
Compatibility
Recommended headphone impedance
Unit
ohms
Minimum
16
Maximum
600
Supported devices
Komputer, Pemain Audio Digital, Telefon Pintar
