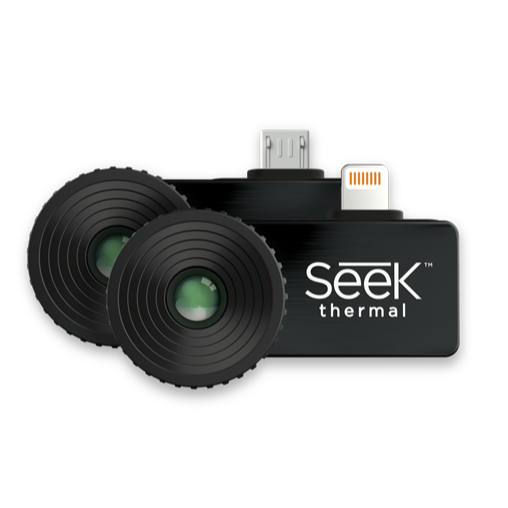

The Seek Thermal Compact is a smartphone-powered thermal camera offering 206 x 156 infrared resolution with 0.07°C thermal sensitivity. Operating in a 7.5-14 micron spectral range with a 36° field of view, it captures temperatures from -40°C to 330°C. This compact device (1.6" x 0.75" x 0.6") supports TIFF format storage and connects via Lightning, Micro-USB, or USB-C. Features include spot and Hi/Lo measurement modes with ±2°C accuracy.
Specifications
Price
RM699.00
2 products
Specifications
Basic info
Brand
Seek Thermal
Model
Compact
Series
Compact
Type
Smartphone thermal camera
Included items
Accessories
Waterproof carrying case
Software
Seek Thermal mobile app
Environmental
Operating temperature max
330
Operating temperature min
-40
Temperature unit
°C
Display
Type
Smartphone LCD
Storage
Storage media
Smartphone storage
Supported formats
TIFF
Measurement
Accuracy
±2°C
Measurement modes
Spot, Hi/Lo
Temperature range max
330
Temperature range min
-40
Temperature unit
°C
Imaging specifications
Field of view
36 degrees
Infrared resolution
206 x 156
Refresh rate
9
Refresh rate unit
Hz
Spectral range
7.5 - 14 microns
Thermal sensitivity
0.07°C
Connectivity
Supported apps
Seek Thermal mobile app
Wired
Lightning, Micro-USB, USB-C
Physical specifications
Depth
0.6
Depth unit
inch
Height
1.6
Height unit
inch
Weight
0.016
Weight unit
kg
Width
0.75
Width unit
inch
Power
Battery type
Smartphone-powered
