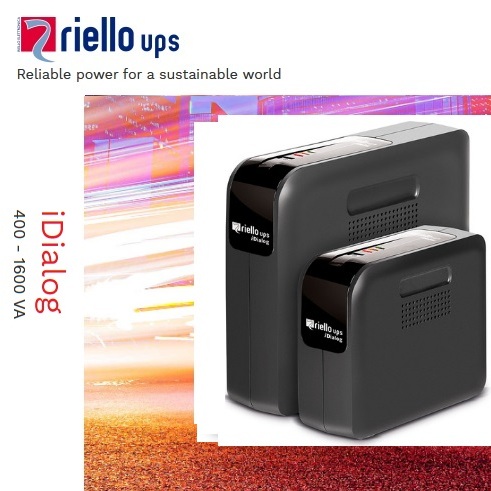

The Riello iDialog is a compact UPS system offering 1600VA/960W capacity with pseudosinusoidal output. Features include ECO Line mode for energy savings, cold start capability, and comprehensive protection against overload, short circuit, and voltage fluctuations. Operating at <40dB noise level, it provides 6-8 hours backup time with 6 IEC outlets. Includes USB/serial connectivity and LED indicators for monitoring.
Specifications
Price
Shopee
RM599.00
3 products
Specifications
Basic info
Brand
Riello
Model
iDialog
Product name
iDialog (IDG)
Type
UPS
Form factor
Compact
Manufacturer
Riello
Environmental
Energy saving features
ECO Line mode
Noise level
<40dB
Operating humidity
0-90%
Operating temperature
0-40 °C
Warranty support
Certifications
CE, RoHS, IEC EN 62040-1, IEC EN 62040-2
Warranty period
2 years
Input specifications
Frequency
50/60 Hz
Frequency range
50/60 Hz +/-5%
Voltage
230Vac
Voltage range
220/230/240 V
Power specifications
Capacity va
1600
Capacity watt
960
Output waveform
Pseudosinusoidal
Transfer time
2-6 ms
Additional features
Avr
Yes
Power management software
Yes
Special features
Cold start capability, Auto restart, Energy-saving ECO Line mode
Display interface
Led indicators
Yes
Connectivity
Serial port
Yes
Usb port
Yes
Output specifications
Frequency
50/60 Hz
Frequency range
50/60 Hz +/-1Hz
Number of outlets
6
Outlet type
IEC 320 C13
Voltage
230Vac
Voltage range
230Vac +/-10%
Battery specifications
Backup time
6-8 hours
Recharge time
6-8 hours
Type
Sealed Lead Acid (VRLA)
Protection features
Overload protection
Yes
Short circuit protection
Yes
Spike protection
Yes
Surge protection
Yes
Temperature protection
Yes
Voltage protection
Yes
Dimensions
Depth
310
Depth unit
mm
Height
270
Height unit
mm
Weight
6900
Weight unit
g
Width
93
Width unit
mm
