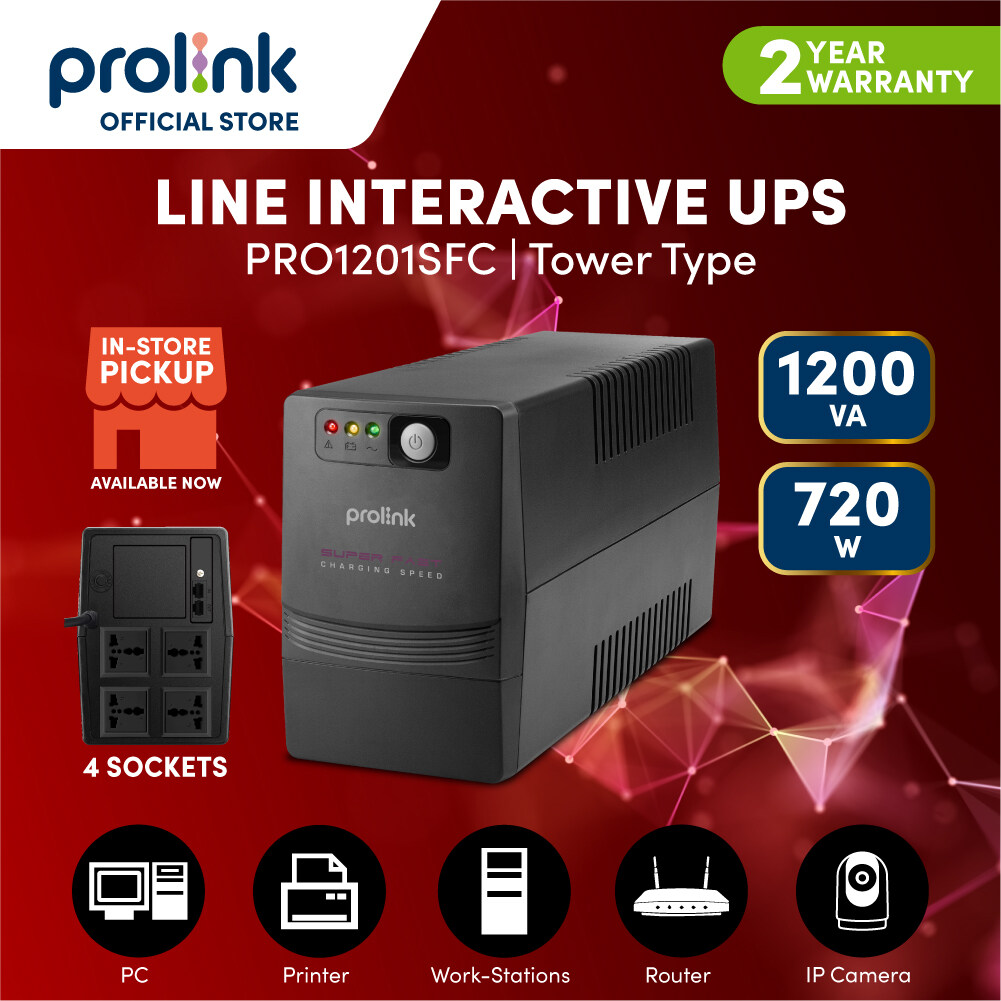

The Prolink PRO1201SFC is a Line Interactive UPS offering 1200VA/720W capacity with simulated sine wave output in battery mode. Features include LCD display, fast 2-4 hour recharge time, and 8-30 minute backup depending on load. Operating at 230VAC with 140-300V range, it provides comprehensive protection against power issues. The compact tower unit (130x182x320mm) includes USB connectivity and smart battery management.
Specifications
Price
Shopee
RM269.00
1 product(All items sold out)
Specifications
Basic info
Brand
Prolink
Model
PRO1201SFC
Product name
PRO1201SFC Line Interactive UPS
Type
Line Interactive UPS
Form factor
Tower
Manufacturer
Prolink
Environmental
Noise level
<40dB
Operating humidity
0 – 90%
Operating temperature
0°C – 40°C
Warranty support
Warranty period
24 bulan
Warranty type
Pembaikan atau penggantian
Input specifications
Frequency
50Hz/60Hz
Frequency range
40Hz - 70Hz
Phase
Single + GND
Voltage
230VAC
Voltage range
140 – 300V ± 5%
Power specifications
Capacity va
1200
Capacity watt
720
Output waveform
Simulated Sine Wave (Battery Mode), Sine Wave (AC Mode)
Power factor
0.7
Transfer time
2ms
Additional features
Avr
Yes
Power management software
Yes
Special features
Super Fast Charging, Auto restart semasa AC pulih, Manajemen Baterai Cerdas
Display interface
Display type
LCD
Lcd display
Yes
Led indicators
Yes
Connectivity
Usb port
Yes
Output specifications
Frequency
50Hz ± 1% (Battery Mode)
Voltage
230VAC
Voltage range
230VAC +12% -14% (Battery Mode: 230VAC +10% -10%)
Battery specifications
Backup time
8 – 30 minit (bergantung pada beban)
Capacity
8.2AH
Recharge time
2 – 4 jam untuk mencapai 90% kapasiti
Type
Lead Acid
Voltage
12V
Protection features
Overload protection
Yes
Short circuit protection
Yes
Spike protection
Yes
Surge protection
Yes
Voltage protection
Yes
Dimensions
Depth
320
Depth unit
mm
Height
182
Height unit
mm
Weight
8.6
Weight unit
kg
Width
130
Width unit
mm
