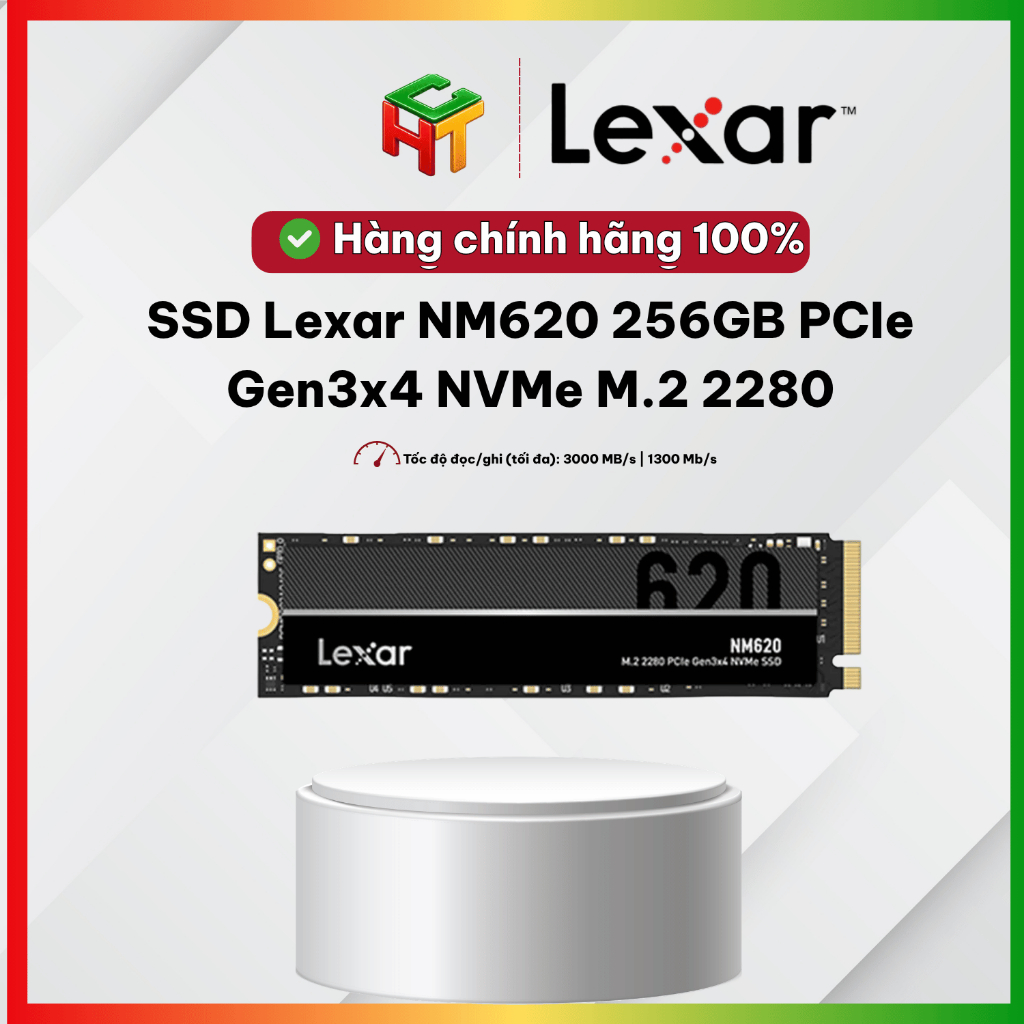

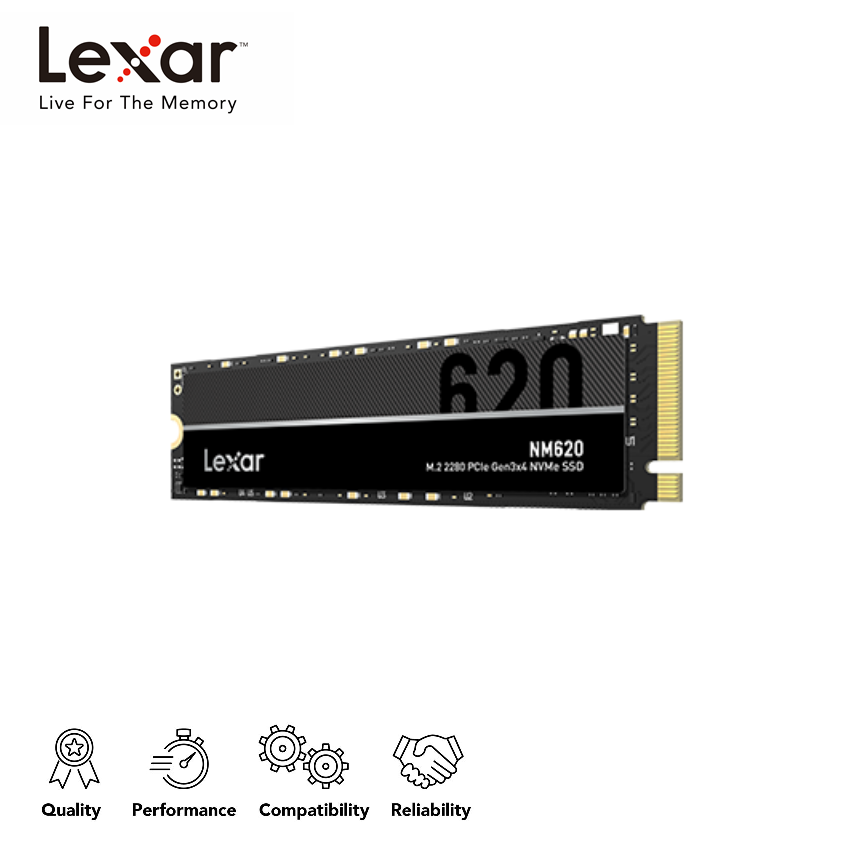

The Lexar NM620 is a high-performance M.2 2280 NVMe SSD featuring PCIe Gen3x4 interface and 3D TLC NAND technology. With impressive sequential read speeds up to 3500MB/s and write speeds up to 3000MB/s, it delivers exceptional performance. The drive offers random read/write speeds of 200K/256K IOPS and comes in capacities from 256GB to 2TB. Enhanced with LDPC Technology and SLC Cache, it's compatible with both desktop and laptop systems. Operating efficiently at temperatures up to 70°C with 1500G shock resistance.
Specifications
Price
Shopee
RM319.90
22 products
Lazada
RM339.00
2 products
PG Mall
RM395.00
3 products
Specifications
Basic info
Brand
Lexar
Model
NM620
Product name
Lexar NM620 M.2 2280 NVMe SSD
Protocol
NVMe 1.4
Controller
InnoGrit IG5216 (Shasta+)
Nand flash type
3D TLC NAND
Release date
2021-03-10
Interface
PCIe Gen3x4
Form factor
M.2 2280
Environmental
Operating temperature max
70
Operating temperature unit
°C
Shock resistance
1500
Shock resistance unit
G
Storage temperature max
85
Storage temperature min
-40
Storage temperature unit
°C
Vibration resistance
20
Vibration resistance unit
G
Reliability
Endurance rating
0.3 DWPD
Mtbf
1500000
Mtbf unit
hours
Terabytes written
500
Terabytes written unit
TBW
Warranty support
Warranty period
5
Warranty type
tahun terhad
Capacity
Available capacities
256GB, 512GB, 1TB, 2TB
Features
Additional features
LDPC Technology, SLC Cache
Smart monitoring
Yes
Trim support
Yes
Performance
Random read speed
200000
Random read speed unit
IOPS
Random write speed
256000
Random write speed unit
IOPS
Sequential read speed
3500
Sequential read speed unit
MB/s
Sequential write speed
3000
Sequential write speed unit
MB/s
Compatibility
Supported platforms
Desktop, Laptop
Dimensions
Height
2.25
Height unit
mm
Length
80
Length unit
mm
Weight
9
Weight unit
g
Width
22
Width unit
mm
