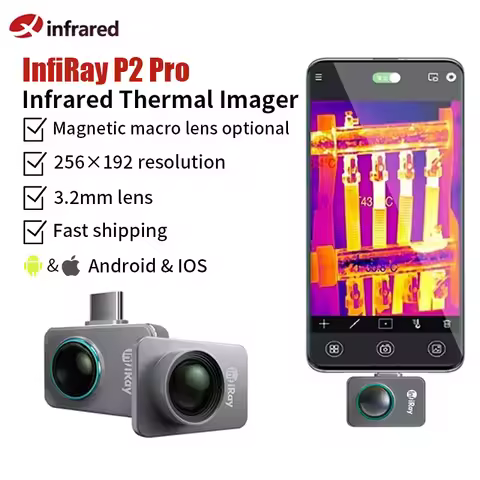

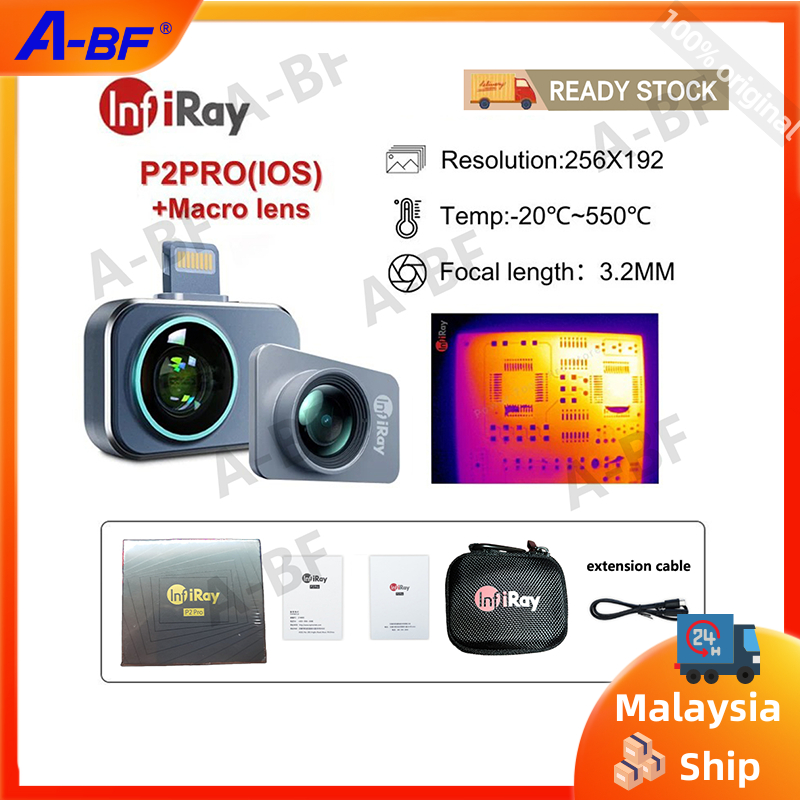

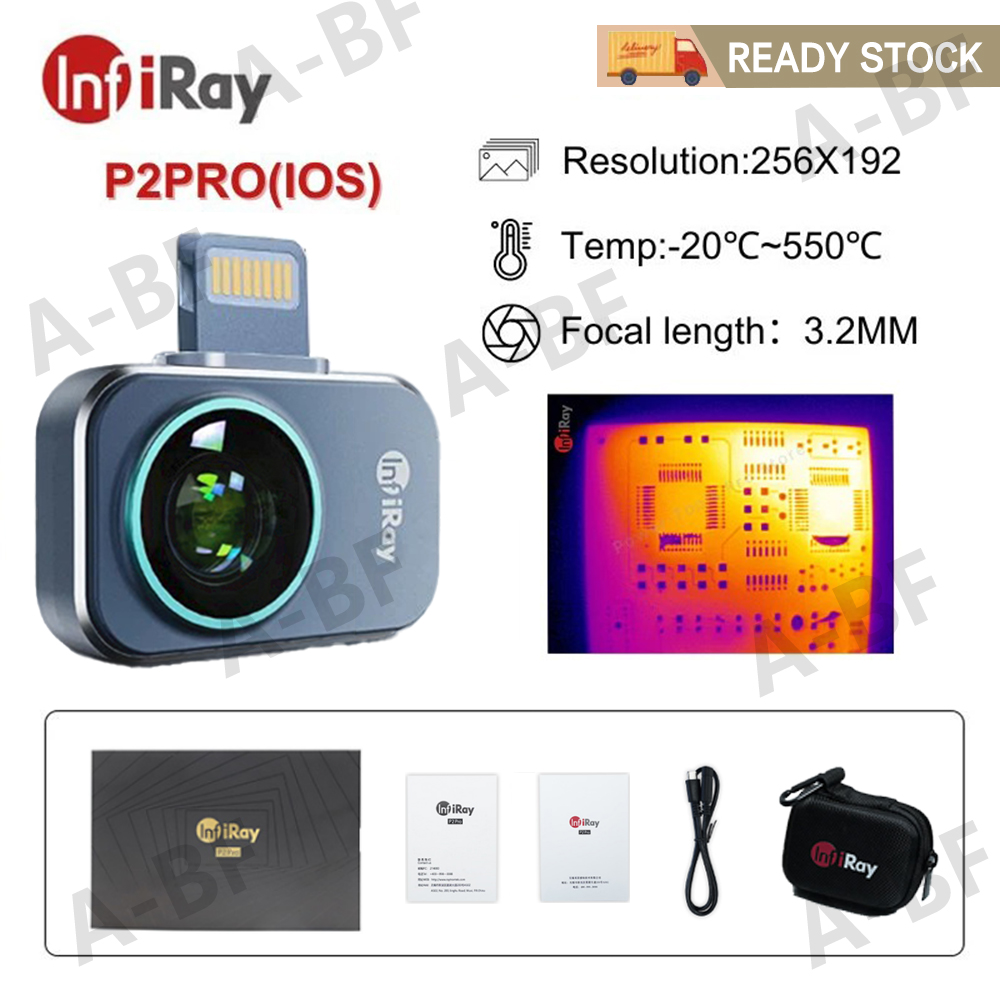

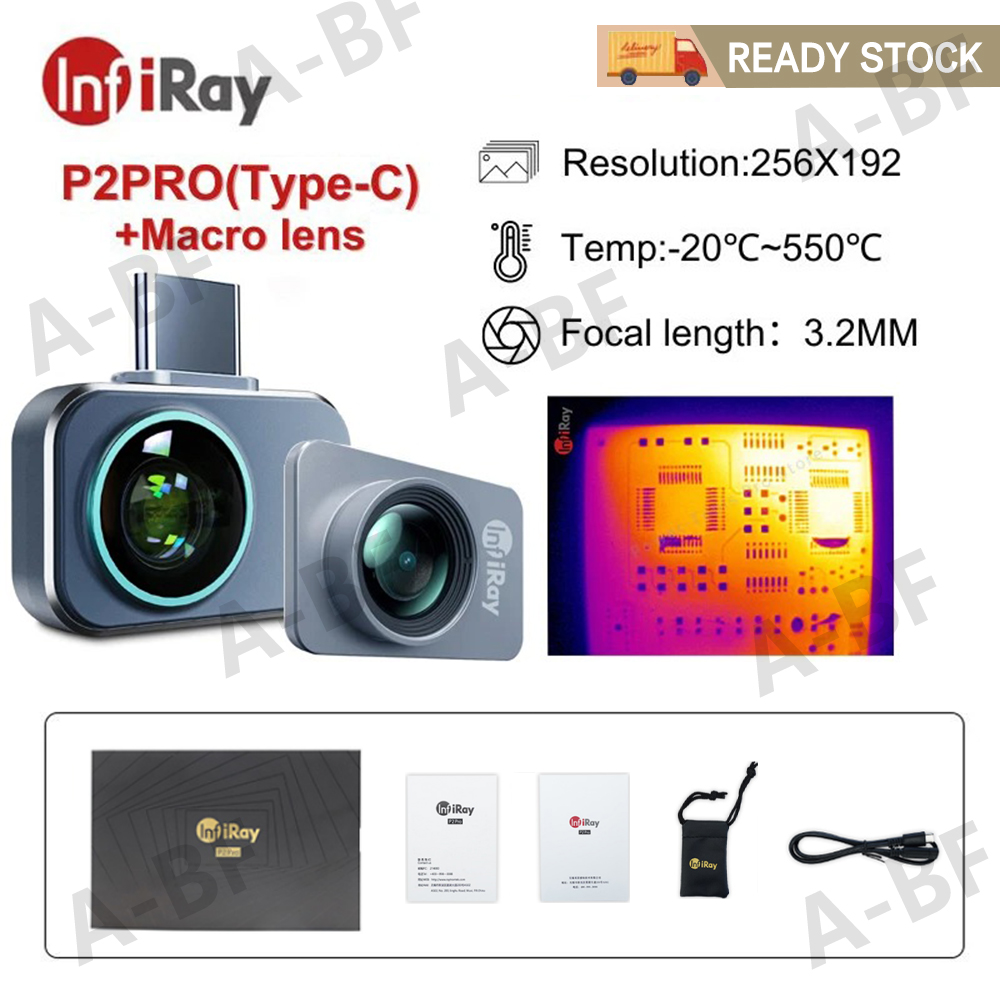

The InfiRay P2 is a compact thermal camera featuring a 256x192 infrared resolution and 40mk thermal sensitivity. Operating in the 8-14μm spectral range with a wide 56.0° × 42.2° field of view, it offers precise temperature measurements from -20°C to 550°C. The device boasts a 25Hz refresh rate and 12μm spatial resolution. At just 9g and 27x18x9.8mm, it's highly portable. Compatible with Android 6.0+ and iOS devices via USB-C, it includes a macro lens for enhanced imaging capabilities.
Specifications
Price
Shopee
RM1,369.00
7 products(4 items sold out)
Specifications
Basic info
Brand
InfiRay
Model
P2 Pro
Series
P2
Type
Thermal Camera
Included items
Accessories
Kamera, Macro Lens, Protective Bag, Connecting Line, Cleaning Cloth, Manual Book
Environmental
Operating temperature max
55
Operating temperature min
-10
Temperature unit
°C
Warranty support
Warranty period
1 tahun
Measurement
Accuracy
±2°C or ±2% of reading
Measurement modes
Simple Mode, Professional Mode
Resolution
0.04°C
Temperature range max
550
Temperature range min
-20
Temperature unit
°C
Imaging specifications
Field of view
56.0° × 42.2°
Focus distance
3.2mm
Infrared resolution
256x192
Refresh rate
25
Refresh rate unit
Hz
Spatial resolution
12μm
Spectral range
8–14μm
Thermal sensitivity
40mk
Connectivity
Supported apps
Android 6.0 and above, iOS (with converter for iPhone 15)
Wired
USB Type-C
Physical specifications
Depth
9.8
Depth unit
mm
Height
27
Height unit
mm
Weight
9
Weight unit
g
Width
18
Width unit
mm
Power
Charging method
USB Type-C
