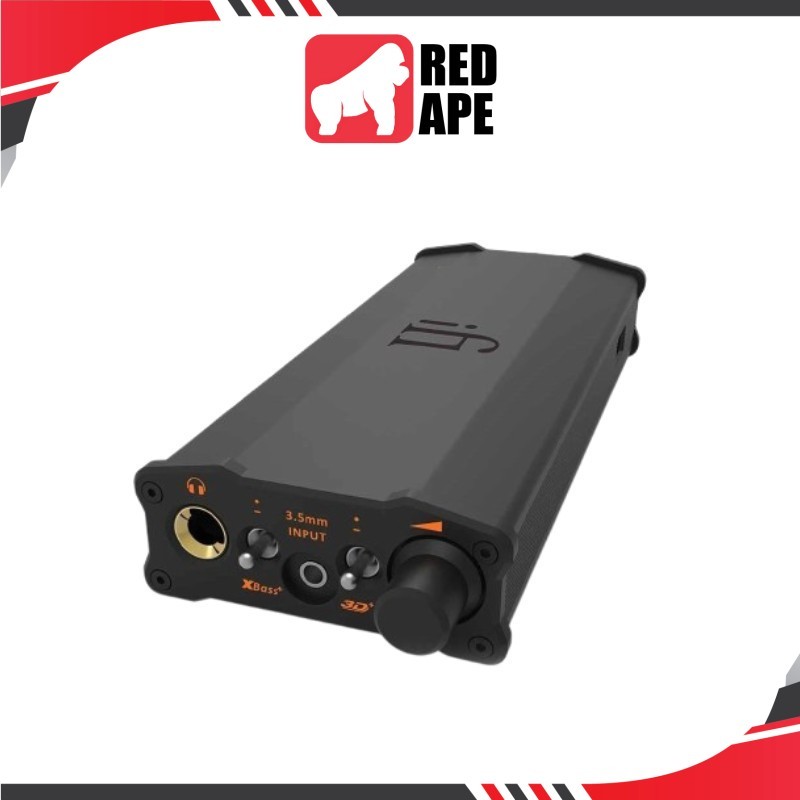

The iFi micro iDSD Black Label is a versatile portable DAC/amp featuring impressive power output of 4000mW at 16 ohms (balanced) and 750mW at 32 ohms (single-ended). This hybrid amplifier supports high-resolution audio formats including PCM up to 768kHz and DSD512. With a 4800mAh battery offering 8 hours of playback, it includes XBass+ and 3D Matrix Plus sound enhancement. Compatible with multiple devices and featuring both balanced (3.5mm) and single-ended (6.3mm) outputs, it's ideal for driving headphones from 16-600 ohms.
Specifications
Price
Shopee
RM2,550.00
1 product(All items sold out)
Specifications
Basic information
Brand
iFi
Model
micro iDSD Black Label
Amplification type
Hybrid
Product type
DAC/amp mudah alih
Colour
Hitam
Warranty support
Standard warranty
Pendaftaran diperlukan
Support type
Pembuatan
Input specifications
Analogue inputs
Mini jack
1
Digital inputs
Coaxial
Yes
USB
Connector type
USB Type A OTG
Version
2.0
Supported
Yes
Optical
Yes
Power specifications
Battery
Charging time unit
hours
Charging time
6.25
Operating time
8
Capacity unit
mAh
Operating time unit
hours
Capacity
4800
Power consumption
Unit
W
Standby
2
Operating
4
Power supply
Current
1.5
Current unit
A
Type
Lithium-polymer
Features
Gain settings
9
Gain unit
dB
Special functions
XBass+, 3D Matrix Plus, iEMatch
Volume control
Analog potentiometer
Included accessories
USB Type A OTG adapter, 3.5mm to 6.3mm jack adapter, Optical connector to 3.5mm, RCA interconnects, Soft pouch
Audio performance
Dynamic range
Unit
dB
Unbalanced
91
Signal to noise ratio
Unit
dB
Value
93.5
Total harmonic distortion
Unit
%
Value
0.0041
Physical specifications
Dimensions
Depth unit
mm
Depth
177
Height unit
mm
Width
67
Width unit
mm
Height
28
Weight
Unit
g
Value
310
Audio format support
DSD
Formats
DSD64, DSD128, DSD256, DSD512
PCM
Sampling rates
44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
Bit depth
16-bit, 24-bit
Output specifications
Headphone outputs
Single ended
Voltage output
4.90V @ 600 Ohm
Power output
750mW @ 32 Ohm
Connector type
6.3mm
Impedance
0.34
Impedance unit
ohms
Balanced
Voltage output
9.71V @ 600 Ohm
Power output
4000mW @ 16 Ohm
Connector type
3.5mm
Impedance
0.34
Impedance unit
ohms
Line outputs
Level
2
Level unit
Vrms
Type
RCA
Compatibility
Recommended headphone impedance
Unit
ohms
Minimum
16
Maximum
600
Supported devices
Windows, Mac, Linux, Android, iOS
