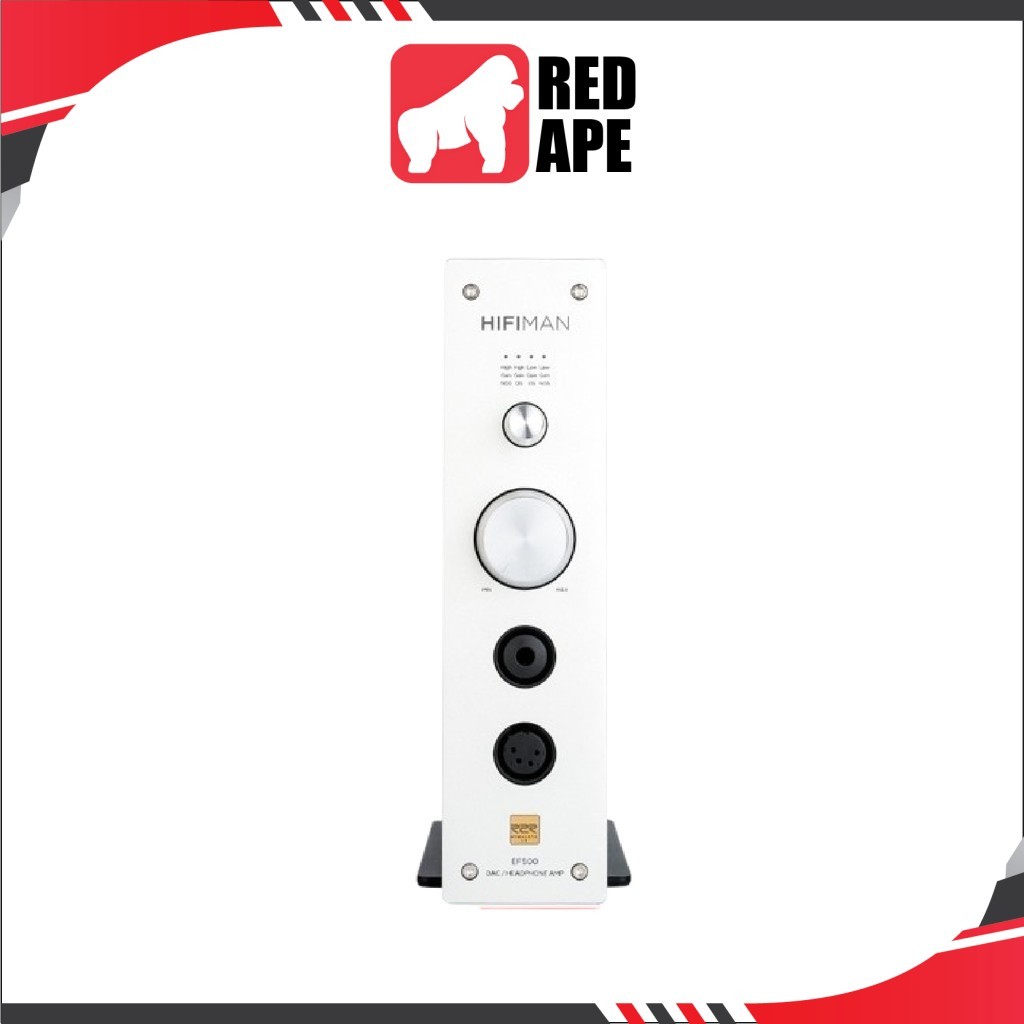

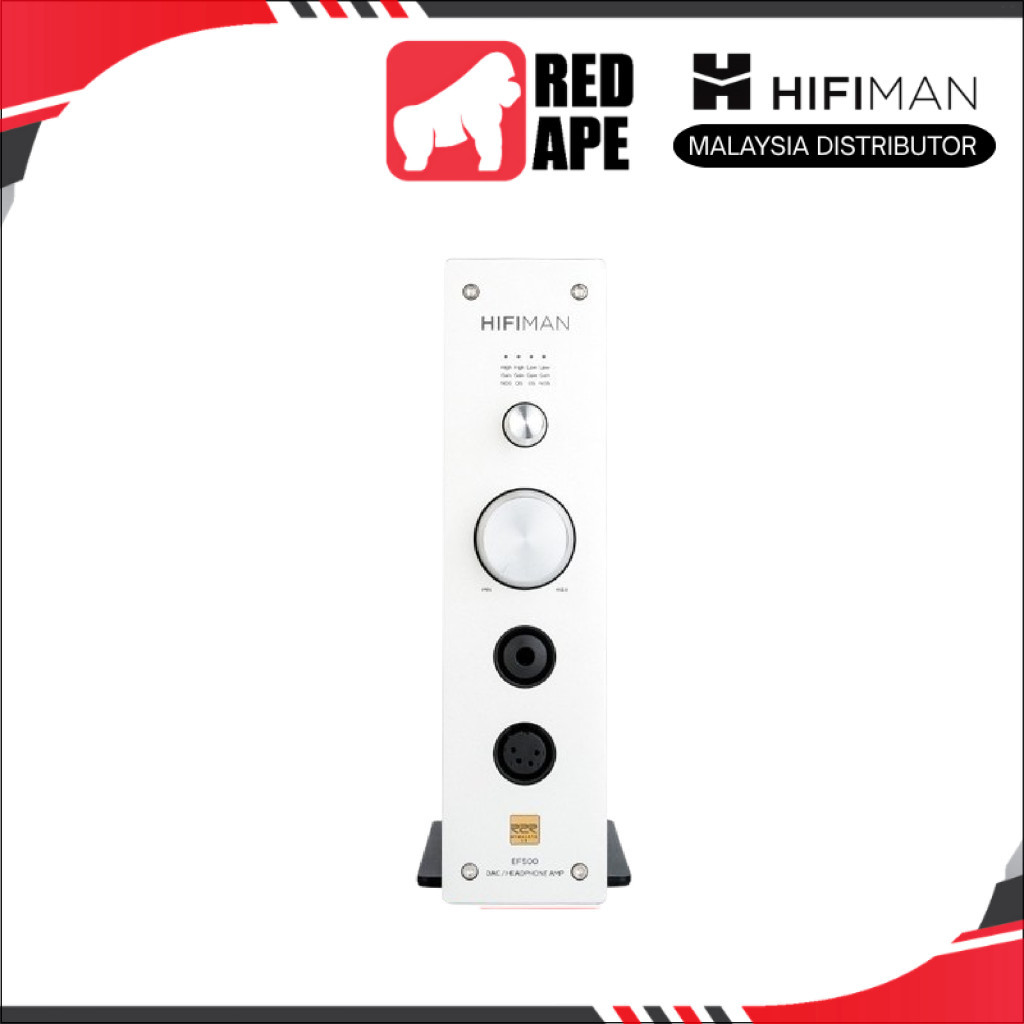

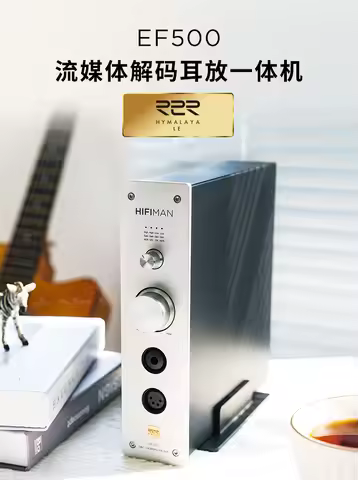

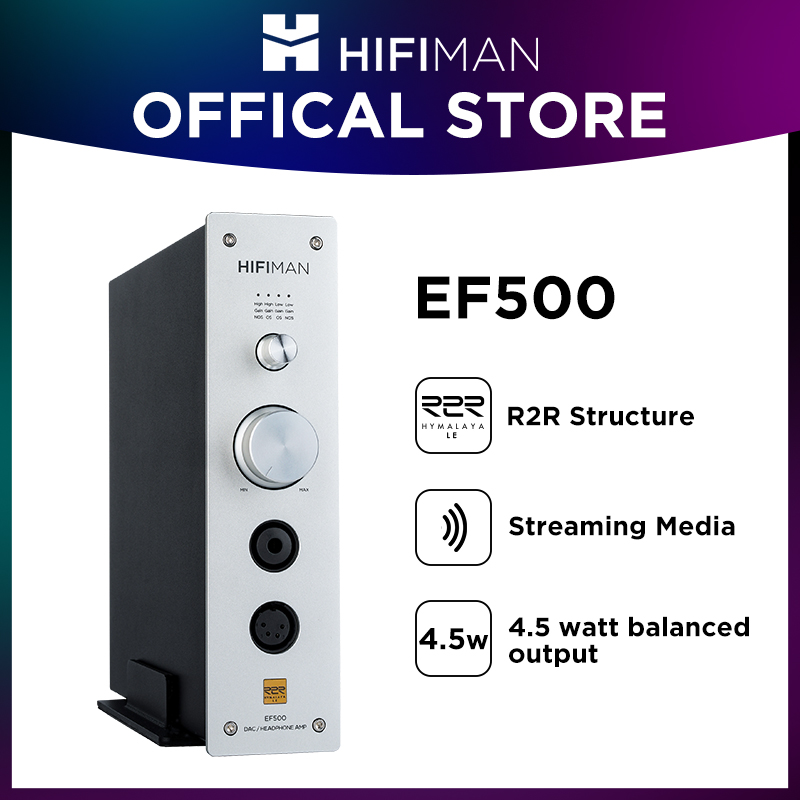

The HIFIMAN EF500 is a premium desktop DAC/AMP featuring R2R architecture and robust power output capabilities. This metal-constructed unit delivers 4.5W per channel through balanced XLR and 1.32W via single-ended outputs at 32 ohms. With impressive specs including 0.0025% THD and 117dB SNR, it offers both USB and coaxial digital inputs. The device supports NOS/OS modes and streaming, compatible with PC, mobile, and NAS devices. Its balanced design achieves a 131dB dynamic range.
Specifications
Price
Lazada
RM932.47
2 products
Shopee
RM1,839.08
4 products(2 items sold out)
Specifications
Basic information
Brand
HIFIMAN
Model
EF500
Amplification type
R2R
Product type
Desktop DAC/AMP
Colour
Silver
Material
Metal
Input specifications
Digital inputs
Coaxial
Yes
USB
Connector type
USB-B/USB-C
Supported
Yes
Power specifications
Power supply
Type
AC
Voltage unit
V
Voltage
115
Features
Special functions
NOS/OS Mode, Streaming Support
Volume control
Analog
Included accessories
Power cable
Audio performance
Dynamic range
Unit
dB
Balanced
131
Signal to noise ratio
Unit
dB
Value
117
Total harmonic distortion
Unit
%
Value
0.0025
Physical specifications
Dimensions
Depth unit
mm
Depth
220
Height unit
mm
Width
223
Width unit
mm
Height
229
Weight
Unit
g
Value
3370
Output specifications
Headphone outputs
Single ended
Power output
1.32W per channel
Connector type
6.35mm
Impedance
32
Impedance unit
ohms
Balanced
Power output
4.5W per channel
Connector type
XLR 4-pin
Impedance
32
Impedance unit
ohms
Line outputs
Type
RCA/XLR
Compatibility
Supported devices
PC, Mobile, NAS
