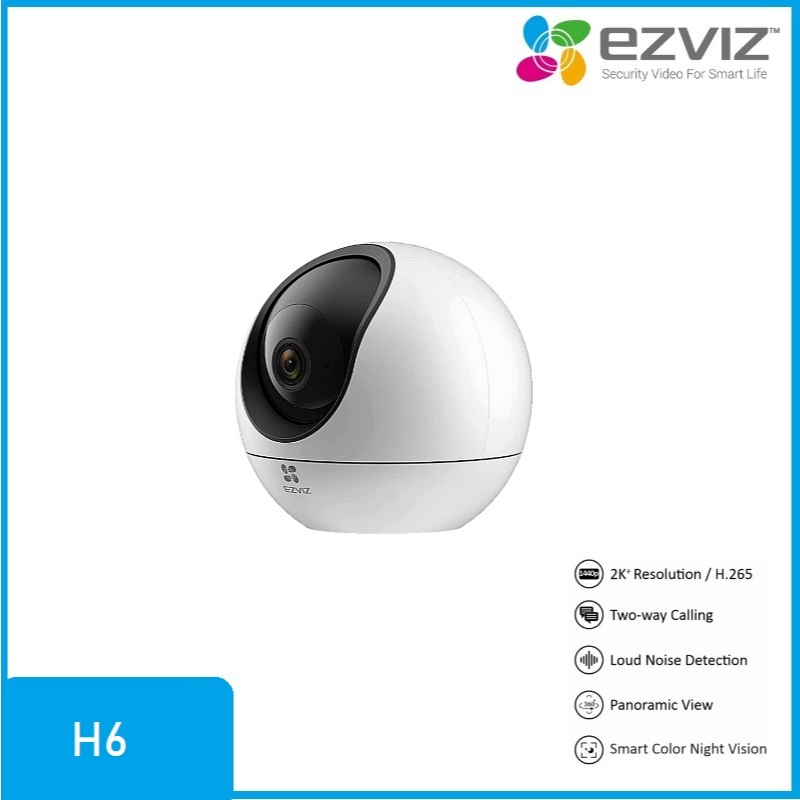

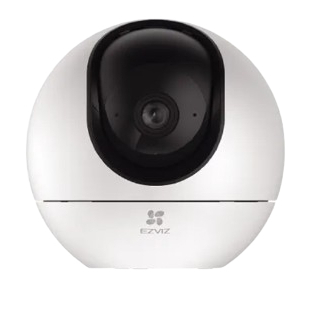

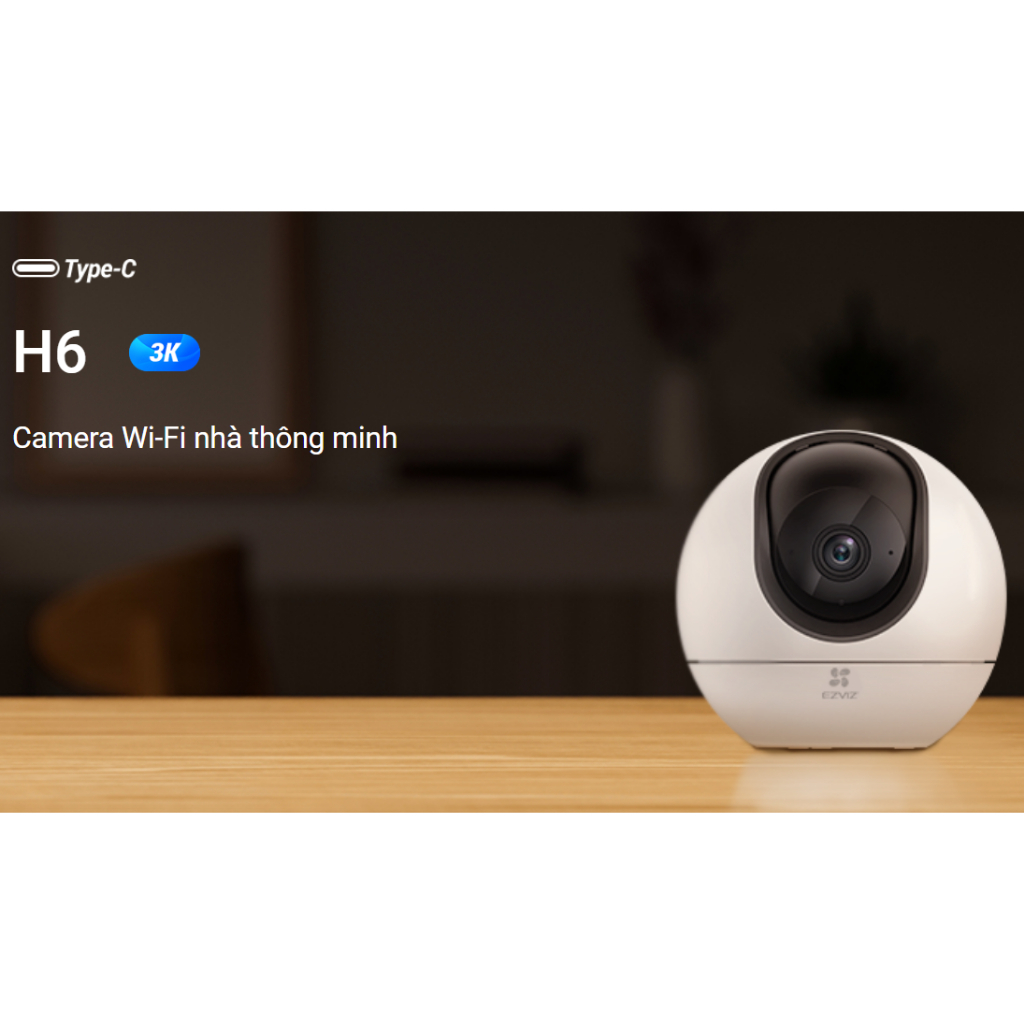

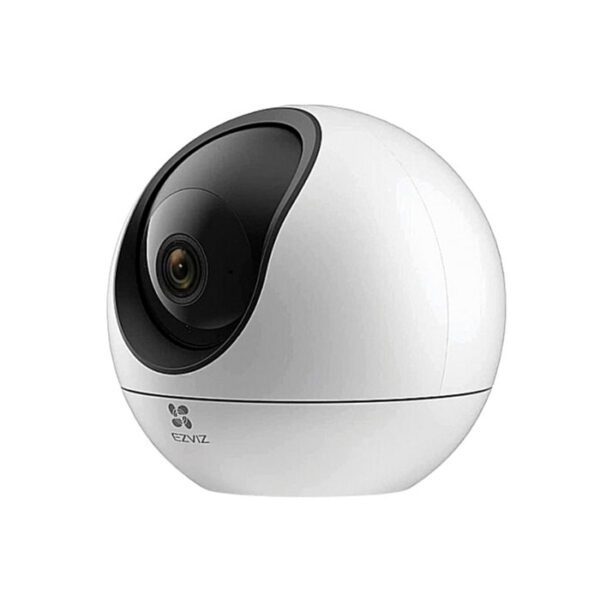

The EZVIZ H6 is a sophisticated indoor security camera featuring 2880×1620 resolution and advanced AI capabilities. It offers 353° pan and 133° tilt coverage, with excellent night vision up to 10m. The camera supports both 2.4G and 5G WiFi, includes two-way audio, and features smart detection for humans and pets. With a 4mm F1.6 lens providing 104° diagonal view, it supports microSD storage up to 512GB and cloud storage options. The H6's AI functions include human shape, pet, and waving-hand detection.
Specifications
Price
Shopee
RM93.39
297 products(65 items sold out)
Lazada
RM99.00
13 products
Specifications
Basic info
Brand
EZVIZ
Model
CS-H6-R100-1J5WF
Product type
Kamera CCTV Dalaman
Manufacturer
EZVIZ
Video specs
Compression formats
H.265, H.264
Day night mode
Yes
Frame rates
Max
25
Max bitrate
4 Mbps
Night vision
IR LED
Range
10 m
Min illumination
Color
0.51Lux
Black and white
0 Lux
Environmental
Operating humidity
Unit
percent
Max
95
Operating temperature
Unit
celsius
Min
-10
Max
45
Storage
Cloud storage
Service
EZVIZ Cloud
Supported
Yes
Max capacity
512G
Type
Micro SD
Certifications
CE, UKCA, UL, WEEE, RoHS, REACH
Network
Interface
Ethernet
RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
WiFi
Standards
IEEE802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
Security
64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Frequency bands
2.4G: 2400~2483.5 MHz, 5G: 5170~5250 MHz, 5735~5835 MHz
Protocols
EZVIZ Cloud Proprietary Protocol
Physical specs
Dimensions
Unit
mm
Depth
160
Width
115.5
Height
116
Weight
Unit
g
Value
255
Smart features
Activity zones
Yes
AI functions
AI-Powered Human Shape Detection, Pet Detection, Waving-Hand Detection, Voice Activity Detection
Motion detection
Yes
Person detection
Yes
Pan tilt
Pan range
353°
Tilt range
133°
Audio
Microphone
Yes
Speaker
Yes
Two way audio
Yes
Power
Consumption
8W
Supply type
DC 5V/2A (Type-C)
Voltage
5V
Imaging specs
Image sensor
Size
1/2.7"
Type
CMOS
Scanning system
Progressive Scan
Lens
Aperture
F1.6
Focal length
4mm
Field of view
Horizontal
87°
Vertical
53°
Diagonal
104°
Resolution
Max video
2880 × 1620
