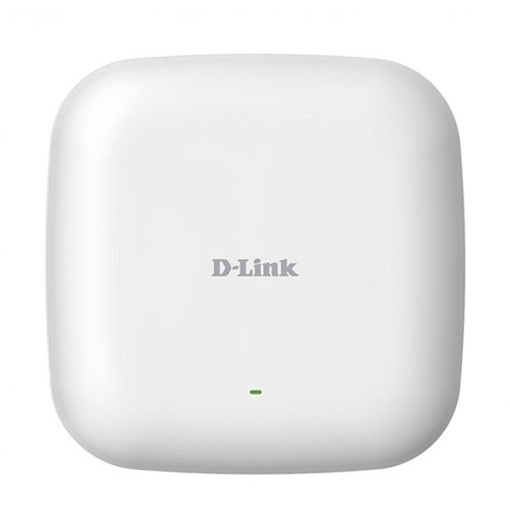

The D-Link DAP-2330 is a powerful dual-band AC1200 wireless access point delivering combined speeds up to 1200Mbps (300Mbps at 2.4GHz + 867Mbps at 5GHz). Features 2x2 MIMO technology with beamforming and internal antennas with 3dBi gain. Supports multiple security protocols including WPA3, with comprehensive management features like QoS and guest networking. Compact design (12.5x8.5x3.5cm) with wall/ceiling mounting options.
Specifications
Price
Shopee
RM157.85
2 products
Specifications
Basic information
Brand
D-Link
Model
DAP-2330
Product name
D-Link DAP-2330 Wireless AC1200 Dual Band Access Point
Product type
Wireless Access Point
Colour
White
Network standards
Ethernet standards
IEEE 802.3, IEEE 802.3u
Networking protocols
TCP/IP, DHCP, ICMP, NAT, PPPoE
Wireless standards
IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a
Wireless specifications
Beamforming
Yes
Frequency ranges
2.4 GHz
2.4GHz
5 GHz
5GHz
Maximum data rates
Total
1200
2.4 GHz
300
5 GHz
867
MIMO technology
2x2
WiFi bands
2.4GHz, 5GHz
Ports and interfaces
DC in jack
Yes
Ethernet speed
10/100 Mbps
Ethernet WAN ports
1
Antenna
Gain level
3
DBi
dBi
Quantity
2
Type
Internal
Security features
Encryption protocols
WPA, WPA2, WPA3, WEP
Firewall
Yes
MAC filtering
Yes
VPN support
PPTP, L2TP, IPSec
Management features
Guest network
Yes
QoS
Yes
Remote management
Yes
Traffic monitoring
Yes
Web interface
Yes
Physical specifications
Dimensions
Width
12.5
Mm
cm
Depth
8.5
Height
3.5
Mounting options
Wall Mount, Ceiling Mount
Weight
0.3
Kg
kg
Power specifications
Input frequency
50/60 Hz
Input voltage
12V DC
Power consumption
6
Watts
W
Power supply type
External
Environmental specifications
Operating humidity
Minimum
10
Maximum
90
Unit
%
Operating temperature
Maximum
40
Unit
°C
Package contents
Accessories
Power Adapter, Mounting Kit, Ethernet Cable
Documentation
Quick Installation Guide, CD with User Manual
Certifications
FCC, CE, RoHS
Warranty
Duration
2 years
Type
Limited
