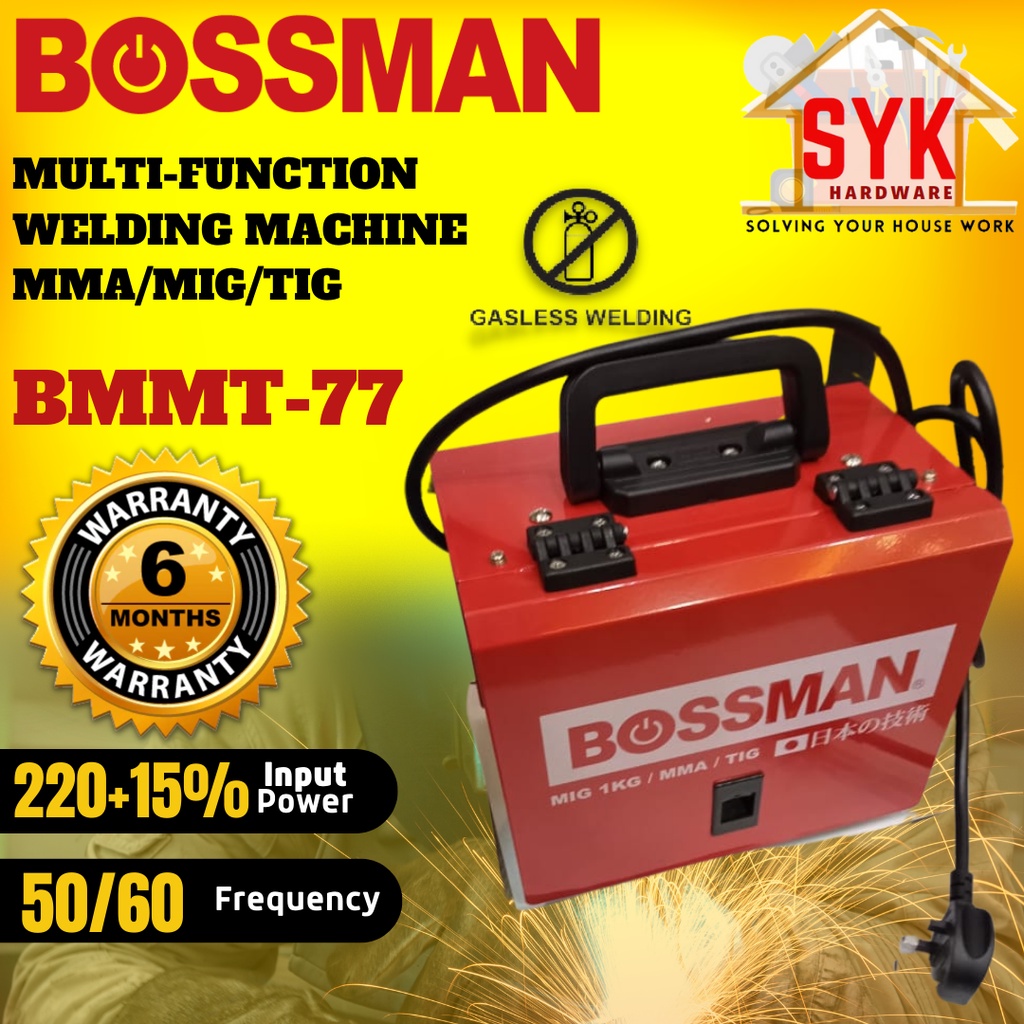

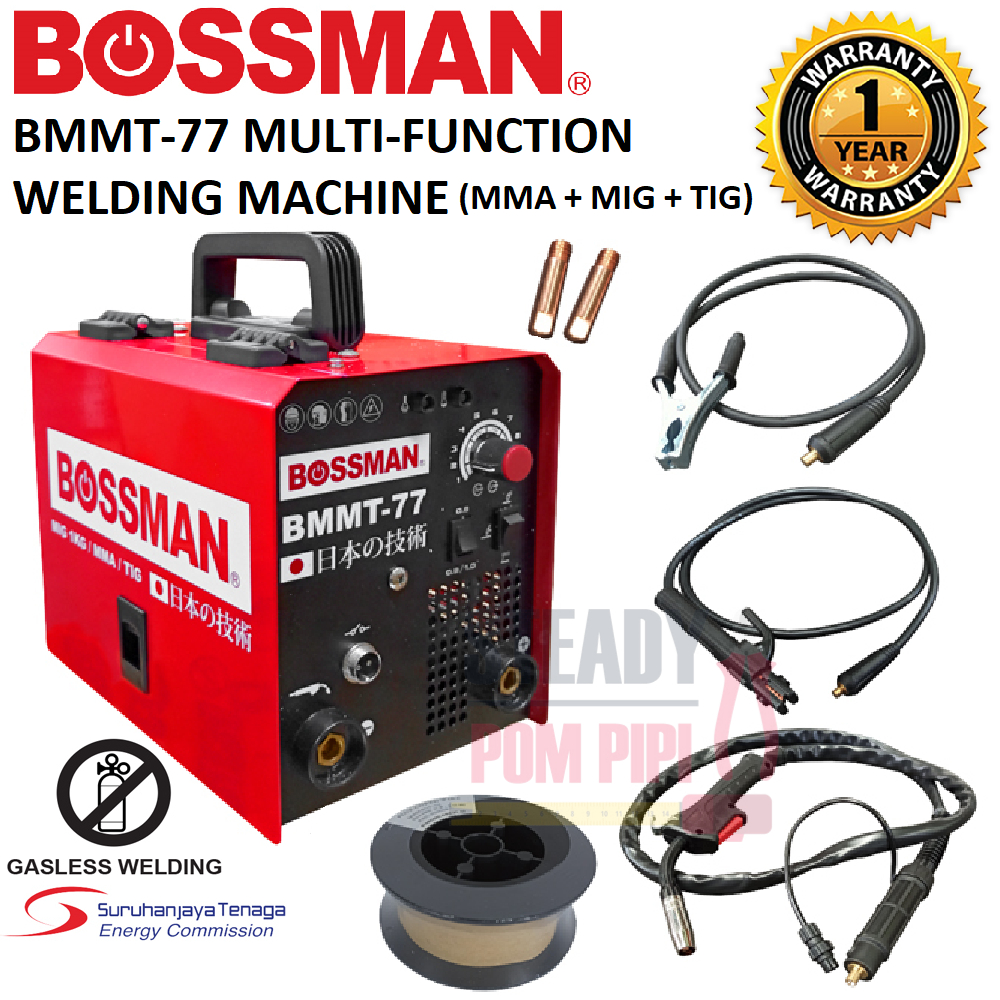

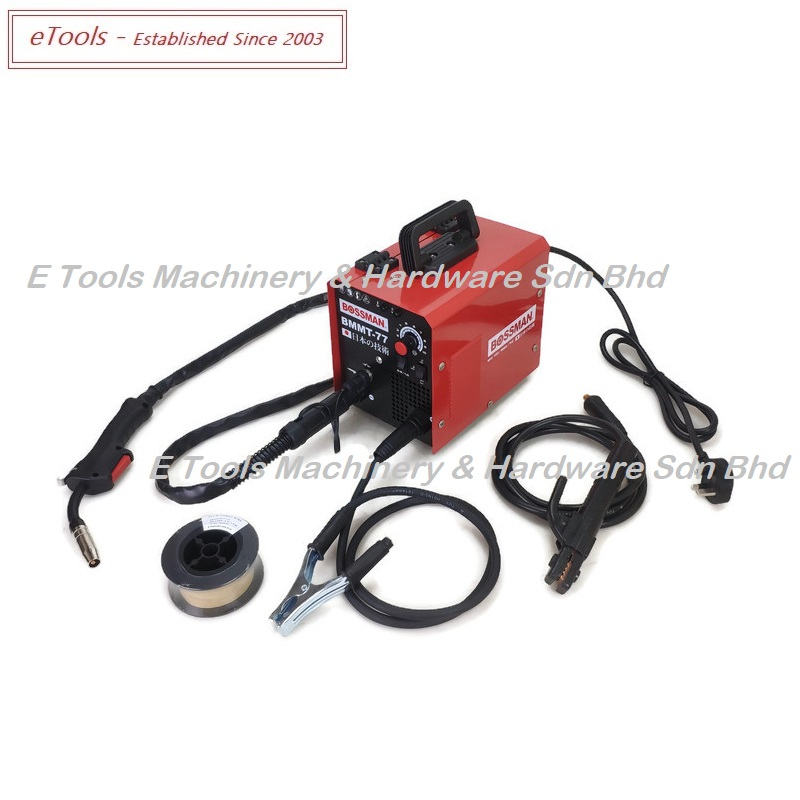

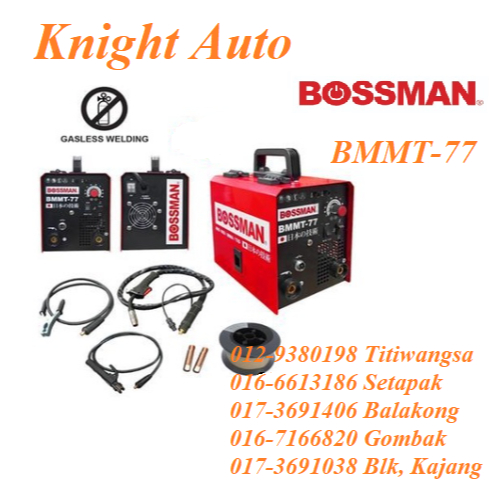

The Bossman BMMT-77 is a versatile 3-in-1 inverter welding machine capable of MIG, MMA, and TIG welding. This gasless unit delivers 20-120A output current with 3.92 KVA rated power. Operating on 220V ±15% input, it features a 30% duty cycle at 66A. Compact and portable at just 6.2kg, with dimensions 24.5x16.5x21.5cm. IP21S protection rating and Class H insulation ensure durability.
Specifications
Price
RM126.00
2 products
Specifications
Basic information
Brand
Bossman
Model
BMMT-77
Type
Inverter Gasless MIG & MMA & TIG Welding Machine
Electrical specifications
Frequency
50/60 Hz
Input voltage
220V ±15%
No load voltage
62
No load voltage unit
V
Power factor
0.7
Rated power
3.92
Rated power unit
KVA
Technology
Inverter
Output specifications
Duty cycle
Current
66
Current unit
A
Percentage
30
Output current
Min
20
Max
120
Protection ratings
Housing protection level
IP21S
Insulation class
H
Welding capabilities
Welding capacity
Unit
A
Min
20
Max
120
Welding method
MIG, MMA, TIG
Dimensions
Dimensions unit
cm
Height
21.5
Length
24.5
Weight
6.2
Weight unit
kg
Width
16.5
