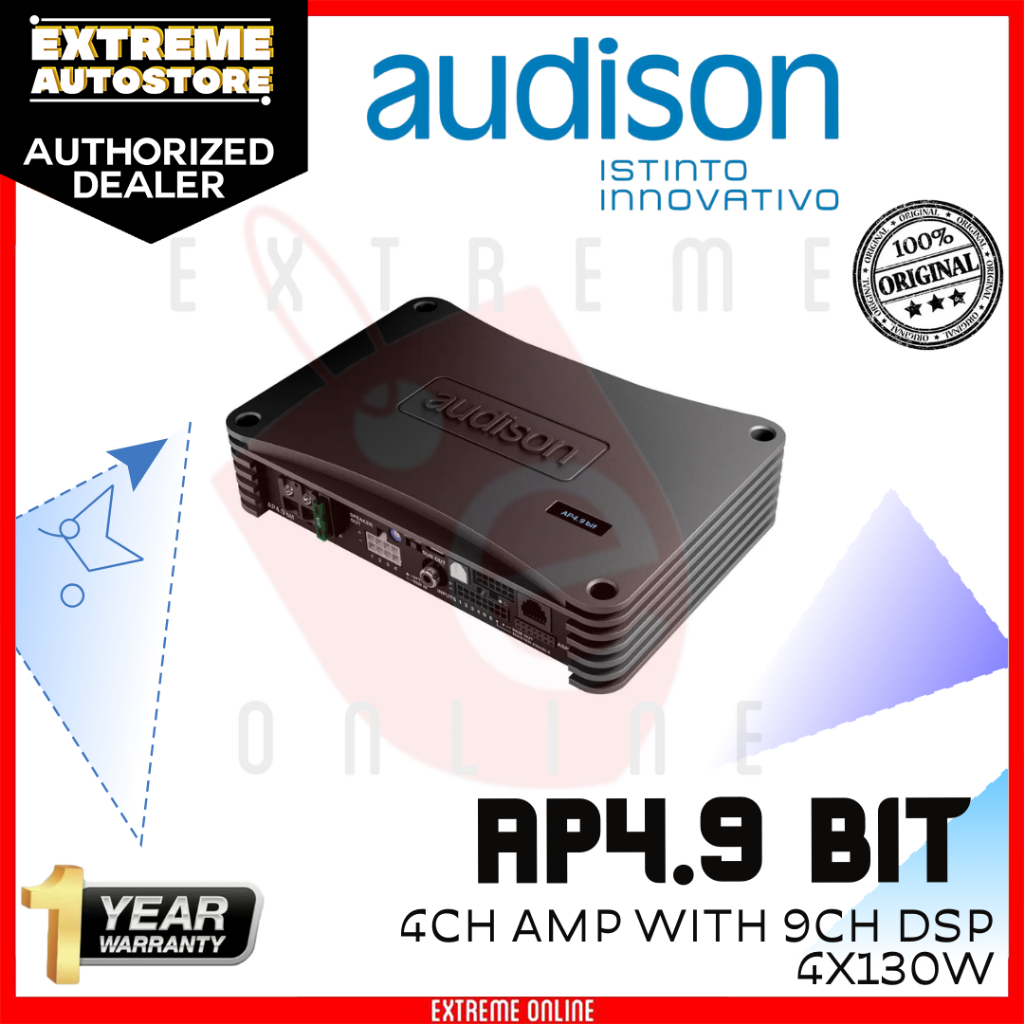

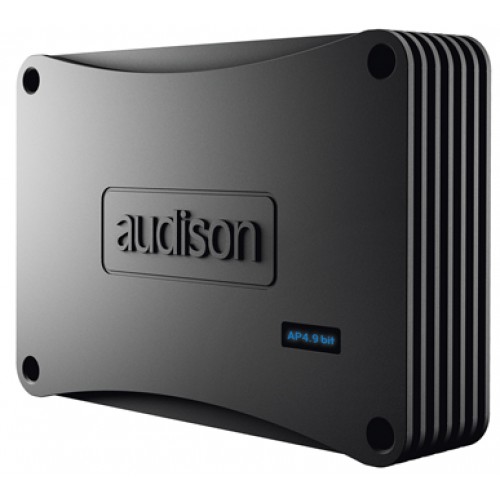

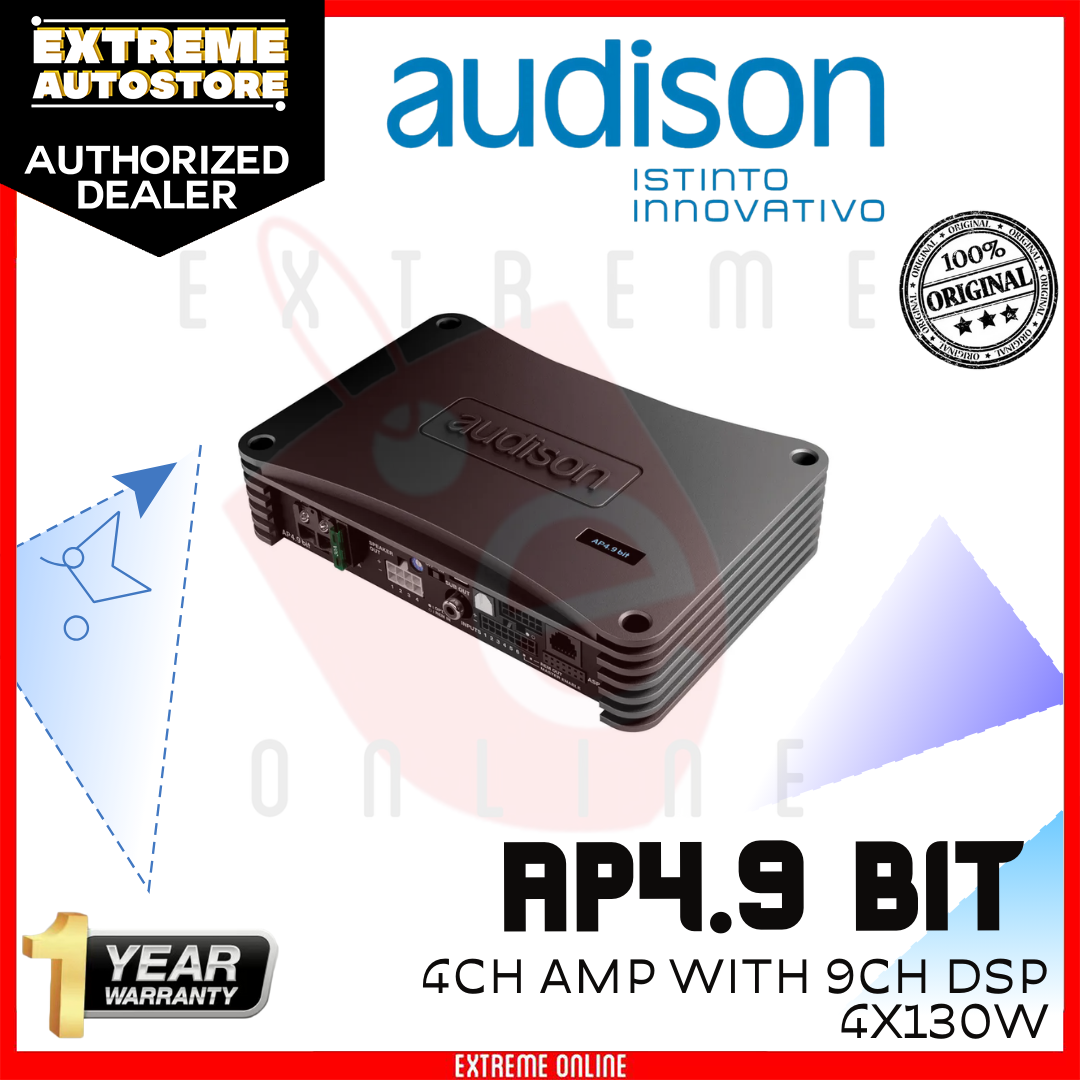

The Audison AP4.9 bit is a sophisticated amplifier with integrated DSP, offering 70W per channel across 4 channels at 4Ω impedance. Features a high-end 32-bit Cirrus Logic DAC with 96 kHz/24-bit sampling rate. Includes advanced DSP functions like Time Alignment and De-Equalization. Compact design measuring 198x45.5x134mm, with digital inputs (USB/optical) and parametric EQ controls. Delivers impressive audio performance with 95 dBA SNR and 10-20kHz frequency response.
Specifications
Price
RM2,968.00
2 products
Lazada
RM2,968.00
1 product
Specifications
Basic info
Brand
Audison
Model
AP4.9 bit
Manufacture year
2022
Type
Amplifier dengan DSP
Power specifications
Power output
Watts per channel
70
THD
0.1
Channels
4
Impedance
4
Power supply
Power consumption
Standby
0.002
Operating
30
Voltage
7.5 ÷ 15 VDC
Digital processing
DAC
Sampling rate
96 kHz
Model
32-bit Cirrus Logic
Bit depth
24-bit
Supported formats
PCM
Supported sampling rates
96 kHz/24-bit
Additional features
Remote control
Yes
Special features
DSP, Time Alignment, De-Equalization
Tone controls
Bass
Parametric EQ
Treble
Parametric EQ
Included accessories
DRC MP Digital Remote Control, USB cable, 30A fuse
Audio performance
Damping factor
170
Frequency response
10 ÷ 20k Hz
Input sensitivity
Line
2 ÷ 15 V RMS
Signal to noise ratio
Line
95 dBA
Total harmonic distortion
0.10% @ 1 kHz, 4Ω, 90% Output Power
Connectivity
Inputs
Digital
USB
1
Optical
1
Outputs
Analogue
Subwoofer
1
Physical specifications
Dimensions
Unit
mm
Depth
134
Width
198
Height
45.5
Weight
Unit
kg
Value
1.36
