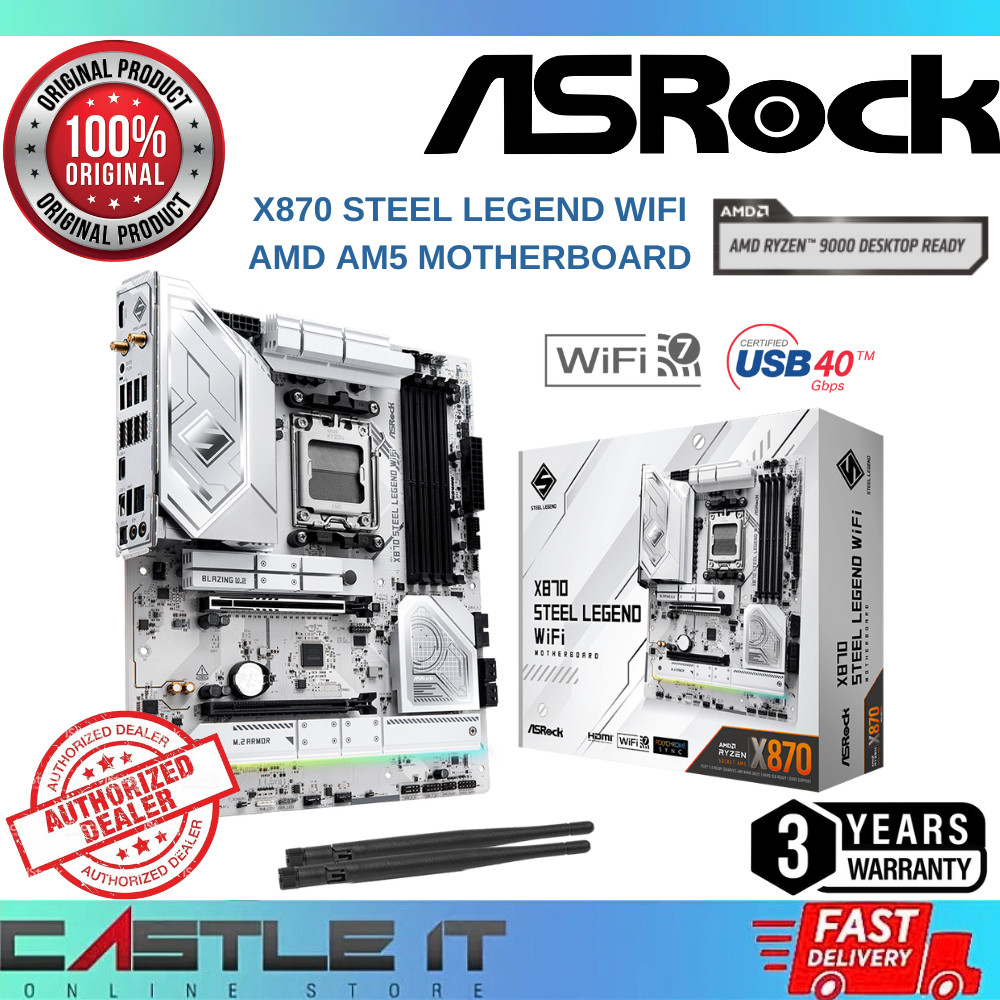

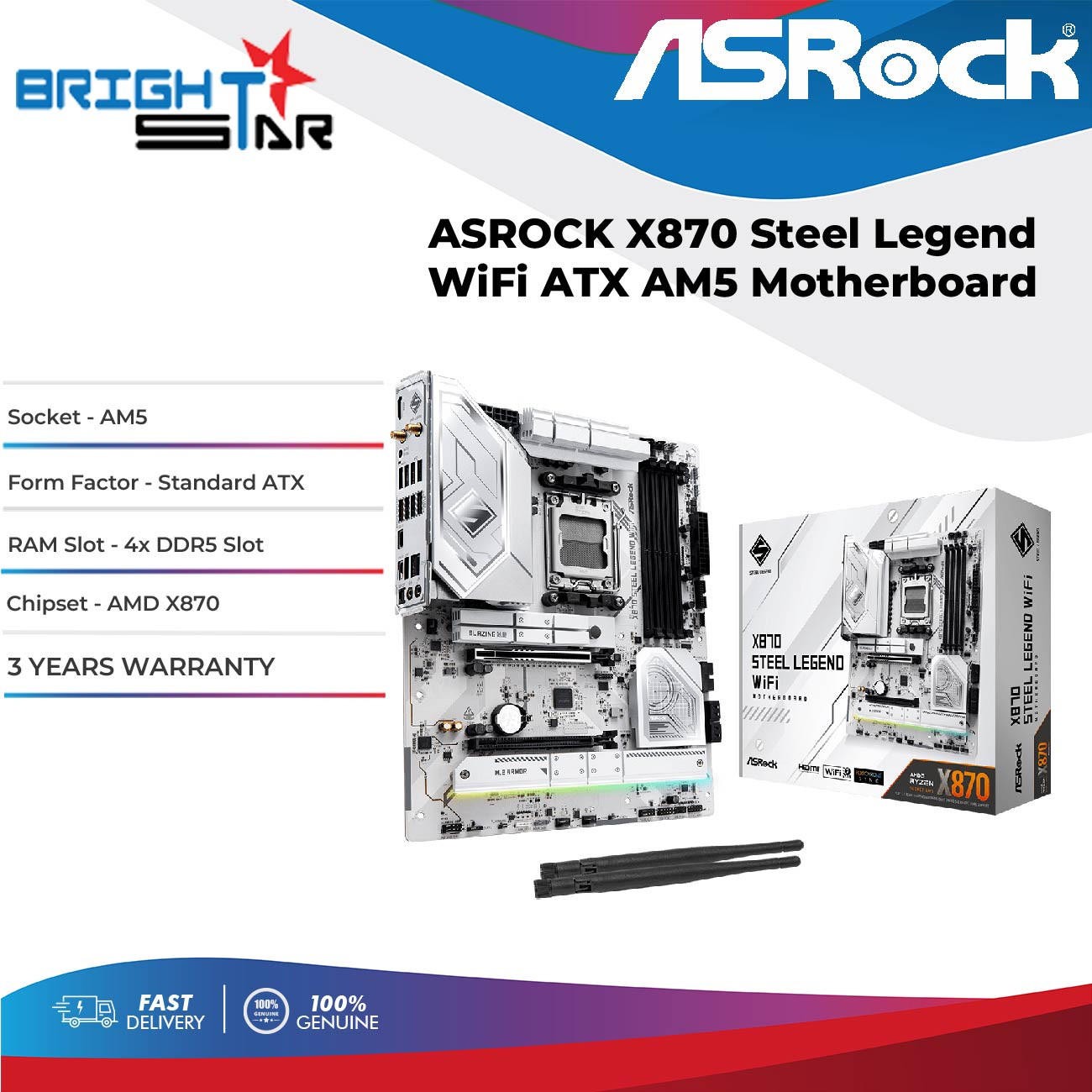

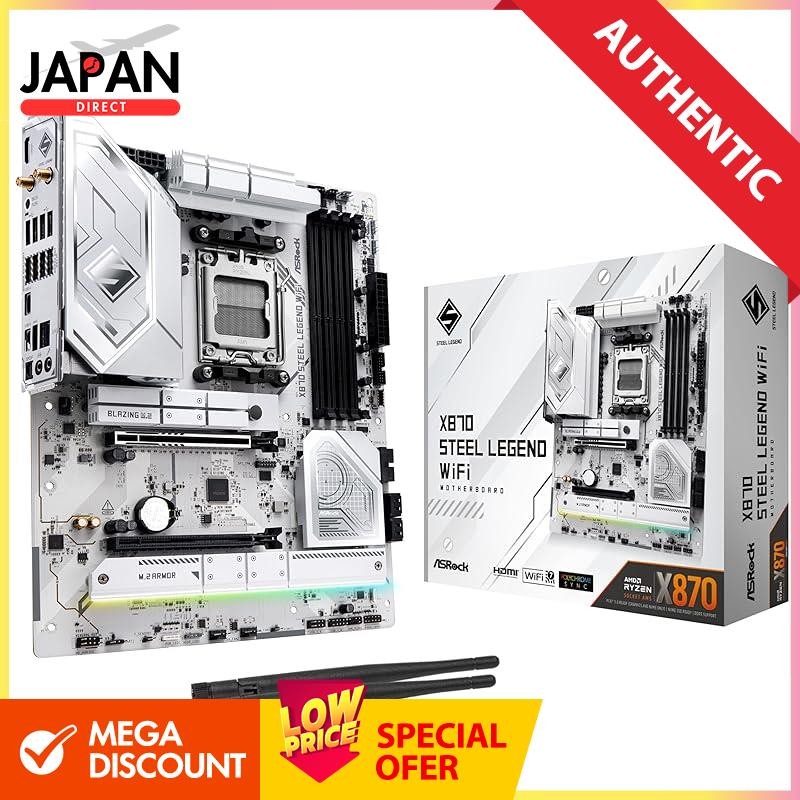

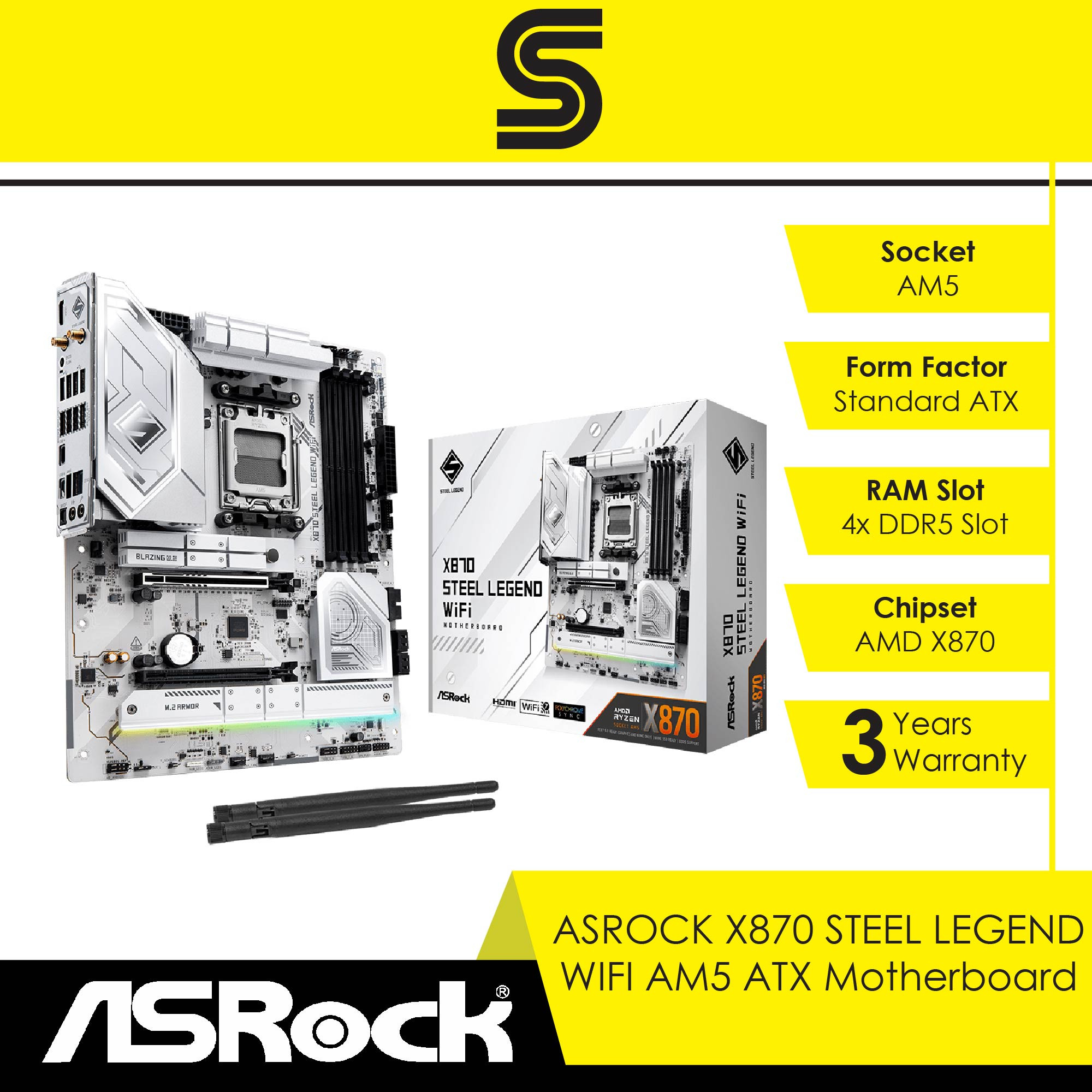

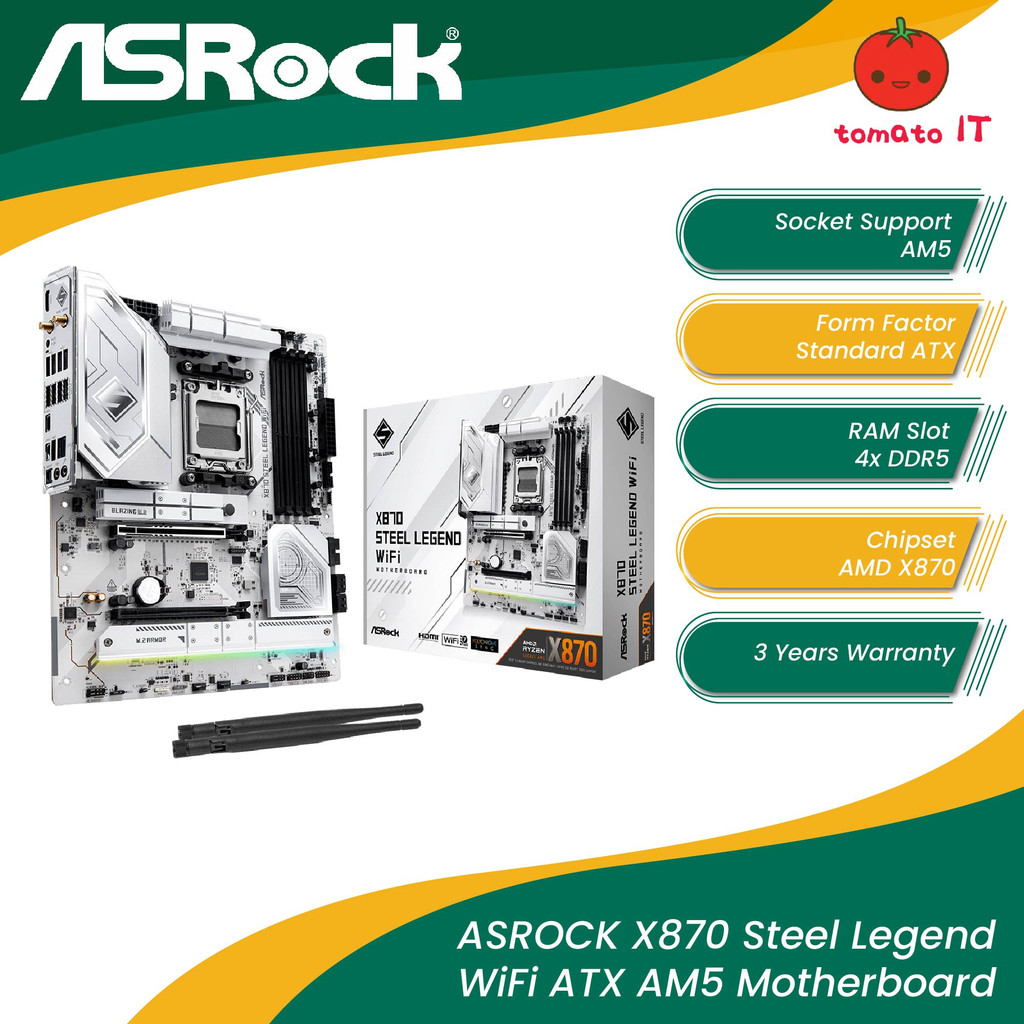

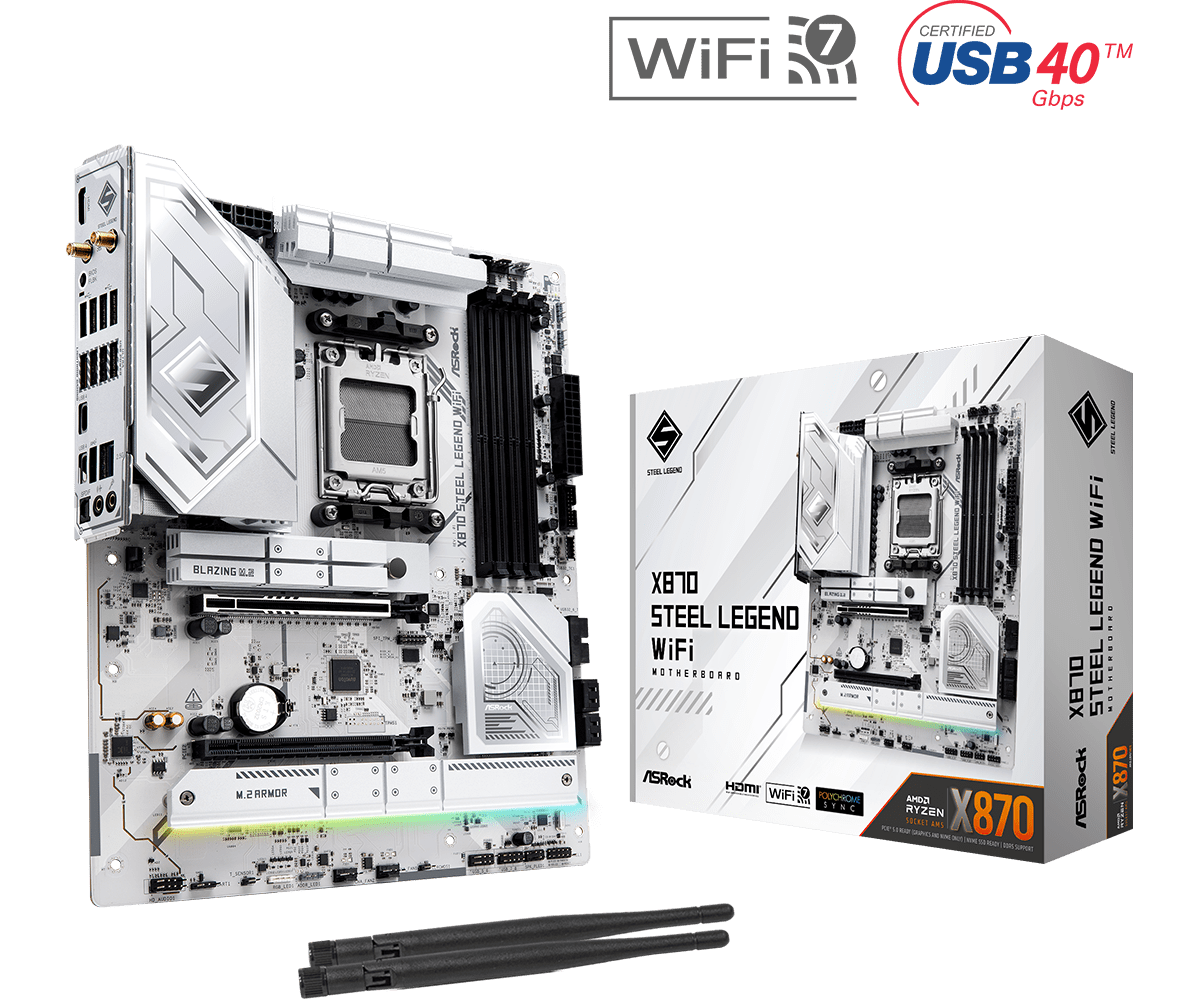

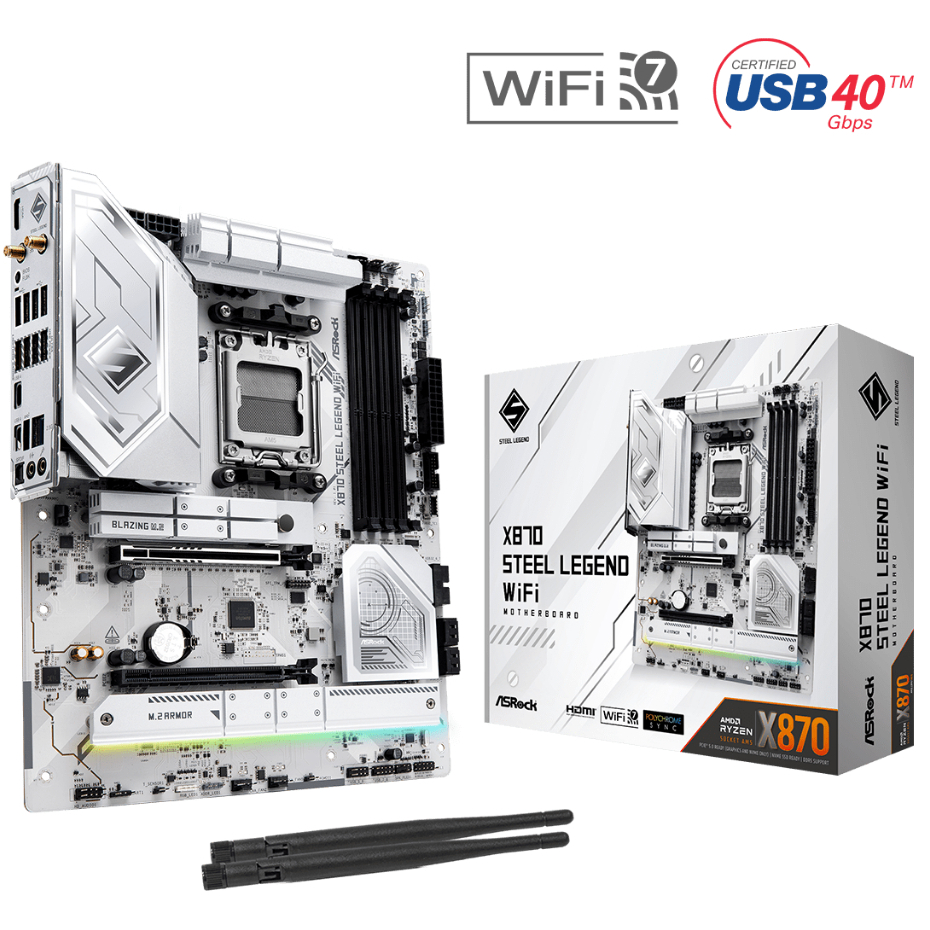

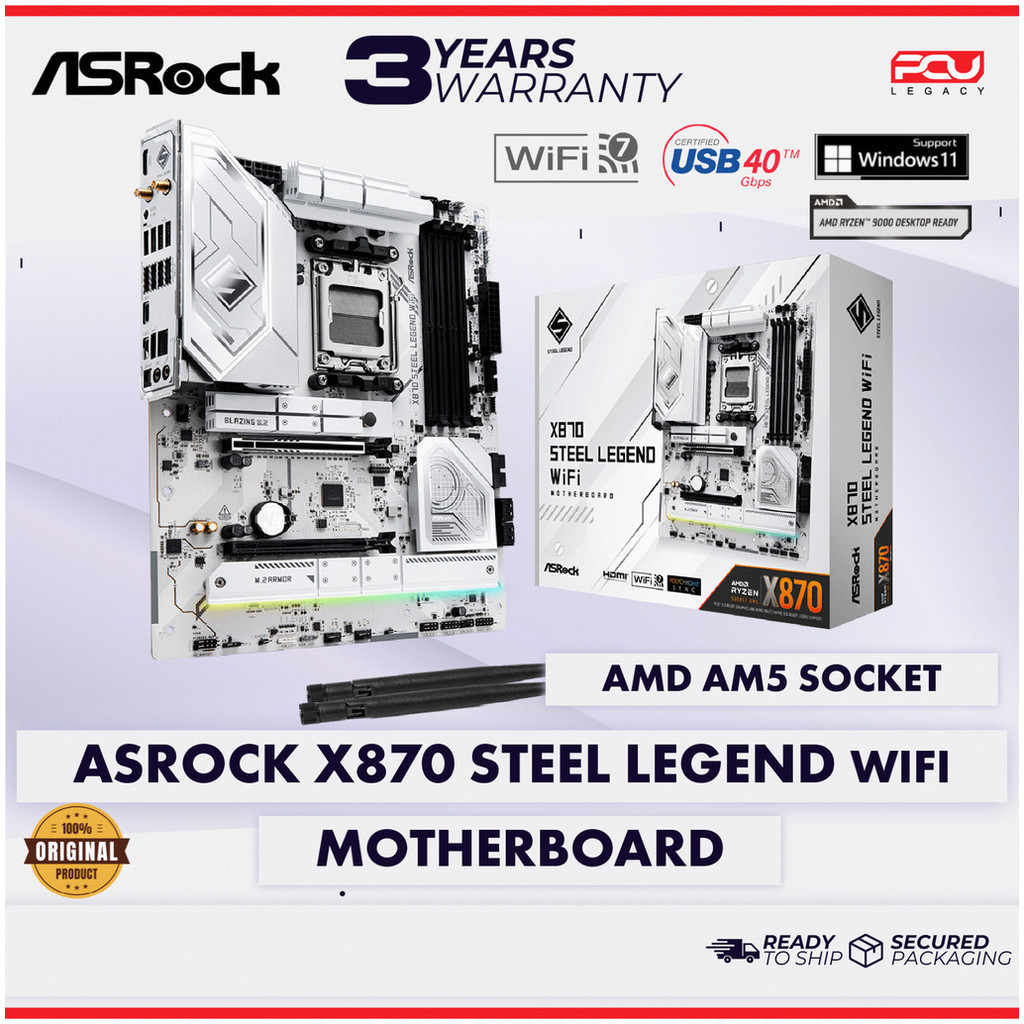

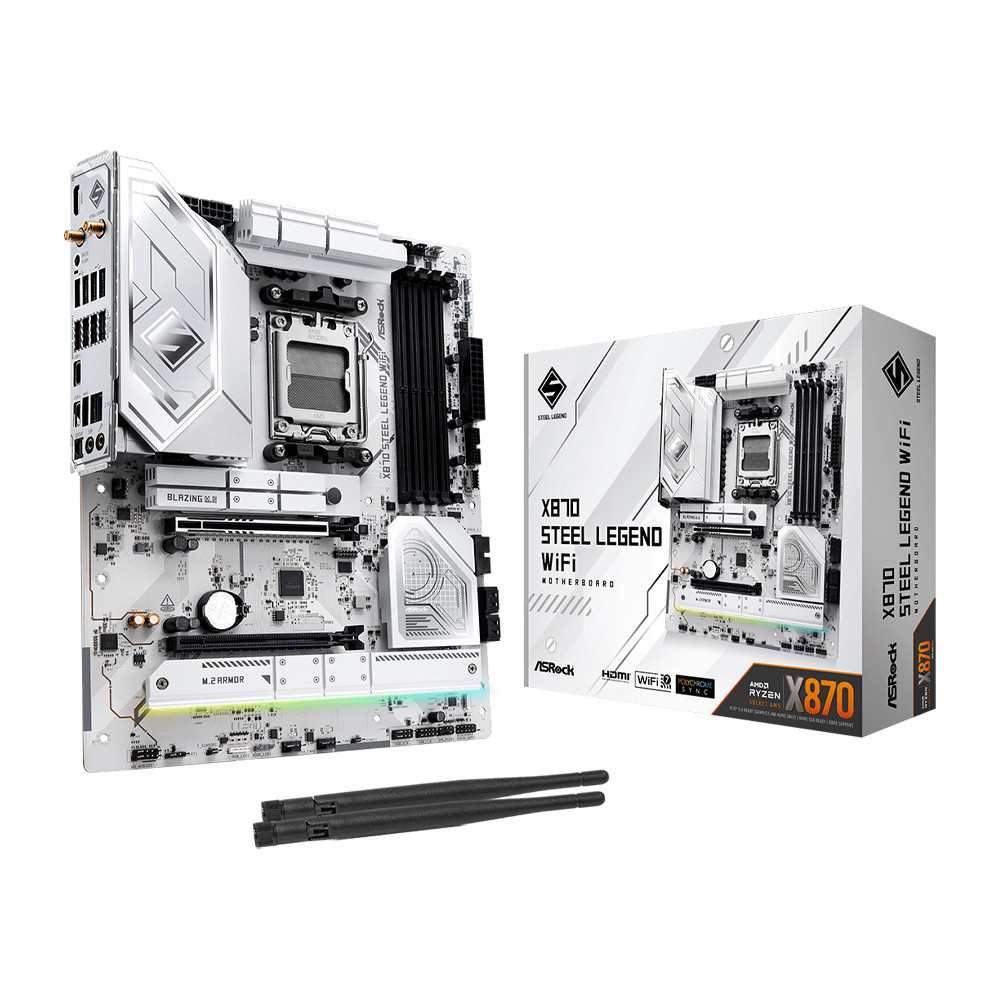

The ASRock X870 Steel Legend WiFi is a high-performance ATX motherboard for AMD Ryzen 7000-9000 series processors. Features DDR5 memory support up to 8000MHz with 256GB capacity across 4 slots. Offers extensive connectivity with PCIe 5.0, three M.2 slots, and Wi-Fi 7. Includes robust USB options with USB4 Type-C ports and 2.5Gb Ethernet. Premium 14+2+1 power phase design with 80A Dr.MOS ensures stability. Advanced cooling with 5 fan headers and aluminum heatsinks.
Specifications
Price
RM1,358.50
13 products
Specifications
Basic information
Brand
ASRock
Model
X870 Steel Legend WiFi
Socket type
AM5
Supported processors
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Chipset
AMD X870
Form factor
ATX
Memory
Max memory capacity
256
Max memory capacity unit
GB
Memory channels
Dual-channel
Memory slots
4
Memory speed
8000
Memory speed unit
MHz
Memory type
DDR5
Xmp support
Yes
Expansion slots
M2 slots
[{'quantity': 1, 'interface': 'PCIe Gen5x4', 'max_speed': 'PCIe 5.0'}, {'quantity': 1, 'interface': 'PCIe Gen4x4', 'max_speed': 'PCIe 4.0'}, {'quantity': 1, 'interface': 'PCIe Gen4x4', 'max_speed': 'PCIe 4.0'}]
Pcie slots
[{'type': 'PCIe 5.0 x16', 'quantity': 1, 'speed': 'PCIe 5.0'}, {'type': 'PCIe 4.0 x16', 'quantity': 1, 'speed': 'PCIe 4.0'}]
Warranty support
Warranty period
3
Warranty period unit
years
Warranty type
Official
Storage
Sata ports
4
Sata speed
6.0 Gb/s
Features
Bios features
EZ Update, Auto Driver Installer
Debug features
BIOS Flashback Button, ASRock Post Status Checker
Rgb headers
1
Rgb support
Yes
Connectivity
Networking
Ethernet
2.5 Gigabit
Wifi
Wi-Fi 7
Bluetooth
5.4
Usb ports
[{'type': 'USB4 Type-C', 'quantity': 2, 'speed': '40Gbps'}, {'type': 'USB 3.2 Gen2x2 Type-C', 'quantity': 1, 'speed': '20Gbps'}, {'type': 'USB 3.2 Gen2 Type-A', 'quantity': 1, 'speed': '10Gbps'}, {'type': 'USB 3.2 Gen1 Type-A', 'quantity': 6, 'speed': '5Gbps'}, {'type': 'USB 2.0', 'quantity': 8, 'speed': '480Mbps'}]
Video outputs
Hdmi
1
Cooling
Fan headers
5
Heatsinks
Brushed aluminum
Pump headers
1
Audio
Channels
7.1
Codec
Realtek ALC4082
Features
Nahimic support
Power system
Power connectors
[{'type': '24-pin ATX', 'quantity': 1}, {'type': '8-pin 12V', 'quantity': 2}]
Power phases
14+2+1
Vrm solution
80A Dr.MOS
