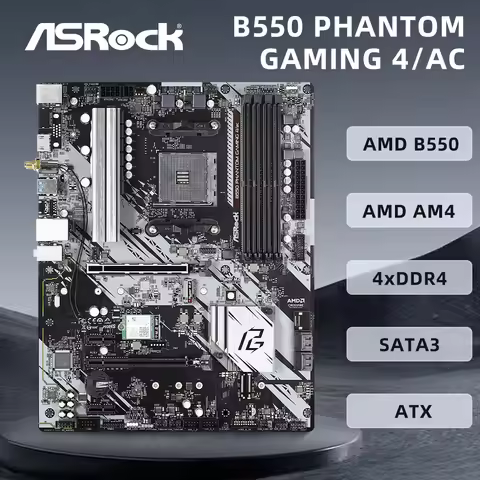

The ASRock B550 Phantom Gaming 4/ac is a feature-rich ATX motherboard supporting AMD Ryzen 3000/5000 processors. It offers robust memory support with 4 DDR4 slots capable of 4733MHz and 128GB capacity. Features PCIe 4.0 x16 slot, dual M.2 slots, and 6 SATA ports. Includes WiFi 802.11ac, Bluetooth 4.2, and multiple USB ports including 3.2 Gen2. Enhanced with 8+2 power phases, Dr.MOS VRM, and Realtek ALC1200 7.1 audio with Purity Sound 4.
Specifications
Price
Shopee
RM533.50
1 product
Specifications
Basic information
Brand
ASRock
Model
B550 Phantom Gaming 4/ac
Release date
2020-06-16
Socket type
AM4
Supported processors
AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
Chipset
AMD B550
Form factor
ATX
Memory
Max memory capacity
128
Max memory capacity unit
GB
Memory channels
Dual
Memory slots
4
Memory speed
4733
Memory speed unit
MHz
Memory type
DDR4
Xmp support
Ya
Environmental
Operating humidity
Unit
%
Min
20
Max
90
Operating temperature
Unit
°C
Max
60
Expansion slots
M2 slots
[{'quantity': 1, 'interface': 'PCIe 4.0 x4', 'max_speed': '64 Gb/s'}, {'quantity': 1, 'interface': 'PCIe 3.0 x4 & SATA3', 'max_speed': '32 Gb/s'}]
Pcie slots
[{'type': 'PCIe 4.0 x16', 'quantity': 1, 'speed': '16 GT/s'}, {'type': 'PCIe 3.0 x16', 'quantity': 1, 'speed': '8 GT/s'}, {'type': 'PCIe 3.0 x1', 'quantity': 2, 'speed': '8 GT/s'}]
Warranty support
Warranty period
3
Warranty period unit
tahun
Warranty type
hadir kedai
Storage
Sata ports
6
Sata speed
6 Gb/s
Features
Bios features
UEFI BIOS, AMD Ryzen 5000 Series Ready
Debug features
Debug LED
Rgb headers
1
Rgb support
Yes
Connectivity
Networking
Ethernet
Gigabit LAN
Wifi
802.11ac
Bluetooth
4.2
Usb ports
[{'type': 'USB 3.2 Gen1', 'quantity': 4, 'speed': '5 Gb/s'}, {'type': 'USB 3.2 Gen2', 'quantity': 1, 'speed': '10 Gb/s'}, {'type': 'USB 2.0', 'quantity': 2, 'speed': '480 Mb/s'}]
Video outputs
Hdmi
1
Displayport
1
D sub
1
Physical specs
Length
30.5
Length unit
cm
Weight
1.2
Weight unit
kg
Width
24.4
Width unit
cm
Cooling
Fan headers
4
Heatsinks
VRM Heatsink, M.2 Heatsink
Pump headers
1
Thermal sensors
3
Audio
Channels
7.1
Codec
Realtek ALC1200
Features
Purity Sound 4, Nichicon Fine Gold Series Audio Caps
Power system
Power connectors
[{'type': '24-pin ATX', 'quantity': 1}, {'type': '8-pin EPS', 'quantity': 1}]
Power phases
8+2
Vrm solution
Dr.MOS
