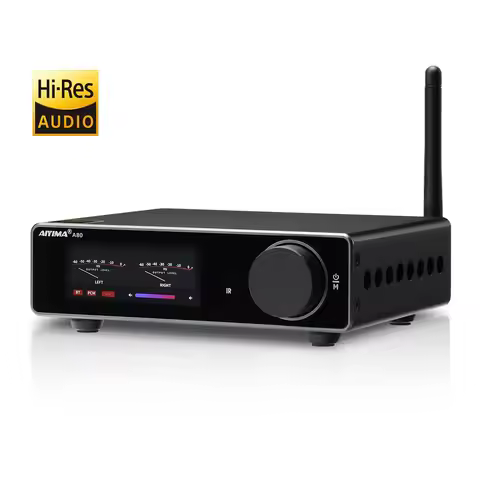

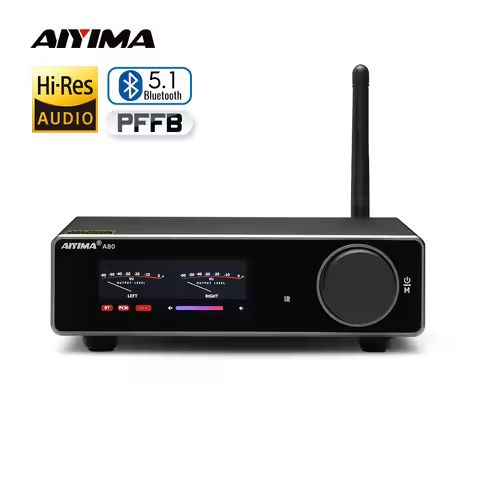

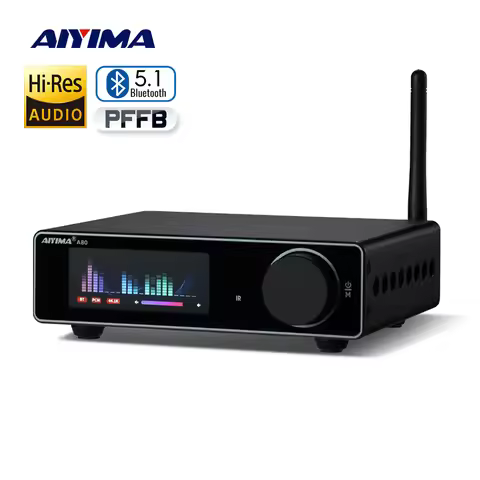

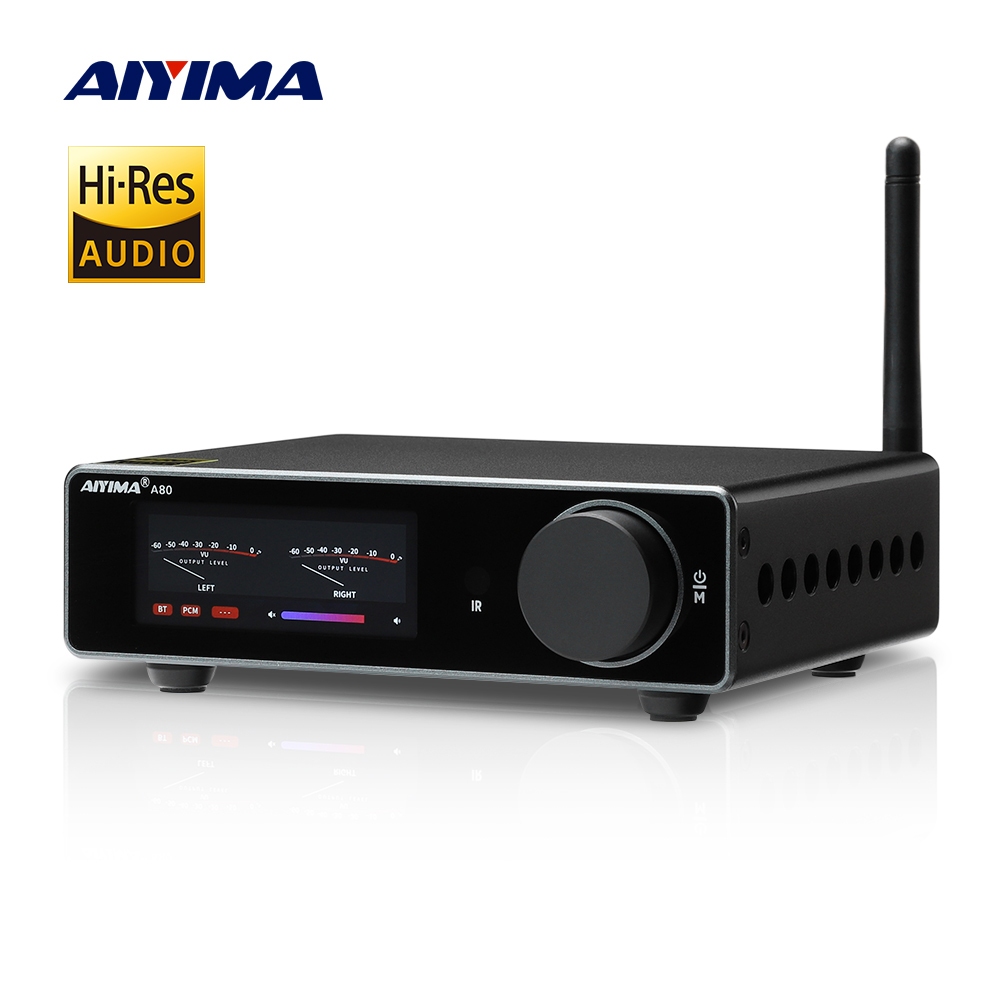

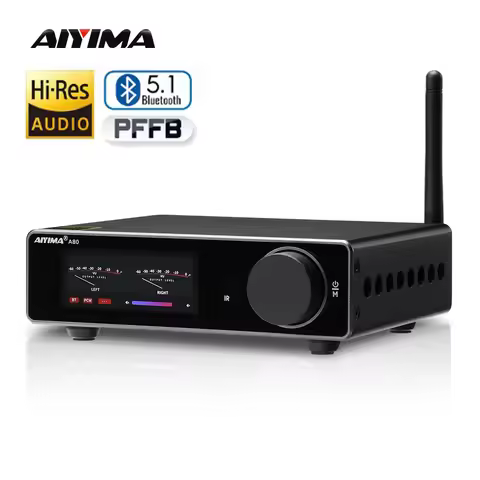

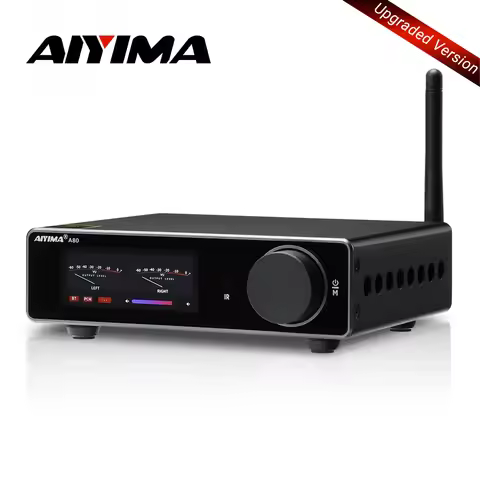

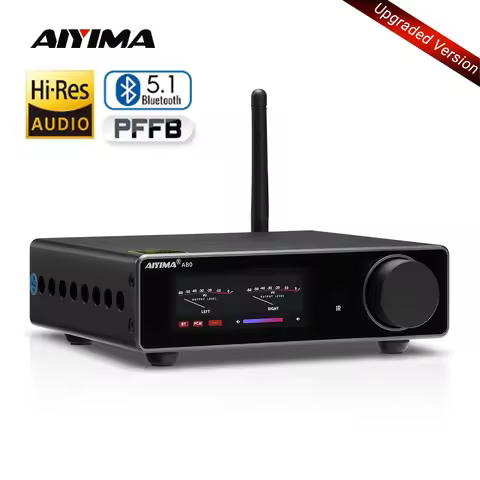

The AIYIMA A80 is a powerful integrated amplifier delivering 120W per channel with ultra-low 0.006% THD. Features ESS9038Q2M DAC supporting 32-bit/384kHz PCM and DSD256 playback. Advanced Bluetooth 5.1 with multiple codecs including aptX HD. Comprehensive connectivity includes digital (USB/optical/coaxial) and analog inputs. Color display with VU meters, tone controls, and PFFB technology enhance the experience. Compact design at 155x123x41mm.
Specifications
Price
Shopee
RM940.00
1 product
Specifications
Basic info
Brand
AIYIMA
Model
A80
Manufacture year
2025
Type
Amplifier bersepadu
Power specifications
Power output
Watts per channel
120
THD
0.006
Channels
2
Impedance
4
Power supply
Voltage
24-48V DC
Digital processing
DAC
Sampling rate
384kHz
Model
ESS9038Q2M
Bit depth
32-bit
Supported formats
PCM, DSD
Supported sampling rates
32-bit/384kHz, DSD256
Additional features

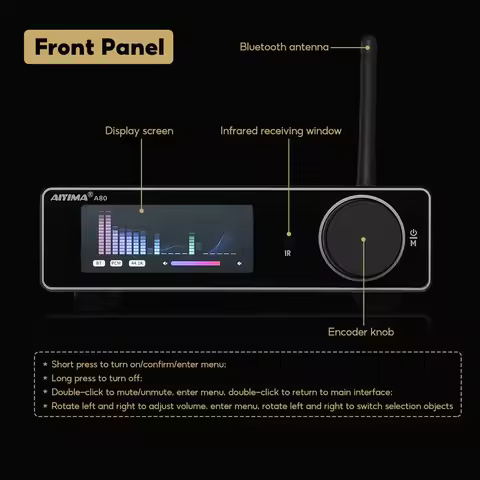

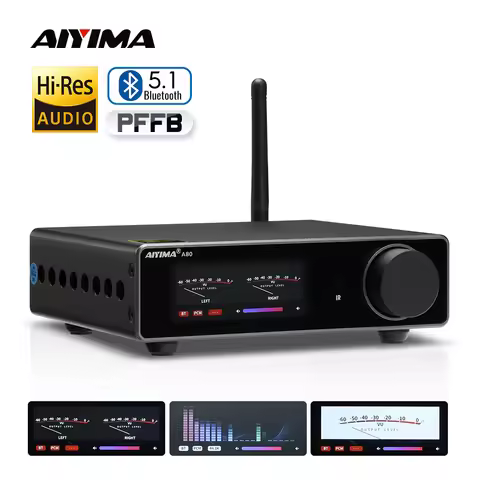

Display type
Skrin warna dengan meter VU
Remote control
Yes
Special features
PFFB (Post Filter Feedback), Op-amp rolling compatible
Tone controls
Bass
±10dB
Treble
±10dB
Included accessories
Antena Bluetooth, Alat kawalan jauh Bluetooth, Kabel optik Toslink, Kabel USB-A ke USB-C, Bekalan kuasa 48V 5A
Audio performance
Frequency response
20Hz-20kHz (±0.5dB)
Input sensitivity
Line
2Vrms (RCA), 3.6Vrms (TRS)
Signal to noise ratio
Line
≥109dB
Total harmonic distortion
0.006%
Connectivity
Inputs
Digital
Coaxial
1
USB
1
Optical
1
Analogue
RCA
1
Outputs
Analogue
Subwoofer
1
Wireless features
Bluetooth
Codecs
AAC, SBC, aptX, aptX LL, aptX HD
Version
5.1
Warranty
Duration
2 tahun
Physical specifications
Dimensions
Unit
mm
Depth
41
Width
155
Height
123
Weight
Unit
g
Value
850
