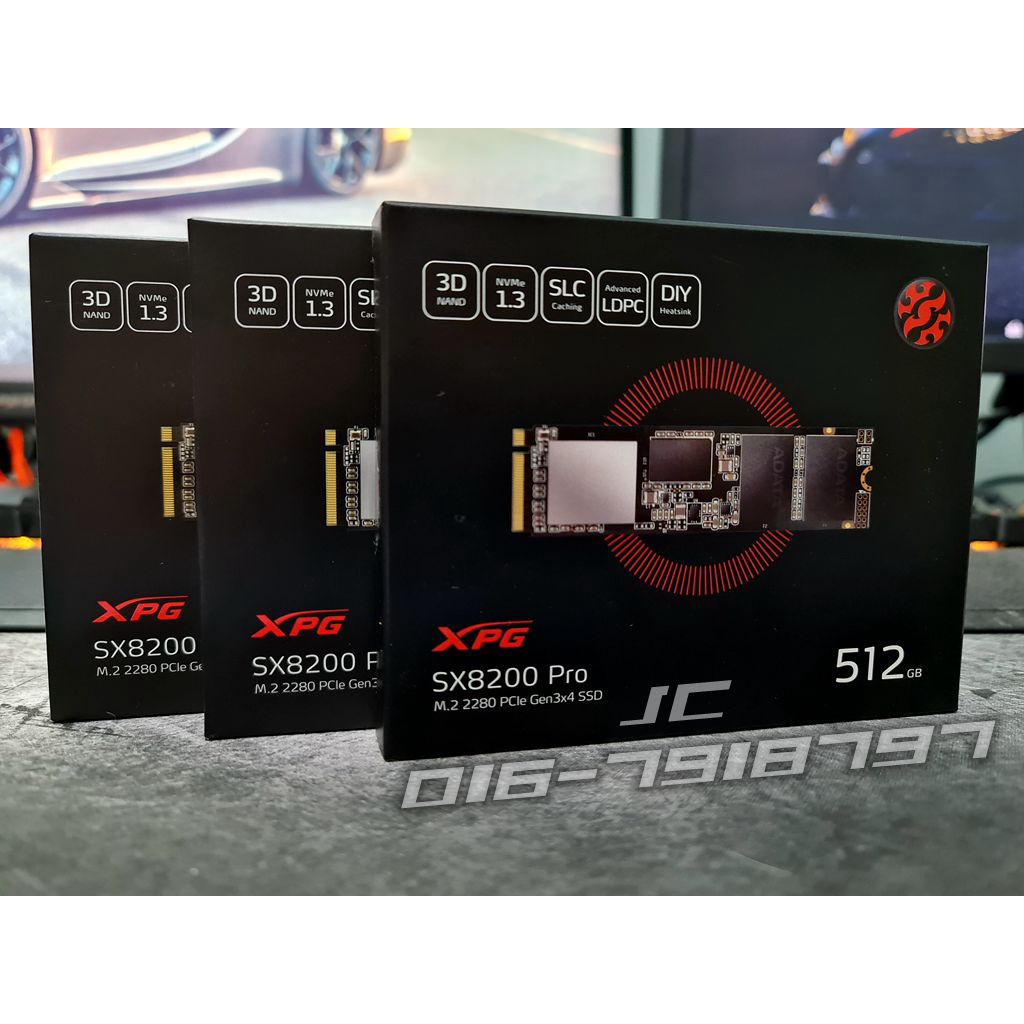

The XPG SX8200 Pro is a high-performance M.2 NVMe SSD featuring Silicon Motion's SM2262EN controller and 64-layer 3D TLC NAND. With impressive sequential speeds of 3500MB/s read and 3000MB/s write, plus 390K/380K IOPS random read/write, it delivers exceptional performance. The drive includes advanced features like LDPC ECC, SLC caching, and AES-256 encryption, while maintaining low power consumption at 4.1W active and 0.05W idle.
Specifications
Price
Shopee
RM299.00
18 products
YouBeli
RM299.00
3 products
PG Mall
RM529.00
1 product
Lazada
RM639.00
2 products
Specifications
Basic info
Brand
Adata XPG
Model
SX8200 Pro
Product name
XPG SX8200 Pro
Protocol
NVMe 1.3
Controller
Silicon Motion SM2262EN
Nand flash type
64-layer 3D TLC
Release date
2018-01-01
Interface
PCIe 3.0 x4
Form factor
M.2 2280
Environmental
Operating temperature max
70
Operating temperature unit
°C
Shock resistance
1500
Shock resistance unit
G
Storage temperature max
85
Storage temperature min
-40
Storage temperature unit
°C
Reliability
Endurance rating
0.3 DWPD
Mtbf
2000000
Mtbf unit
hours
Terabytes written
640
Terabytes written unit
TB
Warranty support
Warranty period
5 tahun
Warranty type
Terhad
Capacity
Available capacities
256GB, 512GB, 1TB, 2TB
Features
Additional features
LDPC ECC, End-to-End Data Protection, RAID Engine, SLC Caching, DRAM Cache Buffer
Dram cache
Yes
Encryption
AES-256
Smart monitoring
Yes
Trim support
Yes
Performance
Random read speed
390000
Random read speed unit
IOPS
Random write speed
380000
Random write speed unit
IOPS
Sequential read speed
3500
Sequential read speed unit
MB/s
Sequential write speed
3000
Sequential write speed unit
MB/s
Power
Active power
4.1
Active power unit
W
Idle power
0.05
Idle power unit
W
Compatibility
Supported platforms
Windows, Linux
Dimensions
Height
3.5
Height unit
mm
Length
80
Length unit
mm
Weight
8
Weight unit
g
Width
22
Width unit
mm
