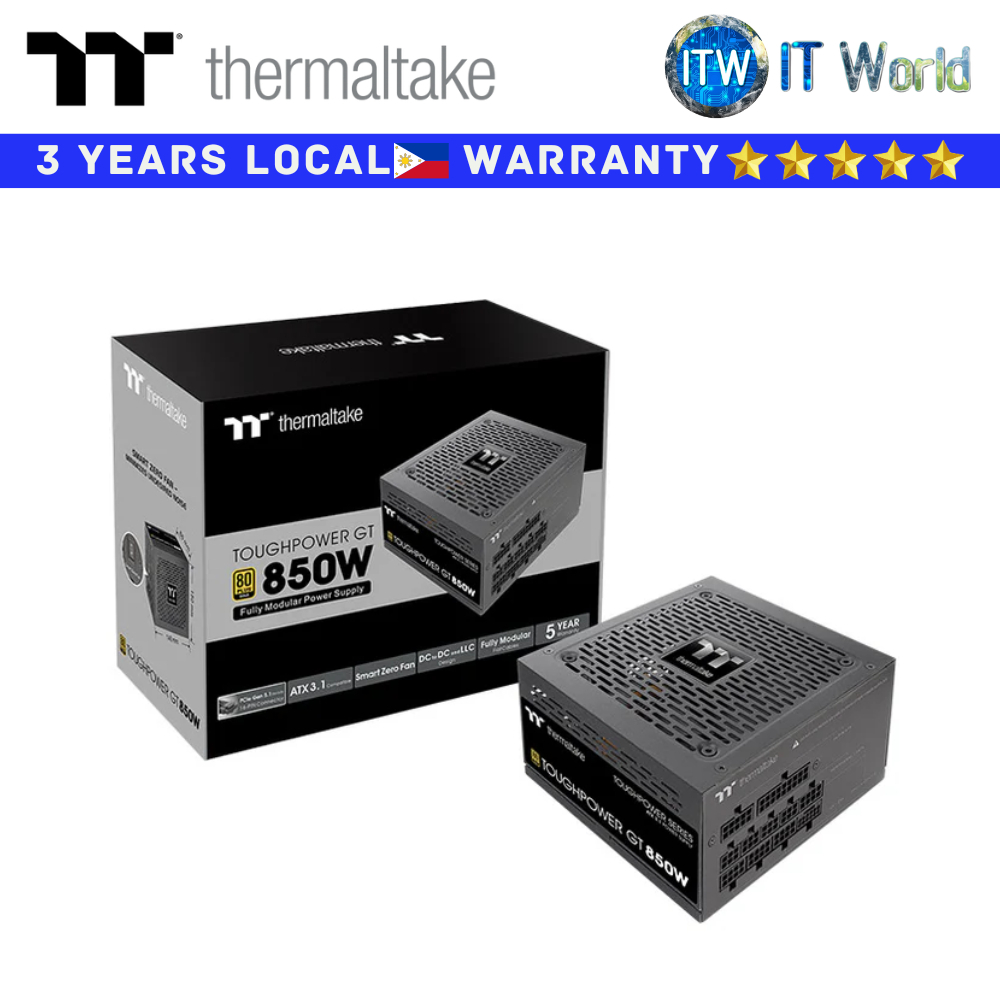

The Thermaltake Toughpower GT 850W is a high-performance ATX power supply featuring 80 PLUS Gold certification with 90% efficiency. This 850W unit boasts a smart zero fan mode with a 120mm hydraulic bearing fan for quiet operation. It offers comprehensive connectivity including a 24-pin motherboard connector, 4+4 PIN CPU, 4x PCI-E 6+2pin, and 1x PCIe 12+4pin ports. With flat black cables and multiple protection features, it operates reliably between 0°C to +40°C. The PSU delivers stable power across multiple rails with 3.3V, 5V, and 12V outputs.
Specifications
Price
Shopee
RM454.78
2 products
Specifications
Basic information
Brand
Thermaltake
Model
PS-TPT-0850FNFAGU-3
Product name
Toughpower GT 850W
Colour
Black
Release date
2024-10-29
Power output
850
Power output unit
W
Form factor
ATX
Connectors
Cable lengths
24Pin: 550mm, 4+4Pin: 700mm, PCIe 6+2Pin: 600mm+150mm, PCIe 12+4Pin: 600mm, SATA: 450mm+150mm+150mm, Peripheral: 400mm+150mm+150mm+150mm
Cable type
Flat Black
CPU
4+4 PIN
Motherboard
24-pin (20+4)
PCIe
4x PCI-E 6+2pin, 1x PCIe 12+4pin
Peripheral
1x Peripheral (4Pin)
SATA
2x SATA (5Pin)
Environmental
Humidity range
5% to 85%, non-condensing
Operating temperature
0°C to +40°C
Storage temperature
-40°C to +70°C
Warranty support
Warranty period
5 years
Certifications
Efficiency
80 PLUS Gold
Safety
CE, UKCA, ICES, TUV, LVD, RCM, CB, FCC, cTUVus, BSMI, CCC, BIS, S-MARK
Performance
Efficiency percentage
90%
Efficiency rating
80 PLUS Gold
MTBF
100000
MTBF unit
hours
Power factor correction
Active
Cooling
Fan bearing
Hydraulic
Fan size
120
Fan size unit
mm
Fan type
Hydraulic Bearing
Operation mode
Smart Zero Fan
Electrical specifications
Input
Current
10
Frequency range
50/60Hz
Current unit
A
Voltage range
100–240V
Output
Total power unit
W
Total power
850
Maximum currents
12A
70.8
5A
20
12A negative
0.3
3.3A
20
5A standby
3
Voltages
12V negative
-12
12V
12
3.3V
3.3
5V standby
5
5V
5
Protection features
Overcurrent
Yes
Overpower
Yes
Overtemperature
Yes
Overvoltage
Yes
Short circuit
Yes
Undervoltage
Yes
Dimensions
Depth
140
Depth unit
mm
Height
86
Height unit
mm
Width
150
Width unit
mm
