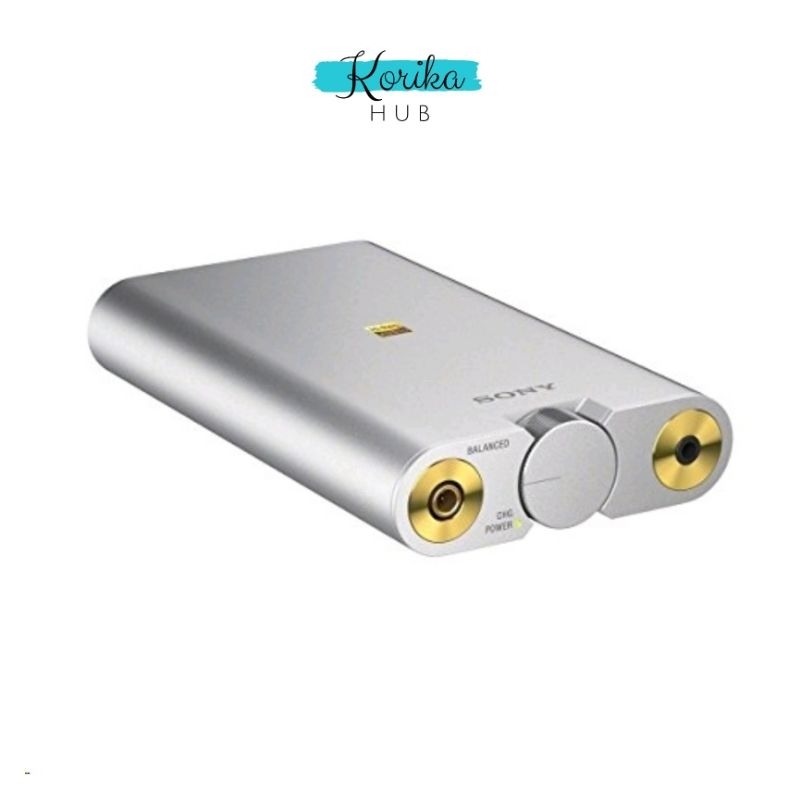

The Sony PHA-1 is a versatile headphone amplifier/DAC featuring both analog and digital inputs. This compact device weighs 145g and delivers impressive power output of 148mW per channel at 8Ξ©. With support for high-resolution audio up to 24bit/192kHz PCM, it's compatible with PC/MAC and Apple devices. The built-in lithium-ion battery offers 6 hours of playback with 2-hour charging time. Its rotary volume control and wide 8-600Ξ© headphone impedance range ensure precise audio adjustment.
Specifications
Price
Specifications
Basic information
Brand
Sony
Model
PHA-1
Product type
Headphone Amplifier/DAC
Input specifications
Analogue inputs
Mini jack
1
Digital inputs
USB
Connector type
Micro B, Type A
Supported
Yes
Power specifications
Battery
Charging time unit
hours
Charging time
2
Operating time
6
Capacity unit
mAh
Operating time unit
hours
Capacity
1260
Power supply
Type
Built-in lithium-ion rechargeable battery
Features
Volume control
Rotary
Included accessories
Digital cable for WALKMAN, Digital cable for Xperia, Micro-USB cable, Silicone belts, Protection sheet
Audio performance
Frequency response
Range
10-100kHz
Physical specifications
Dimensions
Depth unit
mm
Depth
109
Height unit
mm
Width
62
Width unit
mm
Height
18.5
Weight
Unit
g
Value
145
Audio format support
PCM
Sampling rates
192kHz
Bit depth
24bit
Output specifications
Headphone outputs
Single ended
Power output
148mW + 148mW (8Ξ©), 80mW + 80mW (32Ξ©), 16.4mW + 16.4mW (300Ξ©)
Connector type
Stereo mini jack
Impedance
8
Impedance unit
ohms
Compatibility
Recommended headphone impedance
Unit
ohms
Minimum
8
Maximum
600
Supported devices
PC/MAC, Apple devices (iPod)
