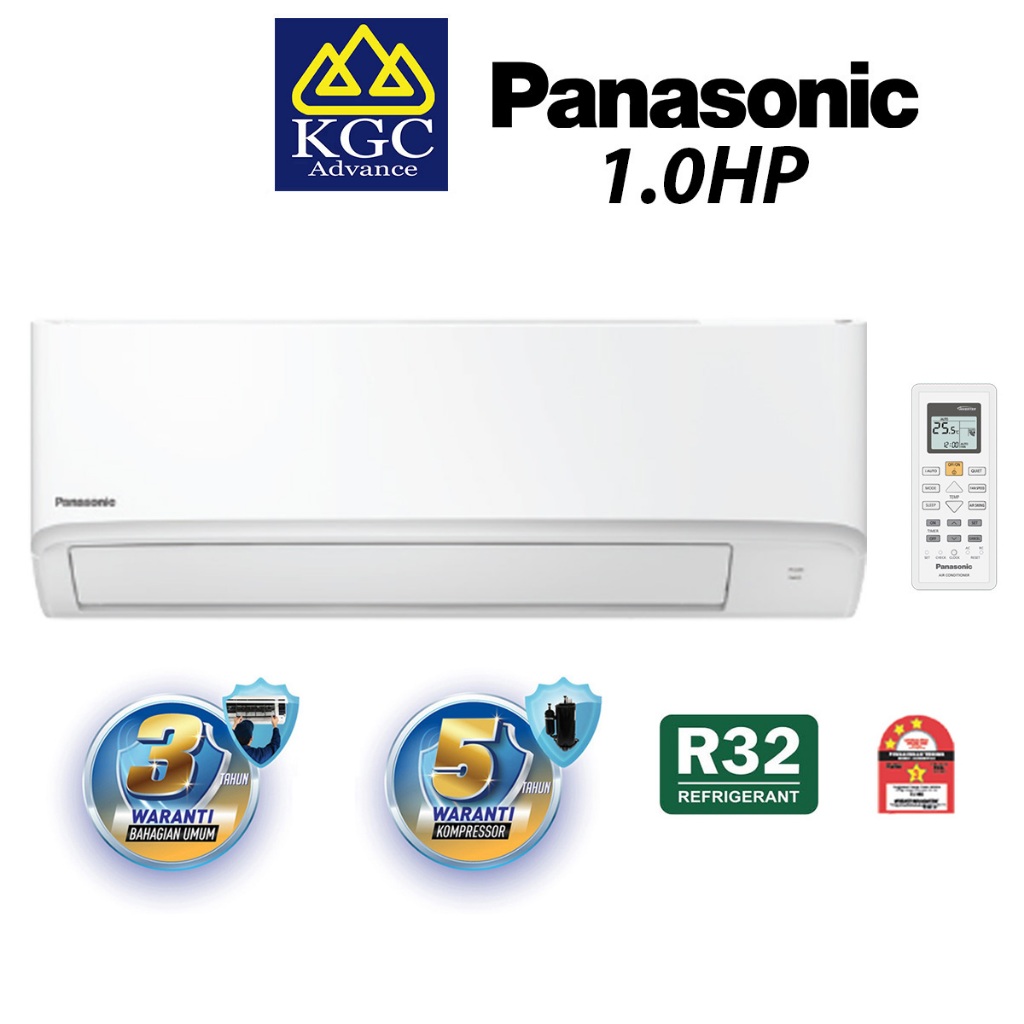

The Panasonic CS-PN12WKH-1 is a non-inverter wall-mounted air conditioner from the PN Series, delivering 3.52kW cooling capacity with 3.43 CSPF rating. Features include dual air swing, POWERFUL mode, and quiet operation (29-41 dB-A). Equipped with R32 refrigerant, blue fin condenser, and filtration system with odor removal. Supports multiple modes including cooling and dehumidification (2L/h), with convenient LCD remote control and 24-hour timer.
Specifications
Price
RM1,399.00
7 products
Lazada
RM1,705.00
4 products
Specifications
Basic information
Brand
Panasonic
Application
Penyejukan
Series
PN Series
Type
Non-Inverter
Features
Air flow control
Horizontal swing
Yes
Vertical swing
Yes
Filtration system
Odour-Removing Function, Removable, Washable Panel
Operation modes
Penyejukan, Penyahlembapan, Pemvakuman
Protection features
Blue Fin Condenser, Top-Panel Maintenance Access
Smart features
24-Hour ON/OFF Real Setting Timer, LCD Wireless Remote Control, Random Auto Restart (32 Restart Patterns)
Special functions
POWERFUL Mode, SLEEP Mode, Quiet Mode, Soft Dry Operation Mode
Technical parameters
Airflow
Maximum air flow rate
11.6
Noise level
High
41
Unit
dB-A
Low
29
Air flow rate unit
m³/min
Electrical
Power supply
230V
Piping
Maximum height difference
15
Liquid pipe diameter
6.35
Gas pipe diameter
9.52
Pipe diameter unit
mm
Additional refrigerant charge
10
Maximum pipe length
20
Length unit
m
Refrigerant
Type
R32
Installation
Mounting type
Dinding
Warranty
Coverage type
Umum
Duration
1
Duration unit
tahun
Performance specifications
Cooling
Unit
kW
Capacity range
Minimum
3.52
Maximum
3.52
Power consumption
1.07
Rated capacity
3.52
Dehumidification
Unit
l/h
Capacity
2
Energy efficiency
Energy efficiency rating
3
Cooling seasonal performance factor
3.43
