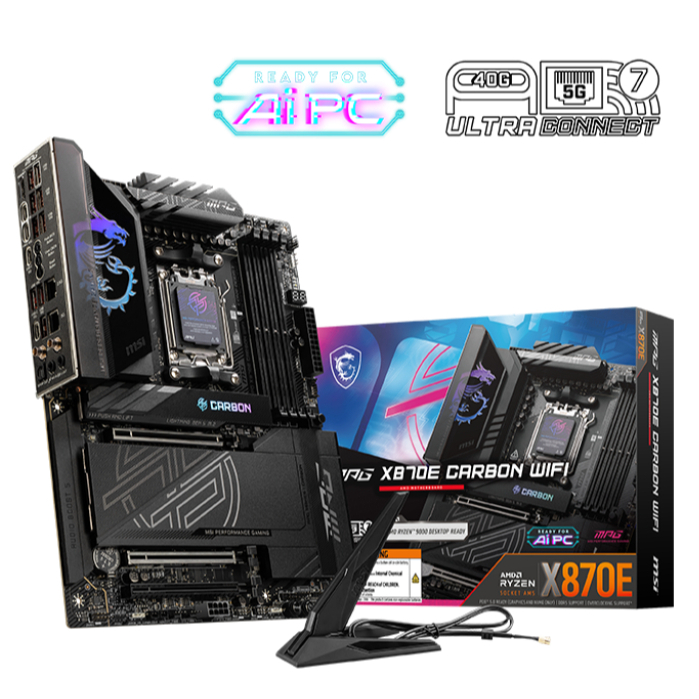

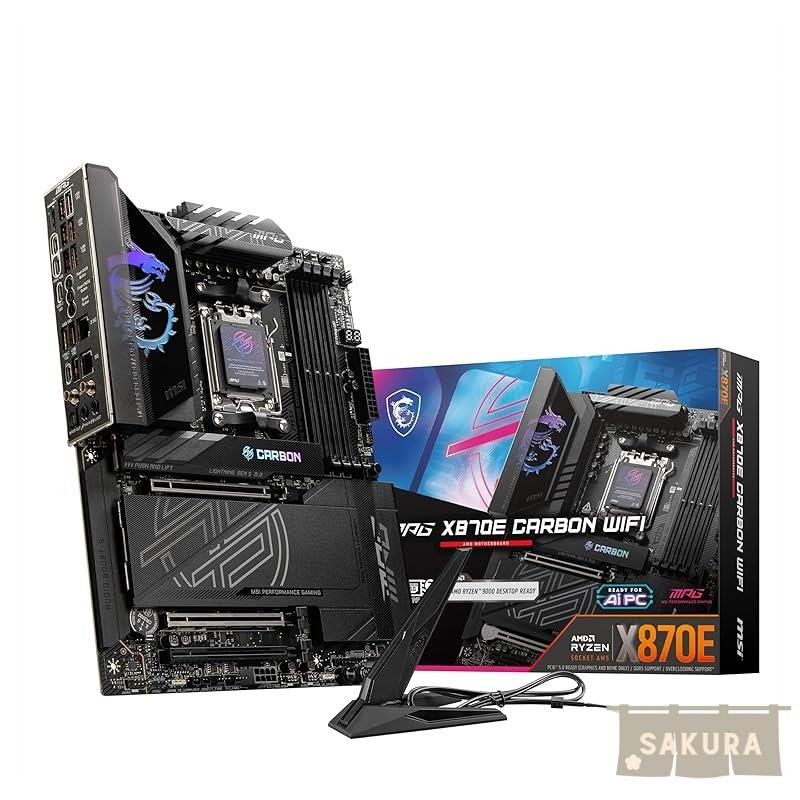

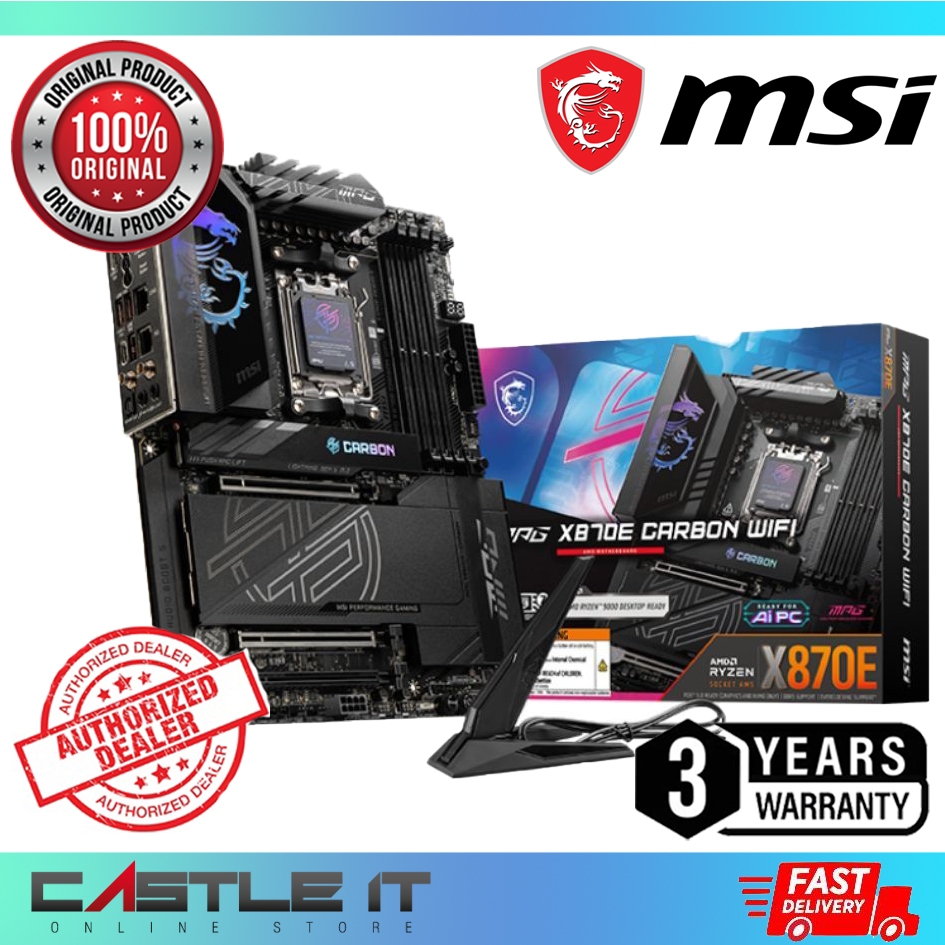

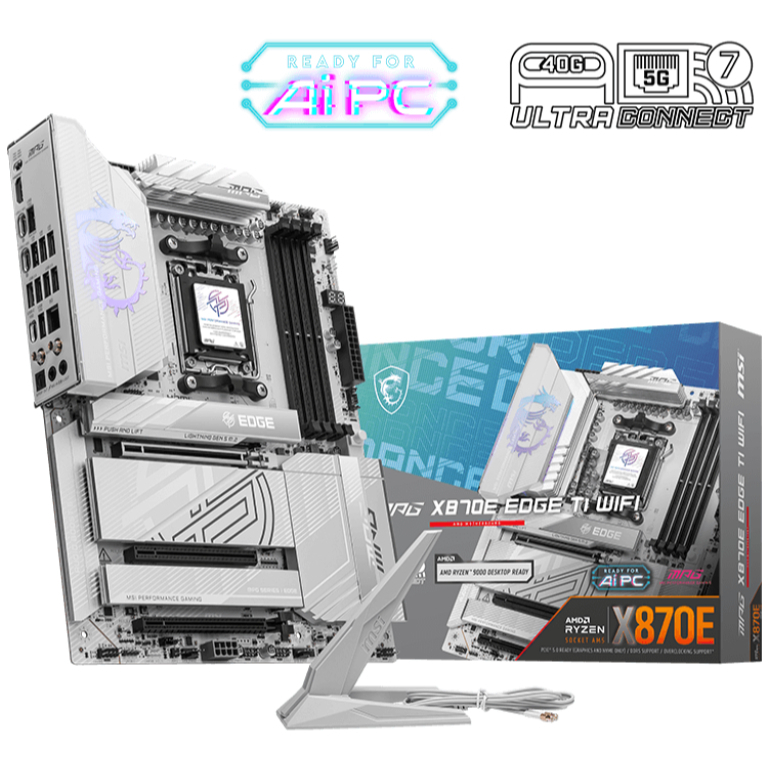

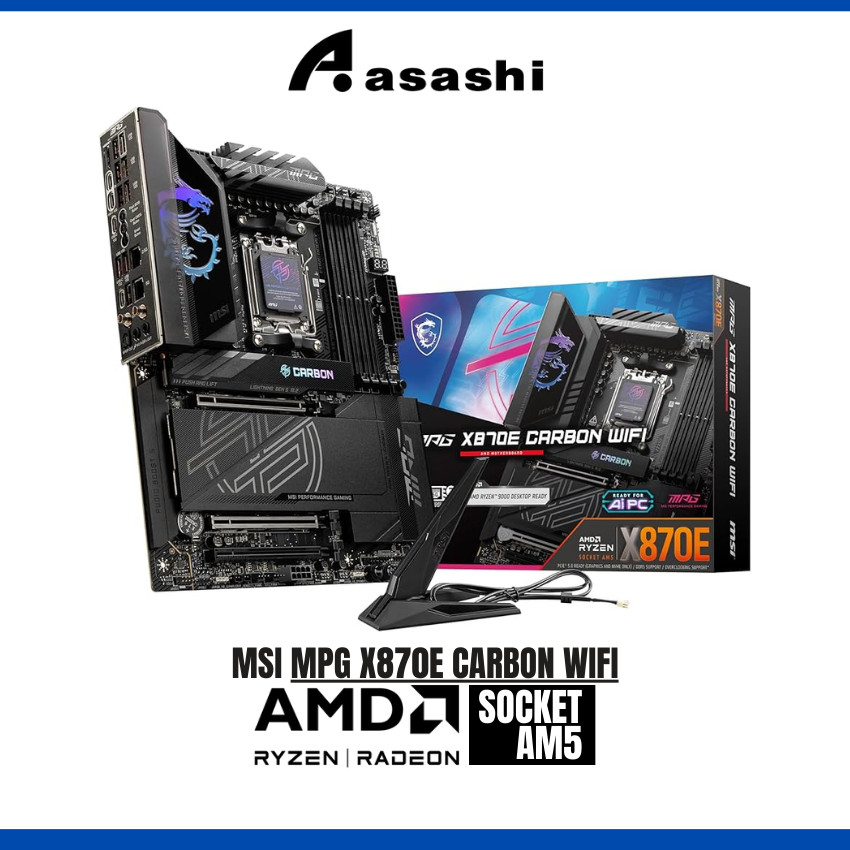

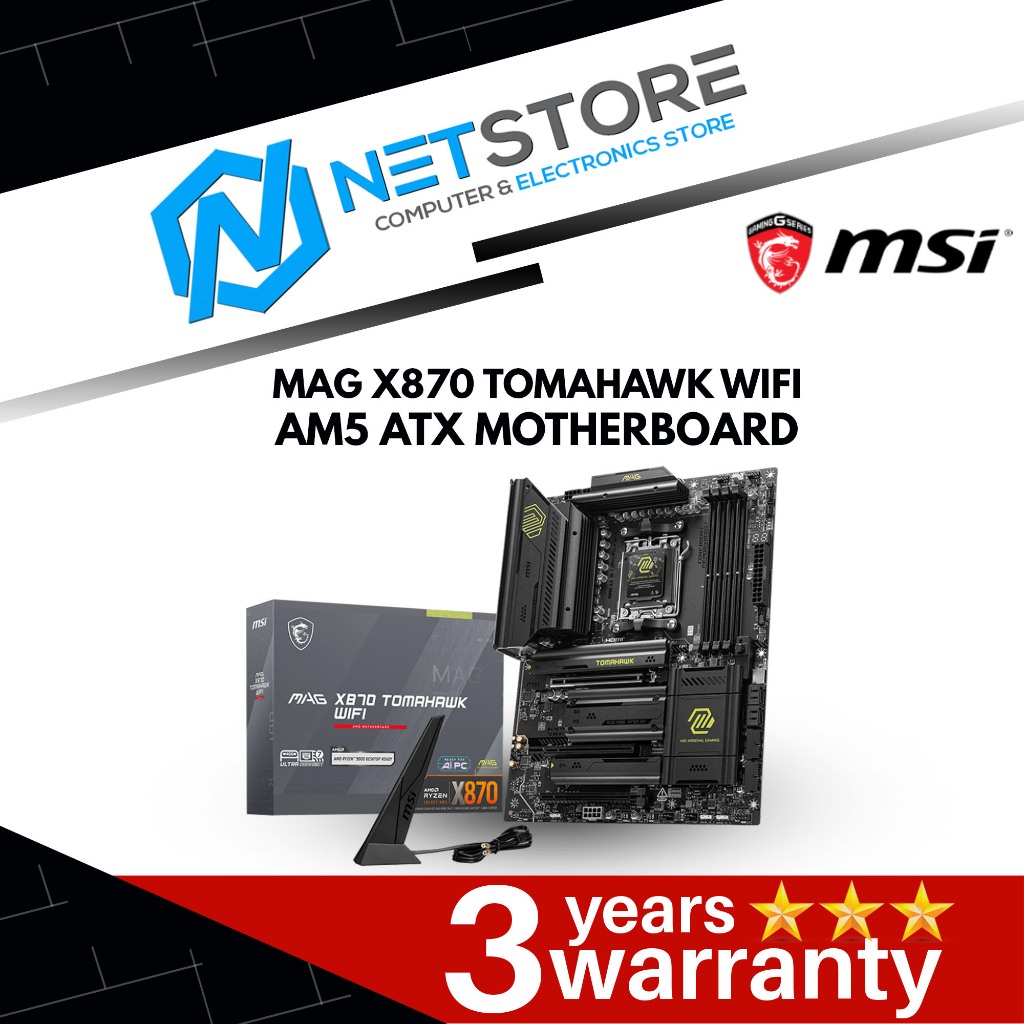

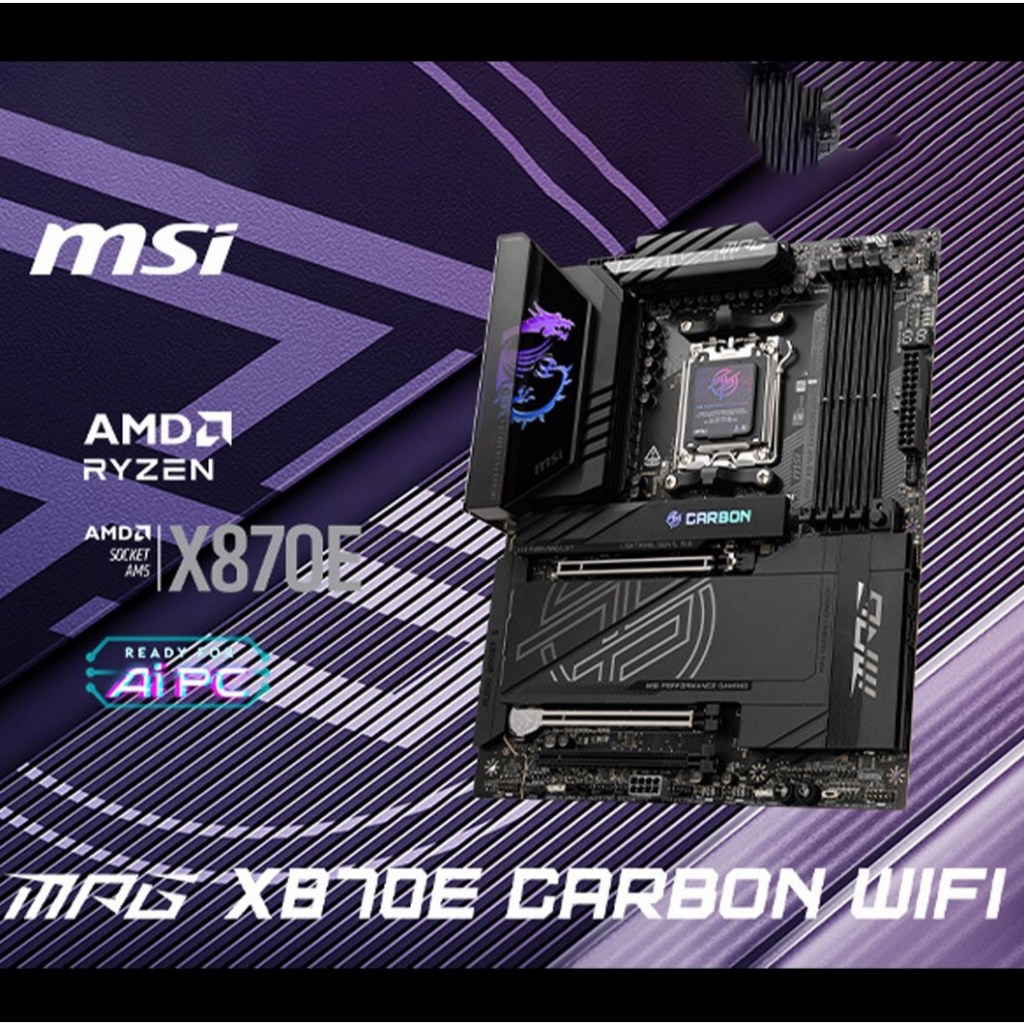

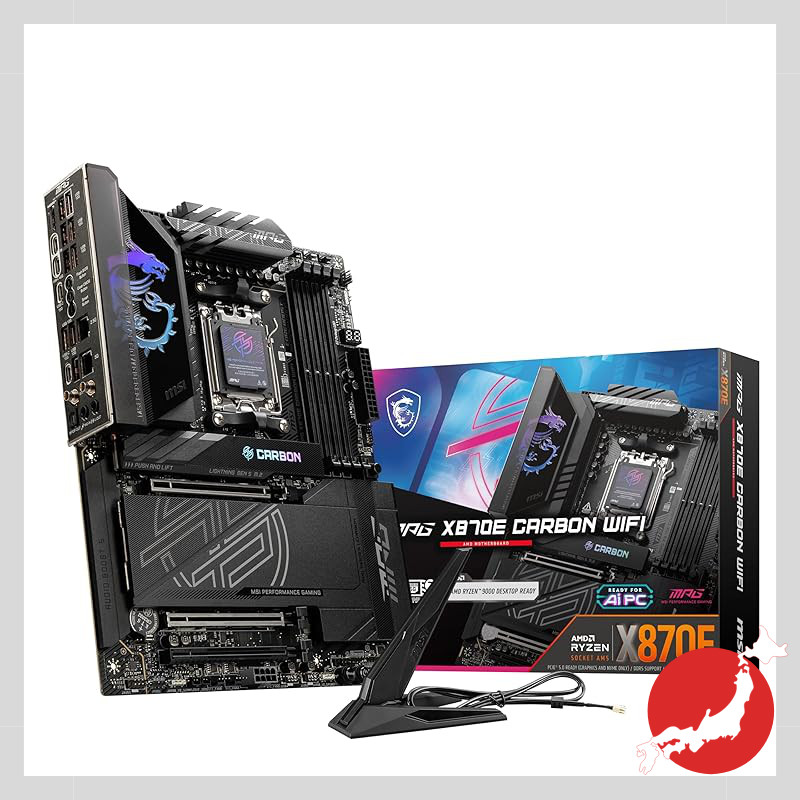

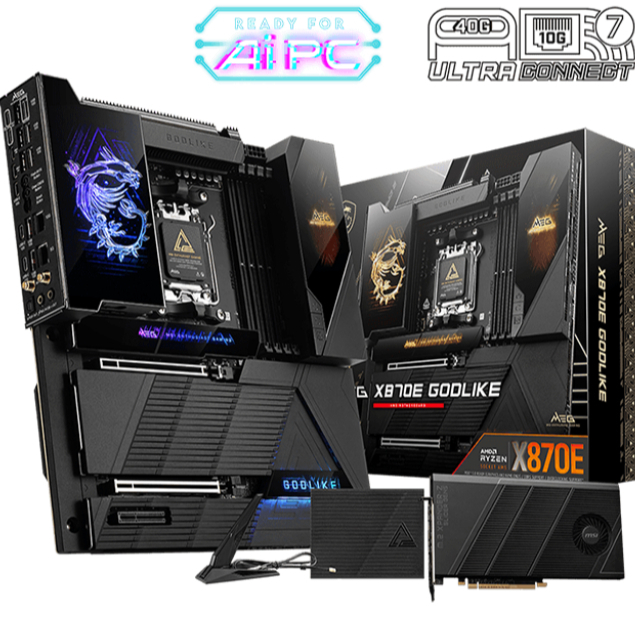

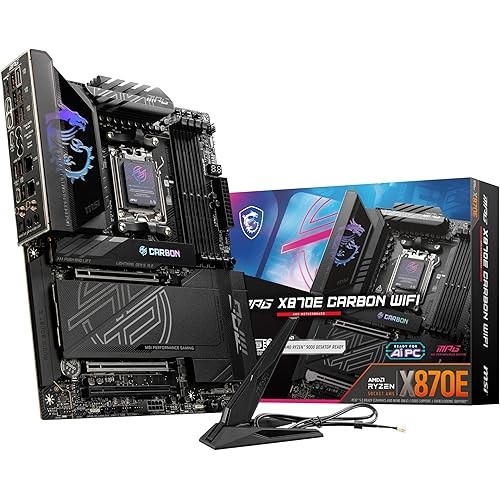

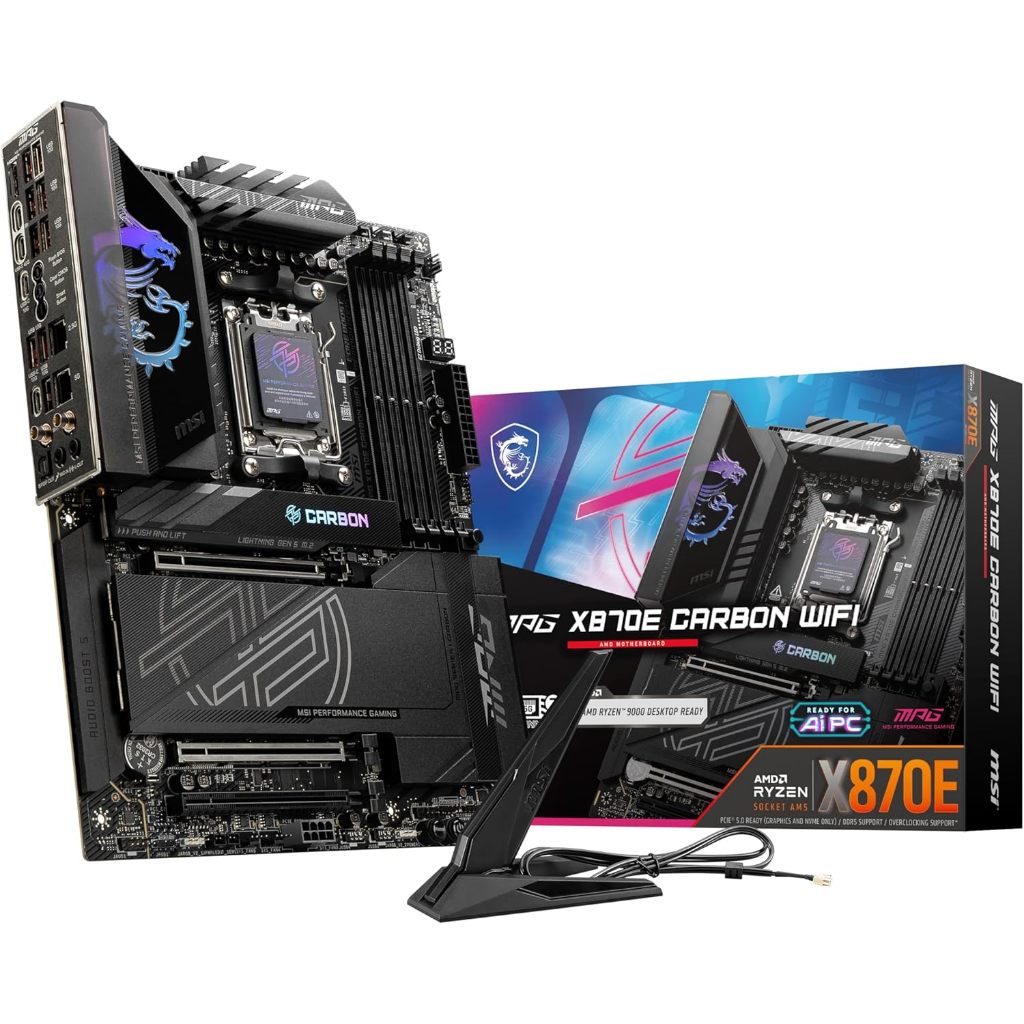

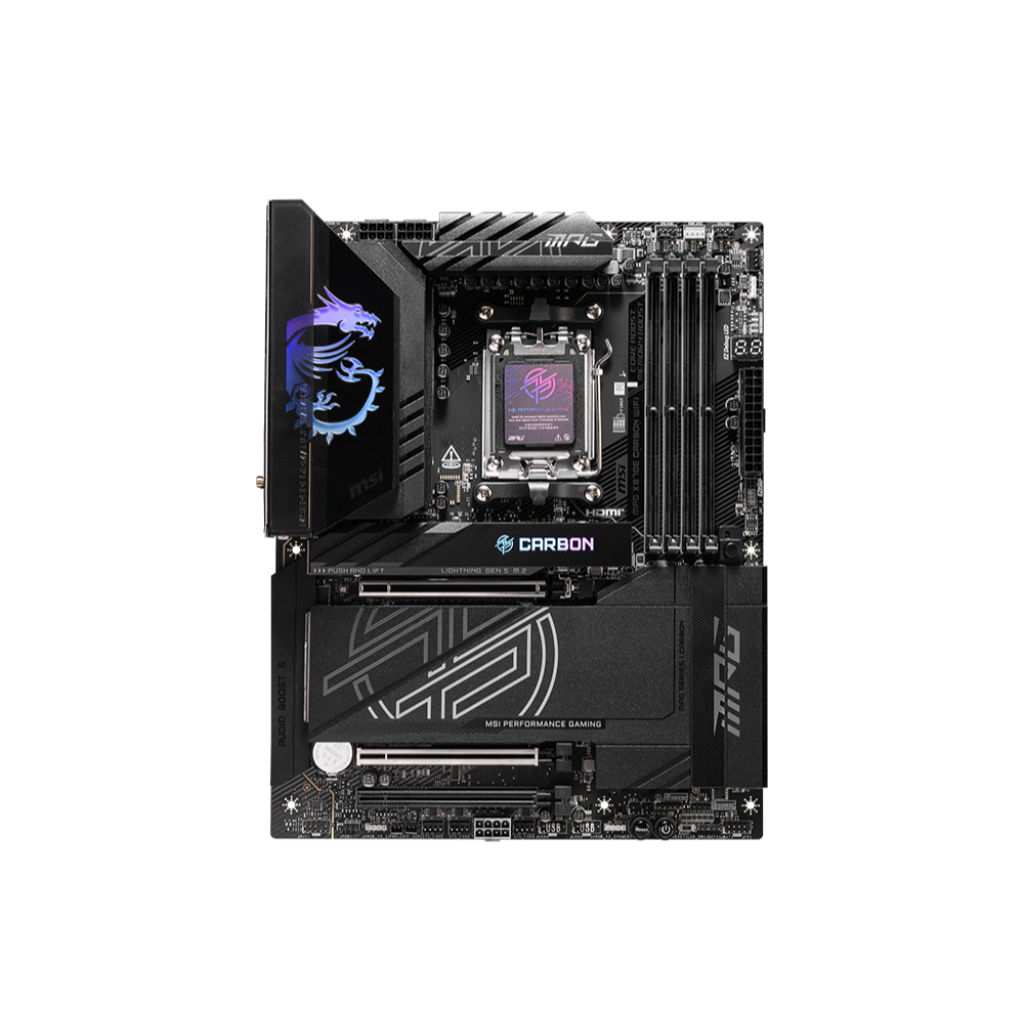

The MSI X870(E) is a high-performance ATX motherboard featuring AMD's AM5 socket, supporting Ryzen 7000-9000 series processors. It offers exceptional memory capabilities with 4 DDR5 slots supporting up to 256GB at 8400MT/s. The board excels in connectivity with 4 PCIe 5.0 x4 M.2 slots, 5G LAN, Wi-Fi 7, and extensive USB options including USB4. Features 18+2+1 power phases, advanced cooling with multiple heatsinks, and premium audio via Realtek ALC4080.
Specifications
Price
RM1,043.50
32 products
News
Specifications
Basic information
Brand
MSI
Model
X870(E)
Release date
2024-07-01
Socket type
AM5
Supported processors
AMD Ryzen™ 9000 Series, AMD Ryzen™ 8000 Series, AMD Ryzen™ 7000 Series
Chipset
AMD X870/X870E
Form factor
ATX
Memory
Max memory capacity
256
Max memory capacity unit
GB
Memory channels
Dual-Channel
Memory slots
4
Memory speed
8400
Memory speed unit
MT/s
Memory type
DDR5
Xmp support
AMD EXPO™
Environmental
Operating humidity
Unit
%
Min
10
Max
90
Operating temperature
Unit
°C
Max
60
Expansion slots
M2 slots
[{'quantity': 4, 'interface': 'PCIe 5.0 x4', 'max_speed': '128 Gb/s'}]
Pcie slots
[{'type': 'PCIe 5.0 x16', 'quantity': 1, 'speed': '32 GT/s'}, {'type': 'PCIe 4.0 x4', 'quantity': 1, 'speed': '16 GT/s'}, {'type': 'PCIe 3.0 x1', 'quantity': 1, 'speed': '8 GT/s'}]
Warranty support
Warranty period
3
Warranty period unit
years
Warranty type
Limited
Storage
Sata ports
6
Sata speed
6 Gb/s
Features
Bios features
Click BIOS X, Ultra Engine
Debug features
EZ Debug LED, BIOS Flash Button
Rgb headers
2
Rgb support
Yes
Connectivity
Networking
Ethernet
5G LAN
Wifi
Wi-Fi 7
Bluetooth
5.4
Usb ports
[{'type': 'USB4 Type-C', 'quantity': 2, 'speed': '40 Gbps'}, {'type': 'USB 3.2 Gen2x2 Type-C', 'quantity': 1, 'speed': '20 Gbps'}, {'type': 'USB 3.2 Gen2 Type-A', 'quantity': 5, 'speed': '10 Gbps'}, {'type': 'USB 2.0', 'quantity': 4, 'speed': '480 Mbps'}]
Video outputs
Hdmi
1
Displayport
1
Physical specs
Length
30.5
Length unit
cm
Width
24.4
Width unit
cm
Cooling
Fan headers
6
Heatsinks
Extended heatsink design, Double-sided M.2 Shield Frozr, Wavy Fin Design
Pump headers
1
Audio
Channels
7.1
Codec
Realtek® ALC4080
Features
32-Bit/384 kHz
Power system
Power connectors
[{'type': '24-pin ATX', 'quantity': 1}, {'type': '8-pin 12V', 'quantity': 2}]
Power phases
18+2+1
Vrm solution
Duet Rail Power System
