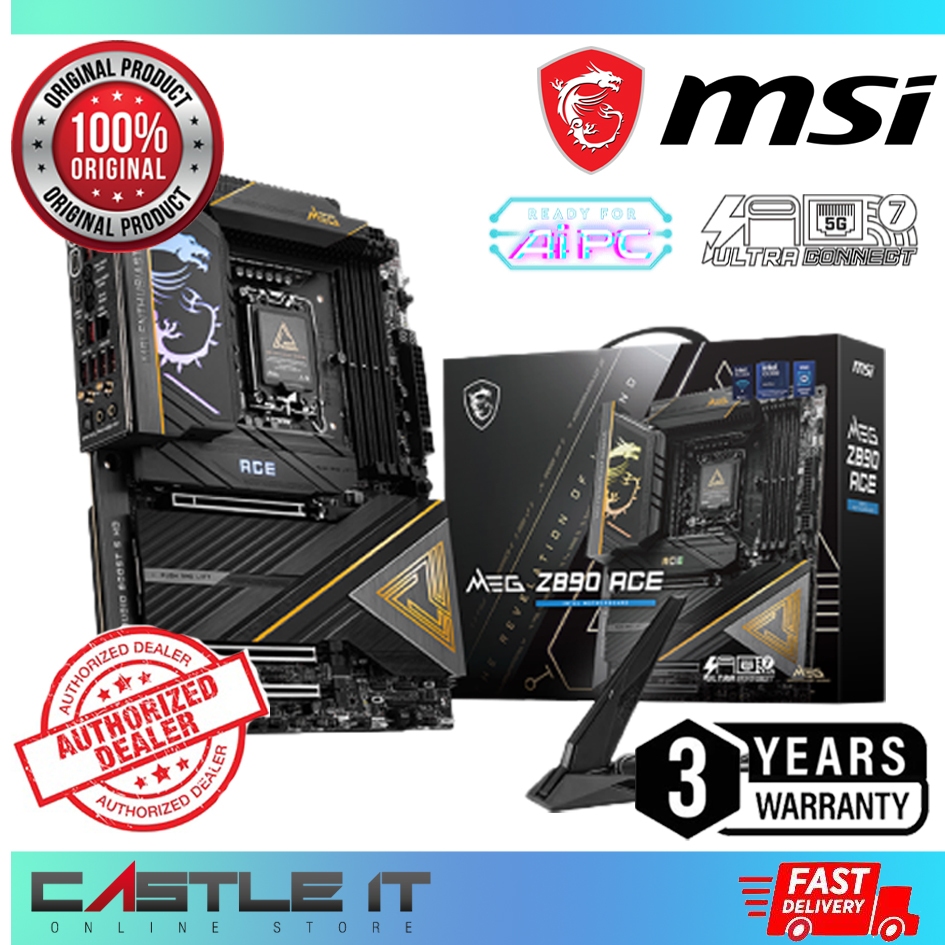

The MSI MEG Z890 Ace is a high-end ATX motherboard supporting Intel Core Ultra 200S processors with LGA 1851 socket. Features 256GB max DDR5 memory support at up to 9200MHz across 4 slots. Offers extensive connectivity with 5 PCIe 5.0/4.0 M.2 slots, 10Gbps ethernet, Wi-Fi 7, and multiple USB ports including Thunderbolt 4. Premium audio solution with Realtek ALC4082 + ESS ES9219Q, and robust 24+1+2+1 power delivery system.
Specifications
Price
Shopee
RM2,460.00
7 products(3 items sold out)
Specifications
Basic information
Brand
MSI
Model
MEG Z890 ACE
Socket type
LGA 1851
Supported processors
Intel Core Ultra 200S series
Chipset
Intel Z890
Form factor
ATX
Memory
Max memory capacity
256
Max memory capacity unit
GB
Memory channels
Dual Channel
Memory slots
4
Memory speed
9200
Memory speed unit
MHz
Memory type
DDR5
Xmp support
Ya
Expansion slots
M2 slots
[{'quantity': 5, 'interface': 'PCIe 5.0/4.0', 'max_speed': 'Gen5 x4'}]
Pcie slots
[{'type': 'PCIe 5.0 x16', 'quantity': 1, 'speed': 'Gen5 x16'}, {'type': 'PCIe 5.0 x8', 'quantity': 1, 'speed': 'Gen5 x8'}, {'type': 'PCIe 4.0 x4', 'quantity': 1, 'speed': 'Gen4 x4'}]
Storage
Sata ports
4
Sata speed
6Gbps
Features
Bios features
MSI Click BIOS X, EZ Mode
Debug features
EZ Debug LEDs, Dual BIOS
Rgb headers
4
Rgb support
Yes
Connectivity
Networking
Ethernet
10Gbps
Wifi
Intel Killer Wi-Fi 7
Bluetooth
5.4
Usb ports
[{'type': 'Thunderbolt 4', 'quantity': 2, 'speed': '40Gbps'}, {'type': 'USB 3.2 Gen2x2', 'quantity': 2, 'speed': '20Gbps'}, {'type': 'USB 3.2 Gen2x1', 'quantity': 11, 'speed': '10Gbps'}]
Video outputs
Hdmi
1
Displayport
1
Physical specs
Length
30.4
Length unit
cm
Width
24.3
Width unit
cm
Cooling
Fan headers
3
Heatsinks
VRM heatsink with heat pipes, M.2 Shield Frozr
Pump headers
1
Audio
Channels
7.1
Codec
Realtek ALC4082 + ESS ES9219Q
Features
Isolated audio PCB, 384KHz/32-bit
Power system
Power connectors
[{'type': 'ATX 24-pin', 'quantity': 1}, {'type': 'EPS 8-pin', 'quantity': 1}, {'type': 'PCIe 6-pin', 'quantity': 1}]
Power phases
24+1+2+1
Vrm solution
Renesas RAA229131 + RAA229134
