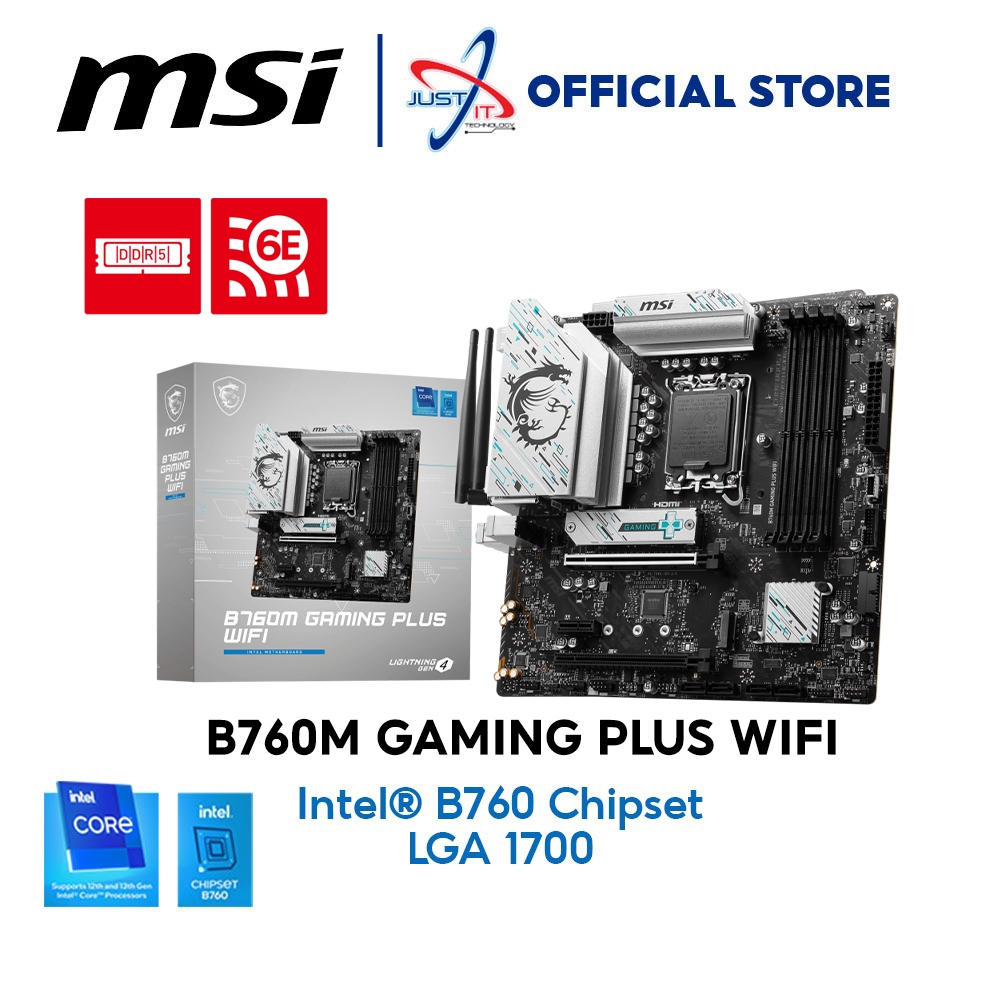

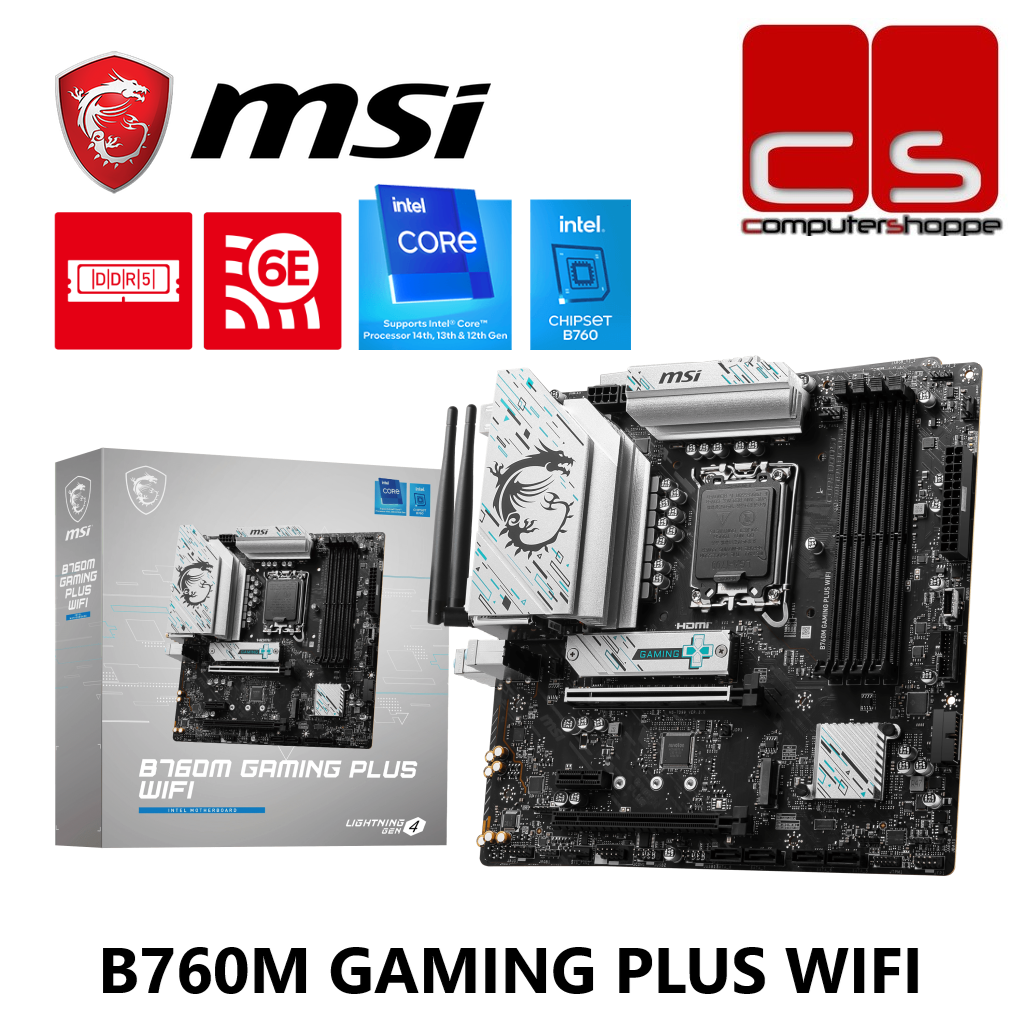

The MSI B760 Gaming Plus WiFi is a feature-rich ATX motherboard supporting Intel's 12th-14th Gen processors. It offers robust memory support with 4 DDR5 slots capable of 6800MHz speeds and 192GB capacity. The board features comprehensive connectivity including WiFi 6E, Bluetooth 5.3, and 2.5G LAN. With multiple PCIe 4.0 slots, dual M.2 storage, and 12+1 power phases, it's ideal for gaming builds.
Specifications
Price
Specifications
Basic information
Brand
MSI
Model
B760 Gaming Plus WiFi
Socket type
LGA 1700
Supported processors
Intel Core 14th Gen, Intel Core 13th Gen, Intel Core 12th Gen, Intel Pentium Gold, Intel Celeron
Chipset
Intel B760
Form factor
ATX
Memory
Max memory capacity
192
Max memory capacity unit
GB
Memory channels
Dual-channel
Memory slots
4
Memory speed
6800
Memory speed unit
MHz
Memory type
DDR5
Xmp support
Intel XMP 3.0 OC
Expansion slots
M2 slots
2 PCIe 4.0 x4 64 Gbps
Pcie slots
PCIe 4.0 x16 1 16 GT/s / PCIe 3.0 x1 3 8 GT/s / PCIe 4.0 x4 1 16 GT/s
Storage
Sata ports
4
Sata speed
6 Gbps
Features
Debug features
TPM 2.0 header
Rgb headers
3
Rgb support
Yes
Connectivity
Networking
Ethernet
2.5G LAN
Wifi
Wi-Fi 6E
Bluetooth
5.3
Usb ports
USB 3.2 Gen 2 Type-A 2 10 Gbps / USB 3.2 Gen 2 Type-C 1 10 Gbps / USB 2.0 4 480 Mbps
Video outputs
Hdmi
1
Displayport
1
Physical specs
Length
304.8
Length unit
mm
Width
243.84
Width unit
mm
Cooling
Fan headers
7
Heatsinks
Extended heatsink, M.2 Shield Frozr
Pump headers
1
Audio
Channels
7.1
Codec
Realtek ALC897
Features
Audio Boost, S/PDIF output
Power system
Power connectors
8-pin 1 / 4-pin 1
Power phases
12+1
Vrm solution
Duet Rail Power System
